LED Indicator Lights Front and Rear + Rear Brake Light with Position Lighting, Set of 5, Smoked, for Yamaha TMAX 530 2012–2016
You already have the maximum available quantity in your cart.

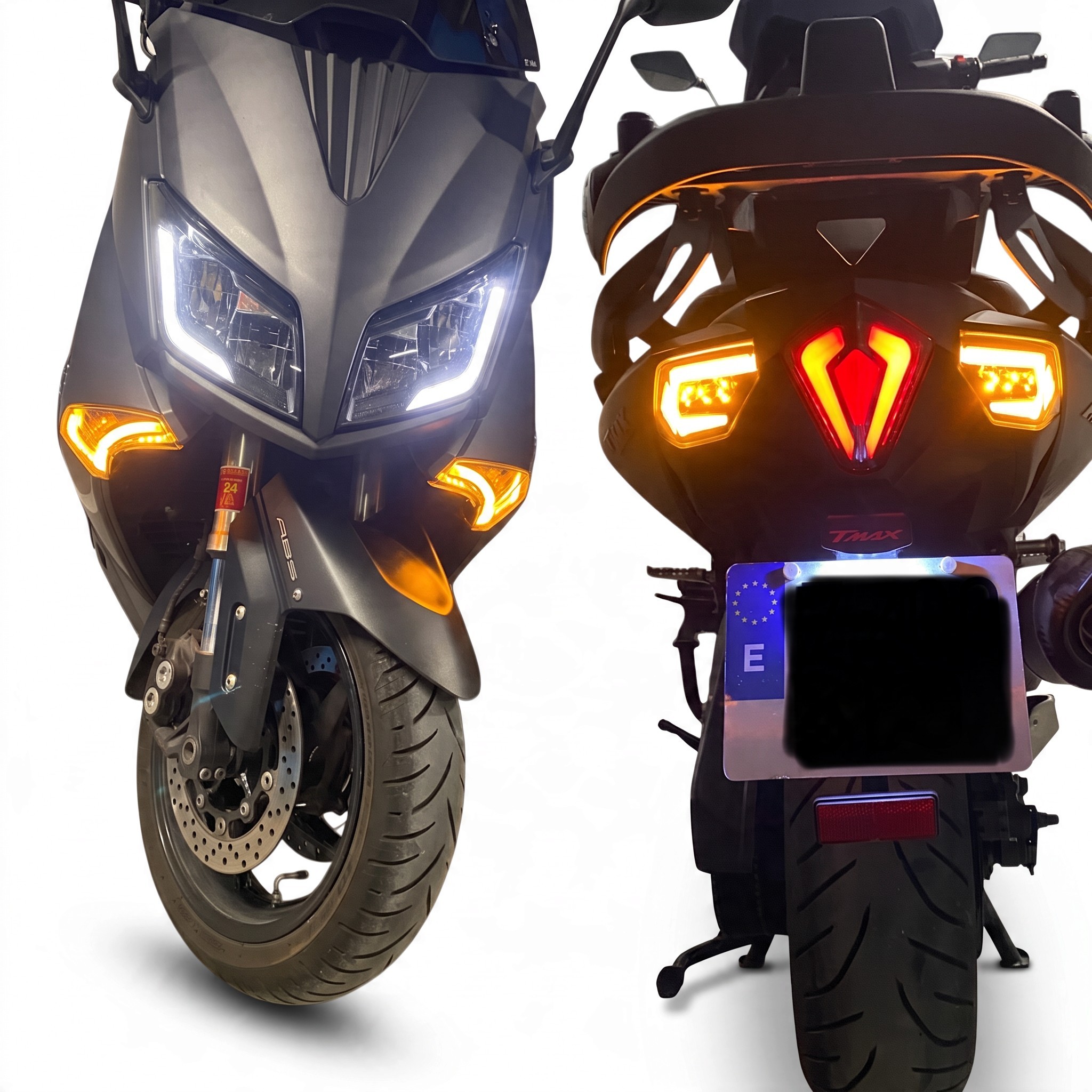

The LED indicator light set is designed for the maxi scooter Yamaha TMAX 530 manufactured from 2012–2016 and replaces the original front indicators, rear indicators, and central rear light in one package. All units feature smoked cover designs, giving both the front and rear of the scooter a darker and more unified appearance, even when switched off. The front indicator lights combine a yellow indicator with a white position light, while the rear indicator lights feature an integrated red brake light in addition to the indicator. The central rear light with diamond-shaped LED strips serves as both a brake and position light, complementing the side rear units. The lights are mounted into the original mounts on the bodywork and connect to the scooter's wiring using the supplied cables with connectors.
Main features:
- Compatibility: Yamaha TMAX 530, models 2012–2016
- Installation: into original mounts without the need for bodywork modifications
- Design: left and right lights are mirror-shaped for precise fitting
- Front indicator lights: 10 LEDs, yellow indicator and white position light in one unit
- Rear indicator lights: 6 LEDs, yellow indicator and red brake light in one unit

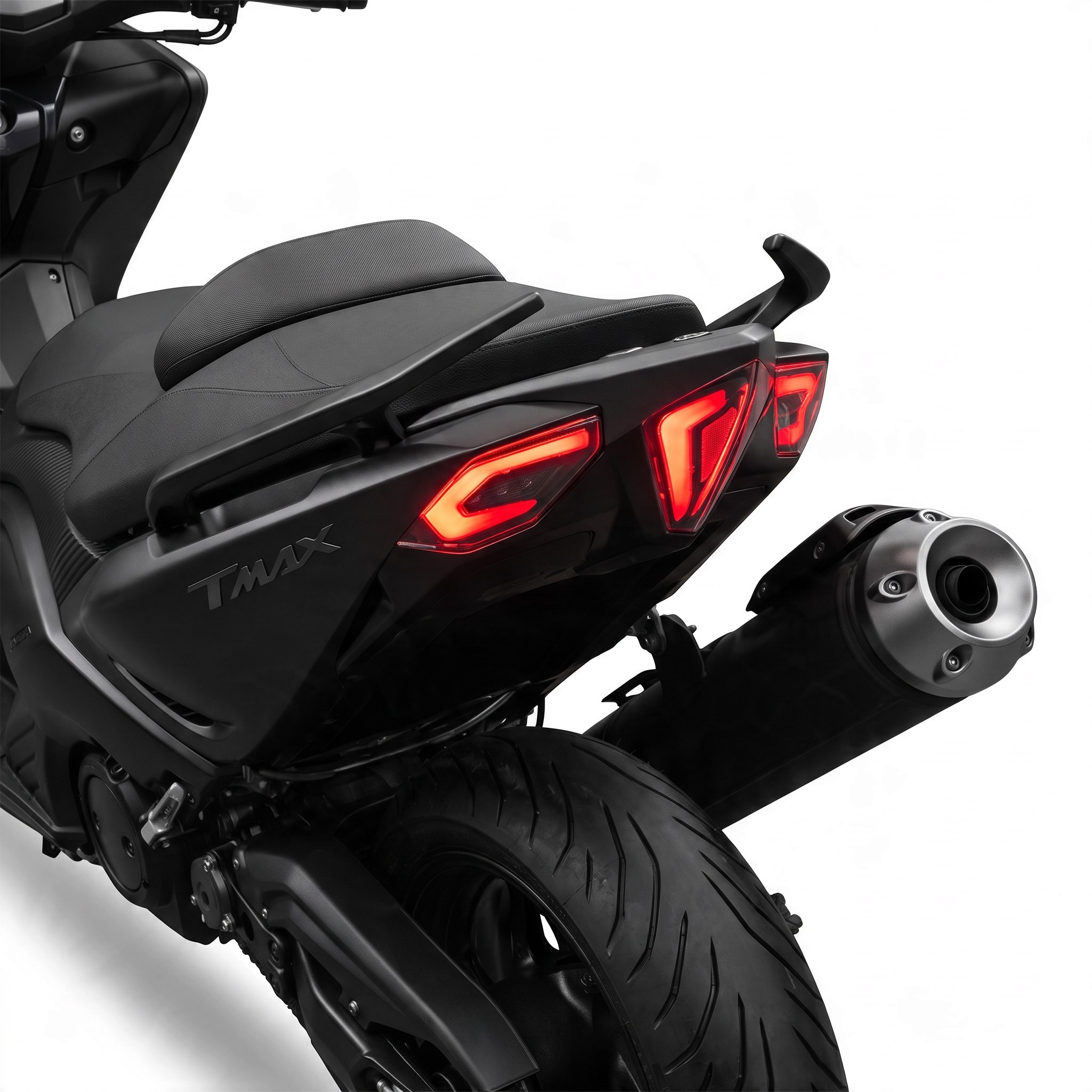

- Rear light: red brake and position light with diamond-shaped LED strip
- Technology: LED
- Cover colour: smoked

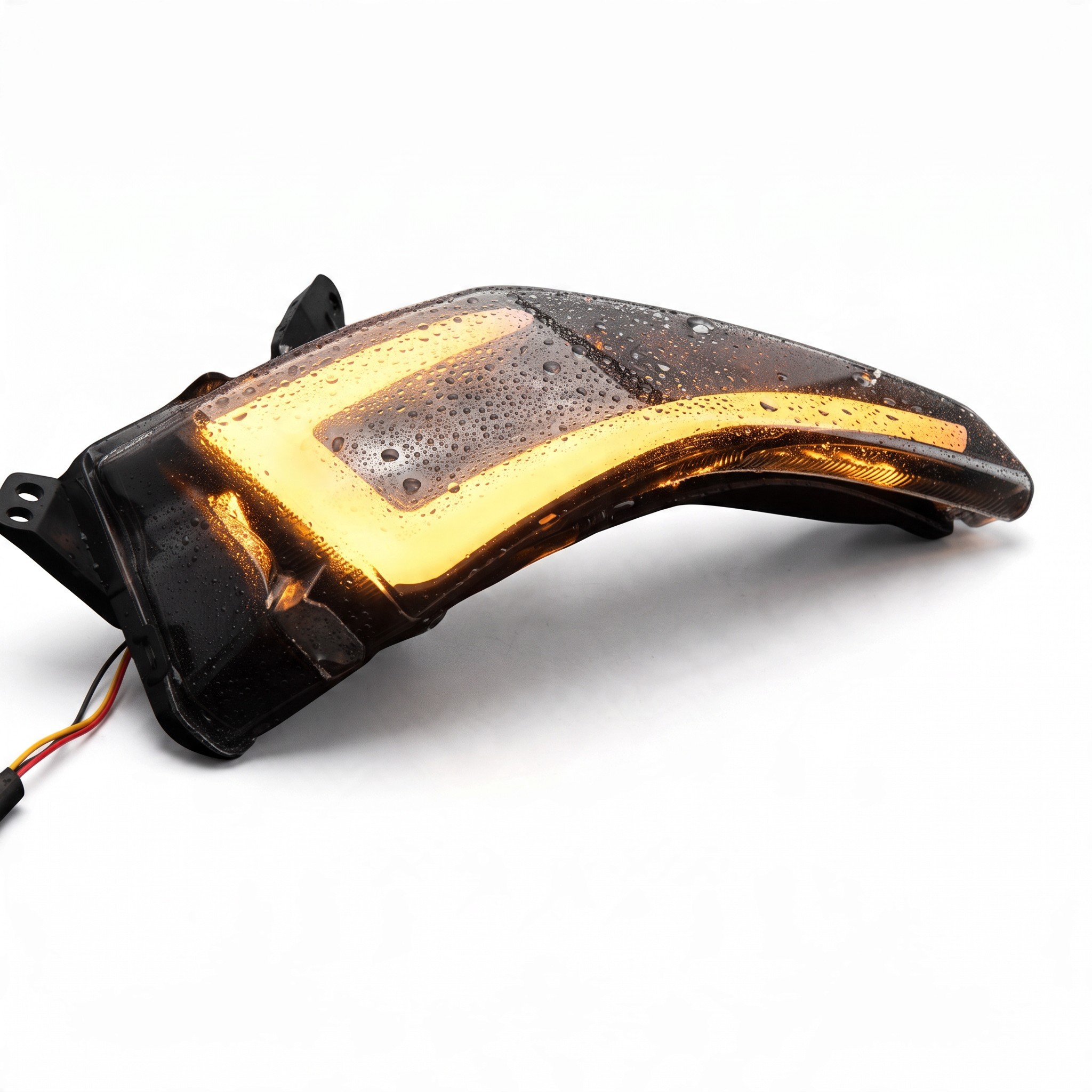

- Durability: IP68 rated against dust and water ingress
- Wiring: two sets of cables for front indicator lights, for models 2012–2014 and 2015–2016
- Wiring for front indicator lights: black wire – negative pole, yellow – positive pole for indicator, red – positive pole for white position light
- Wiring for rear indicator lights: black wire – negative pole, yellow – positive pole for indicator, red – positive pole for red brake light
- Wiring for rear light: black wire – negative pole, yellow – positive pole for brake light, grey – positive pole for position light
- Package dimensions: 26 × 18 × 15 cm, weight 1.8 kg

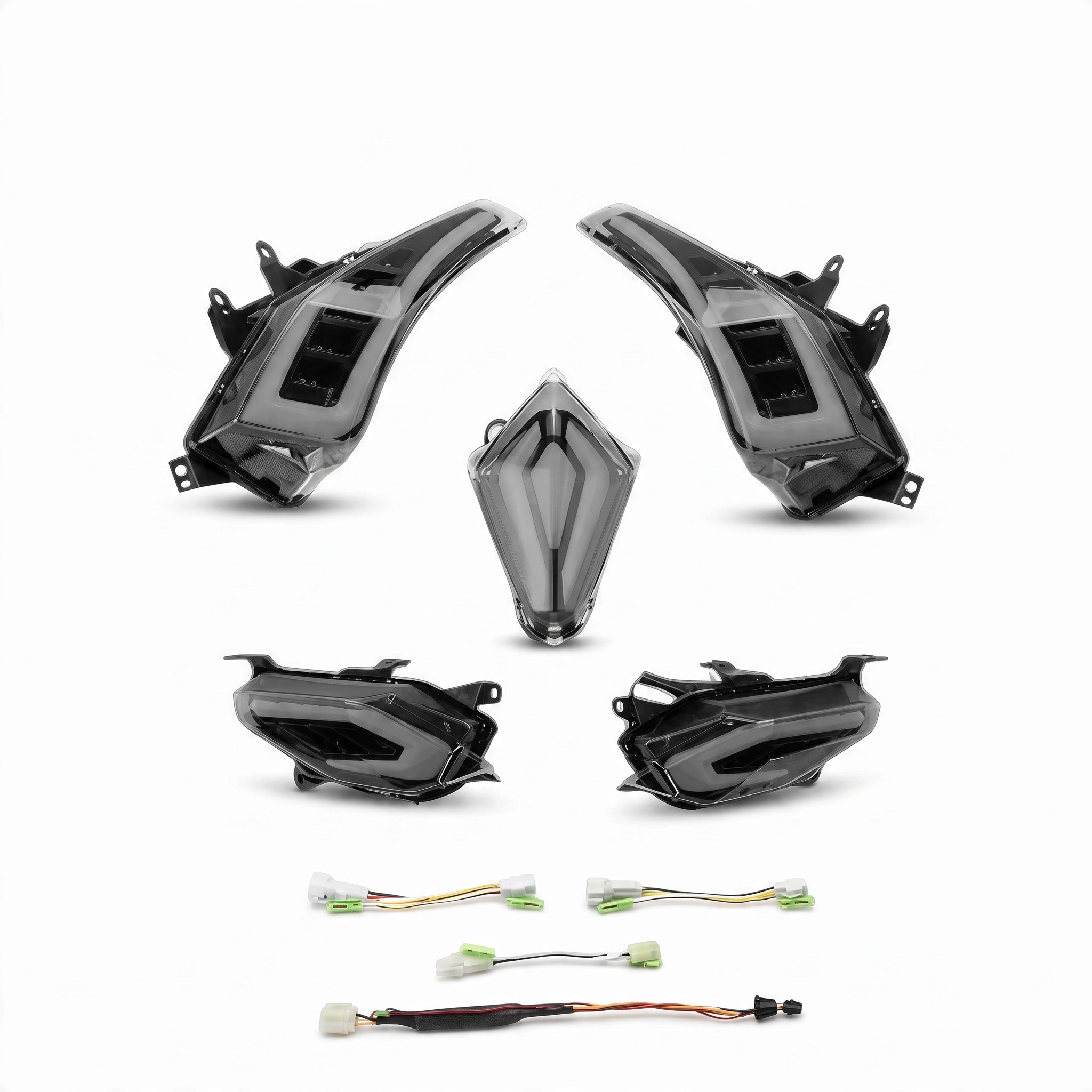

- Package contents: 1× rear light, 1 pair of front indicator lights, 1 pair of rear indicator lights, connecting cables
This set addresses the replacement of all indicator lights and the rear lamp at once, ensuring that there is no mismatched combination of old and new parts on the scooter. Colour-coded wires and the included cables with connectors facilitate connection to the original wiring. LED sources respond more quickly than traditional bulbs, making braking and direction changes clearly visible to surrounding traffic. The smoked covers darken the appearance of the lights when switched off, but the signal colours remain intact when illuminated: yellow for indicators, red for brake and rear position lights, and white for front position lights. Before installation, please check the production year of the scooter and select the appropriate cable set for the front indicator lights accordingly.
