LED Indicator 85 x 10 x 64 mm 230 V AC/DC 50/60 Hz Single Colour Signal Lamp JD9 DIN Rail 35 mm IP20 ≤20 mA

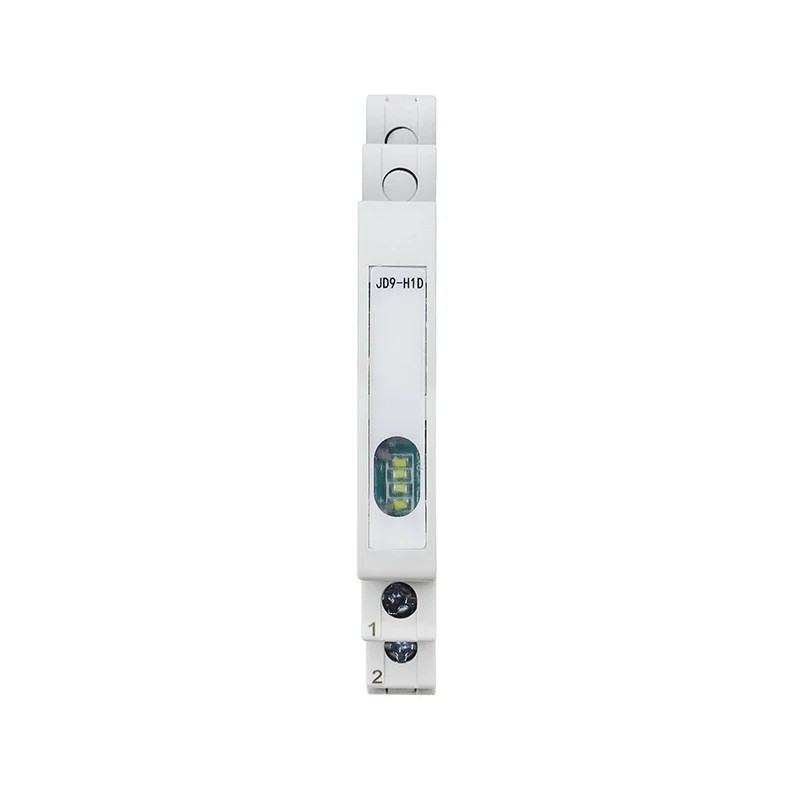

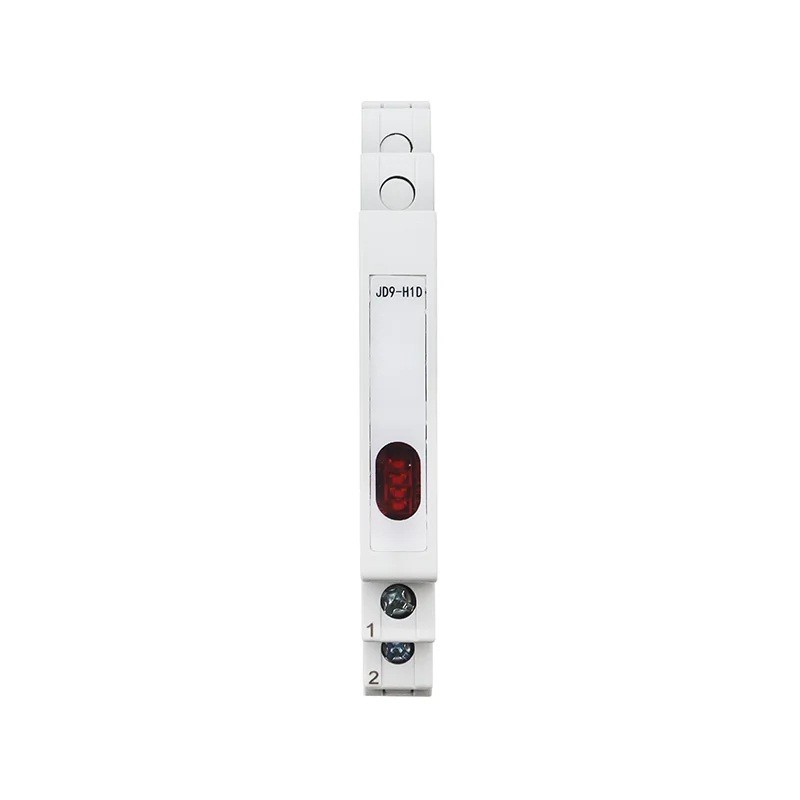

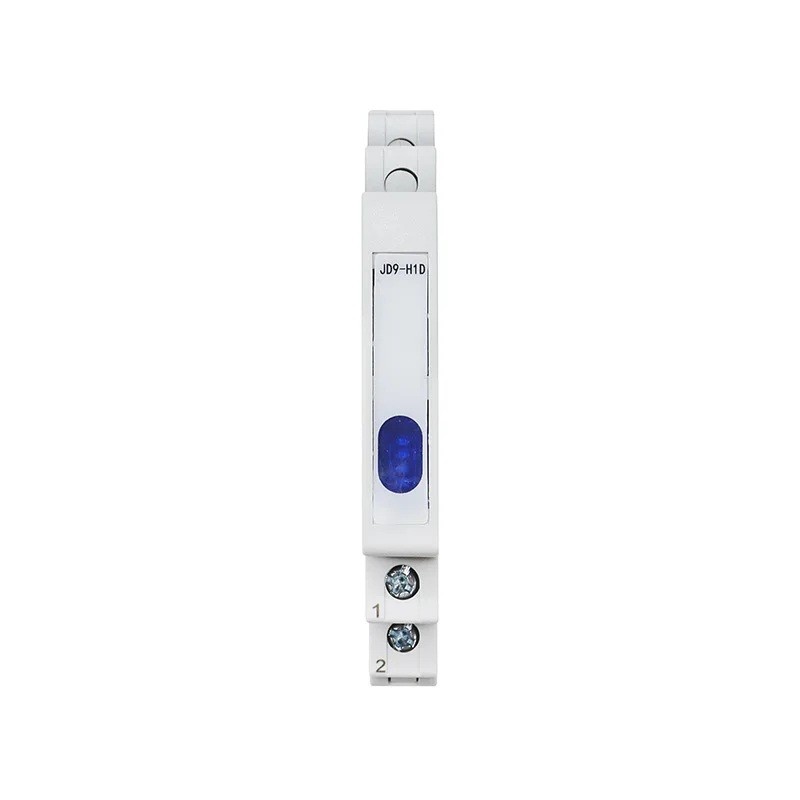

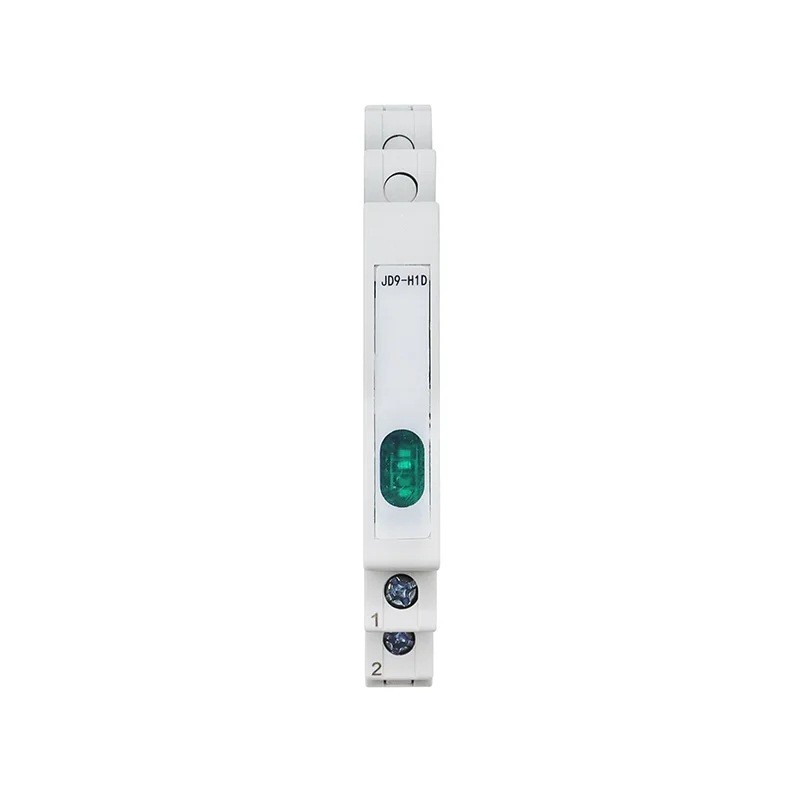

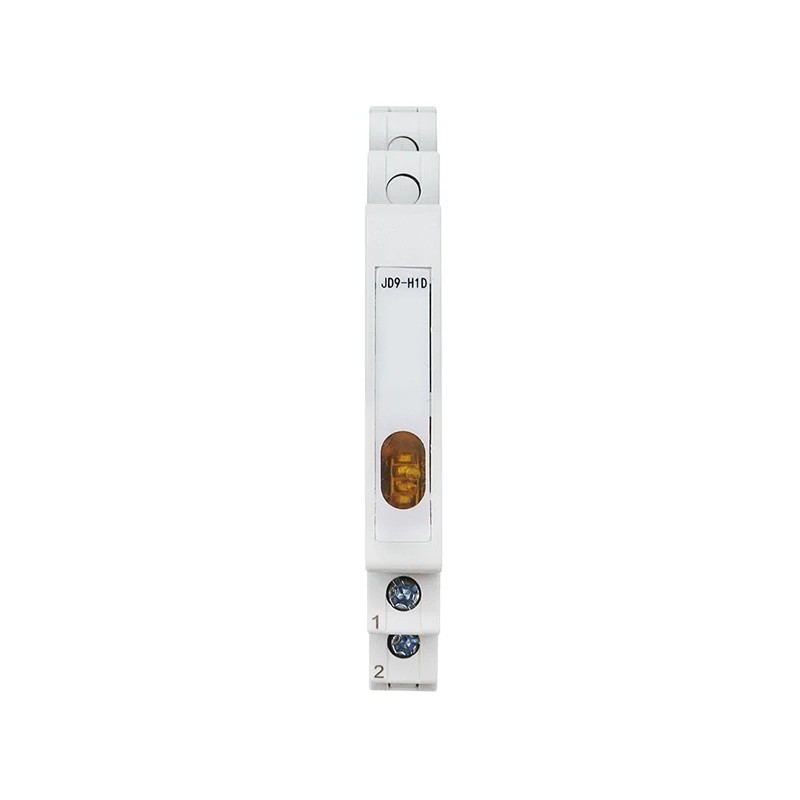

The single colour LED indicator JD9 is a compact signalling module designed for distribution boards and control panels, where you need quick visual information about the status of circuits. With dimensions of 85 x 10 x 64 mm, it saves space and allows for dense mounting on the rail without compromises. The power supply of 230 V AC/DC at a frequency of 50/60 Hz ensures wide compatibility with common installations in buildings and technologies. Mounting on a DIN rail 35 mm is quick and secure, and the L/N terminals simplify connection and reduce installation time. Consumption of ≤20 mA saves energy, and the IP20 rating is ideal for indoor use in distribution cabinets.

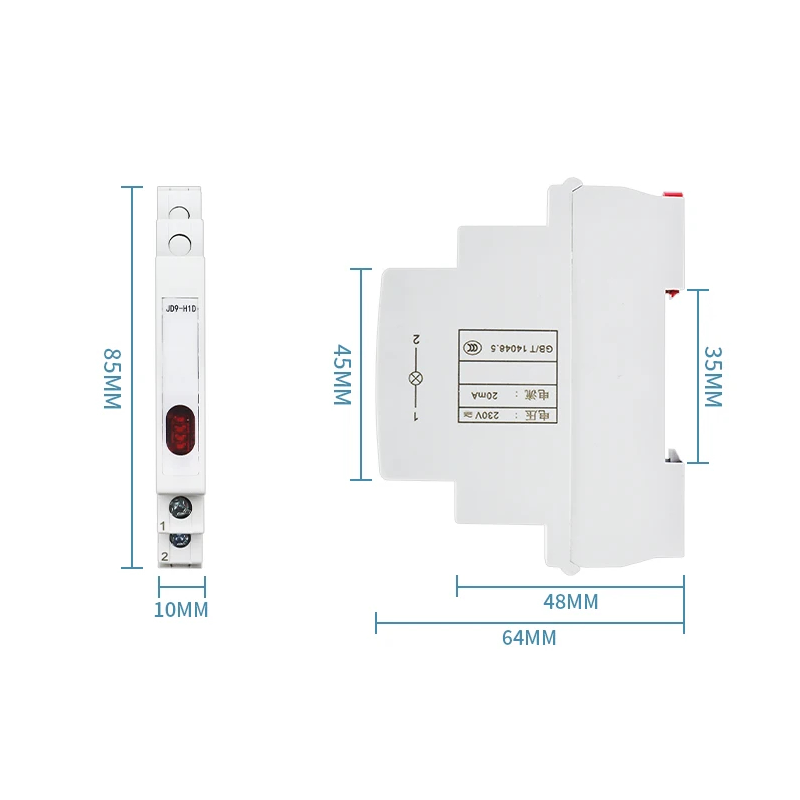

- Compact design 85 x 10 x 64 mm – ultra-thin 10mm module for maximum space saving in the distribution board.
- Universal power supply 230 V AC/DC, 50/60 Hz – easy integration into existing systems without the need for an additional power source.
- Single colour (monochrome) LED signalling – clear and distinct information about the circuit status at first glance.
- Mounting on DIN rail 35 mm – snap-in without tools, secure holding, clear terminals L/N.
- Low consumption ≤20 mA – energy-efficient operation suitable for parallel installations of multiple indicators.
- Designed for wires up to 6 mm², operating temperature −5 to +40 °C, intended for indoor environments IP20.
- Typical applications: indication of voltage presence, operation/fault, circuit breaker status, control modes, alarms, and pre-warnings.
- Contents of the package: 1× modular LED indicator JD9
This module is ideal wherever quick and clear display of status is important and space in the distribution board is limited. Thanks to DIN mounting, it can be easily added to both new and existing panels and quickly replaced if needed. The universal power supply 230 V AC/DC allows use in a wide range of applications, and the low consumption minimises the load on power branches. The single colour LED provides a clearly defined signal without ambiguity, enhancing operator safety and operational reliability. The compact and robust design with IP20 rating ensures long life in everyday use.
