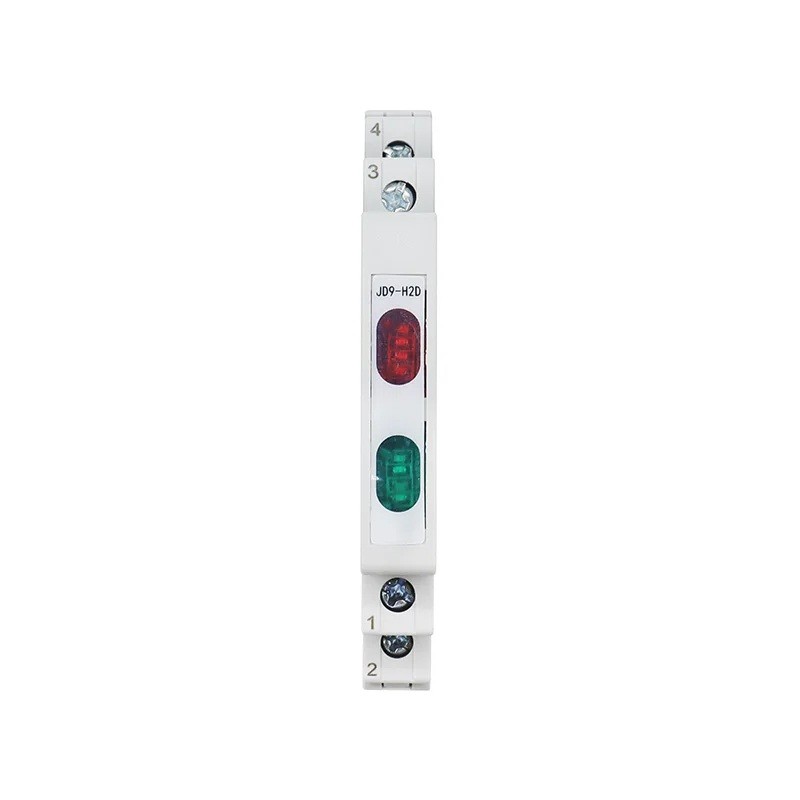

LED Indicator 85 x 10 x 64 mm 220 V AC/DC 50/60 Hz Two-colour JD9 Red+Green DIN Rail 35 mm IP20 Terminals L/N ≤20 mA
LED Indicator 85 x 10 x 64 mm 220 V AC/DC 50/60 Hz Two-colour JD9 Red+Green DIN Rail 35 mm IP20 Terminals L/N ≤20 mA 1

LED Indicator 85 x 10 x 64 mm 220 V AC/DC 50/60 Hz Two-colour JD9 Red+Green DIN Rail 35 mm IP20 Terminals L/N ≤20 mA

Narrow modular LED indicator for DIN rail 35 mm, two-colour signalling red+green, 220 V AC/DC, IP20, ≤20 mA, L/N, 50/60 Hz distribution boards. Full description
In stock
€9.13
Overview

LED Indicator 85 x 10 x 64 mm 220 V AC/DC 50/60 Hz Two-colour JD9 Red+Green DIN Rail 35 mm IP20 Terminals L/N ≤20 mA

The two-colour module JD9 is a compact LED indicator designed for distribution boards and control panels where clear, reliable, and space-saving signalling is required. The dimensions 85 x 10 x 64 mm allow for installation even in densely populated panels, with mounting on a DIN rail 35 mm taking just a few seconds. The power supply of 220 V AC/DC with a frequency of 50/60 Hz makes it a universal choice for most distribution and control systems. Two distinct colours – red and green – ensure clear differentiation of states, faults, and commands. The low consumption of ≤20 mA saves energy and minimises the load on the source, while the IP20 rating is ideal for indoor installations.

  • Compact design 85 x 10 x 64 mm – ultra-narrow 10mm module for space-saving in the distribution board.
  • Universal power supply 220 V AC/DC, 50/60 Hz – easy integration into existing systems.
  • Two-colour signalling (red + green) – clear differentiation of operation/fault, command/state, etc.
  • Mounting on DIN 35 mm – quick snap-in, secure hold, clear terminals L/N.
  • Low consumption ≤20 mA – energy-efficient operation, suitable for parallel sets of indicators.
  • Operating conditions: working temperature −5 to +40 °C, recommended wire cross-section up to 6 mm², indoor environment IP20.
  • Typical applications: voltage presence indication, circuit breaker status, equipment operation, automatic/manual mode, pre-warnings, and alarms.
  • Contents of the package: 1× two-colour LED indicator JD9

The two-colour concept simplifies the reading of information at a glance and reduces the risk of misinterpreting states. Thanks to the DIN mounting, the indicator can easily be added to both new and existing distribution boards without panel modifications. The universal power supply 220 V AC/DC expands deployment possibilities in industry, buildings, and home automation, while the low consumption keeps the overall energy balance reasonably low. The slim body with IP20 is ideal for indoor use, where long-term reliability, clean design, and quick installation are required. If you are looking for a simple, clear, and cost-effective solution for status indication, the JD9 two-colour indicator is the right choice.
