LED Display for Bicycle Speed and Distance Measurement Battery Indicator and 5 Levels of PAS SM 5pin and 2pin Connector Controller Black for Electric
You already have the maximum available quantity in your cart.

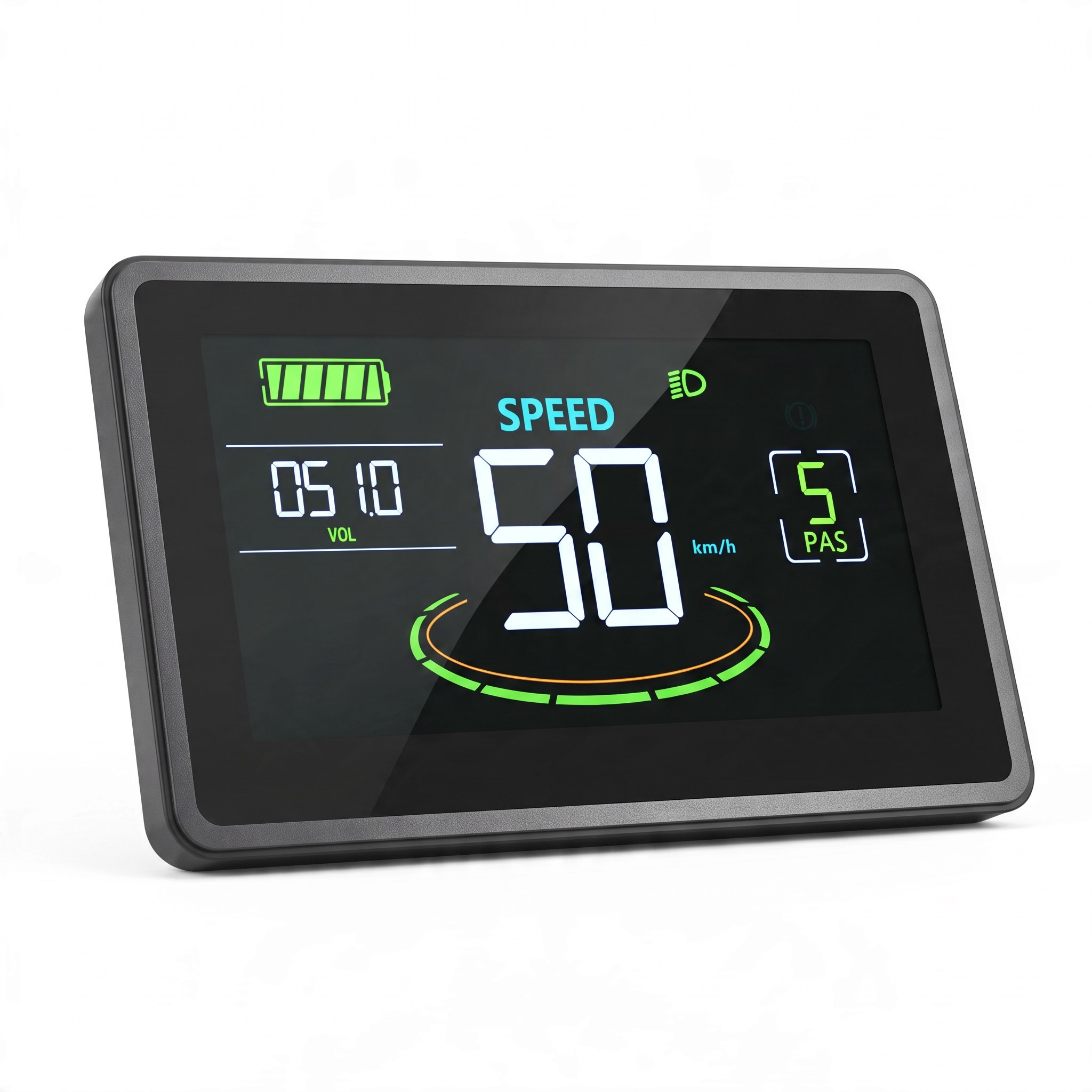

This LED display for bicycles is designed for measuring speed and distance travelled and displaying additional riding data. On the clear screen, you will find the current speed in km/h, battery status indicator, voltage, selected level of PAS assistance, and a light symbol. The display connects to the bicycle's electrical system using a pair of SM 5pin and 2pin connectors, which together form a seven-wire connection. Control is provided by a separate controller with plus, minus, and power buttons, which is connected to the display via a cable. The display is suitable for electric bicycles as well as for converting traditional bicycles to electric drive.
- Speed Measurement – speed is displayed in large digits in the centre of the screen in km/h. Below the speed value is a coloured arc that graphically represents the speed.
- Distance Travelled – the display tracks the kilometres travelled, giving you an overview of the length of your rides. This information is useful for monitoring regular routes or planning service inspections.
- PAS Assistance Levels – the display supports 5 levels of PAS assistance. The currently selected level is shown in a box on the right side of the screen, and you can switch between levels using the plus and minus buttons on the controller.
- Battery and Voltage Indicator – in the upper left part of the screen is a graphical battery charge indicator, below which is a numerical voltage value marked with VOL. From this information, you can easily estimate how much energy is still left in the battery.
- Light Symbol – at the top of the screen is a light symbol that indicates the lighting status.

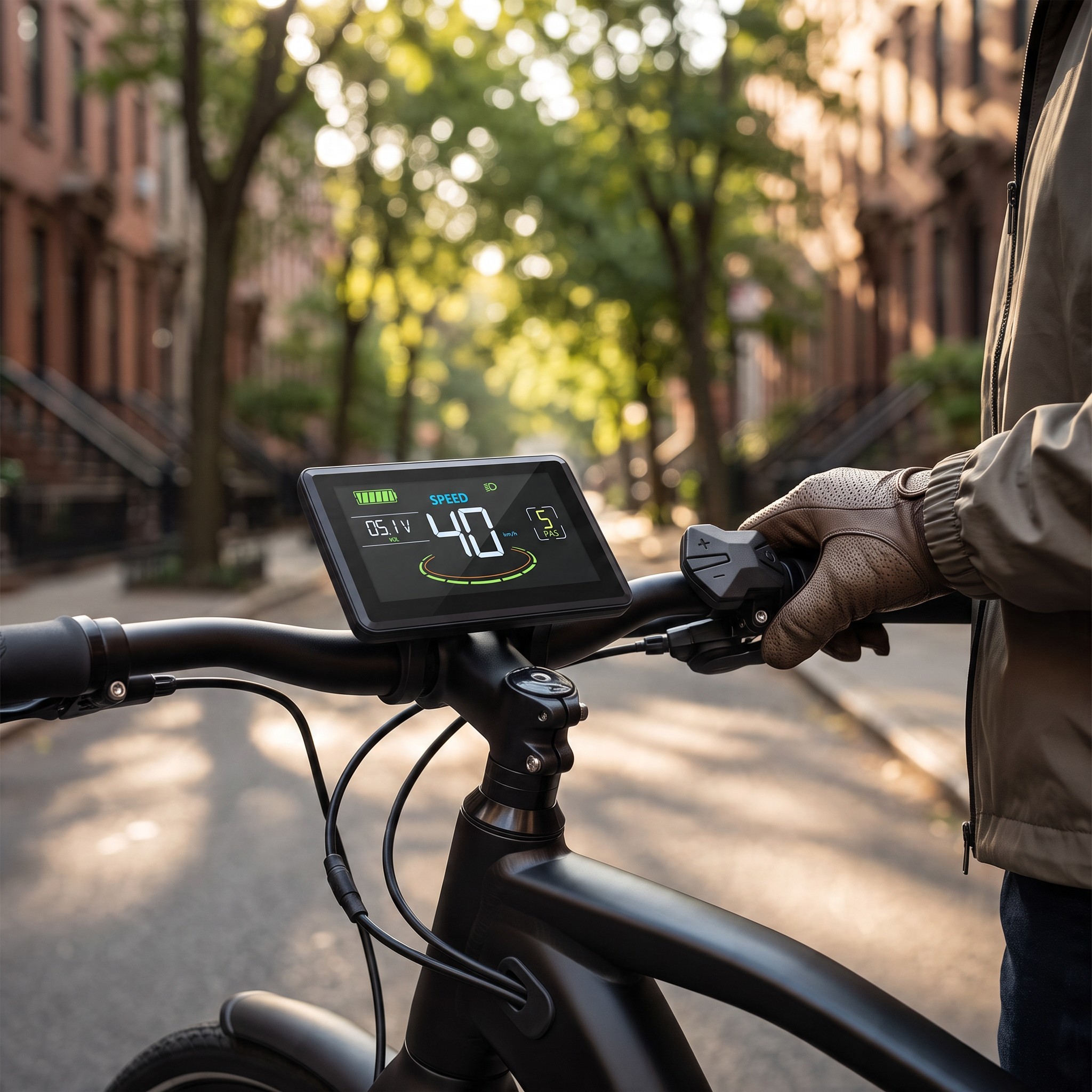

- External Controller – the separate controller with plus, minus, and power buttons is connected via a cable. This allows the display and controller to be positioned independently on the bicycle, for example, placing the controller closer to the handle and the display in the centre of the handlebars.

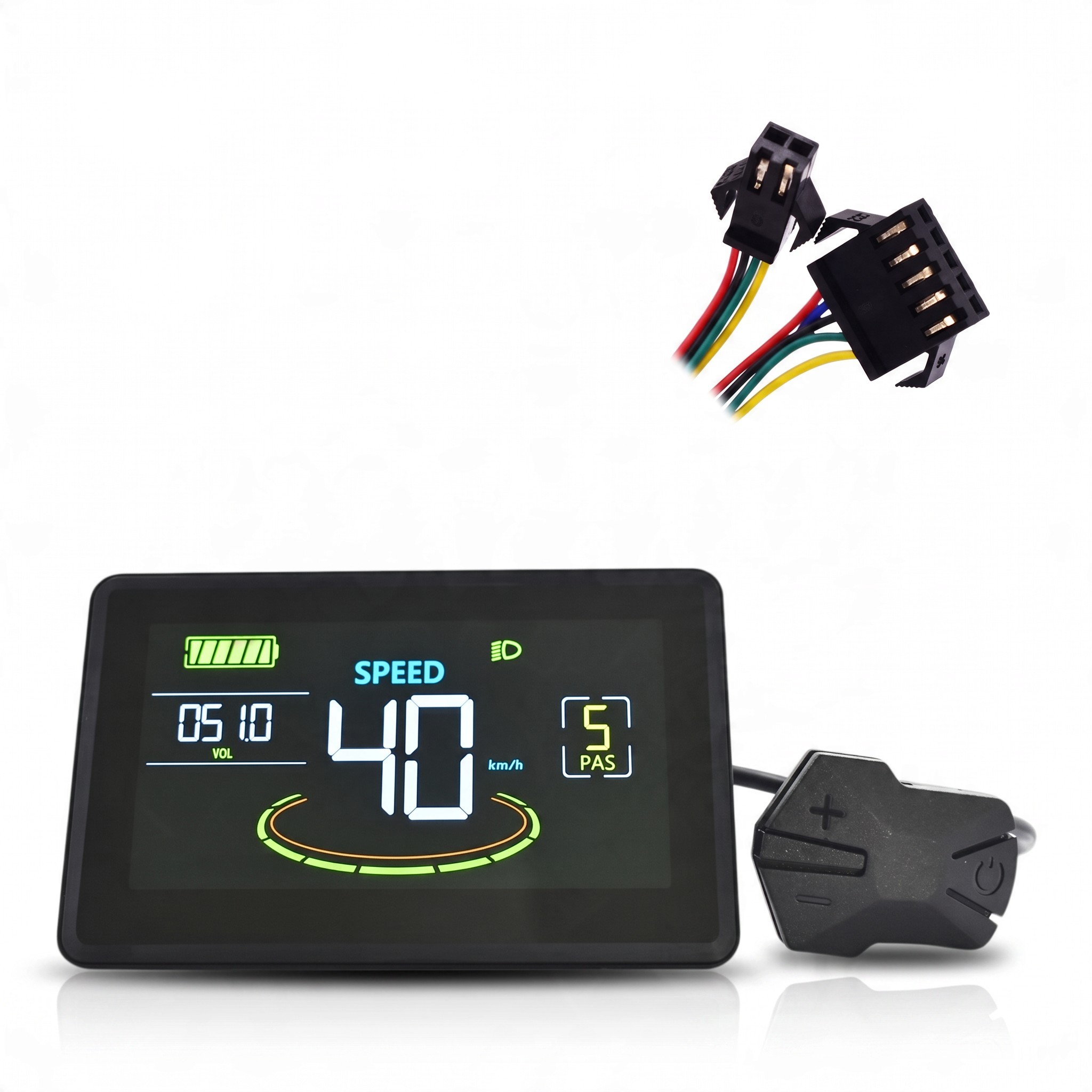

- SM 5pin and 2pin Connectors – the cable with seven wires ends with two SM type connectors. The five-pin connector has red, blue, black, green, and yellow wires, while the two-pin connector has brown and white wires. Before connecting, ensure that both connectors match your bicycle's wiring.
- Colour Design – both the display and the controller are in black. The screen uses colour elements for quicker orientation in the individual data.
Package Contents:
- 1x LED display with external controller and cable with SM 5pin and 2pin connectors
The display is suitable for electric bicycle owners who need a new or replacement speed, distance, and battery status indicator. It is also applicable when converting a traditional bicycle to an electric bicycle, serving as the main information element. Thanks to the separate controller, you can control the switching of assistance levels and the display power without needing to touch the screen directly. Before installation, ensure that your control unit uses SM 5pin and 2pin connectors with the same wiring configuration. The display provides all the essential data needed for daily riding on an electric bicycle in one place.
