JNFN S Bluetooth BMS Balancing Board 17S to 24S 170 A Peak 425 A for Li-ion LiFePO4 LTO and Na-ion Yellow for E-bikes and Scooters
You already have the maximum available quantity in your cart.
The JNFN balancing BMS board is designed for managing and protecting the battery of an e-bike or electric scooter with high voltage and current draw. It supports a connection of 17S to 24S, meaning batteries with 17 to 24 cells in series. The board is rated for a continuous current of 170 A with a short-term peak of 425 A. It is equipped with Bluetooth connectivity and cell balancing functionality. Power leads are gathered on each side into a cable eye for direct screw connection.
- Connection 17S to 24S: the board can handle batteries with 17 to 24 cells connected in series, thus high voltage assemblies.
- Continuous current 170 A: compare this value with the maximum draw of the motor and controller before installation.
- Peak current 425 A: the board can temporarily withstand peak loads of up to 425 A.

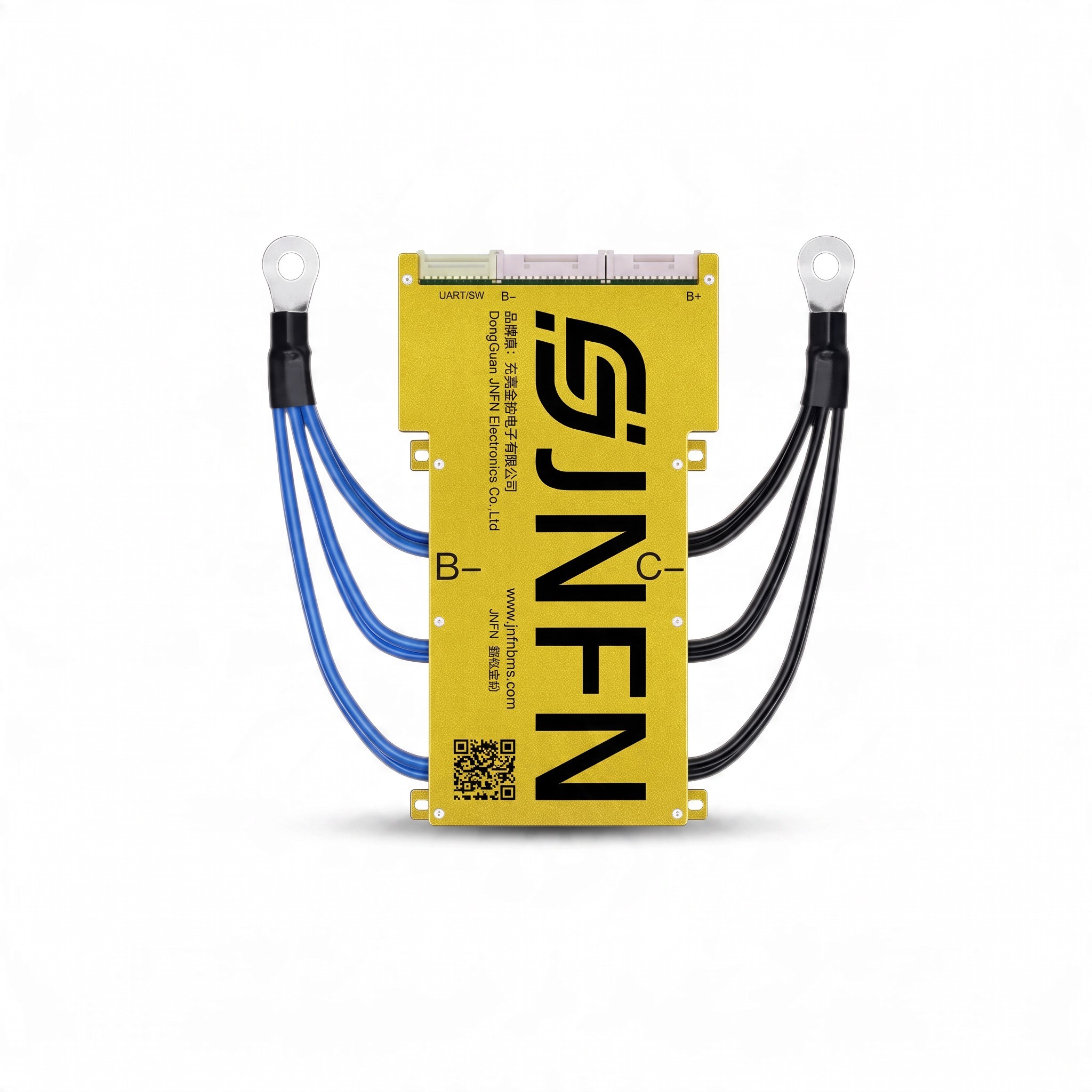

- Power leads: three blue B- leads and three black C- leads, each gathered into one cable eye. The distribution of current into multiple leads corresponds to high current loads.
- Bluetooth: wireless connectivity allows communication with the board without the need to connect a cable.
- Cell balancing: the function equalises the voltage between individual cells of the battery.
- Supported cells: the board is intended for Li-ion, LiFePO4, LTO and Na-ion batteries.
- UART/SW connector: located in the top left corner of the board, used for data communication and further connections.
- B- and B+ connectors: connectors on the top edge of the board are used to connect wires to individual cells.
- Mounting brackets: brackets with holes on the sides of the board allow for screwing in the battery box.
- Design: yellow board with JNFN branding printed on it.
Contents of the package:
- 1x JNFN balancing BMS board 17S to 24S 170 A
The JNFN balancing BMS board is intended for the construction or repair of a battery for an e-bike or electric scooter with 17 to 24 series cells. The continuous current of 170 A with a peak of 425 A covers even high current demands of the drive. Support for Li-ion, LiFePO4, LTO and Na-ion cells allows for use in various battery packs. Bluetooth connectivity and cell balancing complement the protective function of the board. Before installation, ensure that the number and type of cells and the current draw match the parameters of the board.
