JNFN S Bluetooth Balancing BMS Module 17S to 24S 340 A Peak 850 A for Li-ion LiFePO4 LTO and Na-ion Silver for E-bikes and Scooters
You already have the maximum available quantity in your cart.

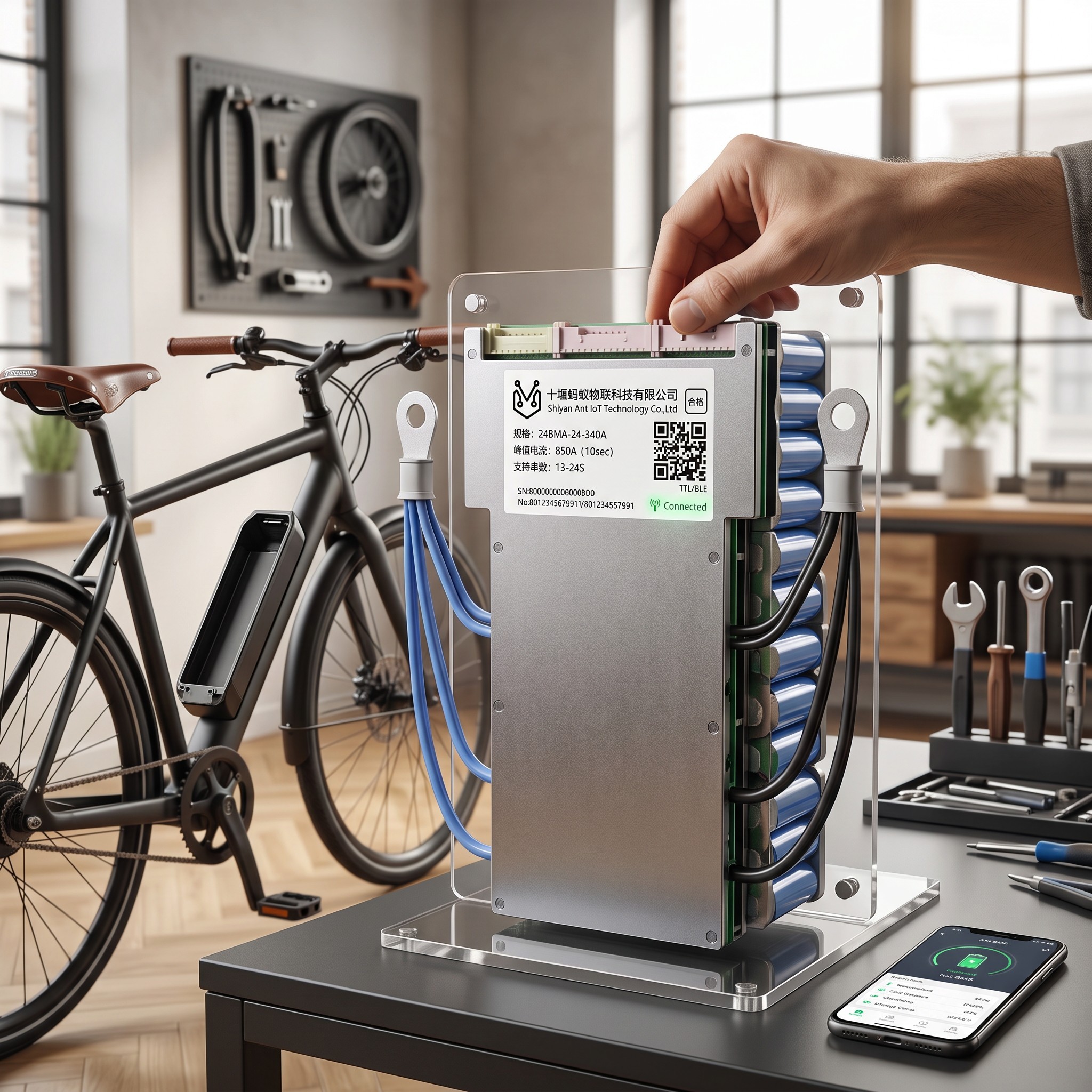

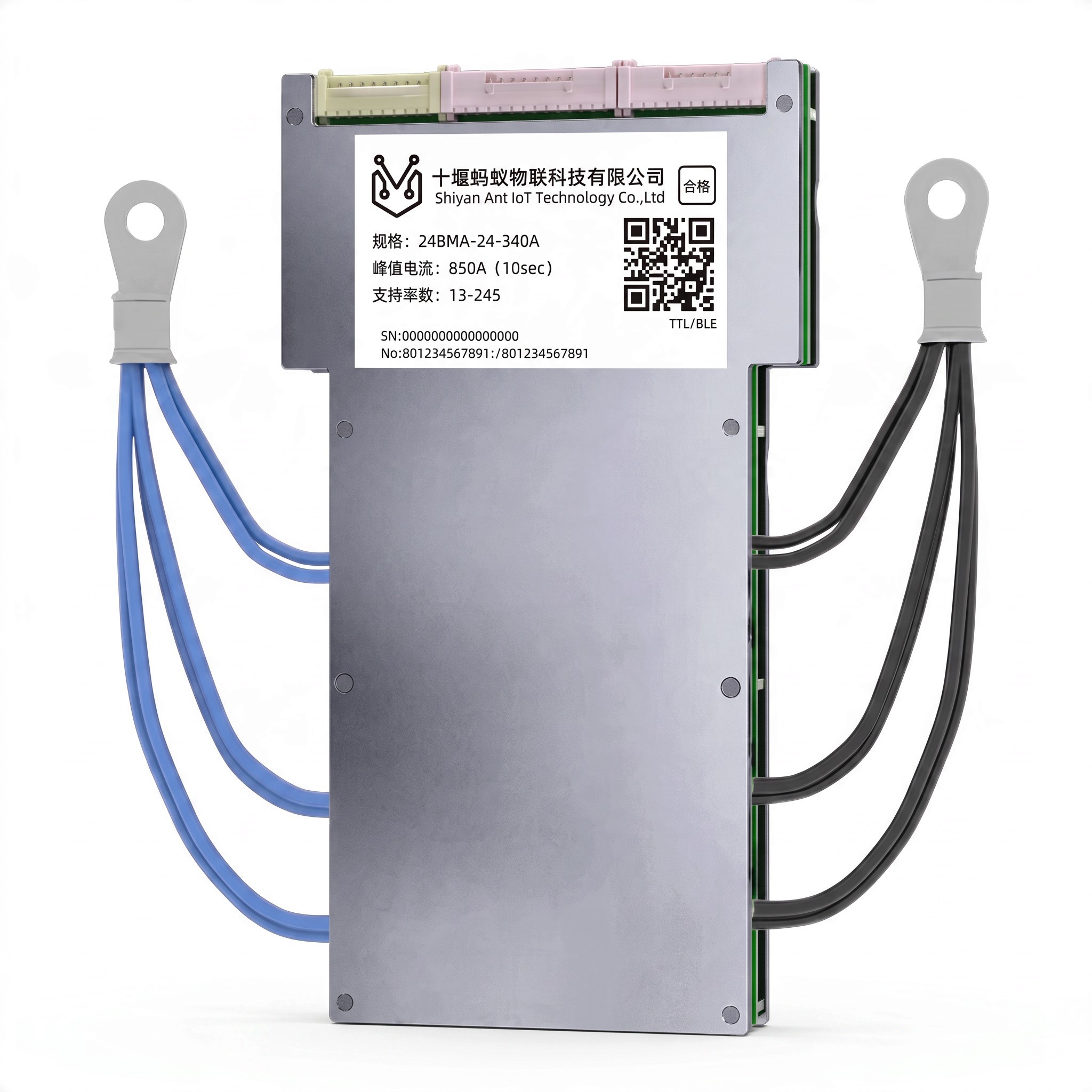

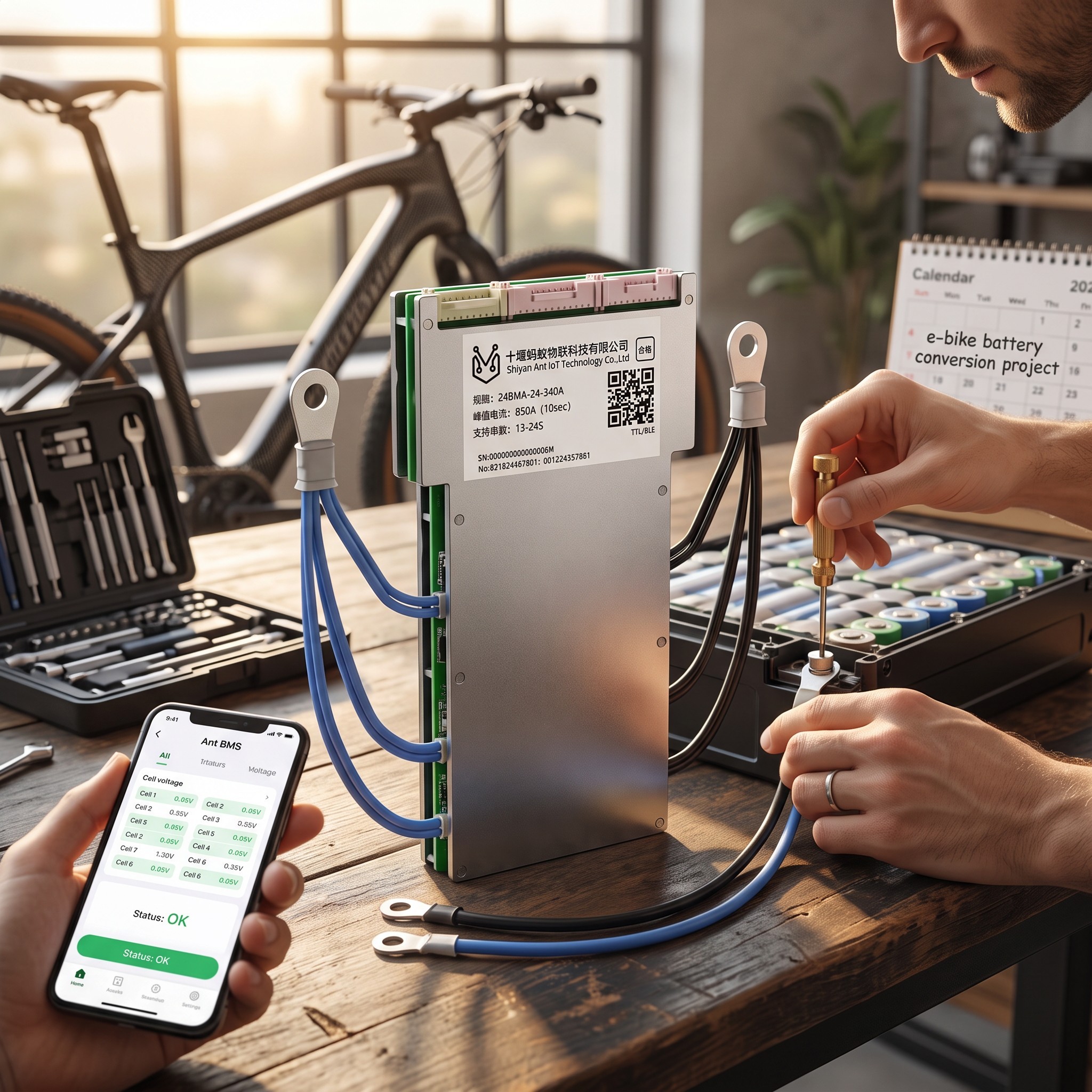

The JNFN Balancing BMS Module is designed for managing and protecting the battery of an e-bike or electric scooter with a high number of cells and significant current draw. It is intended for connection to 17S to 24S, meaning batteries with 17 to 24 cells connected in series. The module offers continuous current of 340 A and a short-term peak of 850 A. Bluetooth connectivity and cell balancing functionality are available. The electronics are housed in a silver casing, and the power wires are routed to cable eyes.
- Connection 17S to 24S: the module accommodates batteries with 17 to 24 series-connected cells, thus high-voltage assemblies.
- Continuous current 340 A: it is recommended to compare this value with the maximum draw of the motor and controller before installation.
- Peak current 850 A: according to the label, the module can withstand peak 850 A for 10 seconds.
- Bluetooth and TTL/BLE port: the module communicates wirelessly via Bluetooth, and the label also indicates the TTL/BLE port.
- Cell balancing: this function equalises the voltage among the individual cells of the battery.
- Cell types: the module is designed for Li-ion, LiFePO4, LTO and Na-ion batteries.
- Power wires: on each side of the module, there is a trio of wires, blue and black, routed into one cable eye. The distribution of current across multiple wires corresponds to high current loads.
- Connectors for cells: a series of connectors on the top side of the module is used to connect wires to the individual cells.
- Casing: the flat design in a silver casing facilitates placement alongside the cells in the battery box.
- Model designation: 24BMA-24-340A, as indicated on the module label.
Contents of the package:
- 1x JNFN Balancing BMS Module 17S to 24S 340 A
The JNFN Balancing BMS Module is intended for building or repairing a powerful battery for an e-bike or electric scooter with 17 to 24 series cells. The continuous current of 340 A with a peak of 850 A meets high current demands of the drive. Support for Li-ion, LiFePO4, LTO and Na-ion cells allows use in various battery packs. Bluetooth connectivity and cell balancing enhance the protective function of the module. Before installation, ensure that the number and type of cells and current draw match the module's parameters.
