JNFN S Bluetooth Balancing BMS Board 8S to 22S 170 A Peak 425 A for Li-ion LiFePO4 LTO and Na-ion Yellow for E-bikes and Scooters
You already have the maximum available quantity in your cart.
The JNFN Balancing BMS Board is designed to manage and protect the battery of an e-bike or electric scooter with high current draw. It supports batteries in the configuration of 8S to 22S, meaning 8 to 22 cells in series. The board is rated for continuous current of 170 A and can briefly withstand a peak of 425 A. It is equipped with Bluetooth connectivity and a cell balancing function. The power wires are routed into cable eyes, which are directly screwed to the battery and output.
- Range 8S to 22S: the board covers batteries from 8 to 22 series-connected cells, allowing it to be used for various voltage configurations of batteries.
- Continuous current 170 A: before installation, compare this value with the maximum draw of the motor and controller.
- Peak current 425 A: the board can briefly withstand peak loads of up to 425 A.

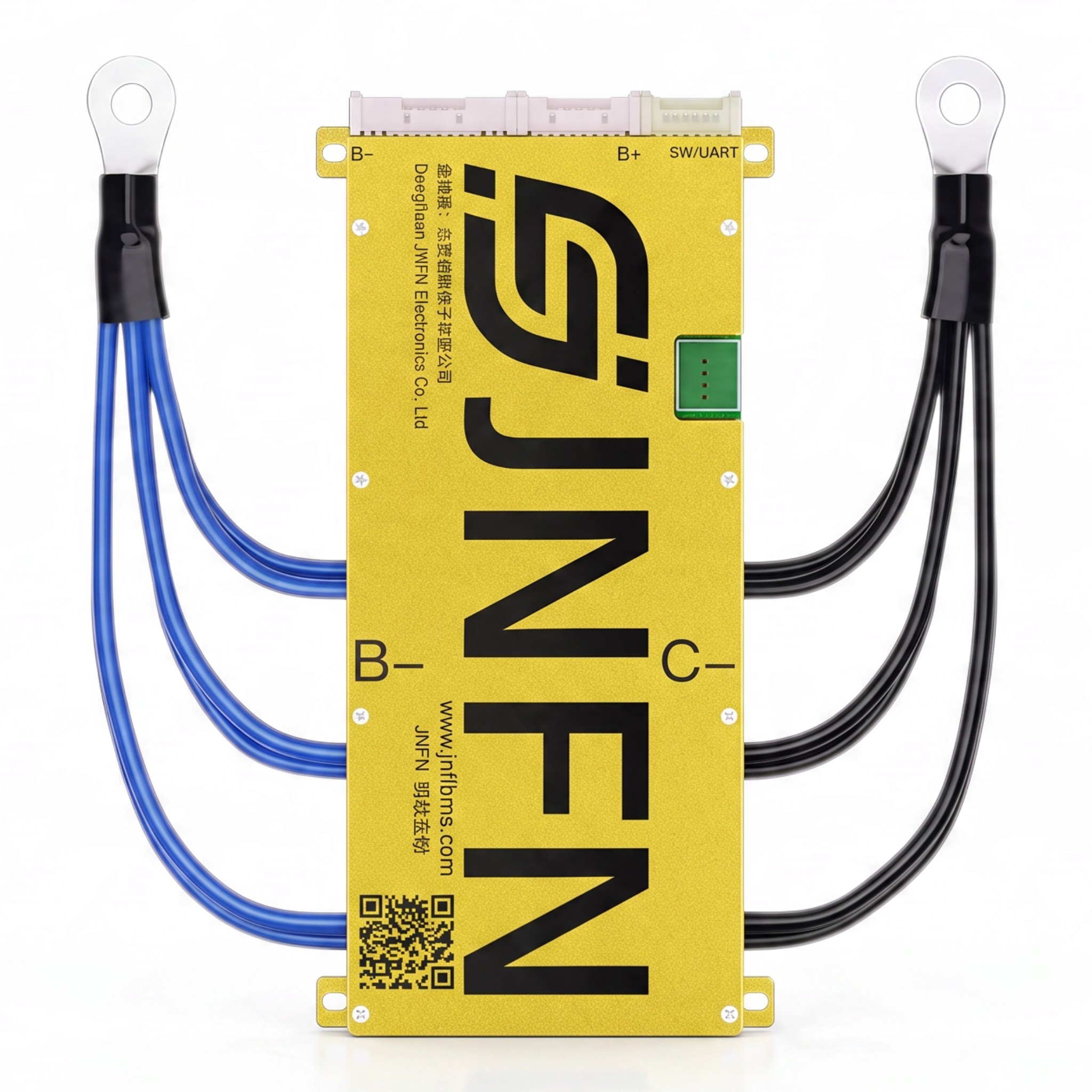

- Power wires: a trio of blue B- wires and a trio of black C- wires, each routed into one cable eye. The division of current into multiple wires corresponds to high current loads.
- Bluetooth: wireless connectivity allows communication with the board without the need to connect a cable.
- Cell balancing: the function equalises the voltage between individual cells of the battery.
- Types of cells: the board is designed for Li-ion, LiFePO4, LTO and Na-ion batteries.
- B- and B+ connectors: two connectors on the top edge of the board are used to connect wires to individual cells.
- SW/UART Port: a separate connector labelled SW/UART for data communication and additional connections.
- Mounting brackets: brackets with holes on both sides of the board allow for screwing in the battery box.
- Design: yellow board with JNFN branding.
Package contents:
- 1x JNFN Balancing BMS Board 8S to 22S 170 A
The JNFN Balancing BMS Board is suitable for building or repairing a battery for an e-bike or electric scooter with 8 to 22 series cells. The continuous current of 170 A with a peak of 425 A meets even high current demands of the drive. The board is designed for Li-ion, LiFePO4, LTO and Na-ion cells and is equipped with Bluetooth connectivity with balancing function. The power wires with cable eyes and labelled connectors simplify the installation. Before installation, ensure that the number and type of cells as well as the current draw match the parameters of the board.
