JNFN S Bluetooth Balancing BMS Board 17S to 24S 80 A Peak 200 A for Li-ion LiFePO4 LTO and Na-ion Yellow for E-bikes and Scooters
You already have the maximum available quantity in your cart.
The JNFN Balancing BMS Board is designed for managing and protecting the battery of an e-bike or electric scooter with a higher number of cells. It supports connections of 17S to 24S, covering a wide range of voltage configurations. The nominal continuous current of 80 A is complemented by a short-term peak of 200 A. The board is equipped with Bluetooth connectivity and a cell balancing function. The power wires B- and C- are routed from the sides of the board, while the connectors for the cells and communication can be found on the top edge.
- Connection range 17S to 24S: the board is intended for batteries with 17 to 24 cells connected in series.
- Continuous current 80 A: compare this value with the maximum consumption of the motor and controller before installation.
- Peak load: the board can temporarily withstand a peak of 200 A.
- Wireless connection: Bluetooth allows communication with the board without the need for a cable connection.
- Cell balancing: the balancing function equalises the voltage between individual cells of the battery.
- Supported cell chemistry: the board is designed for Li-ion, LiFePO4, LTO and Na-ion batteries.

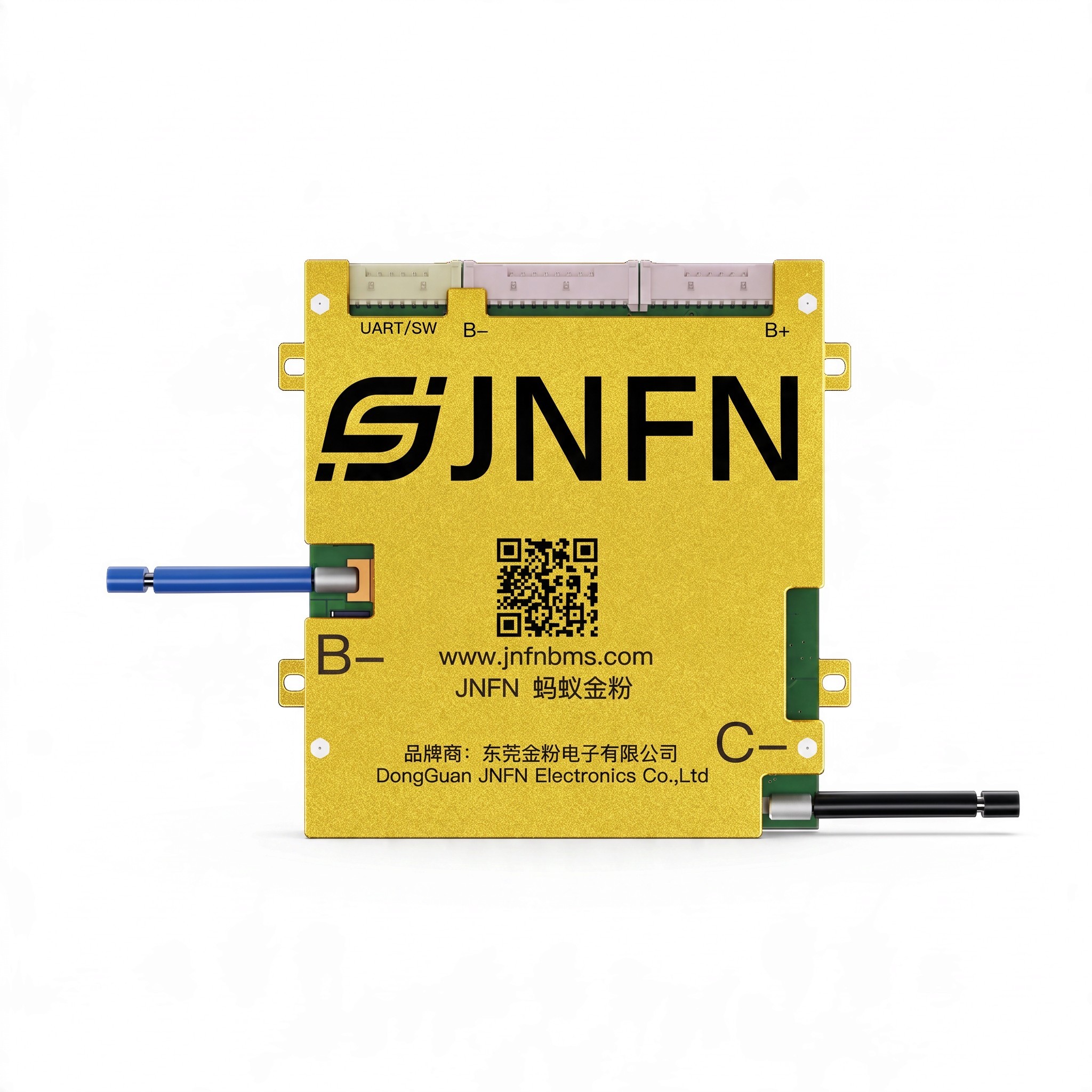

- UART/SW connector: located in the top left corner of the board, used for data communication and additional connections.
- B- and B+ connectors: two connectors on the top edge of the board are used to connect wires to individual cells.
- Power wires: the blue wire B- comes from the left side of the board, while the black wire C- comes from the lower right side. The colour coding helps prevent confusion during installation.
- Installation: mounting holes on both sides of the board allow for attachment in the battery box.
- Appearance: yellow board with JNFN branding and QR code.
Contents of the package:
- 1x JNFN Balancing BMS Board 17S to 24S 80 A
The JNFN Balancing BMS Board is intended for building or repairing the battery of an e-bike or electric scooter with 17 to 24 series cells. The continuous current of 80 A with a peak of 200 A should be verified against the consumption of the specific drive. The board is suitable for Li-ion, LiFePO4, LTO and Na-ion cells and offers Bluetooth connectivity with balancing functionality. Through the UART/SW connector, the board can be integrated into a system with data communication. Before installation, ensure that the number and type of cells and the current consumption match the board's specifications.
