JNFN S Bluetooth Balancing BMS Board 17S to 24S 60 A Peak 150 A for Li-ion LiFePO4 LTO and Na-ion Yellow for E-bikes and Scooters
You already have the maximum available quantity in your cart.

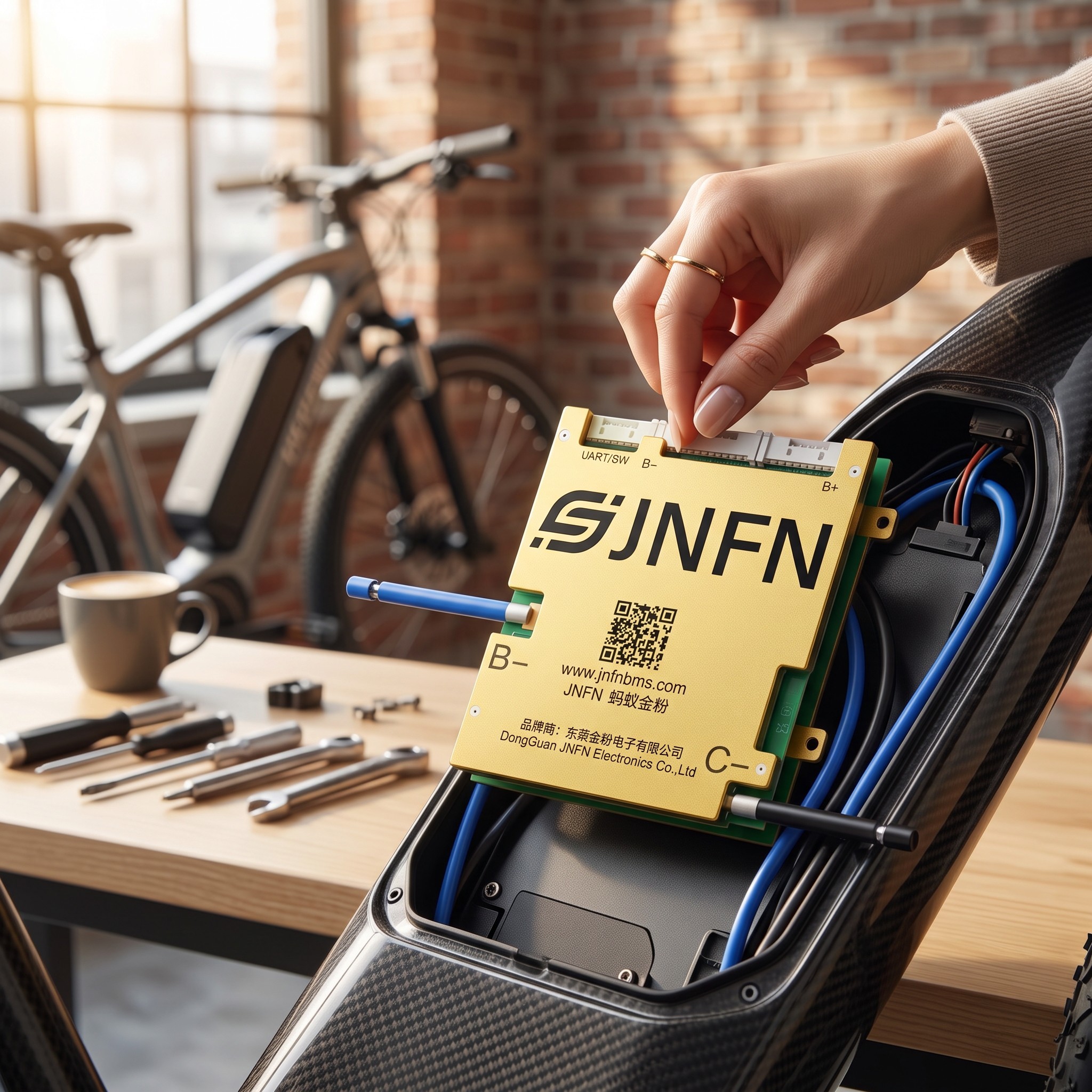

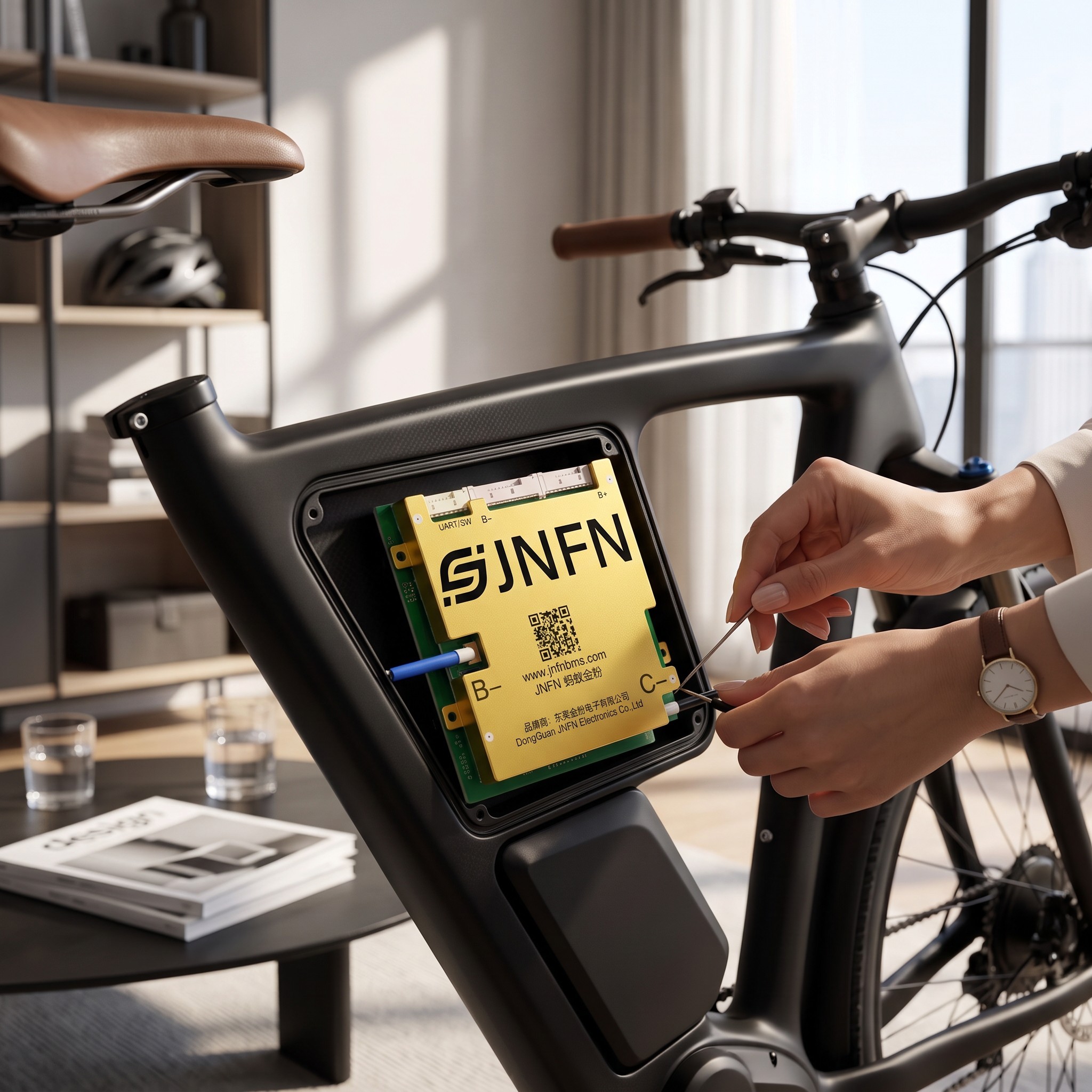

The JNFN Balancing BMS board is designed to manage and protect the battery of an e-bike or electric scooter with high voltage. It supports connections of 17S to 24S, meaning batteries with 17 to 24 cells in series. The board is rated for continuous current of 60 A and can temporarily withstand a peak of 150 A. It features Bluetooth connectivity and cell balancing functionality. The yellow design with mounting brackets and labelled connectors makes installation into the battery box easier.
- Range 17S to 24S: the board is intended for batteries with 17 to 24 cells connected in series, suitable for higher voltage assemblies.
- Continuous current 60 A: compare this value with the maximum consumption of the motor and controller before installation.
- Temporary peak: the board can withstand a peak current of 150 A.
- Bluetooth: wireless connection allows communication with the board without the need to connect a cable.
- Cell balancing: the function equalises the voltage between individual cells of the battery.
- Cell types: the board is designed for Li-ion, LiFePO4, LTO and Na-ion batteries.

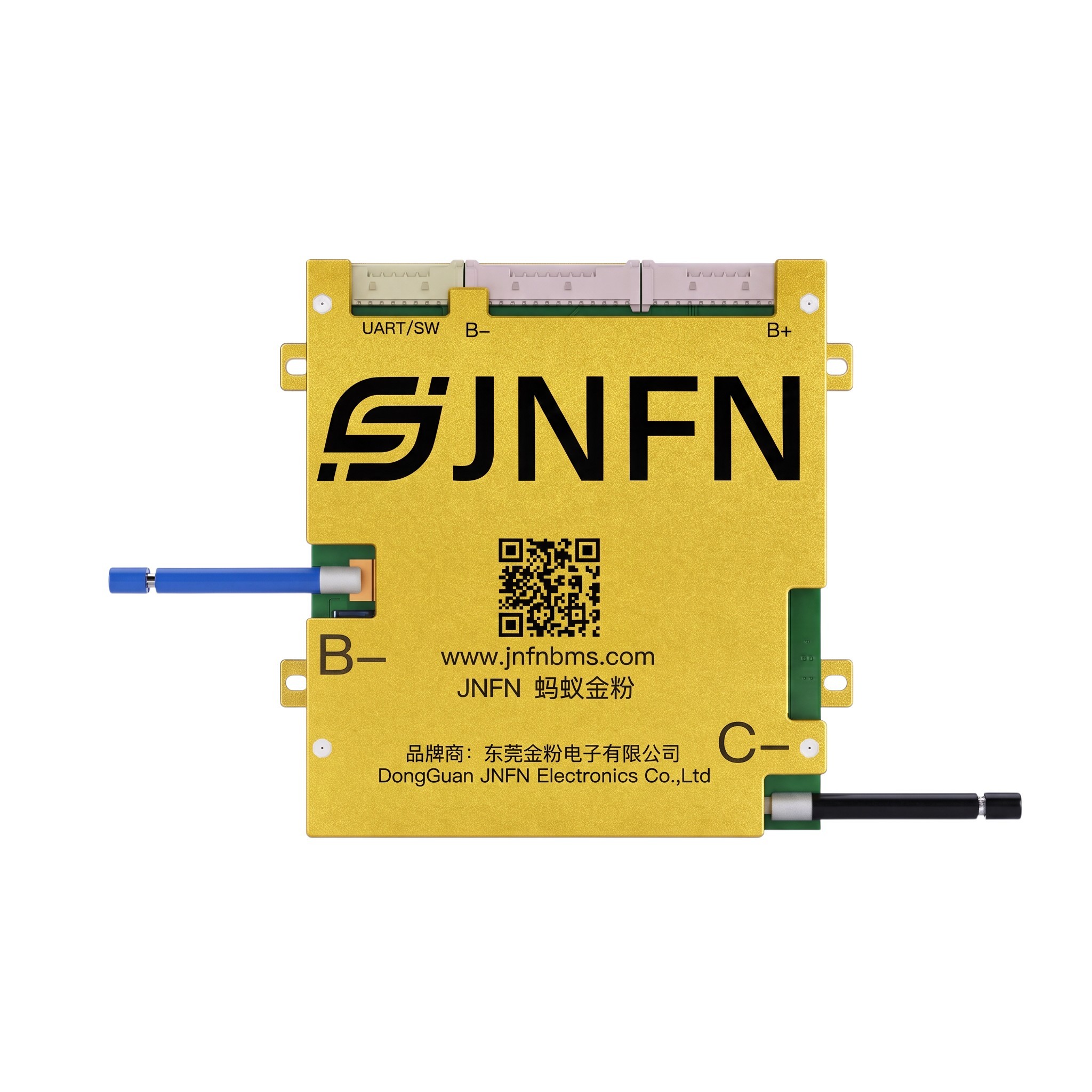

- UART/SW Port: the connector at the top of the board labelled UART/SW is used for data communication and additional connections.
- B- and B+ Connectors: two connectors on the top side of the board are used to connect wires to individual cells.
- Power Wires: the blue wire B- and the black wire C- ensure power connection. The colour coding helps prevent confusion during installation.
- Mounting Brackets: brackets with holes on both sides of the board allow for screwing in the battery box.
- Design: yellow board with JNFN branding.
Contents of the package:
- 1x JNFN Balancing BMS Board 17S to 24S 60 A
The JNFN Balancing BMS board is intended for building or repairing a battery for an e-bike or electric scooter with 17 to 24 series cells. The continuous current of 60 A with a peak of 150 A should be compared with the requirements of the specific drive. The board supports Li-ion, LiFePO4, LTO and Na-ion cells, making it suitable for various battery packs. The Bluetooth connectivity and cell balancing enhance its protective function. Before installation, verify that the number and type of cells and the current draw match the board's specifications.
