JNFN S Bluetooth Balancing BMS Board 17S to 24S 40 A Peak 100 A for Li-ion LiFePO4 LTO and Na-ion Yellow for E-bikes and Scooters
You already have the maximum available quantity in your cart.

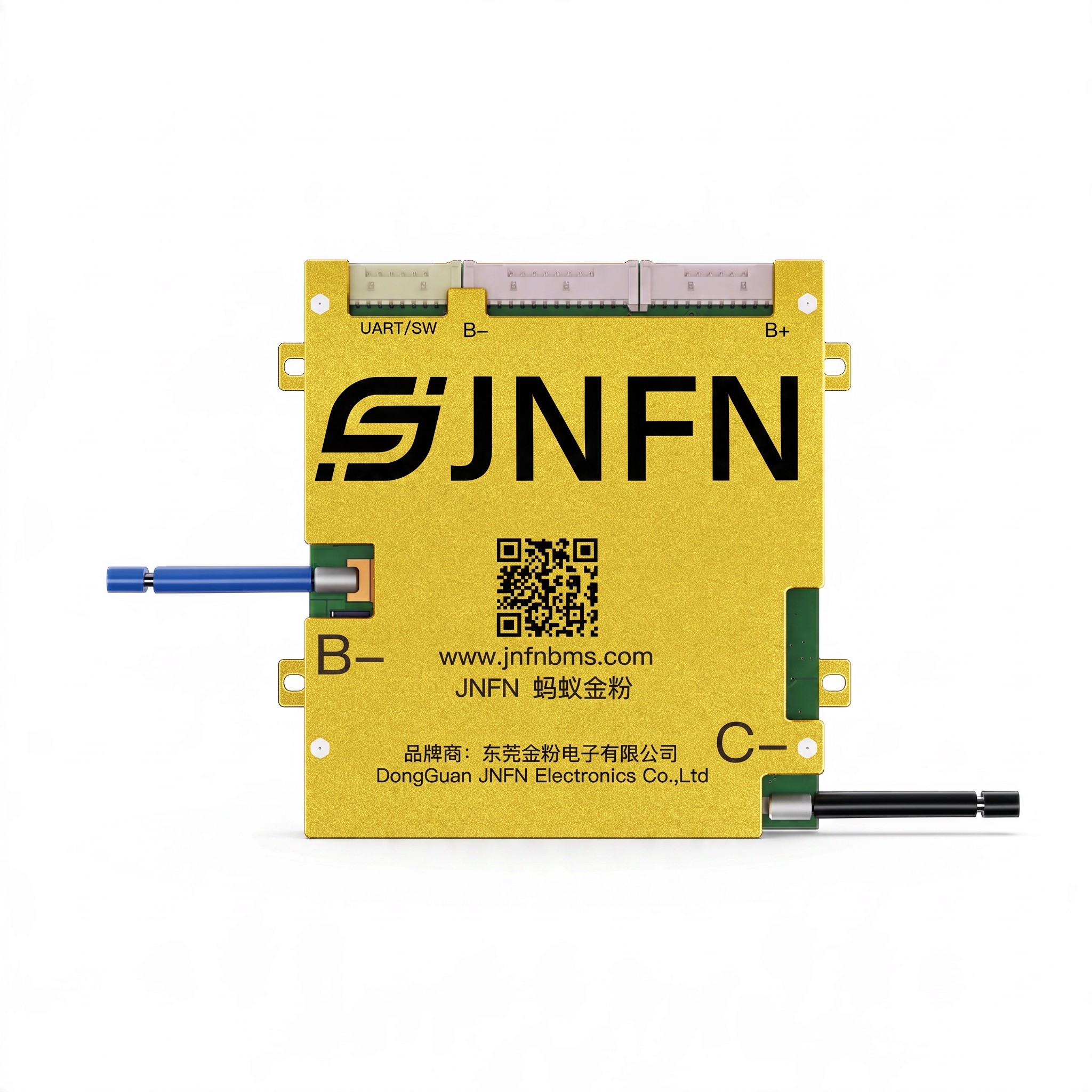

The JNFN Balancing BMS Board is designed to manage and protect the battery of an e-bike or electric scooter with higher voltage. It supports connections of 17S to 24S, meaning batteries with 17 to 24 series-connected cells. The board is rated for a continuous current of 40 A and can temporarily withstand a peak of 100 A. It is equipped with Bluetooth connectivity and a cell balancing function. The yellow board with mounting brackets and labelled connectors can be easily secured in the battery box.
- Range 17S to 24S: the board accommodates batteries with 17 to 24 series-connected cells, making it suitable for various voltage configurations of batteries.
- Continuous current 40 A: compare this value with the maximum consumption of the motor and controller before installation.
- Short-term load: the board can handle a peak current of 100 A.
- Bluetooth: wireless connectivity allows communication with the board without the need to connect a cable.
- Cell balancing: the function equalises the voltage between individual cells of the battery.
- Cell compatibility: the board is designed for Li-ion, LiFePO4, LTO and Na-ion batteries.
- UART/SW connector: located in the top left corner of the board, used for data communication and additional connections.
- B- and B+ connectors: two connectors on the top edge of the board are used to connect wires to individual cells.
- Power wires: the blue B- wire and the black C- wire ensure power connection. The colour coding helps prevent confusion during installation.
- Mounting brackets: brackets with holes on both sides of the board allow for screwing into the battery box.
- Design: yellow board with JNFN branding.
Contents of the package:
- 1x JNFN Balancing BMS Board 17S to 24S 40 A
The JNFN Balancing BMS Board is suitable for building or repairing the battery of an e-bike or electric scooter with 17 to 24 series cells. The continuous current of 40 A with a peak of 100 A should be compared with the requirements of the specific drive. The board supports Li-ion, LiFePO4, LTO and Na-ion cells, making it usable in various battery packs. The Bluetooth connectivity and balancing function enhance its protective capabilities. Before installation, ensure that the number and type of cells and the current draw match the board's specifications.
