JNFN S Bluetooth Balancing BMS Board 17S to 24S 130 A Peak 325 A for Li-ion LiFePO4 LTO and Na-ion Yellow for E-bikes and Scooters
You already have the maximum available quantity in your cart.

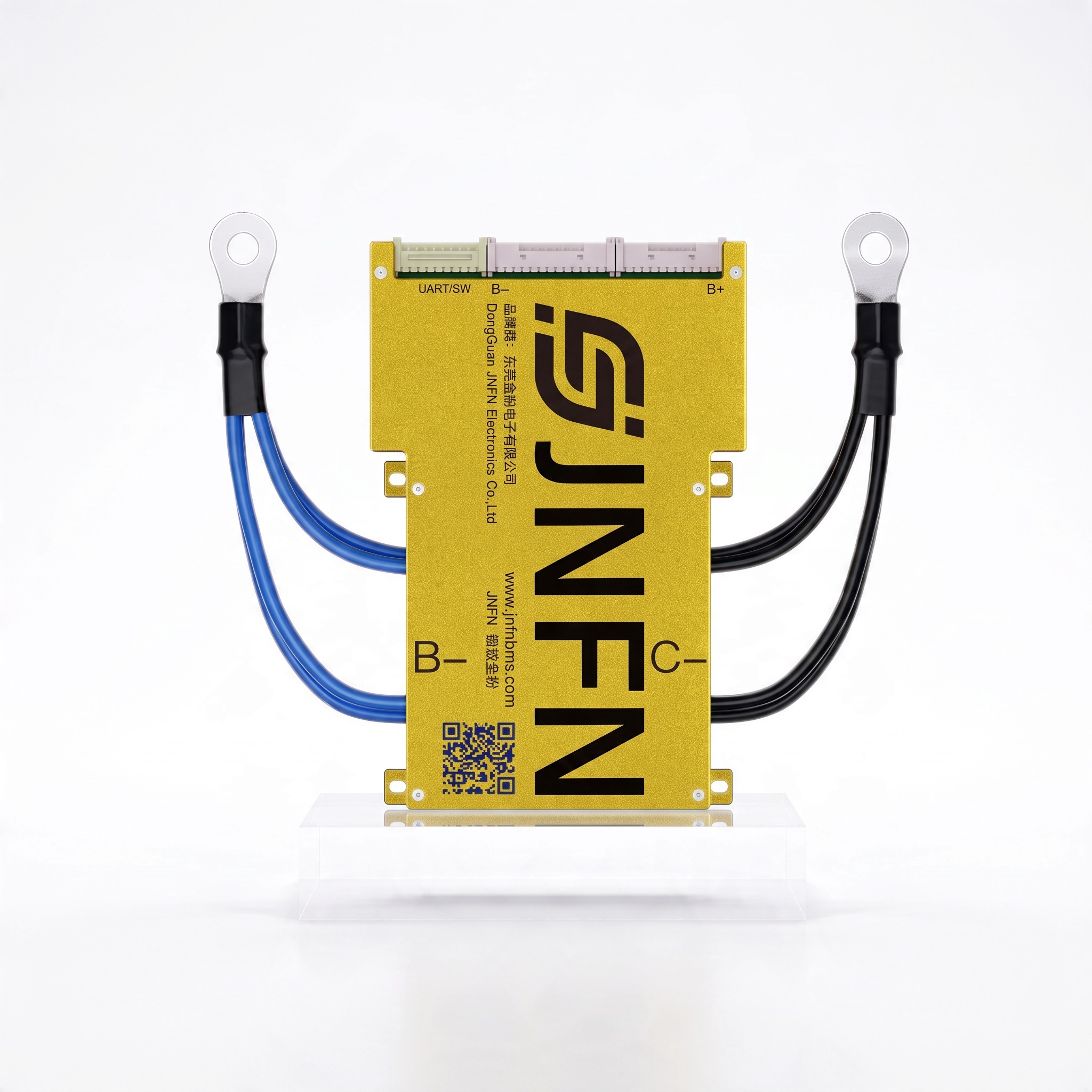

The JNFN Balancing BMS board is designed for managing and protecting the battery of an e-bike or electric scooter with high voltage. It is intended for connection to 17S to 24S, meaning batteries with 17 to 24 cells in series. The board offers continuous current of 130 A and can temporarily withstand a peak of 325 A. Additional features include Bluetooth connectivity and cell balancing functions. Power wires with cable lugs and clearly labelled connectors facilitate installation.
- Support for 17S to 24S: the board supports batteries with 17 to 24 series-connected cells, thus higher voltage assemblies.
- Continuous current of 130 A: compare this value with the maximum consumption of the motor and control unit before installation.
- Peak current of 325 A: the board can temporarily handle peak loads of up to 325 A.
- Power wires: a pair of blue B- wires and a pair of black C- wires, each terminated with a cable lug for bolting to the battery and output.
- Bluetooth: wireless connectivity allows communication with the board without the need to connect a cable.
- Cell balancing: the function equalises the voltage between individual cells of the battery.
- Types of cells: the board is designed for Li-ion, LiFePO4, LTO and Na-ion batteries.
- UART/SW connector: located in the top left corner of the board, used for data communication and additional connections.
- B- and B+ connectors: two connectors on the top edge of the board are used to connect wires to individual cells.
- Mounting brackets: brackets with holes on both sides of the board allow for bolting in the battery box.
- Design: yellow board with JNFN branding printed on it.
Contents of the package:
- 1x JNFN Balancing BMS Board 17S to 24S 130 A
The JNFN Balancing BMS board is intended for building or repairing the battery of an e-bike or electric scooter with 17 to 24 series cells. The continuous current of 130 A with a peak of 325 A meets even higher current demands of the drive. Support for Li-ion, LiFePO4, LTO and Na-ion cells allows use in various battery packs. Bluetooth connectivity and balancing functions complement the protective features of the board. Before installation, ensure that the number and type of cells and current consumption match the board's parameters.
