JNFN S Bluetooth Balance BMS Board 8S to 22S 40 A Peak 100 A for Li-ion LiFePO4 LTO and Na-ion Yellow for E-bikes and Scooters
You already have the maximum available quantity in your cart.

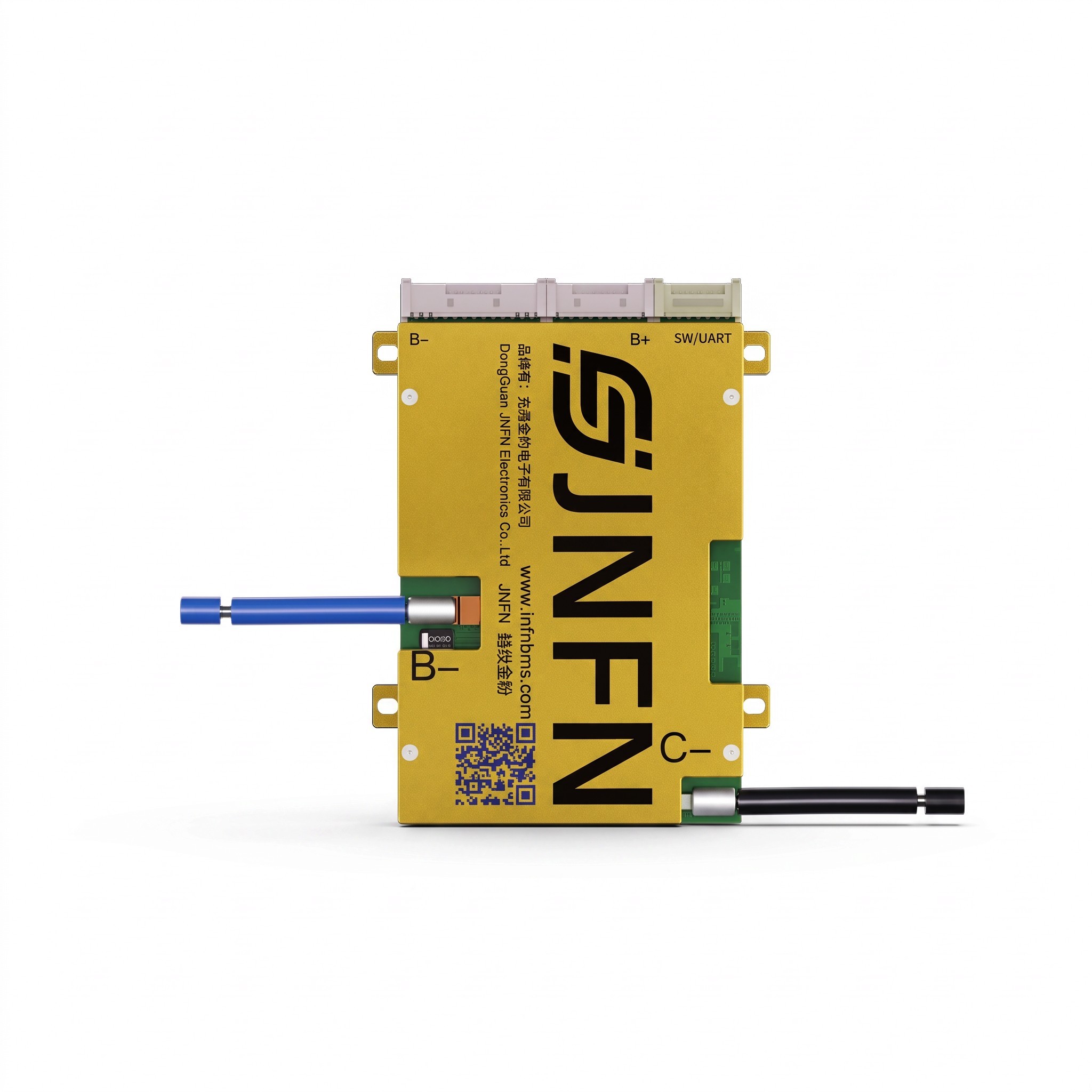

The JNFN balance BMS board ensures the management and protection of the battery in an e-bike or electric scooter. It is designed for batteries configured in 8S to 22S, meaning with 8 to 22 cells connected in series. The board is rated for a continuous current of 40 A and can temporarily handle a peak of 100 A. The equipment includes Bluetooth connectivity and cell balancing functionality. On the yellow board, you will find clearly marked connectors and mounting brackets on the sides.
- Wide range 8S to 22S: the board covers batteries from 8 to 22 series-connected cells, making it suitable for various voltage configurations of batteries.
- Continuous current 40 A: compare this value with the maximum consumption of the motor and controller before installation.
- Peak load: a peak of 100 A is permissible for short periods.
- Bluetooth: wireless connectivity allows communication with the board without the need to connect a cable.
- Cell balancing: the function equalises the voltage between individual cells in the battery.
- Compatible cells: the board is designed for Li-ion, LiFePO4, LTO, and Na-ion batteries.
- B- and B+ connectors: two connectors on the upper edge of the board are used to connect wires to individual cells.
- SW/UART port: connector in the top right corner of the board for data communication and additional connections.
- Power wires: the blue B- wire and the black C- wire ensure the power connection. The colour coding helps prevent confusion during installation.
- Mounting brackets: brackets with holes on both sides of the board allow for screwing into the battery box.
- Design: yellow board with JNFN branding.
Package contents:
- 1x JNFN balance BMS board 8S to 22S 40 A
The JNFN balance BMS board is intended for building or repairing a battery for an e-bike or electric scooter with 8 to 22 series cells. The continuous current of 40 A with a peak of 100 A should be compared with the needs of the specific drive. The board is suitable for Li-ion, LiFePO4, LTO and Na-ion cells, allowing it to be used in various battery packs. The cell balancing function and Bluetooth connectivity enhance its protective capabilities. Before installation, ensure that the number and type of cells and the current draw match the board's specifications.
