JNFN S Bluetooth 8S to 22S 80 A BMS Balance Board for Li-ion LiFePO4 LTO and Na-ion Yellow for E-bikes and Scooters
You already have the maximum available quantity in your cart.

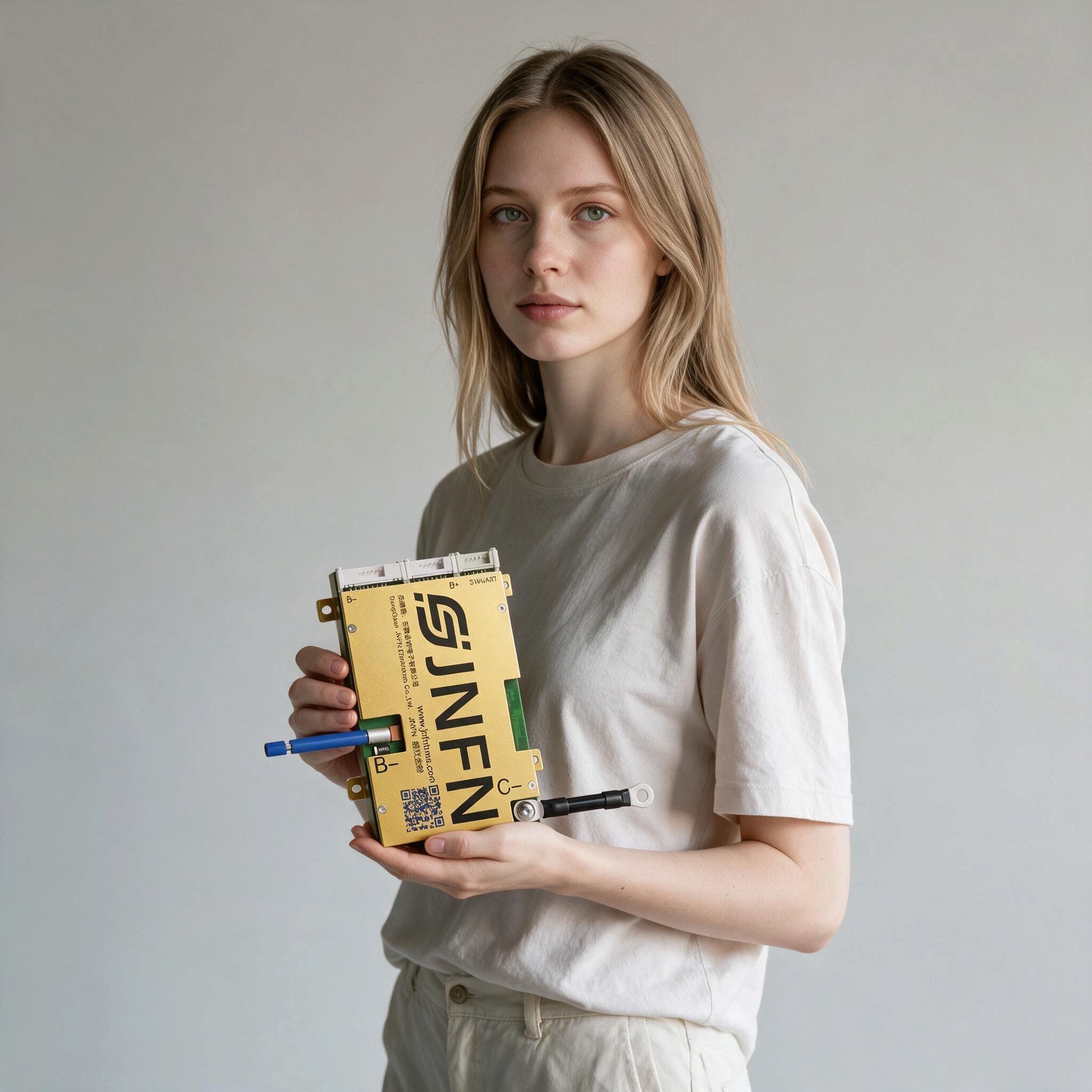

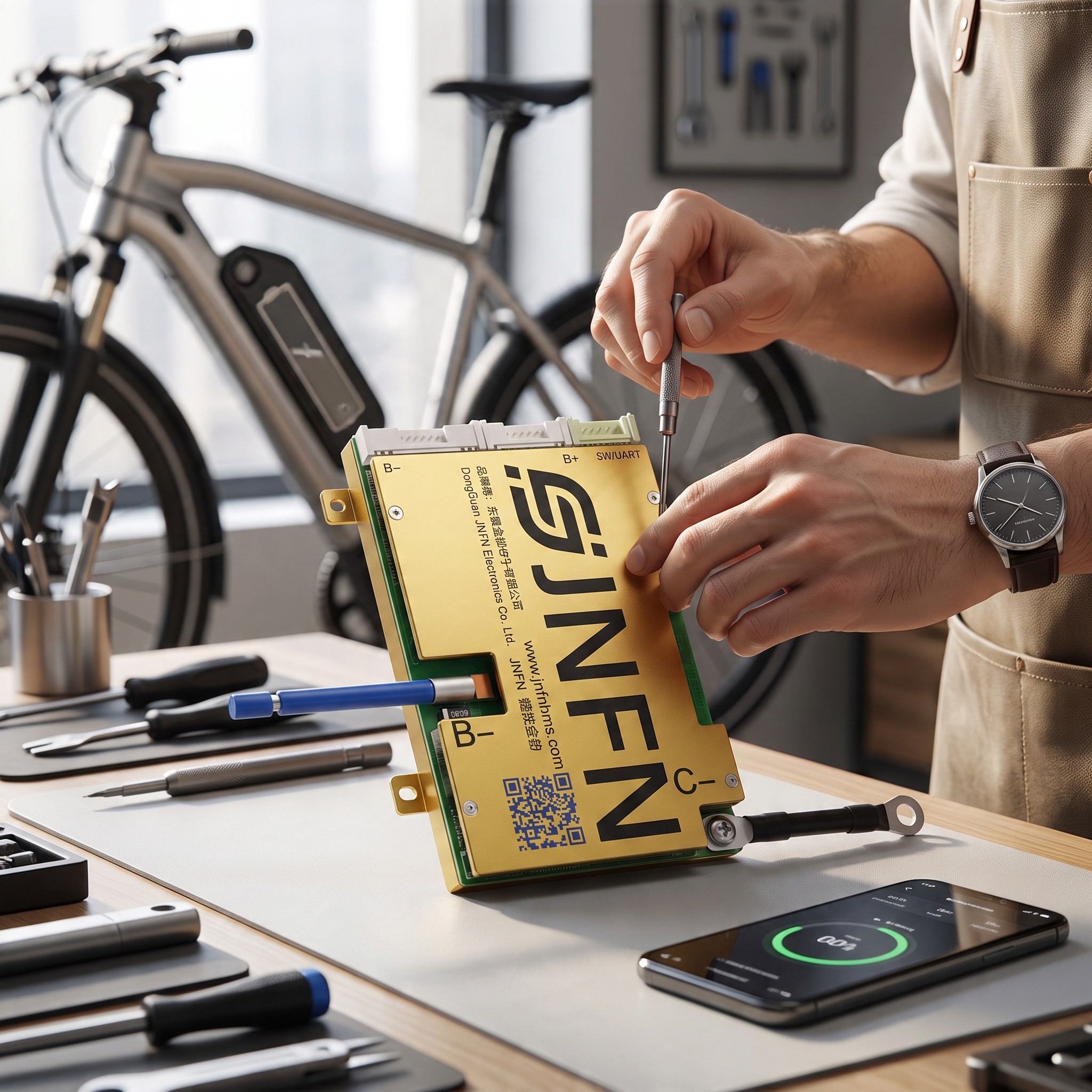

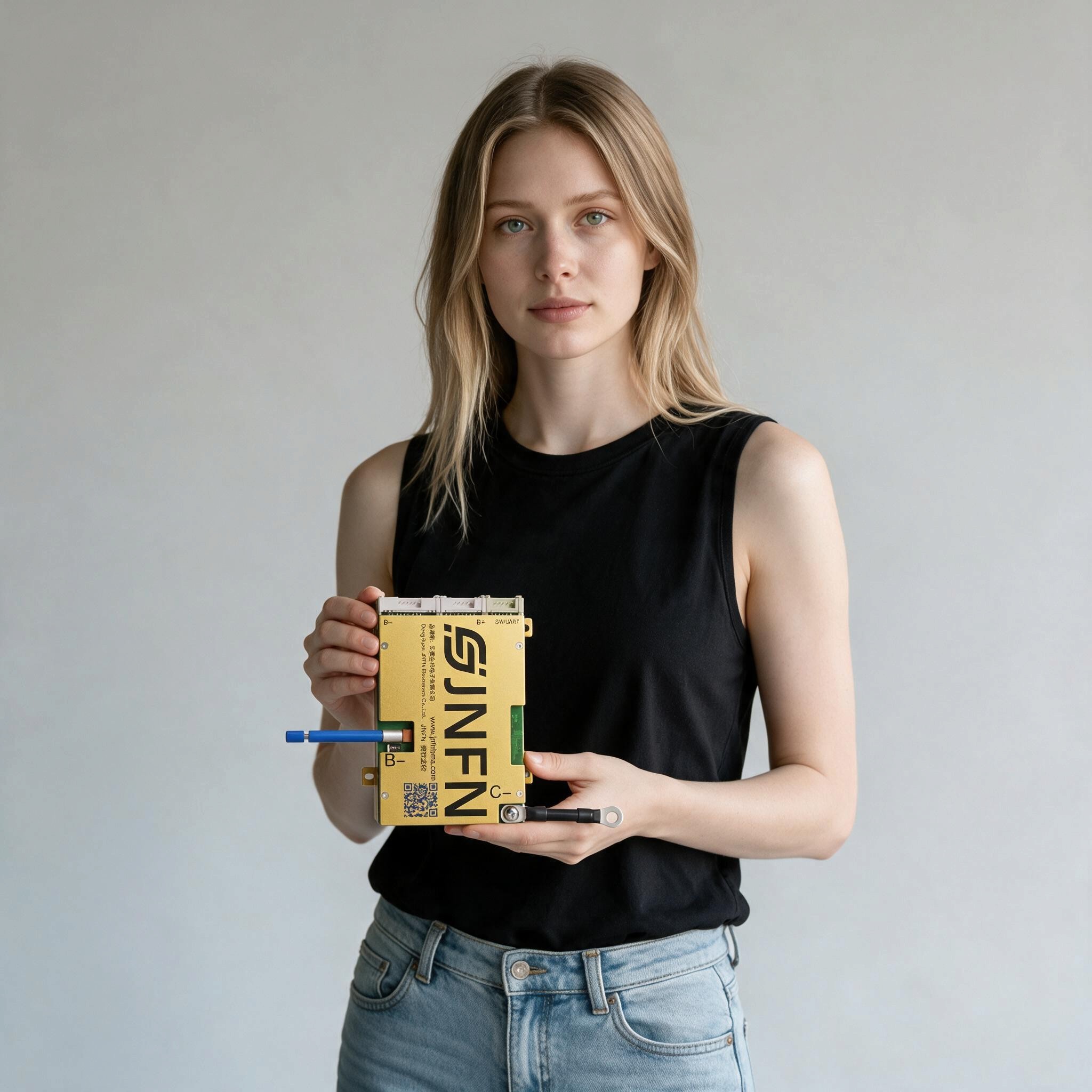

The JNFN balance BMS board is designed for managing and protecting the battery of an e-bike or electric scooter with a higher number of cells. It is intended for batteries configured in 8S to 22S, meaning 8 to 22 cells connected in series. The board is rated for a continuous current of 80 A. Bluetooth connectivity and cell balancing functionality are available. The yellow design with mounting brackets and labelled connectors facilitates installation into the battery box.
- Range 8S to 22S: the board covers batteries from 8 to 22 series-connected cells, thus it can also be used for batteries with higher voltage.
- Continuous current 80 A: compare this value with the maximum consumption of the motor and controller before installation.
- Peak current: the board can temporarily withstand a peak of 200 A.
- Bluetooth: wireless connection allows communication with the board without the need to connect a cable.
- Cell balancing: the function equalises the voltage between individual cells of the battery.
- Supported cells: the board is intended for Li-ion, LiFePO4, LTO and Na-ion batteries.

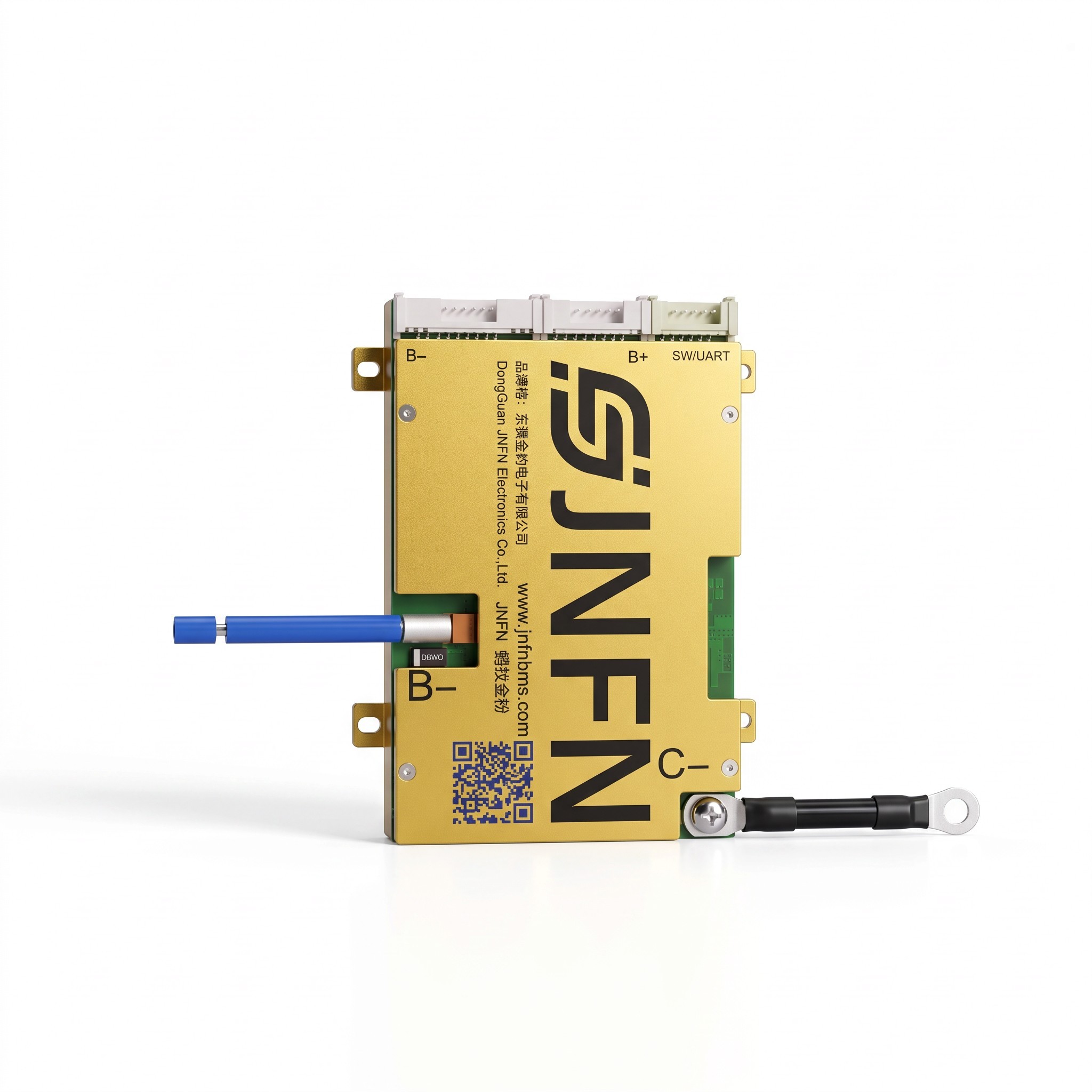

- B- and B+ connectors: two connectors on the top side of the board are used to connect wires to the individual cells.
- SW/UART port: a separate connector labelled SW/UART for data communication and additional connections.
- Power wires: the blue wire B- and the black wire C- ensure the power connection. The colour coding helps prevent confusion during installation.

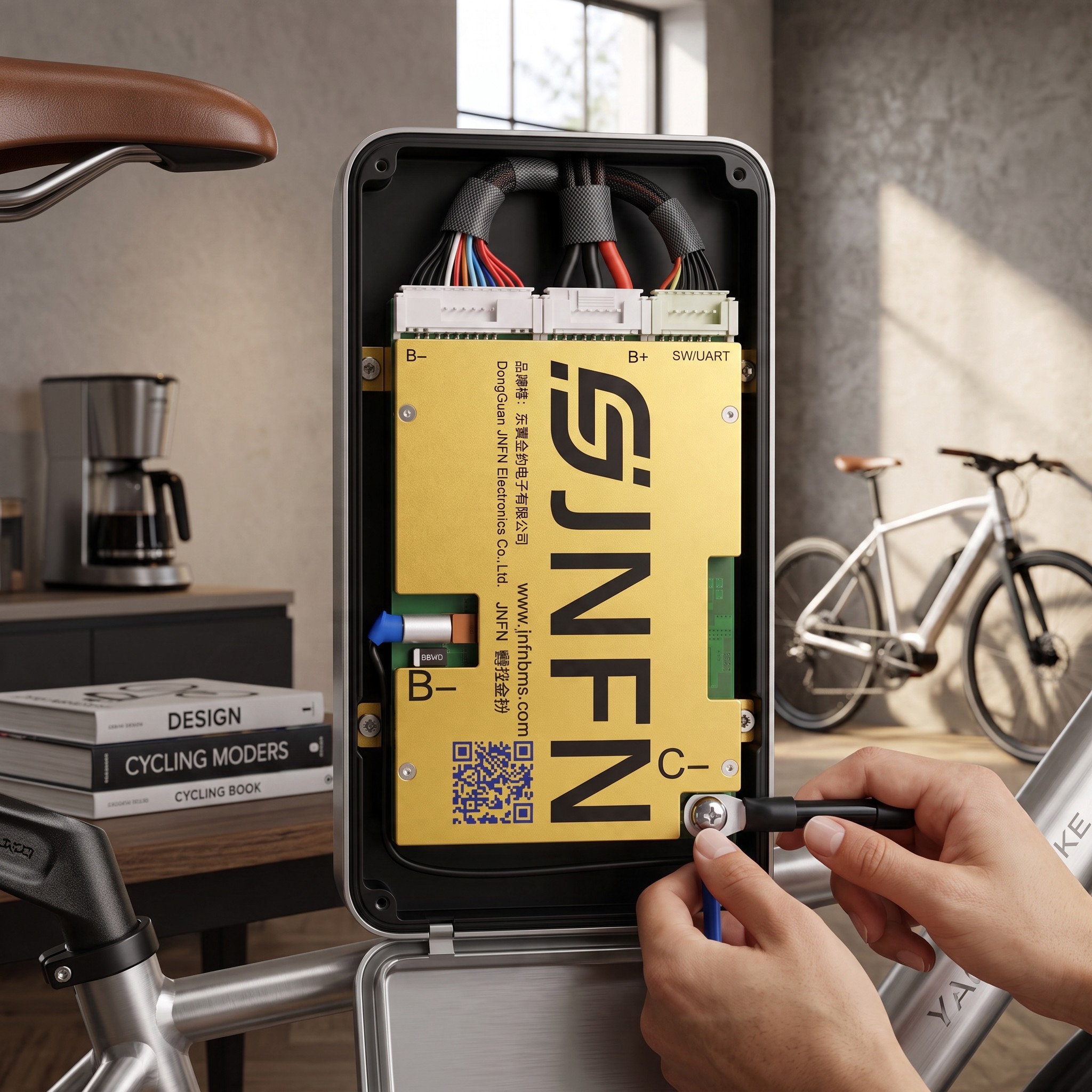

- Mounting brackets: brackets with holes on both sides of the board allow for screwing into the battery box.
- Design: yellow cover with JNFN branding.
Package contents:
- 1x JNFN 8S to 22S 80 A balance BMS board
The JNFN balance BMS board is designed for building or repairing the battery of an e-bike or electric scooter with 8 to 22 series cells. The continuous current of 80 A with a peak of 200 A and support for Li-ion, LiFePO4, LTO and Na-ion cells allow for use in various battery packs. The board is equipped with Bluetooth connectivity and cell balancing functionality. The power wires and clearly labelled connectors simplify the wiring. Before installation, ensure that the number and type of cells and the current draw match the board's specifications.
