JNFN S Bluetooth 7S to 16S 130 A Peak 325 A Balance BMS Board for Li-ion LiFePO4 LTO and Na-ion Yellow for E-bikes and Scooters
You already have the maximum available quantity in your cart.
The JNFN balance BMS board is designed for managing and protecting the battery of an e-bike or electric scooter. It supports batteries in the configuration 7S to 16S, meaning 7 to 16 cells in series. The board offers continuous current of 130 A and a short-term peak of 325 A. It is equipped with Bluetooth connectivity and a cell balancing function. It is suitable for batteries with Li-ion, LiFePO4, LTO and Na-ion cells.
- 7S to 16S Configuration: support for 7 to 16 series-connected cells allows the board to be used for various voltage configurations of batteries.
- Continuous Current 130 A: this value should be compared with the maximum consumption of the motor and controller before installation.
- Peak Current 325 A: according to the label, the board can handle a peak of 325 A for 10 seconds.
- Bluetooth and App: according to the label, the board communicates via Bluetooth with the ANT BMS app.
- Cell Balancing: the function balances the voltage between individual cells of the battery.
- Cell Types: the board is intended for Li-ion, LiFePO4, LTO and Na-ion batteries.
- TTL/BLE Port: connection point labelled TTL/BLE for data communication.

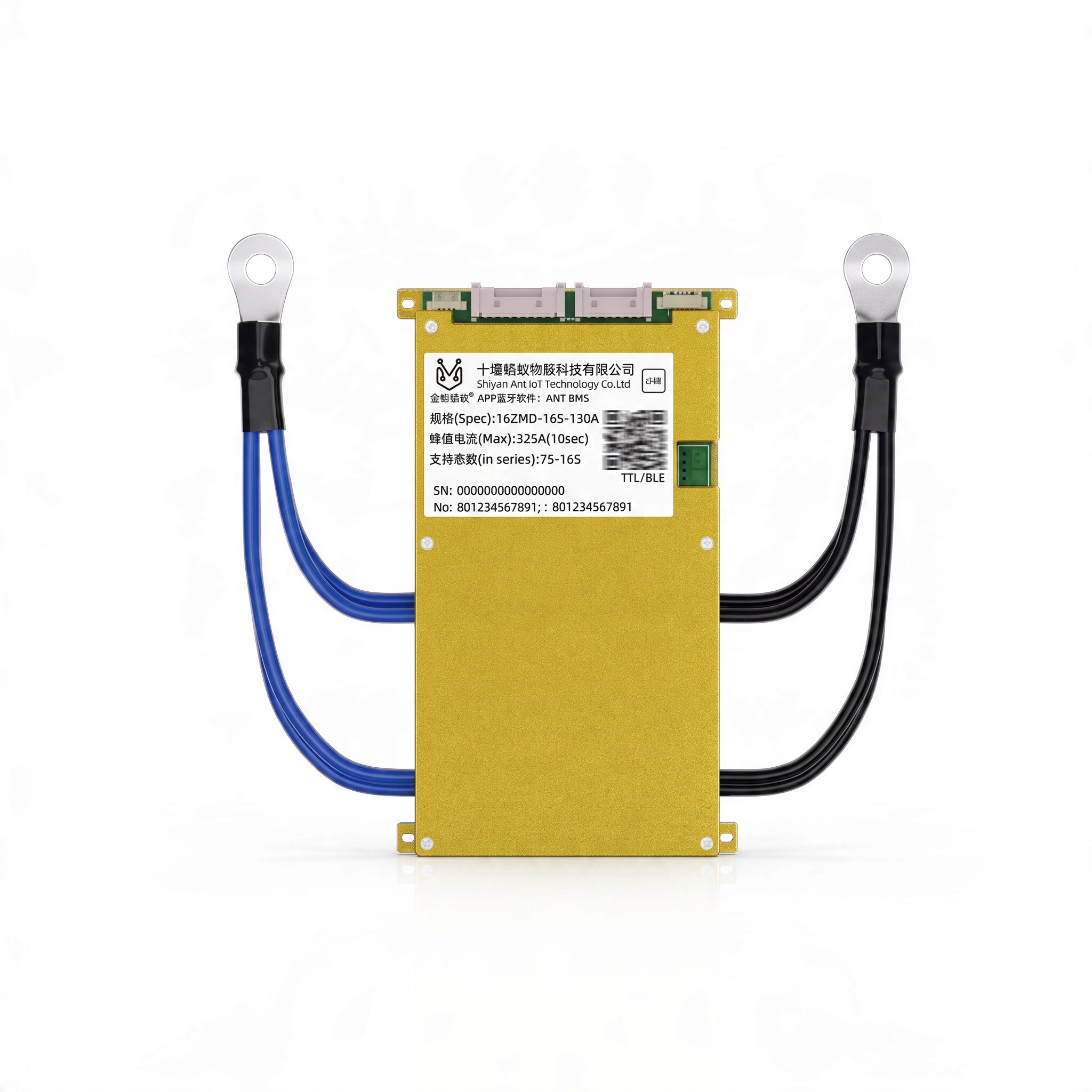

- Power Wires with Cable Lugs: a pair of blue and a pair of black wires are terminated with cable lugs that can be bolted to the battery and output.
- Connectors for Cells: two connectors on the top side of the board are used to connect wires to individual cells.
- Mounting Brackets: brackets with holes on the sides of the board allow for secure fixing in the battery box.
- Model Designation: 16ZMD-16S-130A, as stated on the board's label.
- Finish: yellow board with labelled sticker and QR code.
Contents of the package:
- 1x JNFN 7S to 16S 130 A balance BMS board
The JNFN balance BMS board is suitable for building or repairing the battery of an e-bike or electric scooter with 7 to 16 series cells. In addition to a continuous current of 130 A, it can handle a peak current of 325 A for 10 seconds. It is intended for Li-ion, LiFePO4, LTO and Na-ion cells and can be connected to the ANT BMS app via Bluetooth. The power wires with cable lugs simplify the connection to the battery. Before installation, ensure that the number and type of cells and the current draw match the board's specifications.
