JNFN S Bluetooth 4S 340 A Peak 850 A Balance BMS Module for Li-ion LiFePO4 LTO and Na-ion Silver for E-bikes and Scooters
You already have the maximum available quantity in your cart.

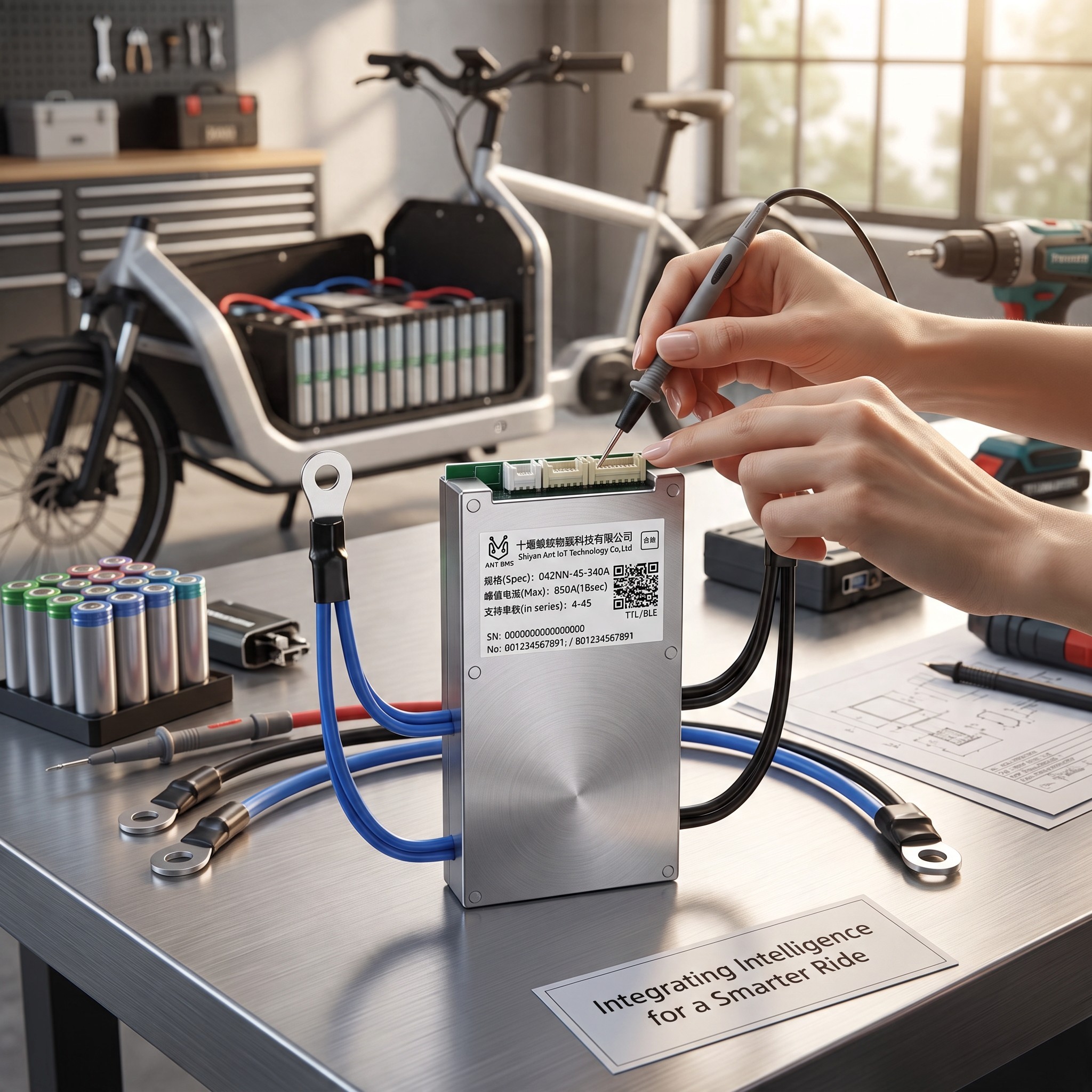

The JNFN balance BMS module is designed for the management and protection of a four-cell battery in a 4S configuration with very high current draw. The module is rated for a continuous current of 340 A and can temporarily withstand a peak of 850 A. It features Bluetooth connectivity and cell balancing functionality. The module is intended for batteries in e-bikes and electric scooters. The electronics are housed in a silver casing, and the power leads are terminated in cable lugs.
- 4S Configuration: the module is designed for batteries with 4 series-connected cells, the same information is indicated on the module label.
- Continuous Current 340 A: before installation, compare this value with the maximum draw of the motor and controller.
- Peak Load: according to the label, the module can withstand a peak of 850 A for 10 seconds.
- Bluetooth and TTL/BLE Port: the module communicates wirelessly via Bluetooth, the label also indicates the TTL/BLE port.
- Cell Balancing: this function equalises the voltage between individual cells in the battery.
- Cell Chemistry: the module is designed for Li-ion, LiFePO4, LTO, and Na-ion batteries.

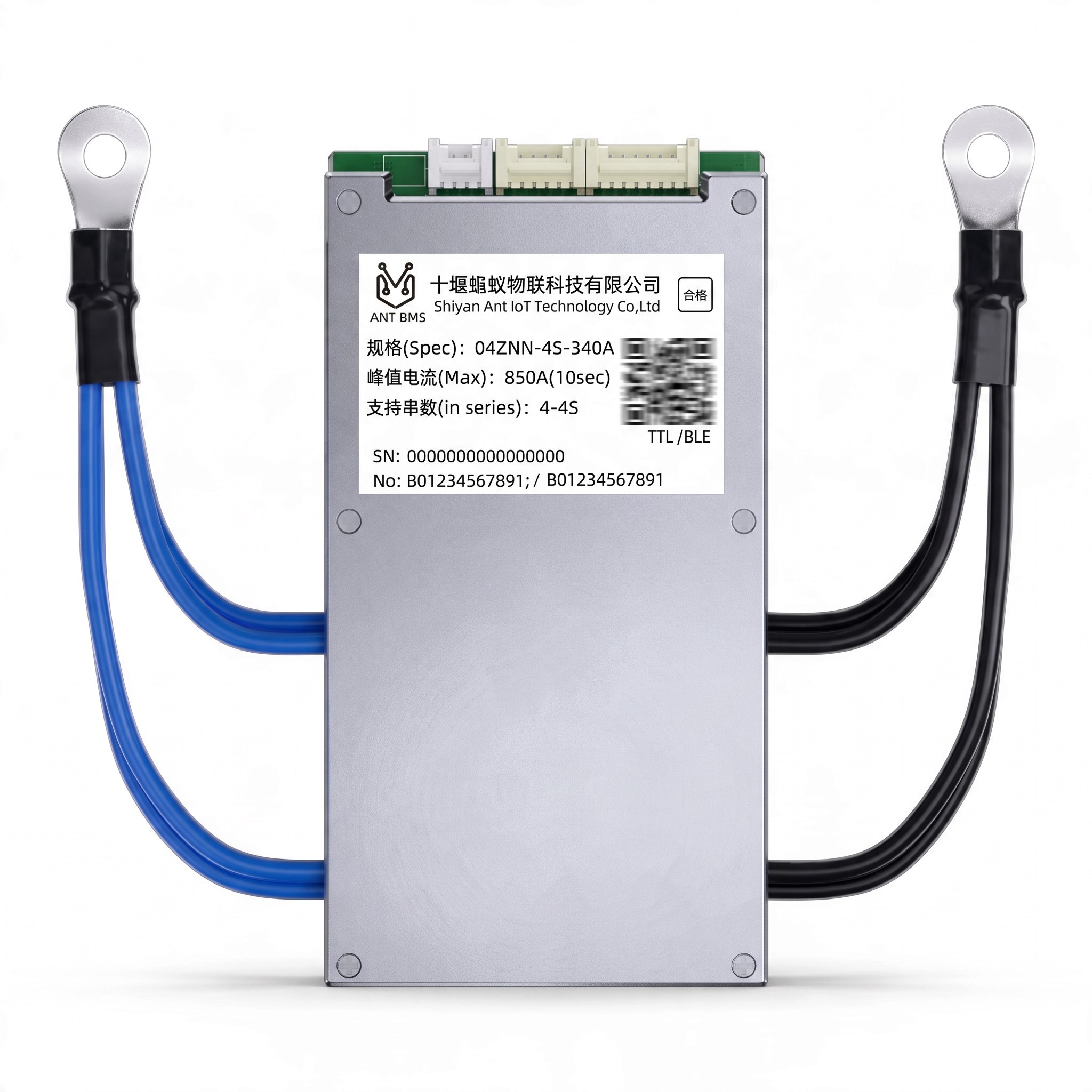

- Power Leads: a pair of blue and a pair of black wires, each terminated in a cable lug for bolting to the battery and output. The colour coding helps prevent pole confusion.
- Cell Connectors: connectors on the top edge of the module are used to connect wires to individual cells.

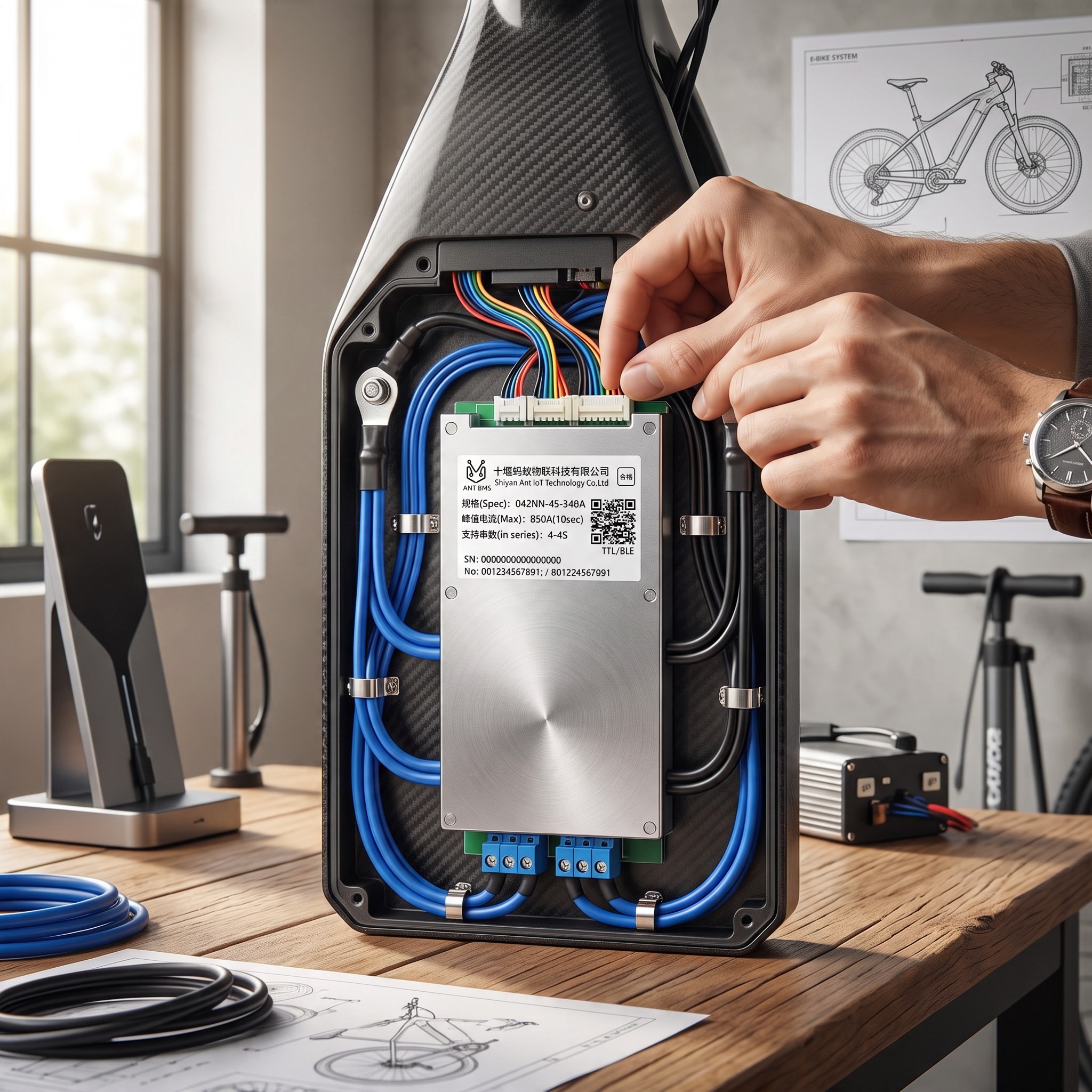

- Casing: the flat design in a silver casing facilitates storage next to the cells in the battery box.
- Model Designation: 04ZNN-4S-340A, indicated on the module label.
Contents of the package:
- 1x JNFN 4S 340 A Balance BMS Module
The JNFN balance BMS module is intended for the construction or repair of a battery with 4 series-connected cells and very high current loads. Compare the continuous current of 340 A with the peak of 850 A against the draw of the specific motor and controller. The module supports Li-ion, LiFePO4, LTO and Na-ion cells. Bluetooth connectivity and balancing functionality enhance its protective role. The power leads with cable lugs simplify the connection to the battery.
