JNFN S Bluetooth 4S 220 A Peak 550 A Balance BMS Module for Li-ion LiFePO4 LTO and Na-ion Silver for E-bikes and Scooters
You already have the maximum available quantity in your cart.

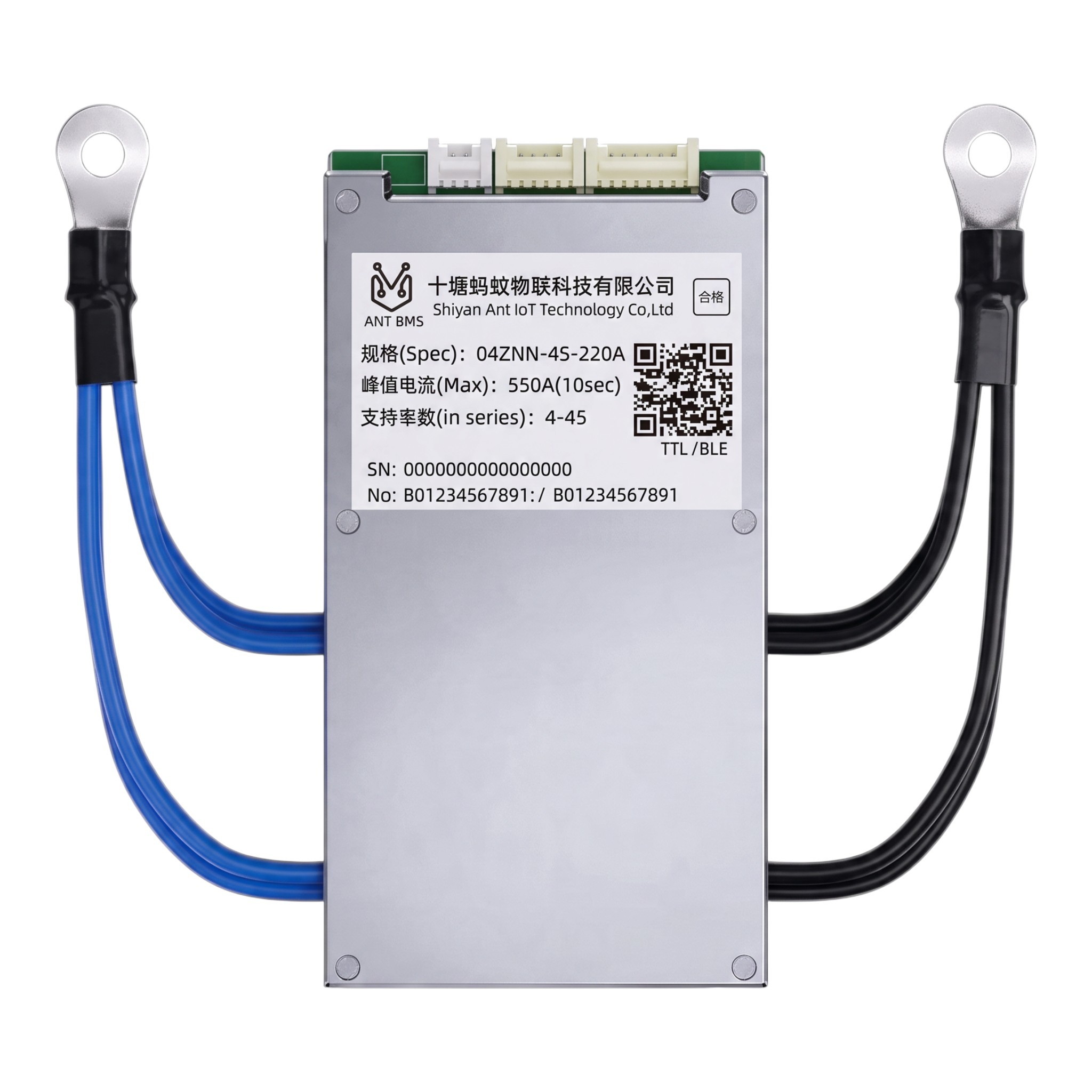

The JNFN balance BMS module is designed for managing and protecting batteries in a 4S configuration, meaning 4 cells connected in series. The module offers a continuous current of 220 A and a short-term peak of 550 A. It is equipped with Bluetooth connectivity and cell balancing functionality. It can be used in the batteries of e-bikes and electric scooters. The electronics are housed in a silver casing, and the power leads are terminated with cable lugs.
- 4S Configuration: the module is intended for batteries with 4 cells connected in series, the same range is indicated on the module's label.
- Continuous Current 220 A: before installation, compare this value with the maximum consumption of the motor and controller.
- Peak Current 550 A: according to the label, the module can withstand a peak of 550 A for 10 seconds.
- Bluetooth and TTL/BLE Port: the module communicates wirelessly via Bluetooth, the label also indicates the TTL/BLE port.
- Cell Balancing: the function equalises the voltage between individual cells of the battery.
- Cell Types: the module is designed for Li-ion, LiFePO4, LTO, and Na-ion batteries.
- Power Leads: a pair of blue and a pair of black leads, each terminated with a cable lug for bolting. The colour coding helps prevent pole confusion.
- Cell Connectors: connectors on the top edge of the module serve to connect the leads to individual cells.
- Casing: the flat design in a silver casing facilitates placement alongside cells in the battery box.
- Model Designation: 04ZNN-4S-220A, indicated on the module's label.
Contents of the package:
- 1x JNFN 4S 220 A balance BMS module
The JNFN balance BMS module is intended for building or repairing batteries with 4 cells connected in series and high current draw. The continuous current of 220 A with a peak of 550 A should be compared with the needs of the specific drive. The module supports Li-ion, LiFePO4, LTO, and Na-ion cells and the Bluetooth connectivity along with balancing enhances its protective function. The power leads with cable lugs simplify the connection to the battery. Before installation, ensure that the number and type of cells and the current draw match the module's parameters.
