JNFN S Bluetooth 4S 170 A Peak 425 A Balance BMS Module for Li-ion LiFePO4 LTO and Na-ion Silver for E-bikes and Scooters
You already have the maximum available quantity in your cart.

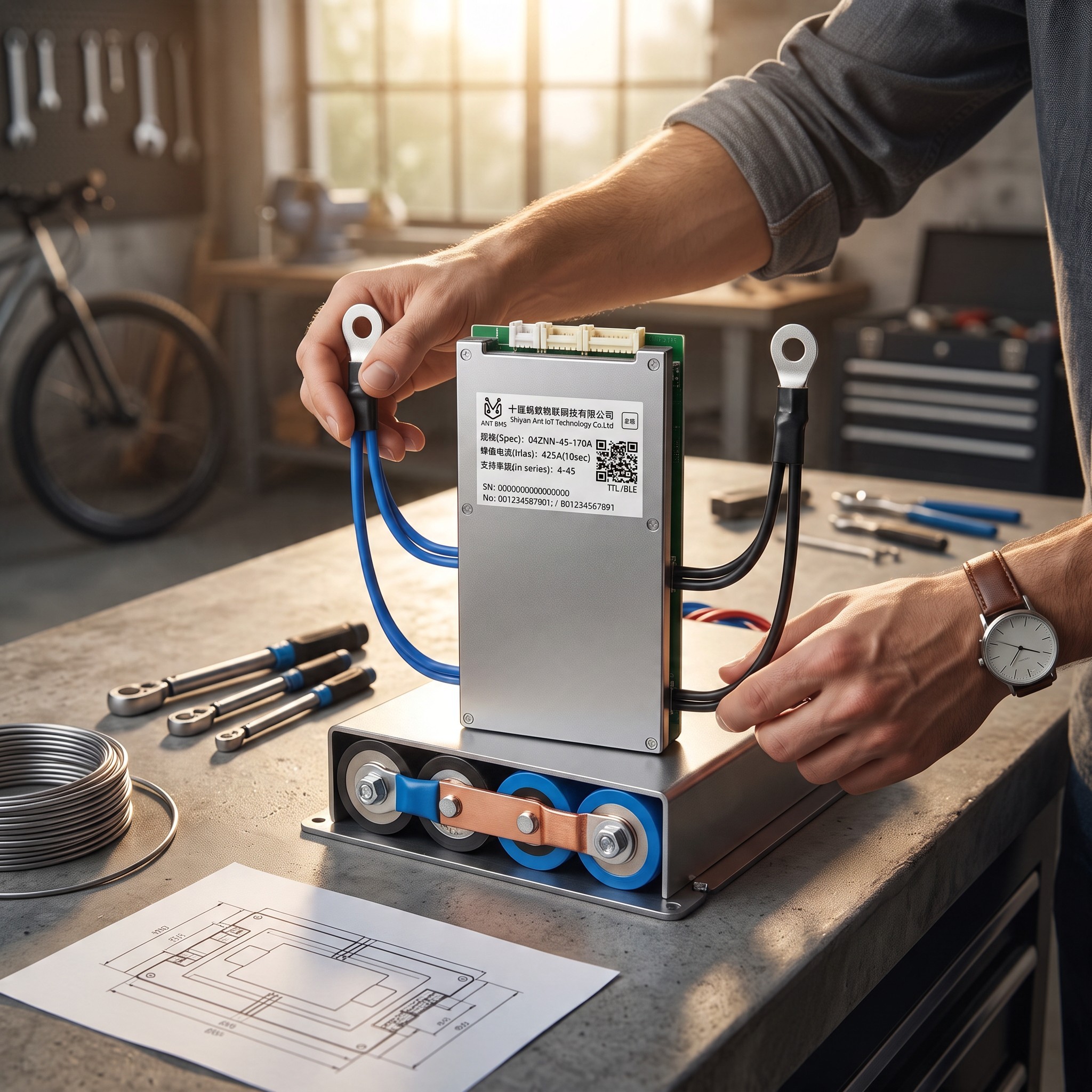

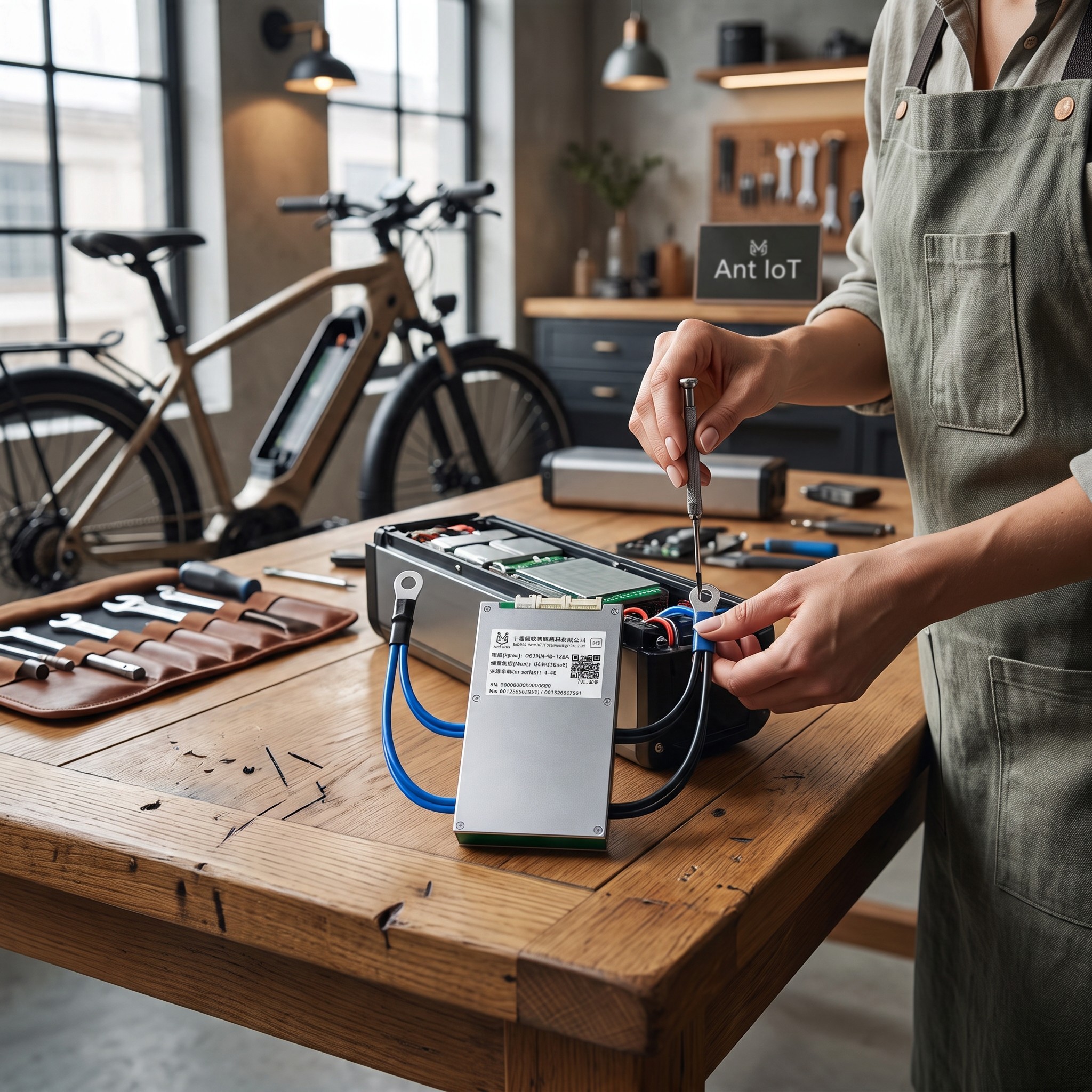

The JNFN balance BMS module is designed for the management and protection of a battery with 4 cells in a 4S configuration. The module is rated for a continuous current of 170 A and a short-term peak of 425 A. It offers Bluetooth connectivity and cell balancing functionality. It is intended for batteries used in e-bikes and electric scooters. The electronics are housed in a silver casing, and the power wires lead to cable lugs.
- 4S Configuration: the module is designed for batteries with 4 cells connected in series, the same information is provided on the module's label.
- Continuous Current 170 A: compare this value with the maximum consumption of the motor and the control unit before installation.
- Peak Current 425 A: according to the label, the module can withstand a peak of 425 A for 10 seconds.
- Wireless Communication: Bluetooth connectivity allows communication with the module without the need to connect a cable.
- Cell Balancing: the function equalises the voltage between individual cells in the battery.
- Supported Cell Chemistry: the module is designed for Li-ion, LiFePO4, LTO and Na-ion batteries.

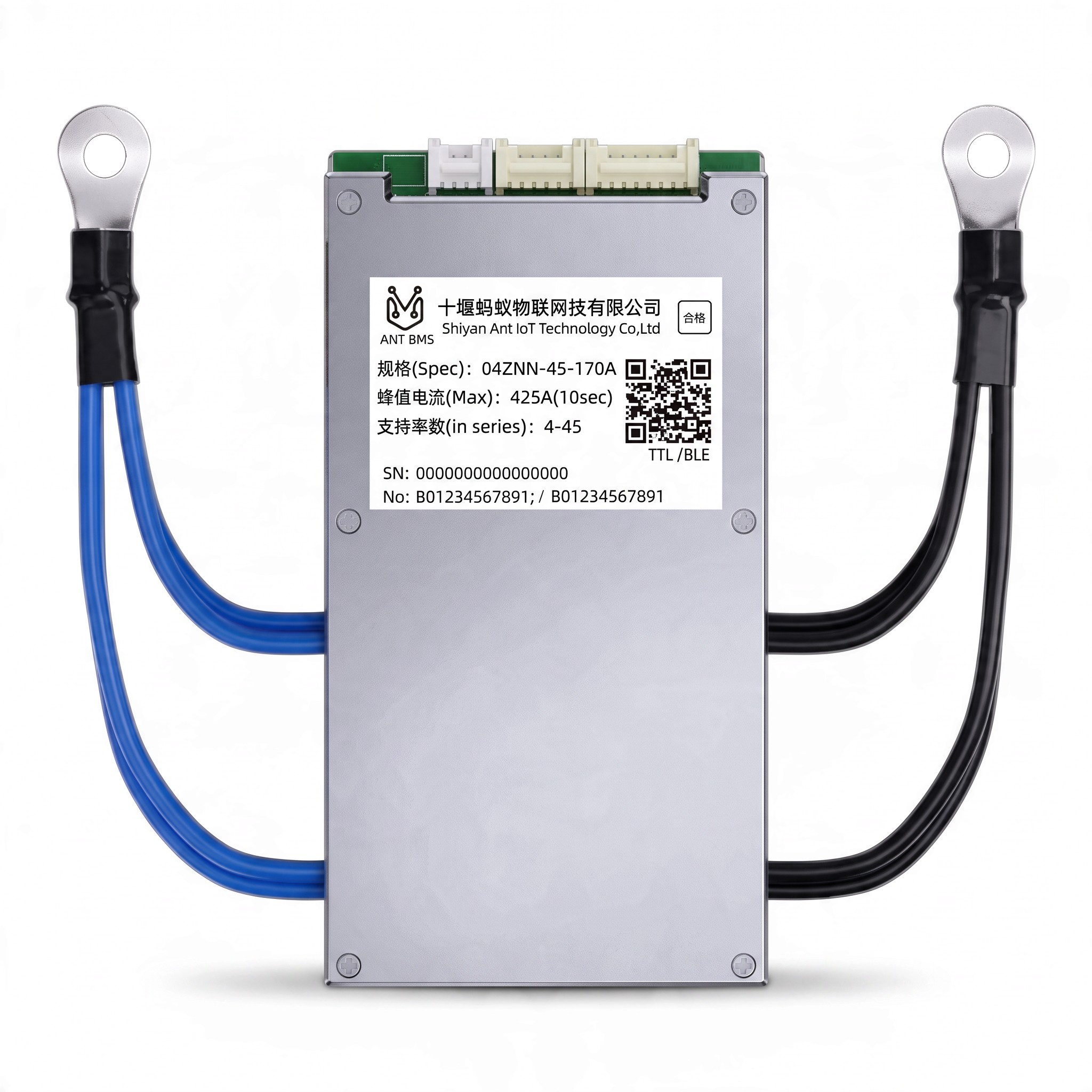

- Power Wires: a pair of blue and a pair of black wires, each leading to a cable lug for bolting. The colour coding helps prevent polarity confusion.
- Cell Connectors: connectors on the top edge of the module are used to connect wires to individual cells.
- Silver Casing: the flat design makes it easy to store next to cells in the battery box.
- Model Number: 04ZNN-4S-170A, indicated on the module's label.
Contents of the package:
- 1x JNFN 4S 170 A balance BMS module
The JNFN balance BMS module is suitable for building or repairing a battery with 4 cells connected in series. The continuous current of 170 A with a peak of 425 A should be compared with the consumption of the specific drive. The module supports Li-ion, LiFePO4, LTO and Na-ion cells and offers Bluetooth connectivity with balancing functionality. The label also indicates a TTL/BLE port for data communication. The power wires with cable lugs simplify the connection to the battery.
