JNFN S Bluetooth 17S to 24S 100 A Peak 250 A Balance BMS Board for Li-ion LiFePO4 LTO and Na-ion Yellow for E-bikes and Scooters
You already have the maximum available quantity in your cart.

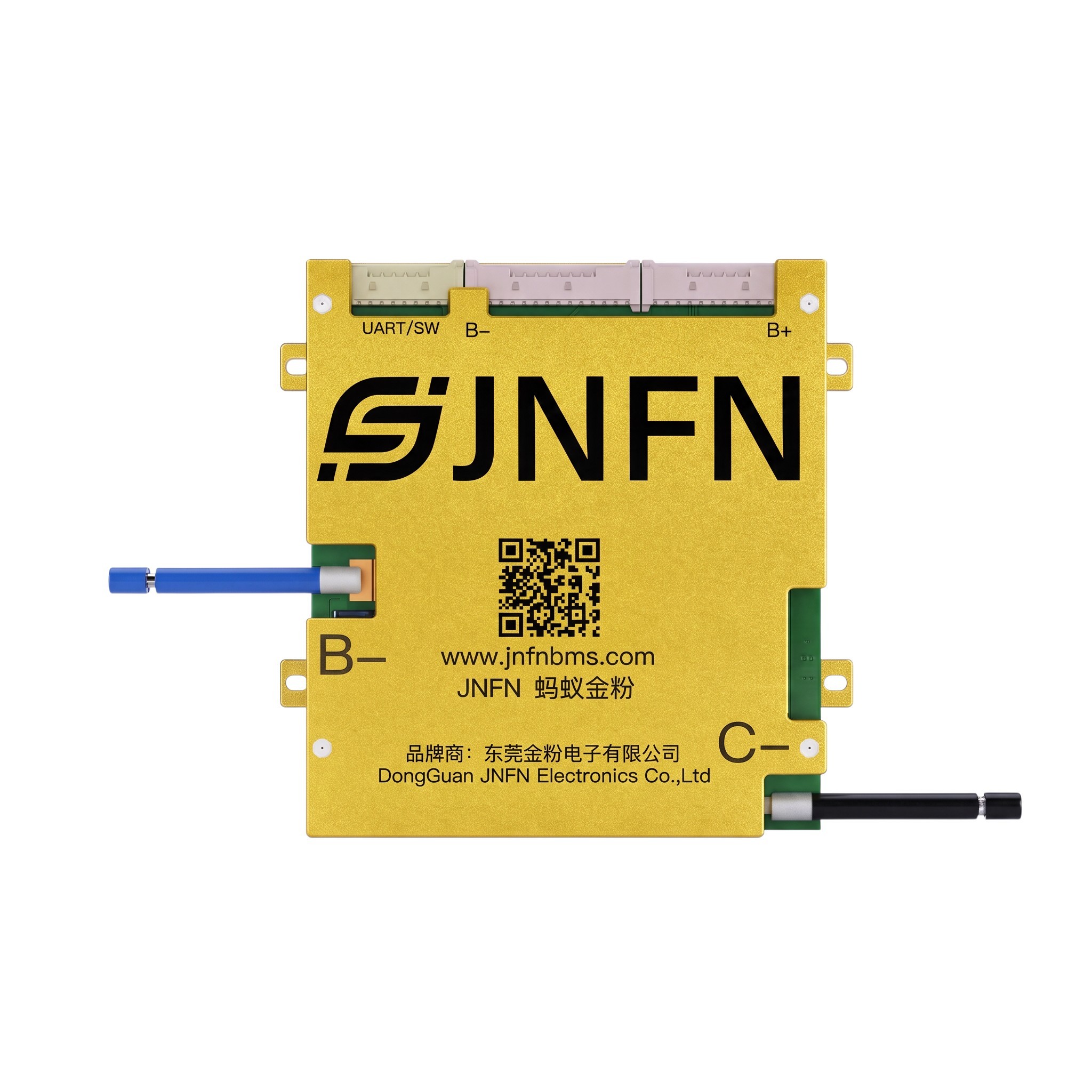

The JNFN balance BMS board is designed for managing and protecting the battery of an e-bike or electric scooter with a high number of cells. It supports connections of 17S to 24S, making it suitable for high voltage battery packs. The board offers a continuous current of 100 A and a short-term peak of 250 A. It is equipped with Bluetooth connectivity and a cell balancing function. The yellow board has clearly marked connectors and mounting brackets on the sides.
- Connection 17S to 24S: the board can handle 17 to 24 series-connected cells, allowing it to be used for various voltage configurations of the battery.
- Continuous current 100 A: it is recommended to compare this value with the maximum consumption of the motor and control unit before installation.
- Peak load: a peak of 250 A is permissible for short periods.
- Bluetooth: wireless connectivity allows communication with the board without the need to connect a cable.
- Cell balancing: this function equalises the voltage between individual cells of the battery.
- Supported cells: the board is designed for Li-ion, LiFePO4, LTO and Na-ion batteries.
- UART/SW connector: located in the top left corner of the board, it is used for data communication and additional connections.
- B- and B+ connectors: two connectors on the top edge of the board are used to connect wires to individual cells.
- Power wires: the blue B- wire and the black C- wire ensure the power connection. The colour coding helps prevent confusion during installation.
- Mounting: brackets with holes on both sides of the board allow for screwing into the battery box.
- Design: yellow board with JNFN branding printed on it.
Contents of the package:
- 1x JNFN balance BMS board 17S to 24S 100 A

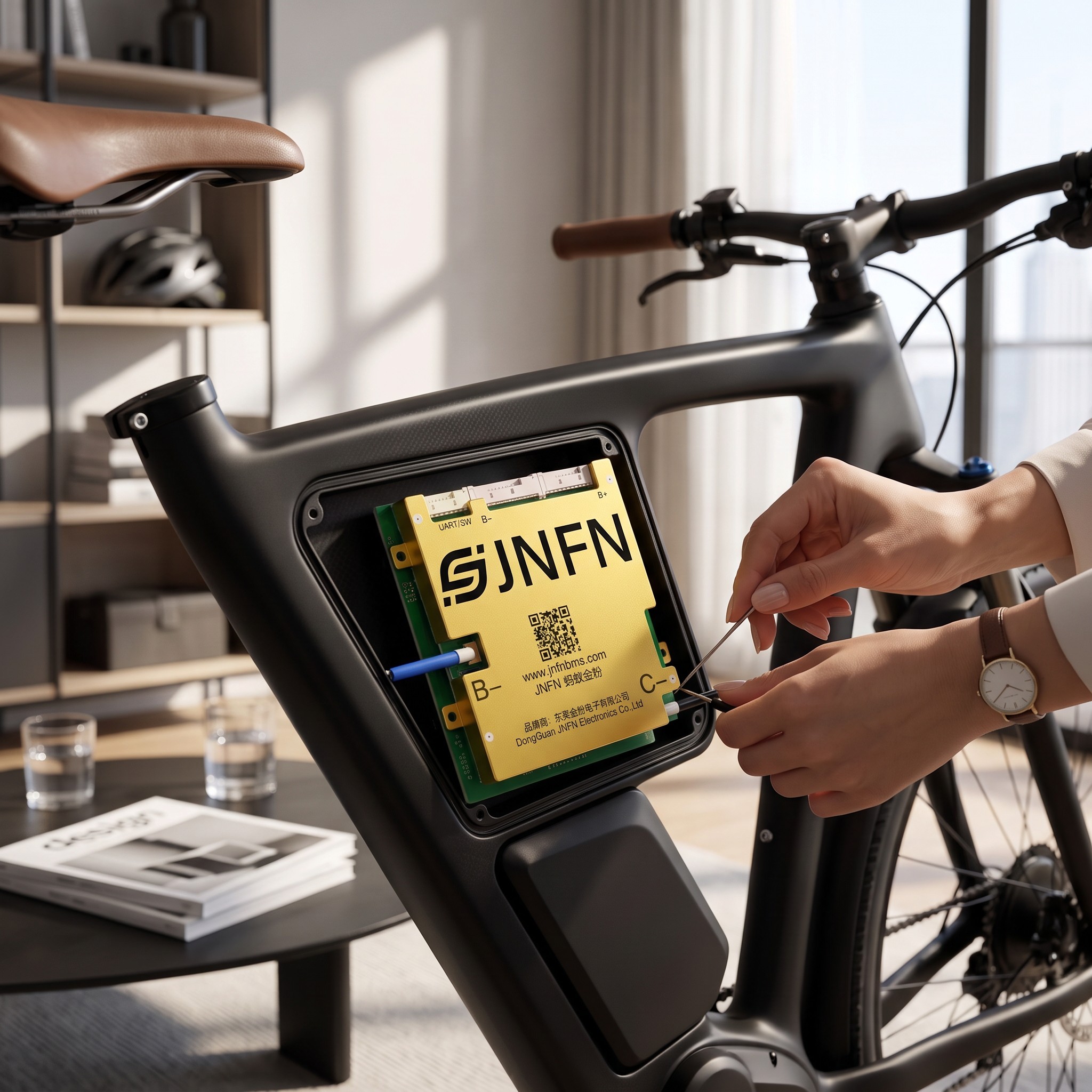

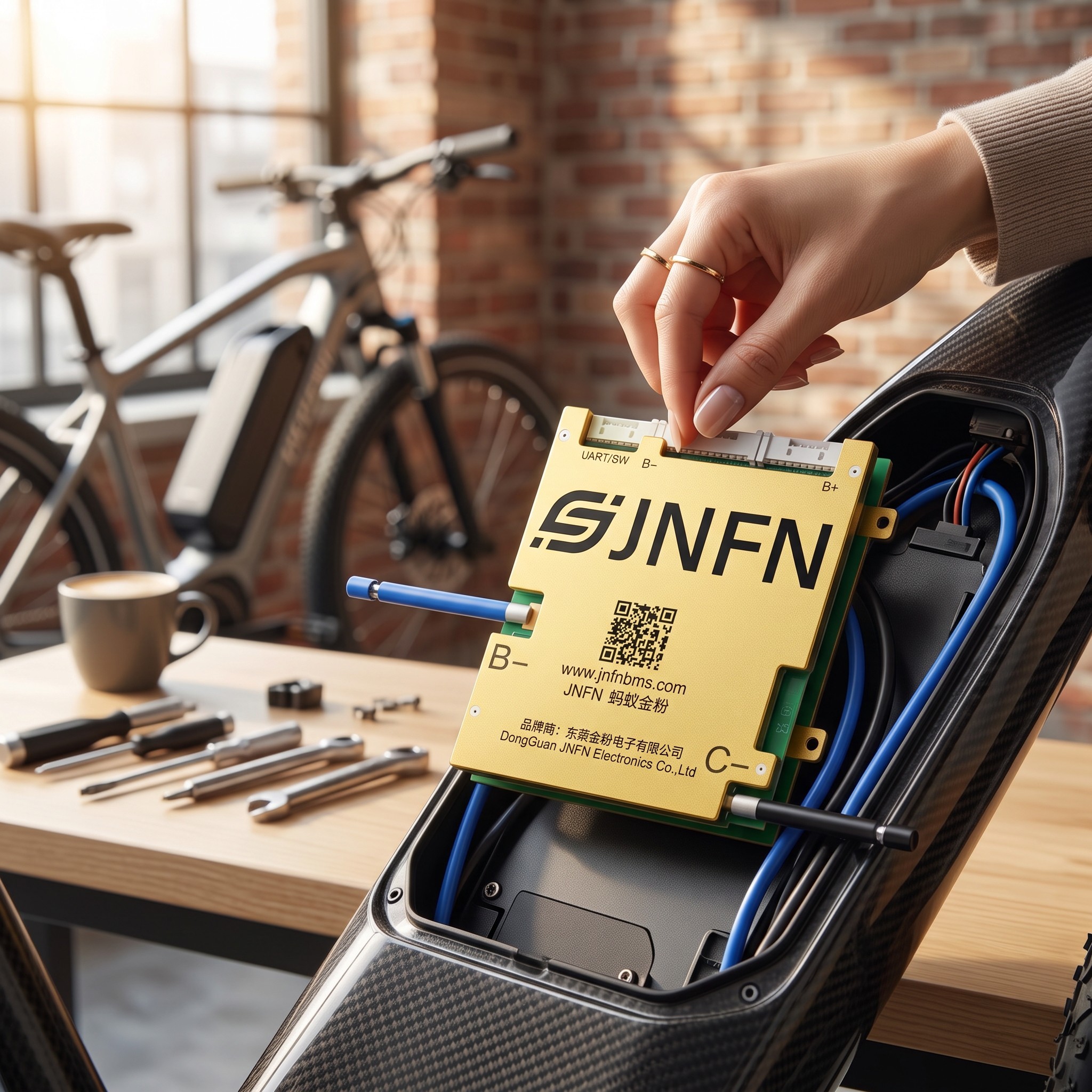

The JNFN balance BMS board is suitable for building or repairing the battery of an e-bike or electric scooter with 17 to 24 series cells. The continuous current of 100 A with a peak of 250 A should be compared with the needs of the specific drive. Support for Li-ion, LiFePO4, LTO and Na-ion cells allows use in various battery packs. The cell balancing function and Bluetooth connectivity enhance the protective function of the board. Before installation, ensure that the number and type of cells and the current draw match the board's specifications.
