Invisible Tiled Floor Drain for Bathroom with Side Outlet Size 60 x 10 cm Drainage 4 cm Tile Bed Silver Finish
You already have the maximum available quantity in your cart.

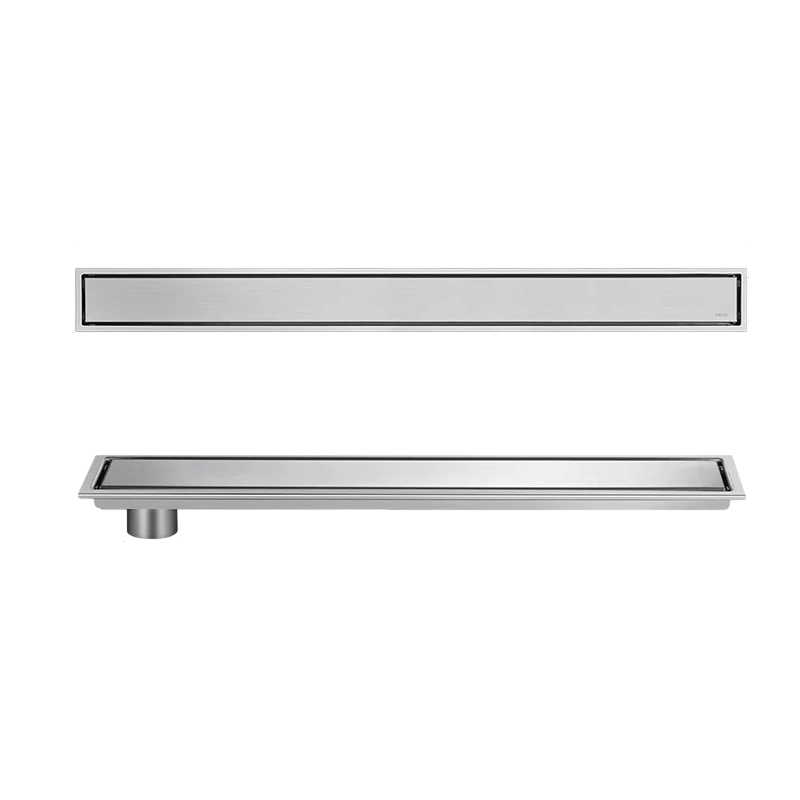

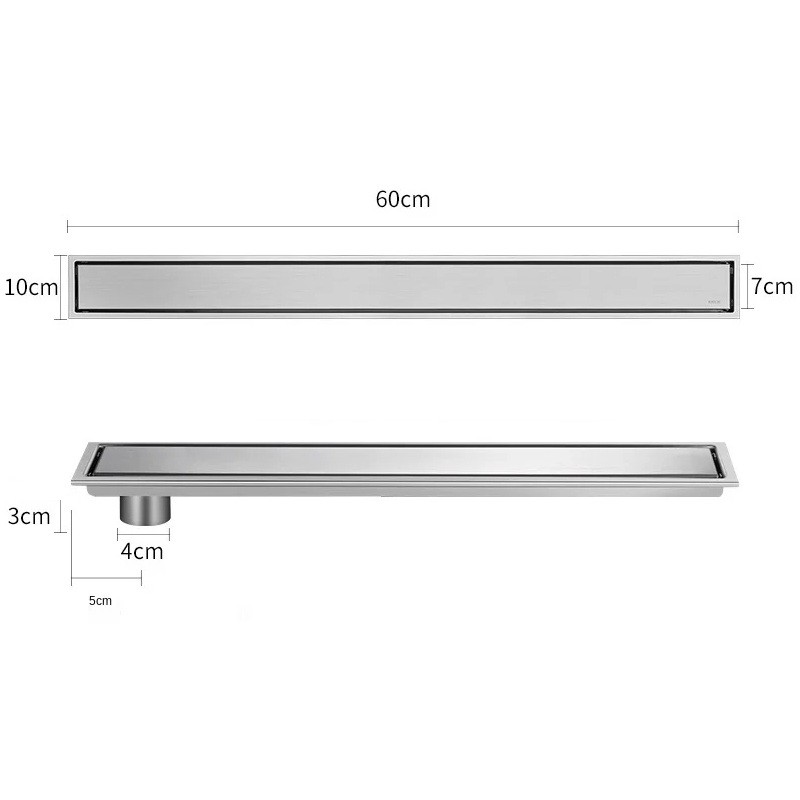

The sixty-centimetre drain measuring 60 x 10 cm is designed as a tiled drain, so its top is not a grille but a bed for a piece of floor tile. The internal strip for the tile is 7 cm wide and 2 cm deep, which accommodates the tile along with the adhesive layer. The outlet with a diameter of 4 cm is offset towards one end, with its axis 5 cm from the shorter side, and extends 3 cm below the bottom of the body. The extreme position of the outlet is suitable where the waste pipe exits at the wall and cannot be moved to the centre of the drained area. The frame has a silver brushed finish and is made of stainless steel 304, with a mounting depth specified for this model from 60 mm, and suitable applications include bathrooms, shower cubicles, toilets, and balconies.
- Side outlet – the axis of the outlet lies 5 cm from the shorter side, allowing the waste to run close to the wall without needing to bend under the centre of the body. This is particularly appreciated in renovations where the position of the waste is fixed, and changing it would require breaking up the floor.
- Size 60 x 10 cm – a length of 60 cm for drainage and a wide entry into the shower or a longer strip of floor, while the body maintains a width of just ten centimetres, occupying only a slim strip in the tiles. The elongated shape can be positioned along the wall or across the shower area.
- Tile bed – the inserted tile replaces the perforated cover, so from the drainage, only a thin frame around the edge is visible in the finished floor. This is applicable for large-format tiles, mosaics, and floors with distinctive patterns.
- Strip 7 cm and depth 2 cm – the space for the tile accounts for the thickness of the tile and adhesive, ensuring the surface finishes flush with the surrounding floor without any step. The edging around the bed holds the tile in place and creates a clean transition to the tiles.
- Drainage 4 cm – the outlet extends 3 cm below the bottom and connects to the waste pipe of corresponding diameter, so there is no need to source unusual connectors or reducers outside the standard range. A diameter of 4 cm is a common size for bathroom drains.
- Silver finish made of stainless steel 304 – the brushed surface resists water, steam, and bathroom cleaners, does not corrode, and can be wiped dry with a standard cloth. Stainless steel does not absorb, so no water stains or soap film remain on the surface.
Contents of the package:
- 1x floor drain
The long tiled drain with a side outlet is suitable for bathrooms, shower cubicles, and balconies where there is a need to drain a longer stretch of floor and the waste lies against the wall. The inserted tile continues the pattern of the floor, allowing for seamless walking and cleaning over the drain just as with the rest of the area. The silver stainless steel frame is the only visible part and appears unobtrusive in the tiles, whether the cladding is light or dark. A length of 60 cm offers a generous catchment area without creating a wide metal strip in the floor. Moreover, stainless steel withstands constant moisture and steam, maintaining its appearance even after prolonged daily use.
