Injector Backflow Test Set in Case 31 x 22 cm for Common Rail Diesel Engines with 6 Cylinders with Measuring Jugs and Adapters

Injector Backflow Test Set in Case 31 x 22 cm for Common Rail Diesel Engines with 6 Cylinders with Measuring Jugs and Adapters

Measures the backflow of injectors for six cylinders simultaneously. Measuring jugs and tubes with scale as well as 24 adapters are stored in a practical case. Full description
In stock
Delivery €1.59
30-day return policy
€113.06
Safe shopping Safe shopping
Overview
Injector Backflow Test Set in Case 31 x 22 cm for Common Rail Diesel Engines with 6 Cylinders with Measuring Jugs and Adapters

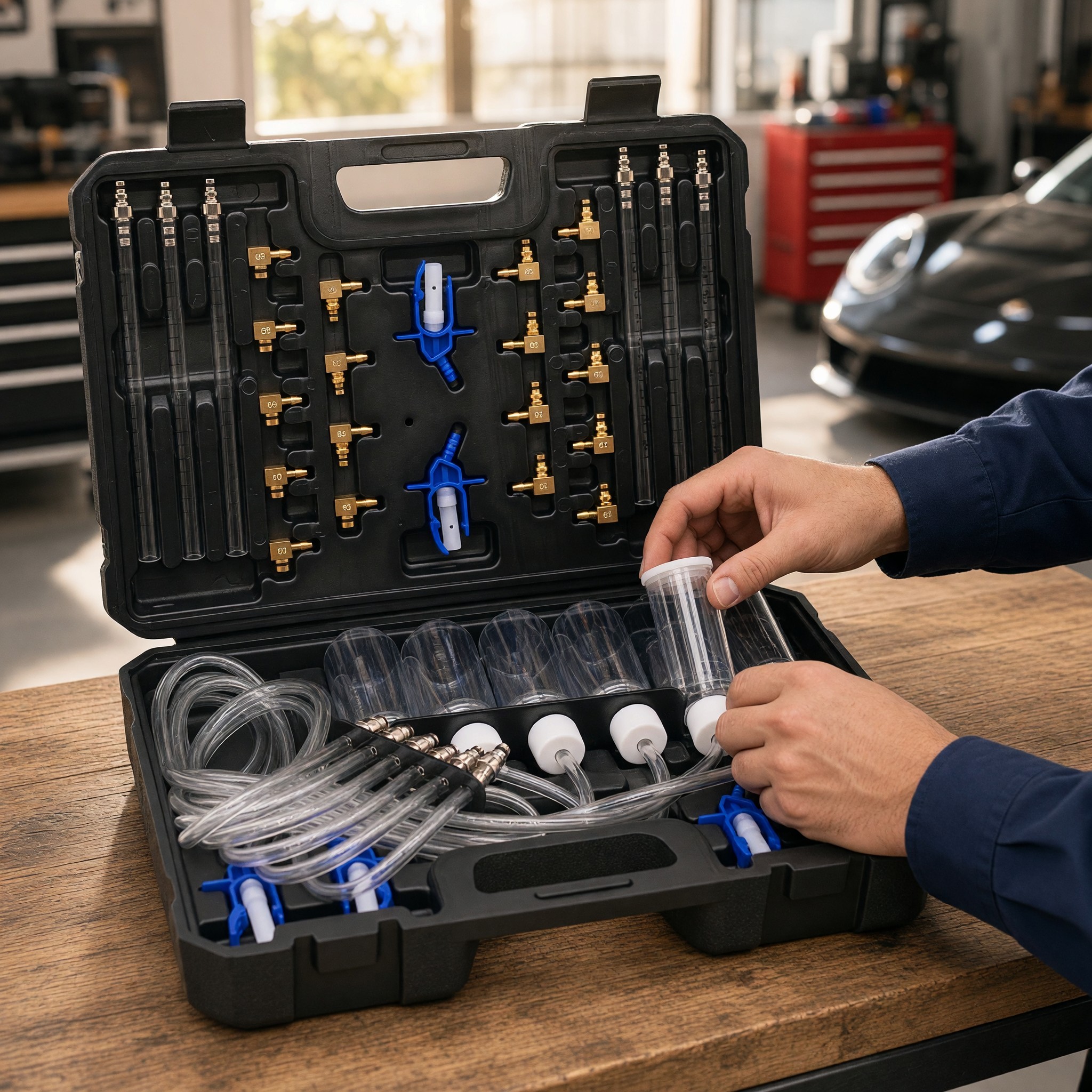

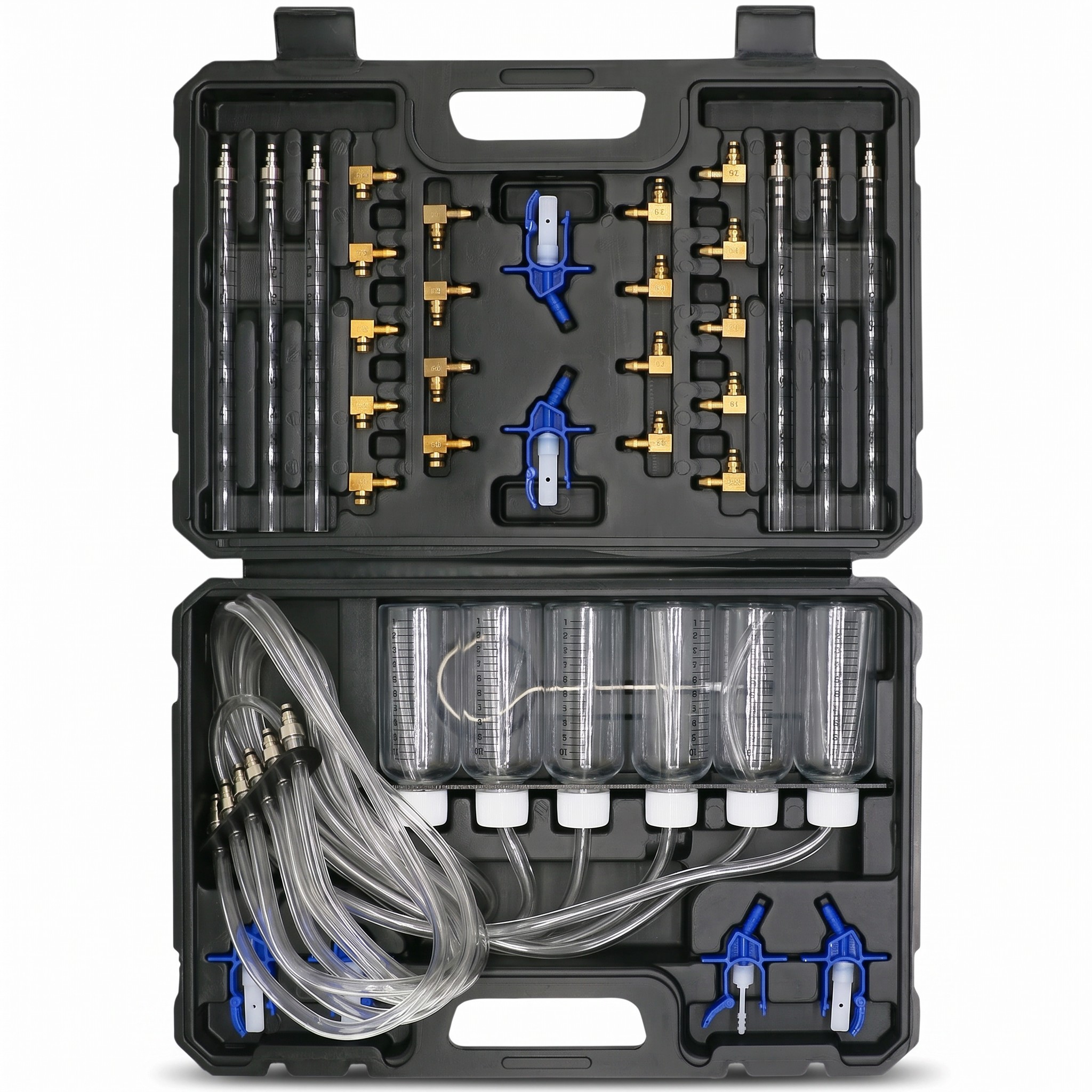

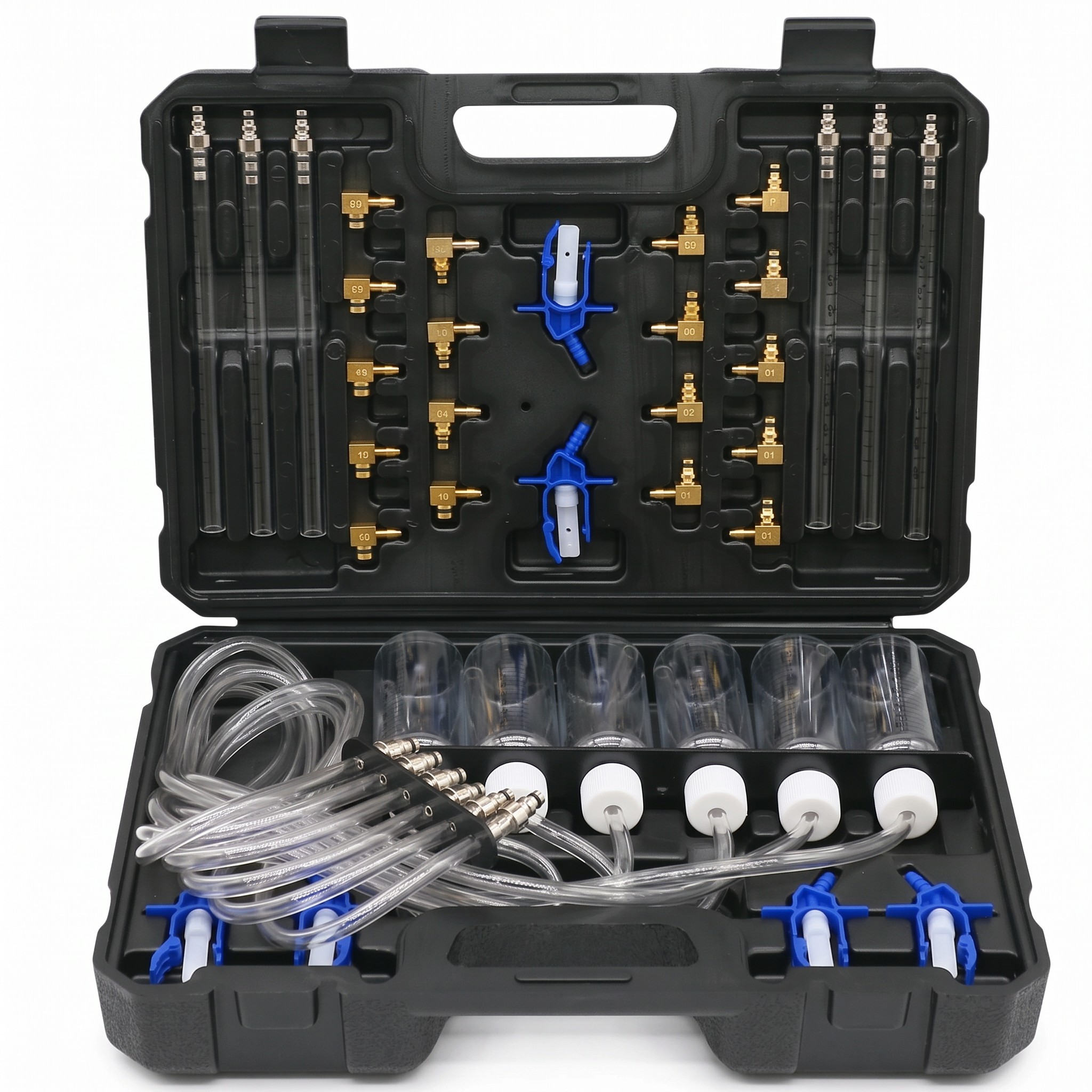

The injector backflow test set is used to measure the backflow of fuel from the injectors of common rail diesel engines. It allows for the checking of up to 6 cylinders simultaneously, making it easy to compare how much fuel each injector returns. An injector with a significantly higher backflow than the others indicates internal leakage or wear. The set includes two types of measuring jugs, metal and plastic adapters for connection to various types of injectors, and transparent tubes. All parts are stored in a case measuring 31 x 22 cm with moulded compartments and a handle, making it easy to store in the workshop and transport between jobs.

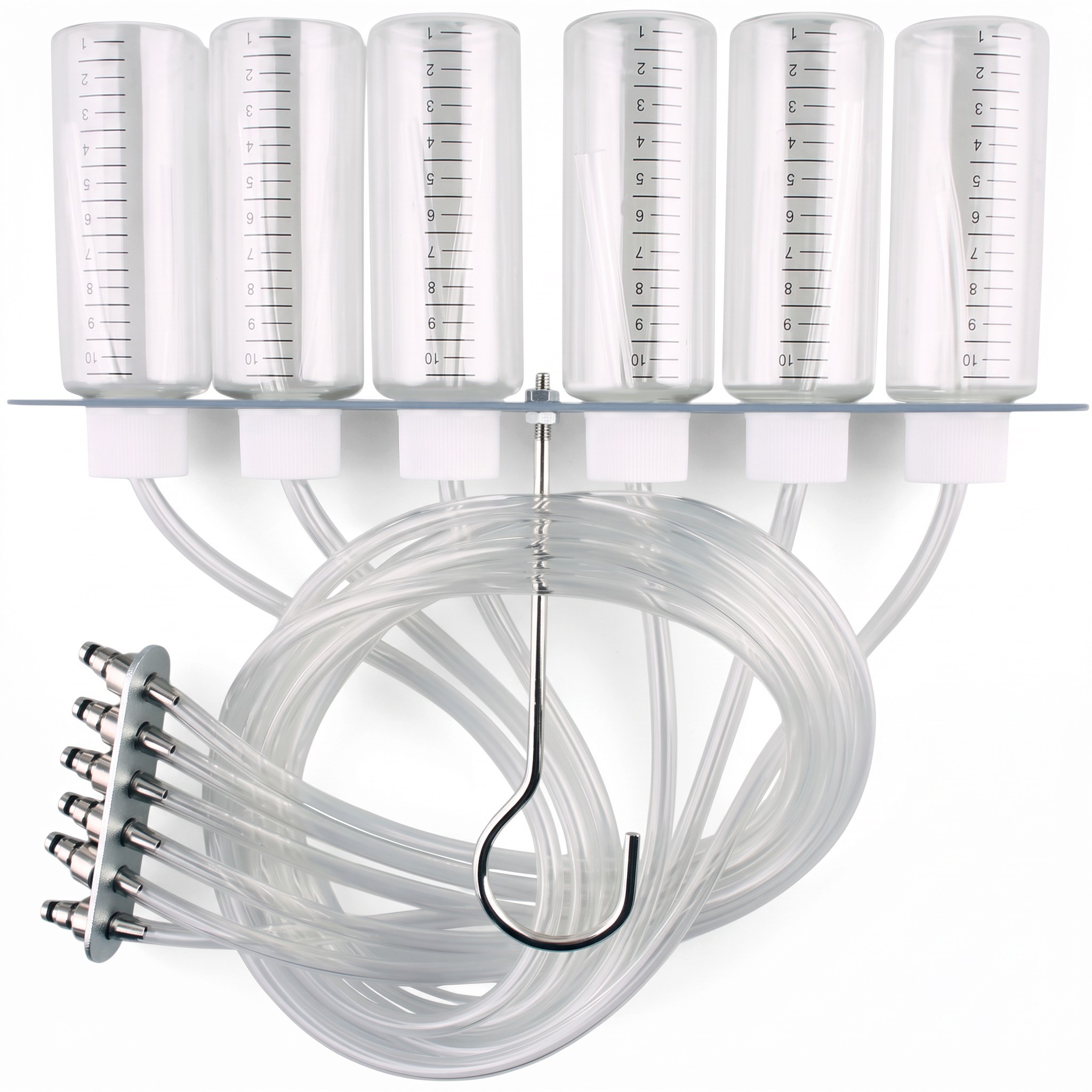

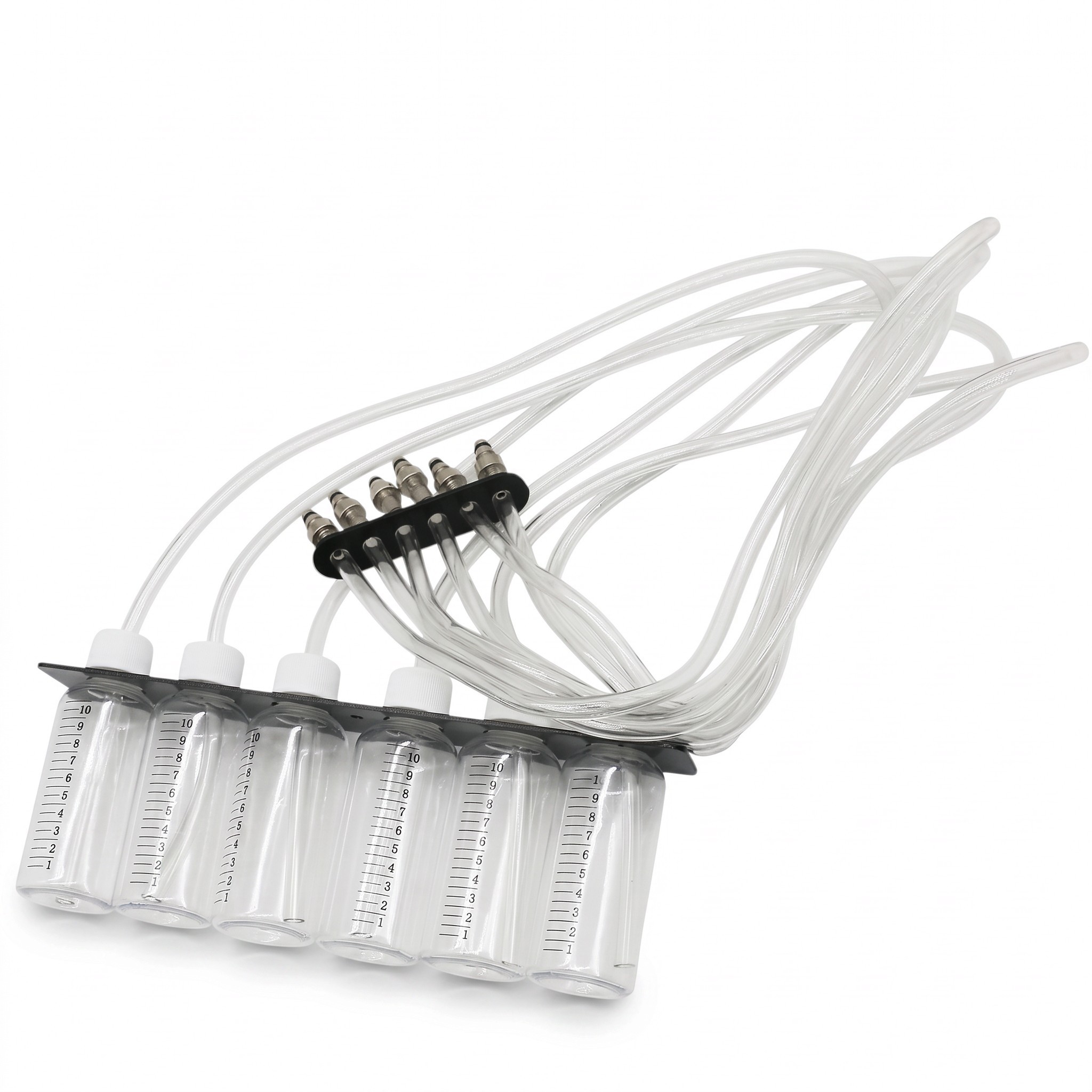

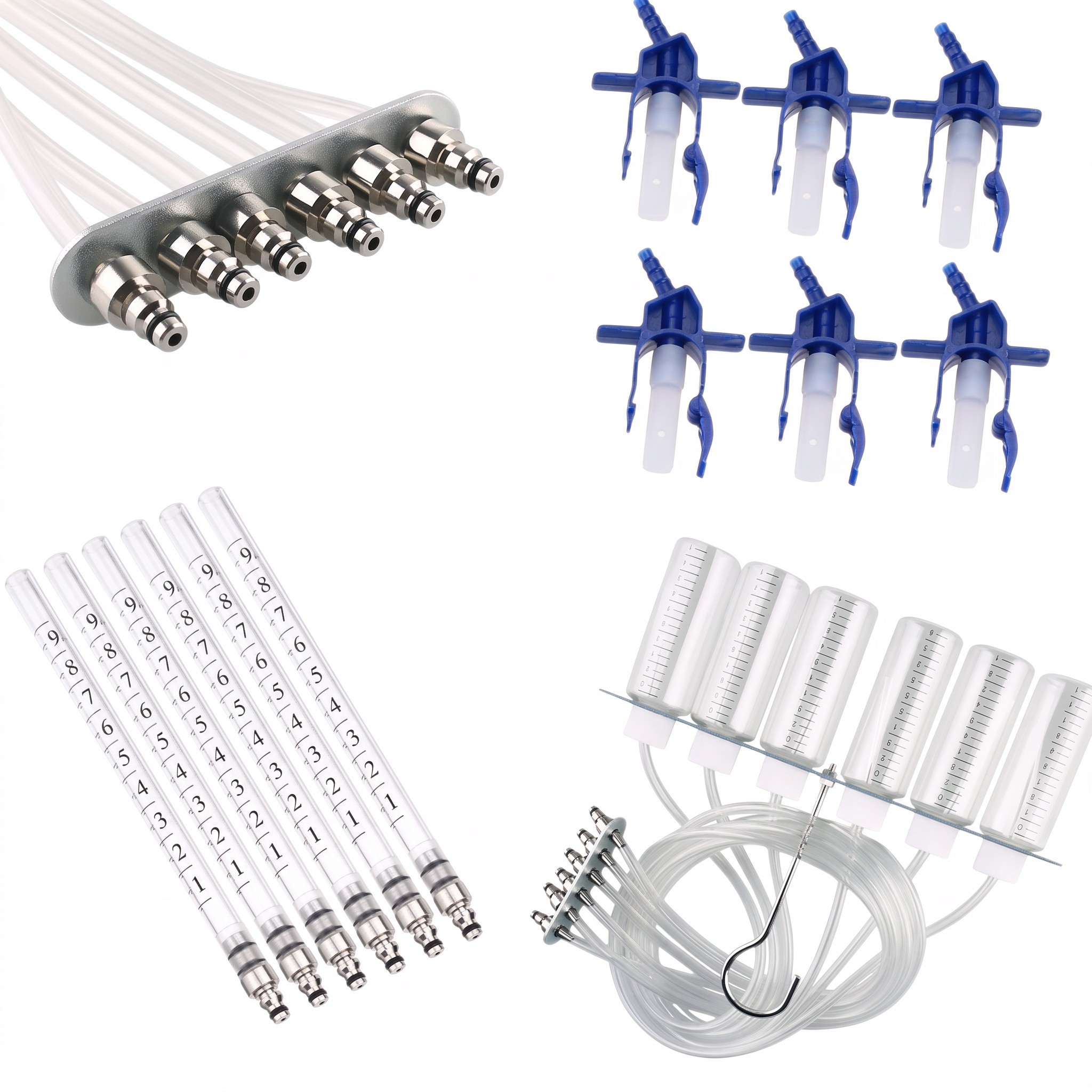

  • Large Measuring Jugs – six transparent jugs with a scale from 1 to 10 are connected to tubes and secured on a common rail. The rail can be hung in the engine compartment using a metal hook, allowing the jugs to hang at the same height during the test.

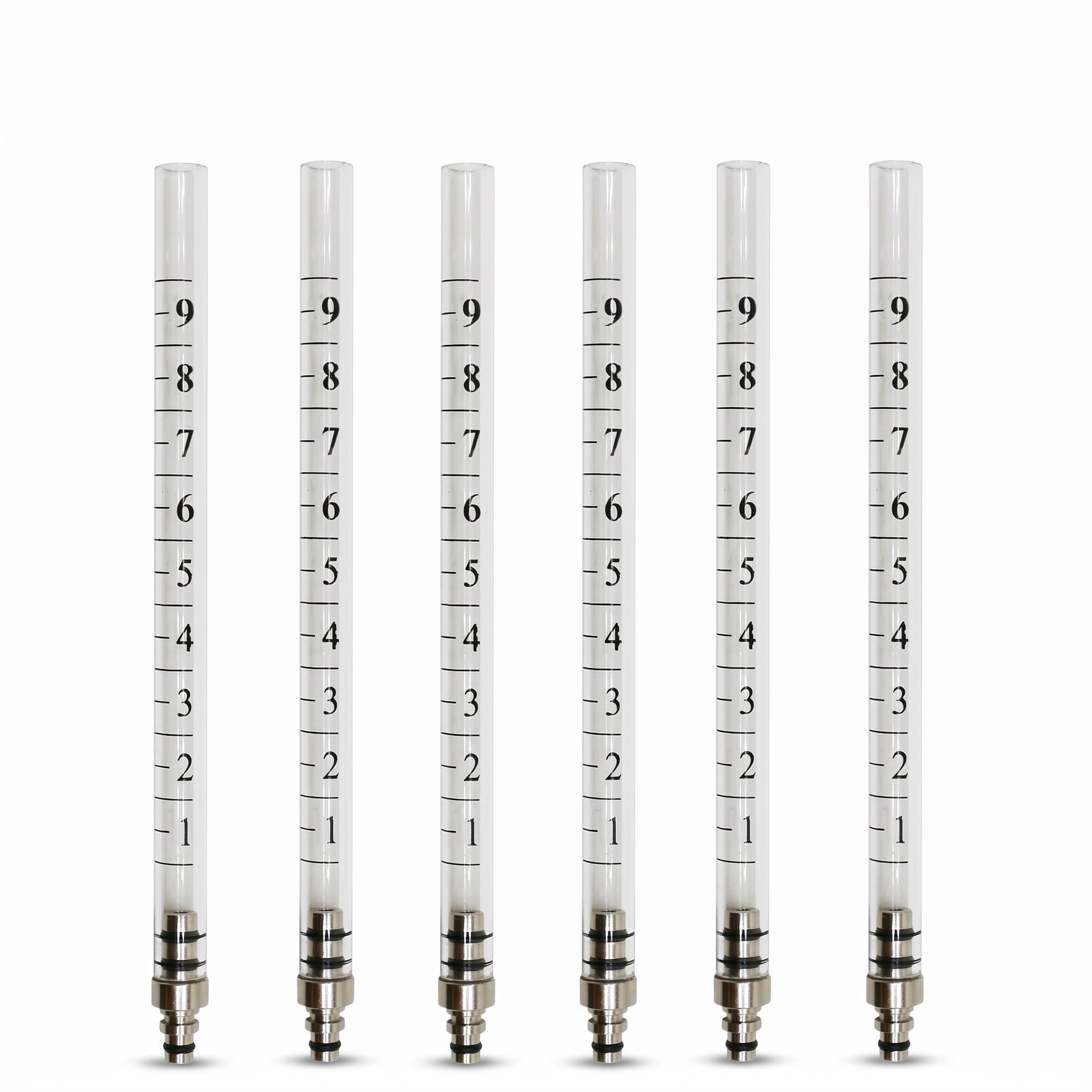

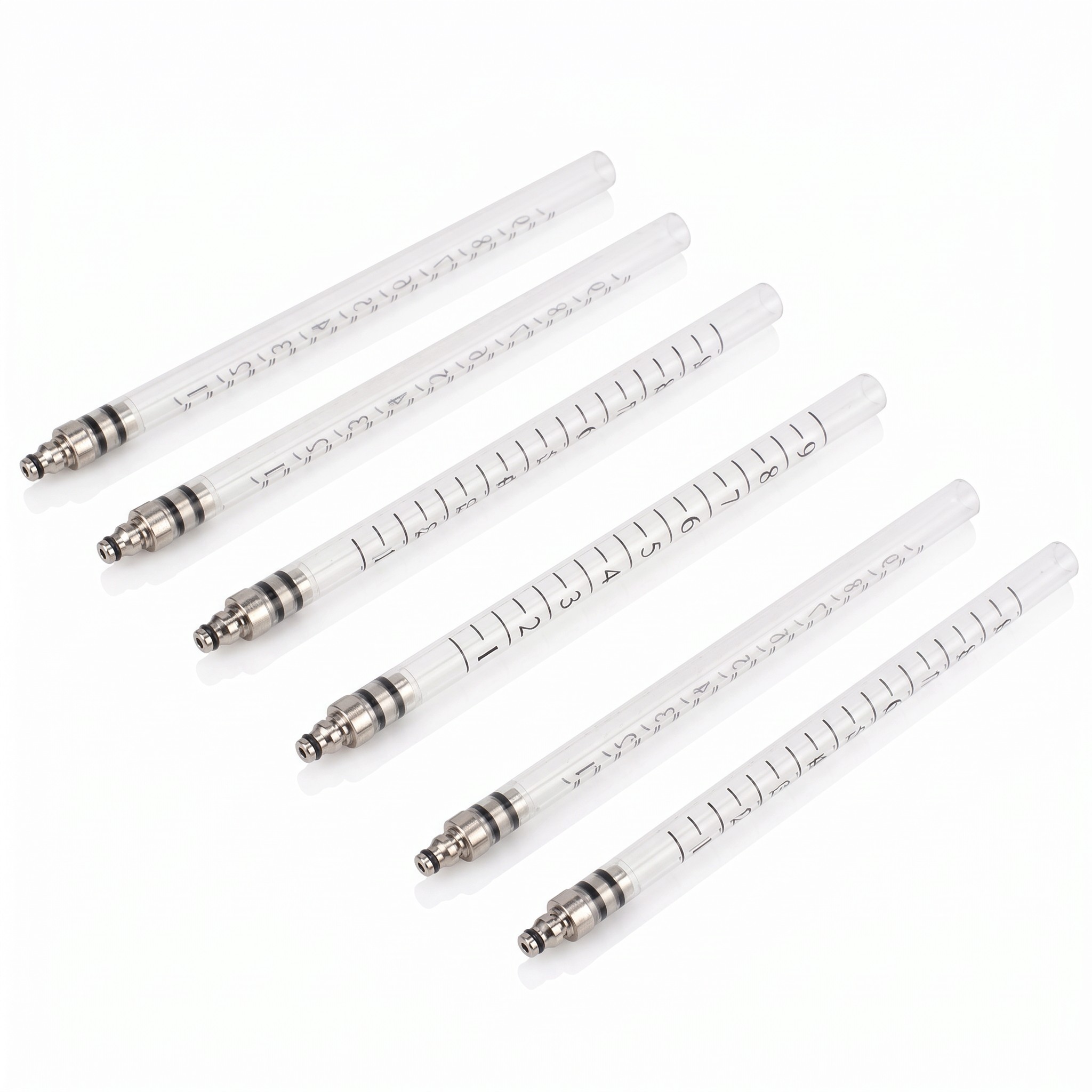

  • Slender Measuring Tubes – six thin tubes with a scale from 1 to 9 and a metal quick coupling at the end fit directly onto the adapter. They are suitable for quickly checking smaller amounts of fuel without long tubes.

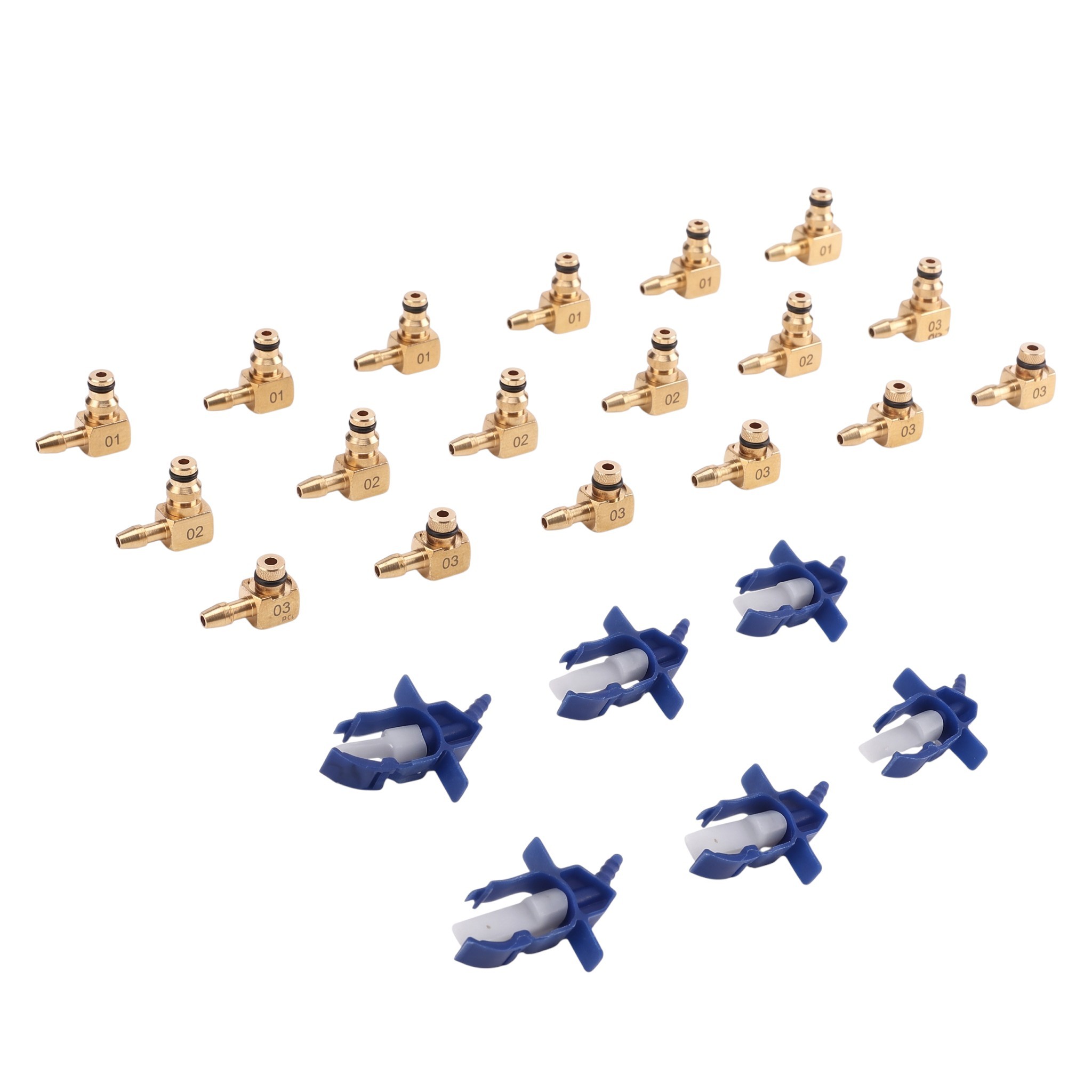

  • Metal Adapters – 18 angled adapters are divided into three groups marked with numbers 01, 02, and 03, with six pieces in each group. Each group corresponds to a different type of return connection on the injector, and the number stamped directly on the adapter makes it easy to select the correct piece and return it to its place.
  • Plastic Adapters – six blue plastic adapters with a white spike and securing wings fit onto injectors with a plug-in return connection.
  • Transparent Tubes – the tubes lead fuel from the adapters to the large jugs, and their ends are grouped on a metal plate, so they do not get tangled and can be connected sequentially to the individual cylinders.
  • Readable Scales – the transparent walls of the jugs and tubes allow for reading the amount of fuel without spilling, the results from individual cylinders are visible side by side, and any deviation from one injector is immediately apparent.

Package Contents:

  • 18x metal injector adapter
  • 6x plastic injector adapter
  • 6x large measuring jug with tube
  • 6x slender measuring tube
  • 1x storage case

The backflow test is one of the basic steps in diagnosing the causes of poor starting, uneven running, or loss of power in a diesel engine. The set allows for measurements to be taken directly on the engine without removing the injectors, simply disconnect the return line and fit the appropriate adapter. Thanks to compatibility with 6 cylinders, it covers common four-cylinder and six-cylinder engines with common rail. After completing the measurements, each part returns to its place in the case, ensuring nothing is missing for future use. The set is suitable for garages, workshops focused on diesel engines, and for experienced DIY enthusiasts who perform vehicle maintenance themselves.
