Industrial Frequency Converter Speed Controller, 5.5 kW, 380 V, 0.1-400 Hz, 20x13x10 cm, Dark Grey, for Powerful Motors and Machines

Industrial Frequency Converter Speed Controller, 5.5 kW, 380 V, 0.1-400 Hz, 20x13x10 cm, Dark Grey, for Powerful Motors and Machines

Powerful converter 5.5 kW with three-phase input 380 V and a wide frequency range. Suitable for industrial pumps, fans and machining machines. Full description
In stock
Delivery €1.59
30-day return policy
€182.05
Safe shopping Safe shopping
Overview
Industrial Frequency Converter Speed Controller, 5.5 kW, 380 V, 0.1-400 Hz, 20x13x10 cm, Dark Grey, for Powerful Motors and Machines

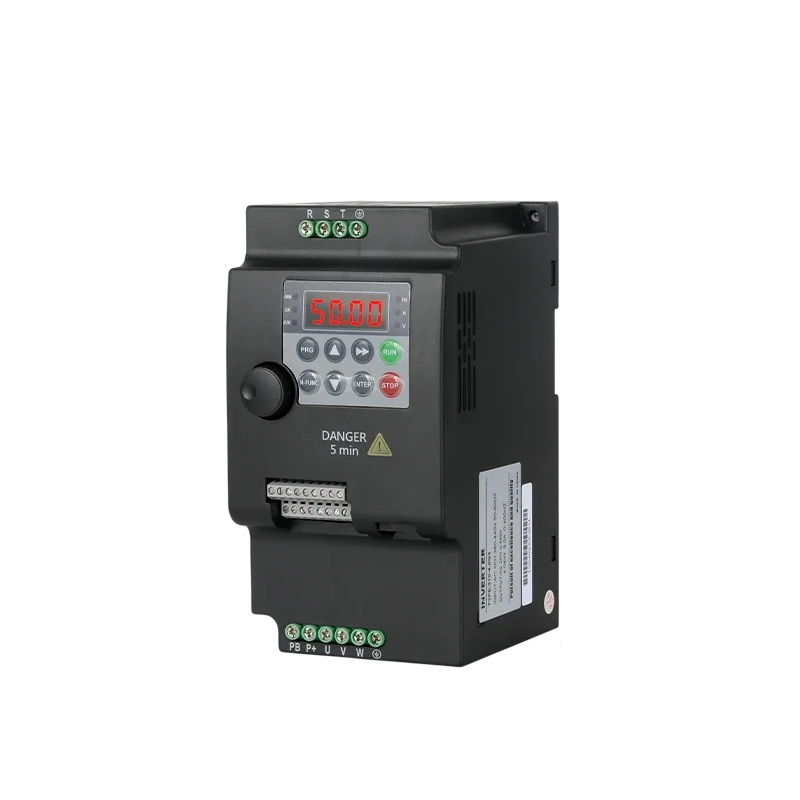

The most powerful version of the series with a rated power of 5.5 kW is designed for driving larger three-phase motors in an industrial environment. Regularly spaced terminals R, S and T at the top accept three-phase input of 380 V, while the output terminal block PB, P+, U, V, W at the bottom distributes controlled power to the motor and possibly to a braking resistor. The operating frequency range from 0.1 to 400 Hz covers even specialised applications with very slow running or increased speeds above the rated value of the machine. The compact housing of 20 x 13 x 10 cm saves space in the control cabinet and facilitates integration into the existing control system. The dark grey finish conceals common signs of operation in workshop and manufacturing areas.

Features:

  • Power 5.5 kW for the highest load within this compact series
  • Three-phase input R, S, T 380 V for connection to the industrial electrical network
  • Frequency 0.1–400 Hz allowing fine tuning of machine speed
  • Braking terminals P+/PB for connecting a resistor and rapid stopping of the drive
  • Rotary knob and push button panel for local operation without external unit
  • Four-digit red LED display indicating current frequency
  • Buttons PRG, M-FUNC, ENTER, RUN, STOP, arrows and quick parameter transition
  • Indicator lights RUN, F/R and FRQ for orientation in operating mode
  • Input terminal block for control signals and external control
  • Green screw terminals with protective cover and warning DANGER 5 min

Contents of the package:

  • 1x frequency converter 5.5 kW
  • 1x user manual

This model represents the upper limit of the power range and is suitable for operations with higher loads, such as large pumps in irrigation systems, industrial fans or drives for larger compressors. Smooth speed control ensures energy savings at partial loads and protects the mechanical components of the connected equipment. Programmable acceleration and deceleration ramps facilitate integration into automated lines with subsequent technologies. The robust terminal block with green screw terminals and covering of the inputs contributes to safe installation in the control cabinet as well as directly on the machine frame. It finds application in the modernisation of older manufacturing machines, assemblies of agricultural pumps, air handling units, as well as smaller mills and crushers.
