Hot Air Soldering Station 94 x 160 x 132 mm 700 W with LED Display, Airflow Control and 3 Nozzles in Black for BGA and SMD

Hot Air Soldering Station 94 x 160 x 132 mm 700 W with LED Display, Airflow Control and 3 Nozzles in Black for BGA and SMD

Station with a 700 W hot air gun for BGA and SMD rework. Temperature on the LED display, airflow on a scale of 1 to 8, and three nozzles. Full description
In stock
Delivery €1.59
30-day return policy
€98.21
Safe shopping Safe shopping
Overview
Hot Air Soldering Station 94 x 160 x 132 mm 700 W with LED Display, Airflow Control and 3 Nozzles in Black for BGA and SMD

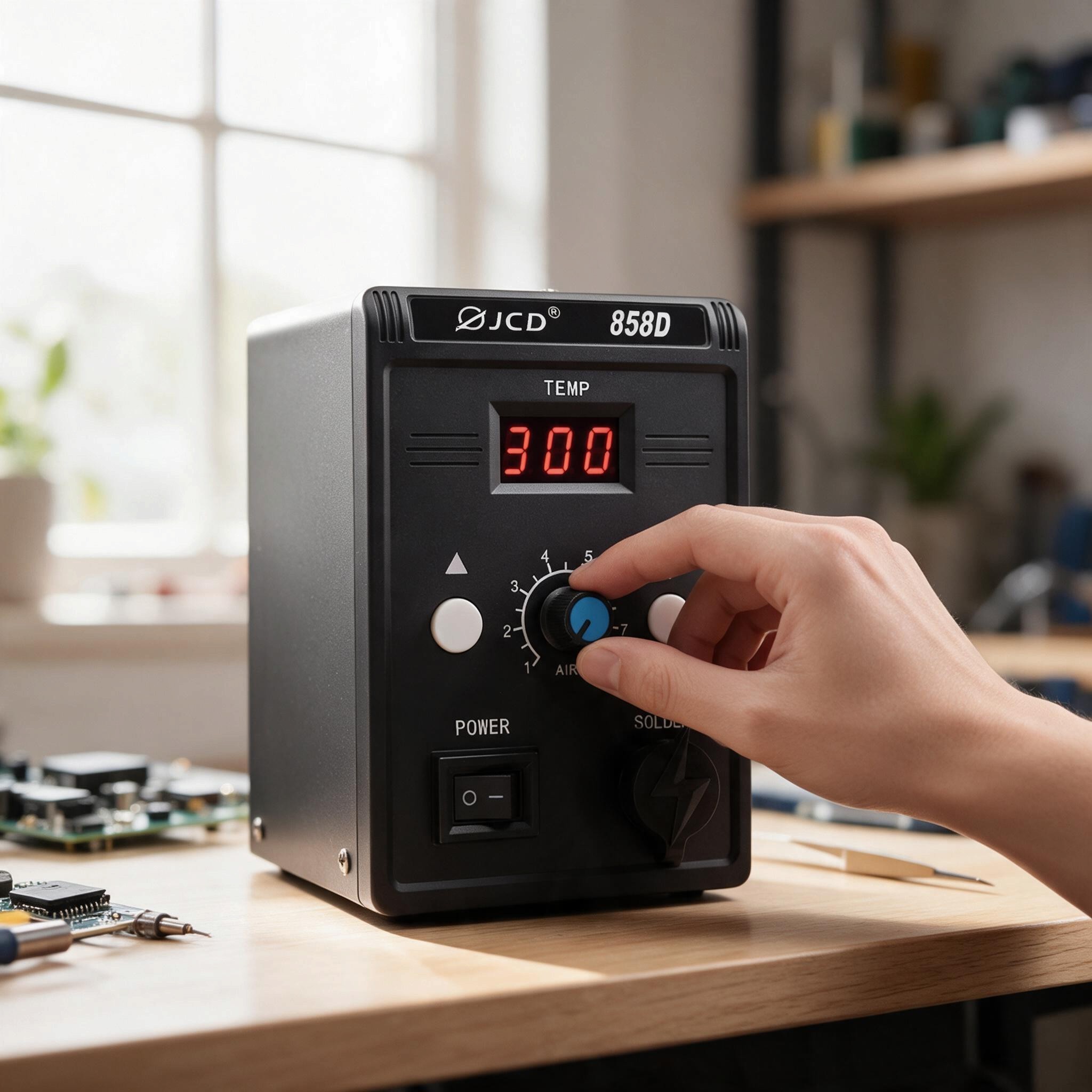

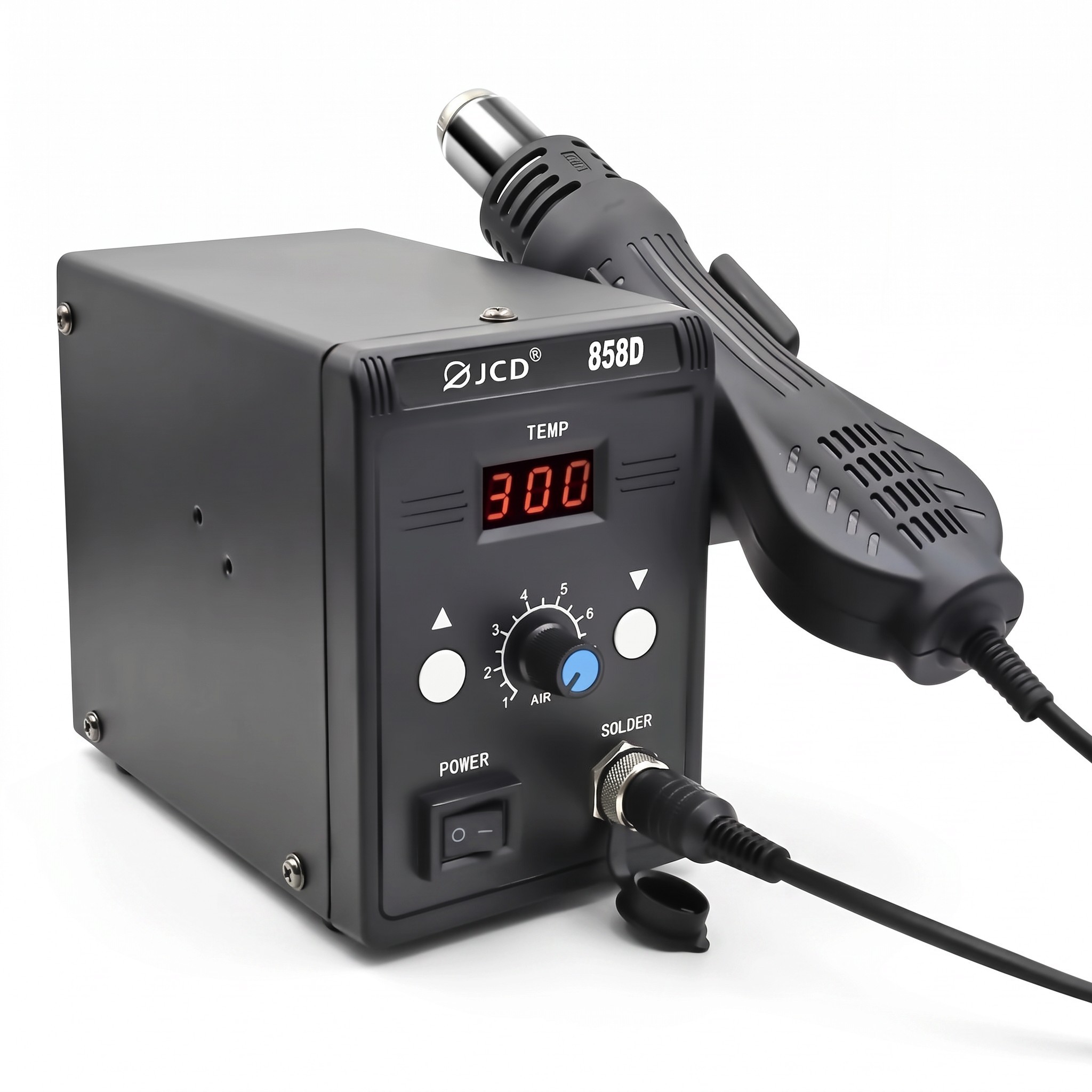

The hot air soldering station in black is designed for BGA rework, soldering and desoldering SMD and SMT components during electronics repairs. The hot air gun has a power output of 700 W and connects to the control unit via a connector on the front. The temperature is adjusted using arrow buttons and displayed on a red LED screen, while the airflow is controlled with a rotary knob featuring a scale. On the top of the unit, there are openings for storing three nozzles, and on the side, there is a holder for placing the gun down. The control unit measures 94 x 160 x 132 mm and is powered from a 220 V mains supply.

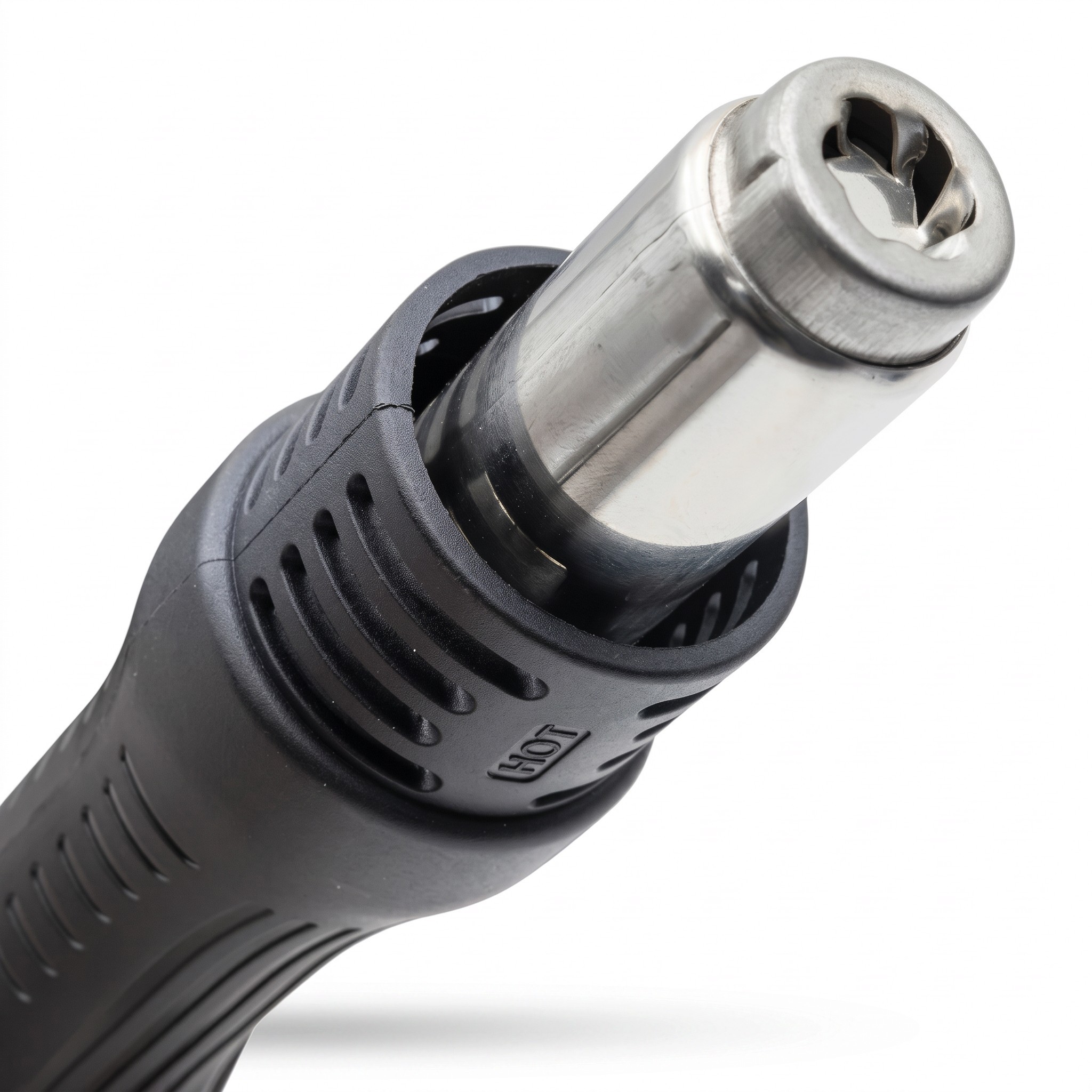

  • Power 700 W – the hot air gun heats the soldered joints with a stream of hot air, which is useful for desoldering chips, connectors, and small components from printed circuit boards without the tool tip needing to directly touch the component.

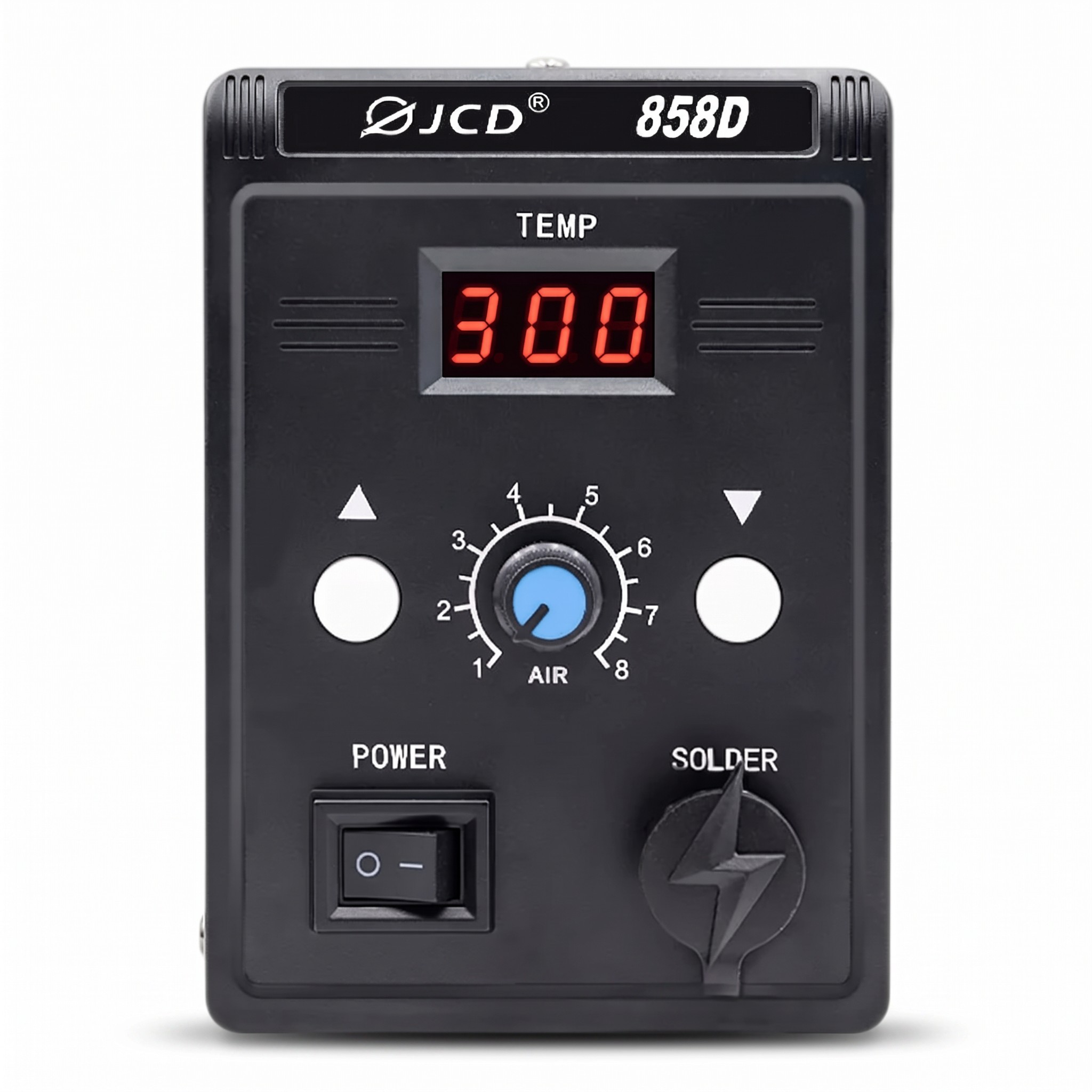

  • LED Display and Temperature Setting – the display marked TEMP shows the temperature, which can be increased or decreased using a pair of arrow buttons.
  • Airflow Control – the rotary knob with a scale from 1 to 8 allows you to adjust the strength of the airflow according to the size of the component and the sensitivity of the surroundings; a weaker flow is suitable for small parts that could be blown away by stronger air.

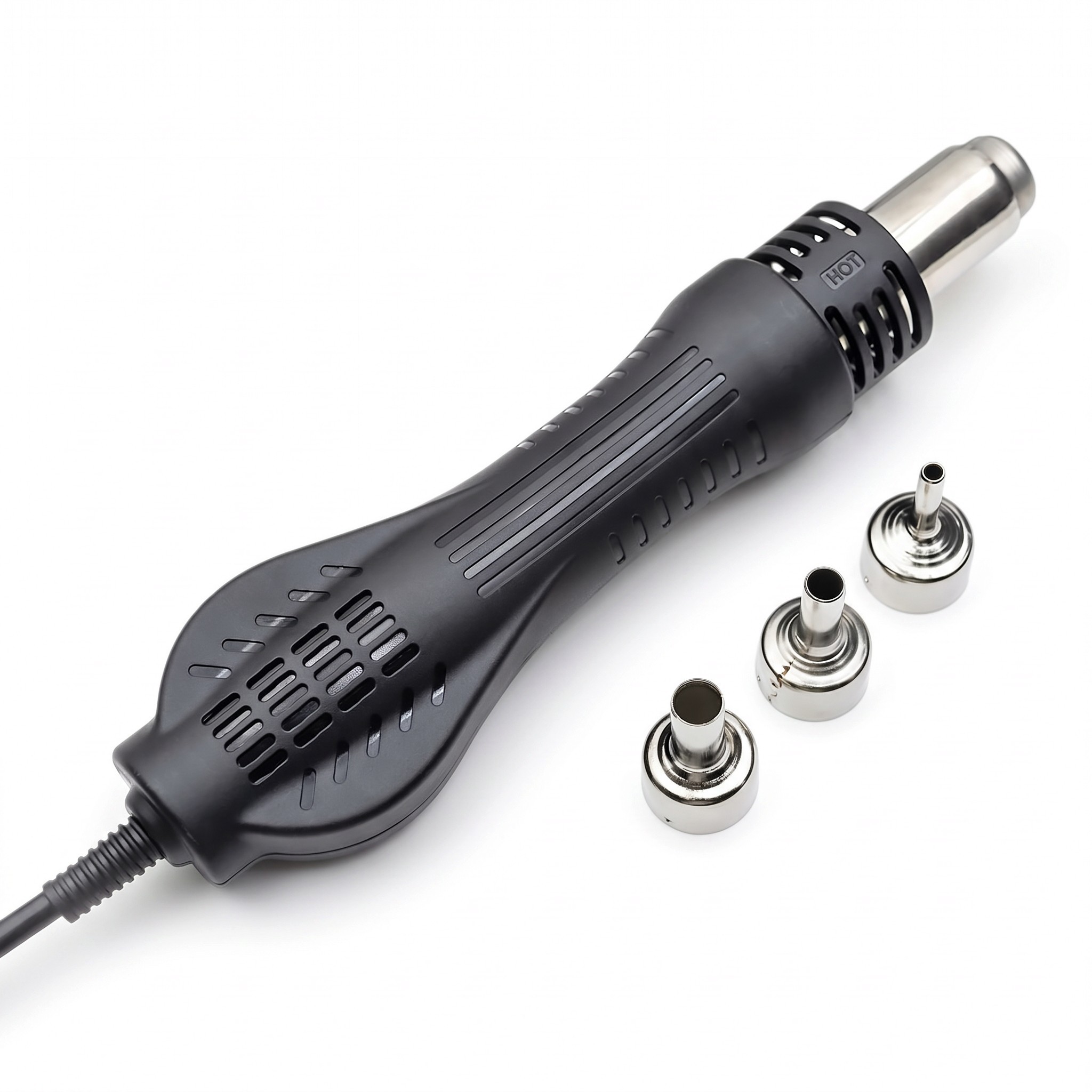

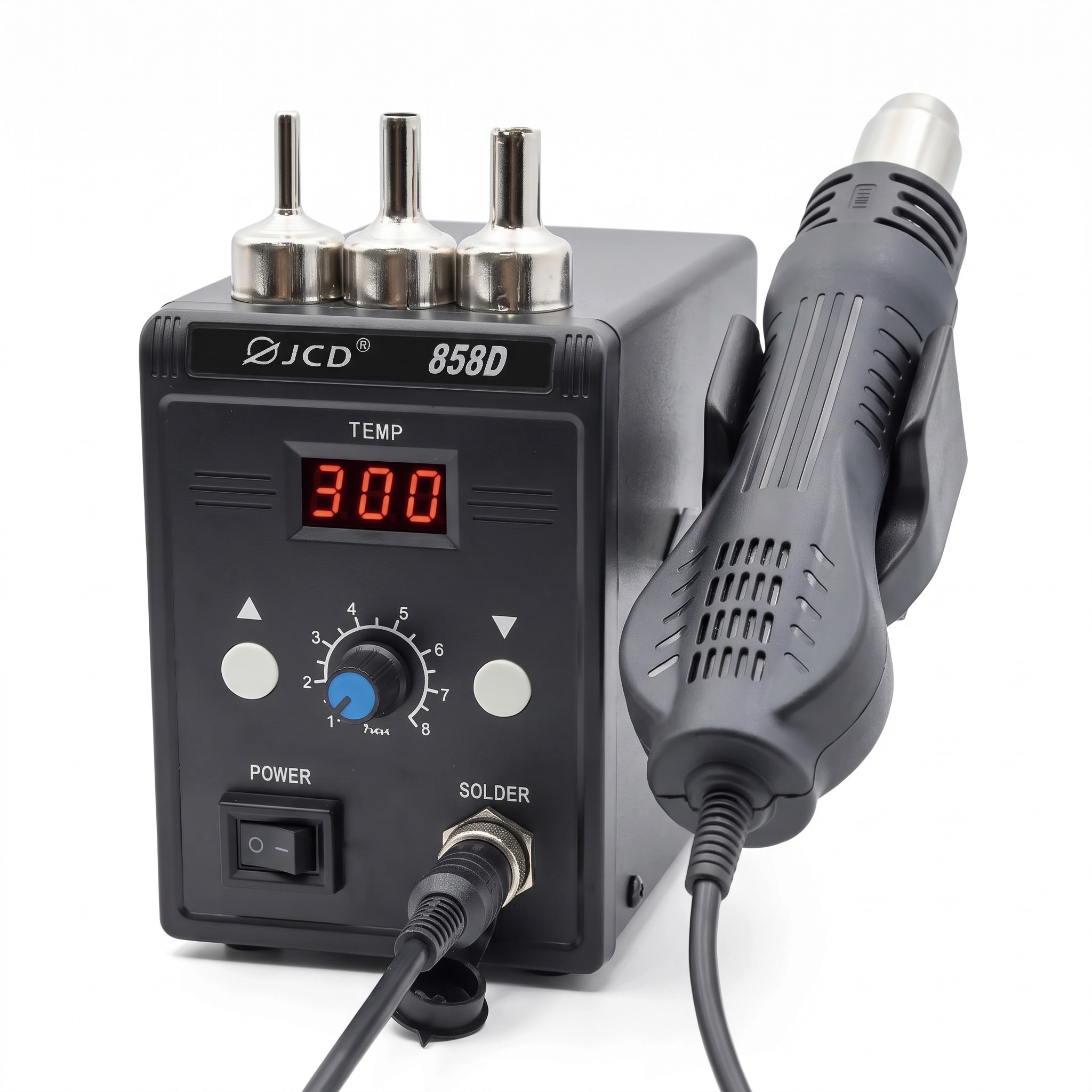

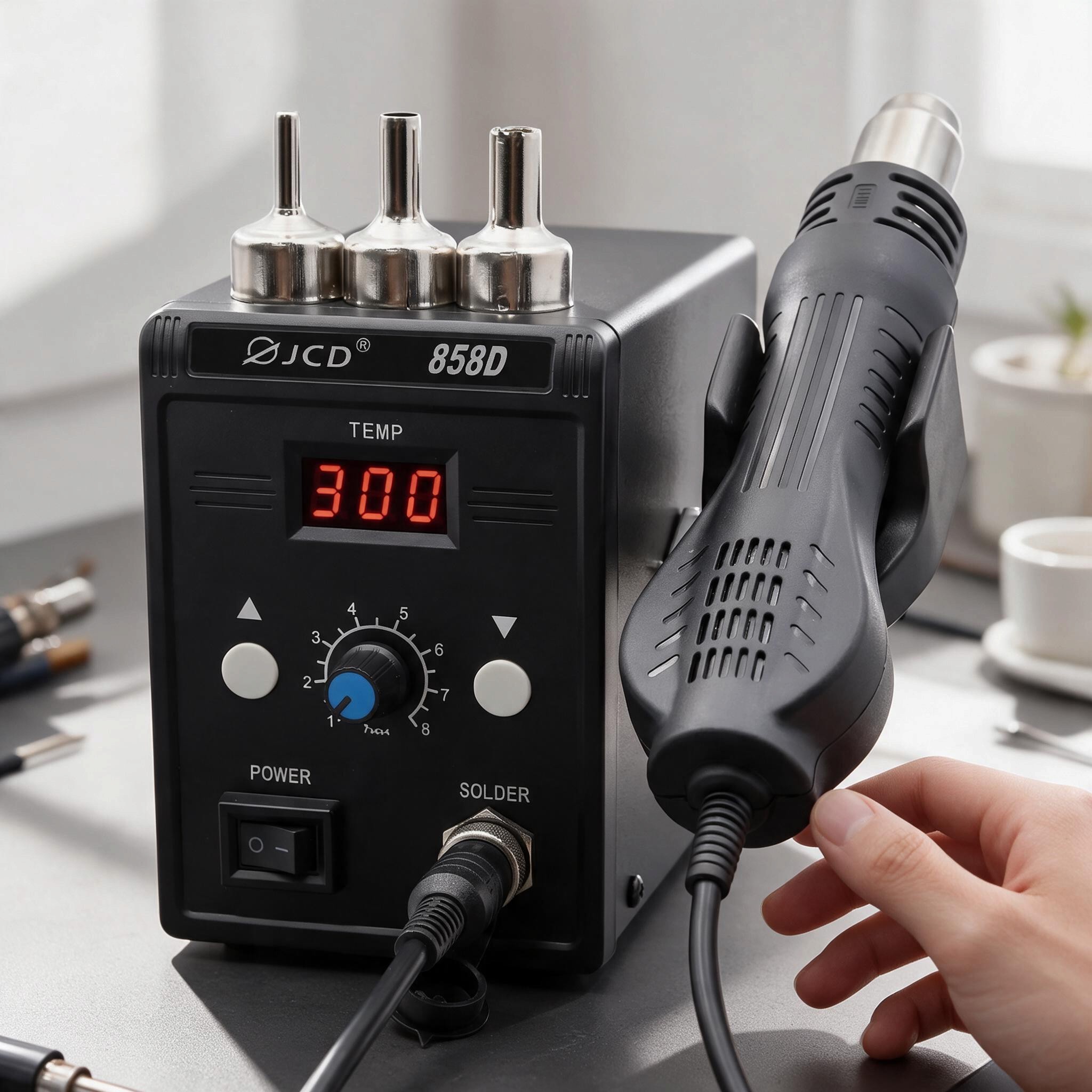

  • Three Nozzles with Storage Space – nozzles of various diameters can be attached to the gun as needed, and when not in use, they remain stored in the openings on the top of the station, keeping them handy and preventing them from getting lost on the workbench.
  • Gun Holder – the side holder on the control unit serves for safely placing the hot air gun between different work steps.
  • Power Supply and Control – the station is powered from a 220 V mains supply with a frequency of 50/60 Hz, and it is turned on using the POWER switch on the front, with the gun connecting via a screw connector next to it.

Contents of the package:

  • 1x control unit
  • 1x hot air gun
  • 3x nozzle

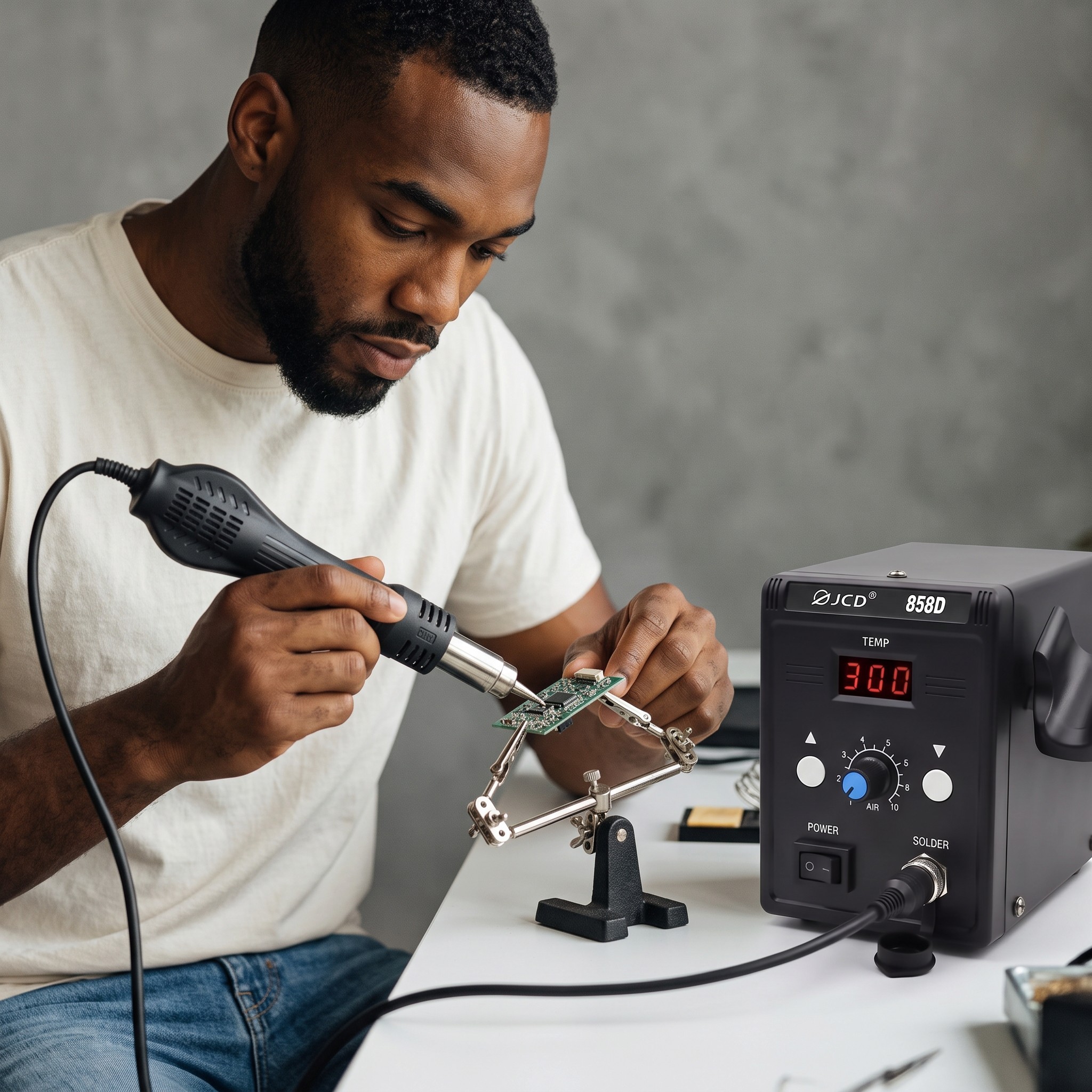

The hot air station is suitable for servicing mobile phones and electronics, repairing motherboards, and for home workshops where SMD components are handled. With 3 nozzles, the airflow can be directed over smaller or larger areas depending on the size of the repair site. The temperature setting on the display and the airflow regulation via the knob allow for adjustments tailored to the specific component. The compact control unit with a gun holder and storage for nozzles keeps the workbench tidy and occupies only a small area next to a microscope or magnifying glass. The station is designed for powering from a 220 V supply and is ready for use with hot air once switched on.
