Hidden Floor Drain for Bathroom with Side Outlet Size 40 x 10 cm Drain Diameter 4 cm
| Colour:
|
You already have the maximum available quantity in your cart.

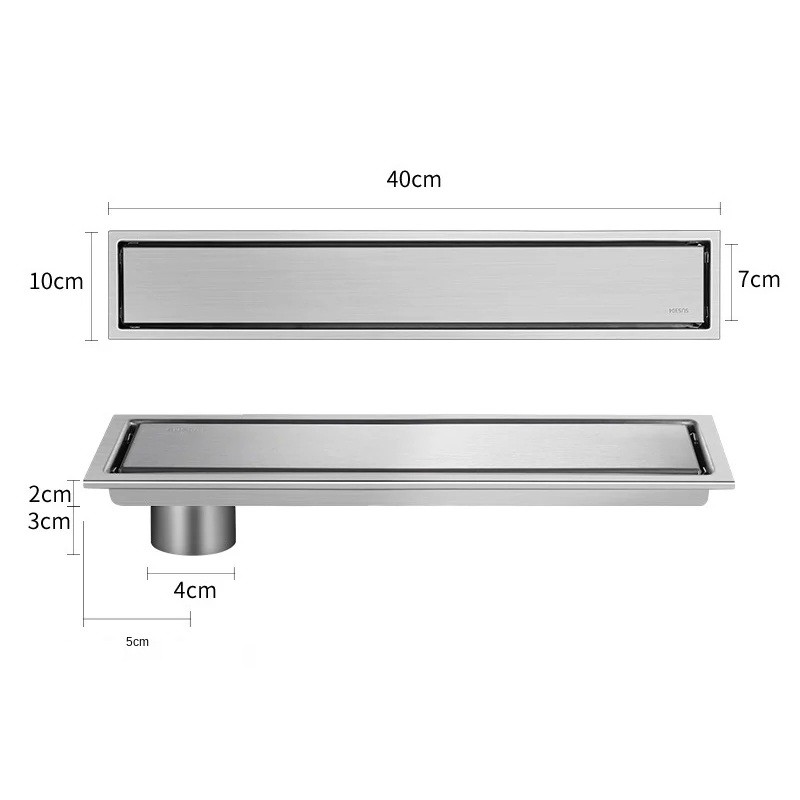

The drainage measuring 40 x 10 cm is built on an insert frame, into which a piece of floor tile is placed instead of a metal grille. The internal space for the tile is 7 cm wide and 2 cm deep, allowing for the tile and adhesive. The outlet with a diameter of 4 cm is shifted to one end, with the axis 5 cm from the shorter side, and drops 3 cm below the bottom. The side placement of the outlet is practical where the waste pipe ends at the wall and cannot be moved to the centre of the drained area, which is often an issue during renovations. The material is stainless steel 304, and the installation depth for this model is specified as starting from 60 mm, with suitable applications including bathrooms, shower cubicles, toilets, and balconies.
- Side outlet at the end – the axis of the outlet lies 5 cm from the shorter side, allowing the drain to be installed even in places where the waste position is fixed and cannot be changed. The outlet does not intrude into the space under the centre of the drainage and keeps it free.
- Size 40 x 10 cm – the elongated body drains a longer section of the floor, and at a width of ten centimetres, only a slim strip remains in the tiling. The elongated shape can be run along the wall or across the entrance to the shower cubicle.
- Tile insert frame – the upper surface consists of the inserted tile, not a perforated cover, so the drain blends with the surrounding tiling in the finished floor and does not attract attention. It is suitable for large-format tiles, mosaics, and floors with distinctive patterns.
- Width 7 cm and depth 2 cm – the space for the tile accounts for the thickness of the tile and adhesive layer, ensuring that the top surface ends exactly at the level of the surrounding floor and there is no step at the transition. The border around the frame holds the tile in place and creates a clean transition to the surrounding tiling.
- Drain diameter 4 cm – the outlet extends 3 cm below the bottom and connects to standard waste pipes of the corresponding diameter, without atypical joints or reductions outside the usual range. A diameter of 4 cm is a common size for bathroom drains that is typically expected.
- Stainless steel 304 – the frame and internal parts resist water, steam, and bathroom cleaners, do not corrode, and the surface remains clean with just a wipe dry. Stainless steel does not absorb, so no water stains or soap film remain on the surface.
Contents of the package:
- 1x floor drain
Drain with outlet at the end of the body is suitable for bathrooms, shower cubicles, and balconies where the waste pipe exits at the wall and a central outlet would not fit. The inserted tile continues the pattern of the surrounding floor, so it can be walked on and wiped just like the rest of the area. The stainless steel design accounts for permanent moisture and steam, and the surface maintains its appearance even after prolonged daily use. Length 40 cm offers a larger catchment area than point drains while not requiring a wide intervention in the floor structure. Thus, only a thin border around the inserted tile remains visible from the entire drainage, which does not disrupt the floor.
