Heat Transfer Pad 120 x 20 x 1.75 mm with Conductivity 21 W/m.K Grey Cuttable for Graphics Card and Laptop Chips

Heat Transfer Pad 120 x 20 x 1.75 mm with Conductivity 21 W/m.K Grey Cuttable for Graphics Card and Laptop Chips

Grey strip 120 x 20 mm with a thickness of 1.75 mm and conductivity of 21 W/m.K transfers heat from chips to the cooler. Suitable for graphics cards and laptops. Full description
In stock
Delivery €1.59
30-day return policy
€17.42
Safe shopping Safe shopping
Overview
Heat Transfer Pad 120 x 20 x 1.75 mm with Conductivity 21 W/m.K Grey Cuttable for Graphics Card and Laptop Chips

The heat transfer pad fills the space between the heating component and the cooler where the distance between them is 1.75 mm. Heat from the chip does not pass through the air but is conducted directly into the metal body of the cooler. The material has thermal conductivity of 21 W/m.K and is applicable to memory chips, power circuits, and other components with higher temperatures. The pad is sold as a grey strip measuring 120 x 20 x 1.75 mm, which can be cut to size as needed. Both sides are protected by a blue film.

  • Thickness 1.75 mm – the pad is selected based on the gap between the chip and the cooler in the specific device. A reliable guide is the thickness of the original pad or data from the service documentation of the graphics card, laptop, or console.
  • Conductivity 21 W/m.K – indicates how effectively the material transfers heat. It is suitable for components that significantly heat up during gaming, rendering, or other prolonged loads. The pad also compensates for minor unevenness and height differences between individual chips.
  • Non-conductive material – the pad does not conduct electric current and according to the parameter table has breakdown voltage of at least 9.8 kV per 1 mm. It is therefore suitable for boards with densely populated components, where the pad may overlap adjacent parts.

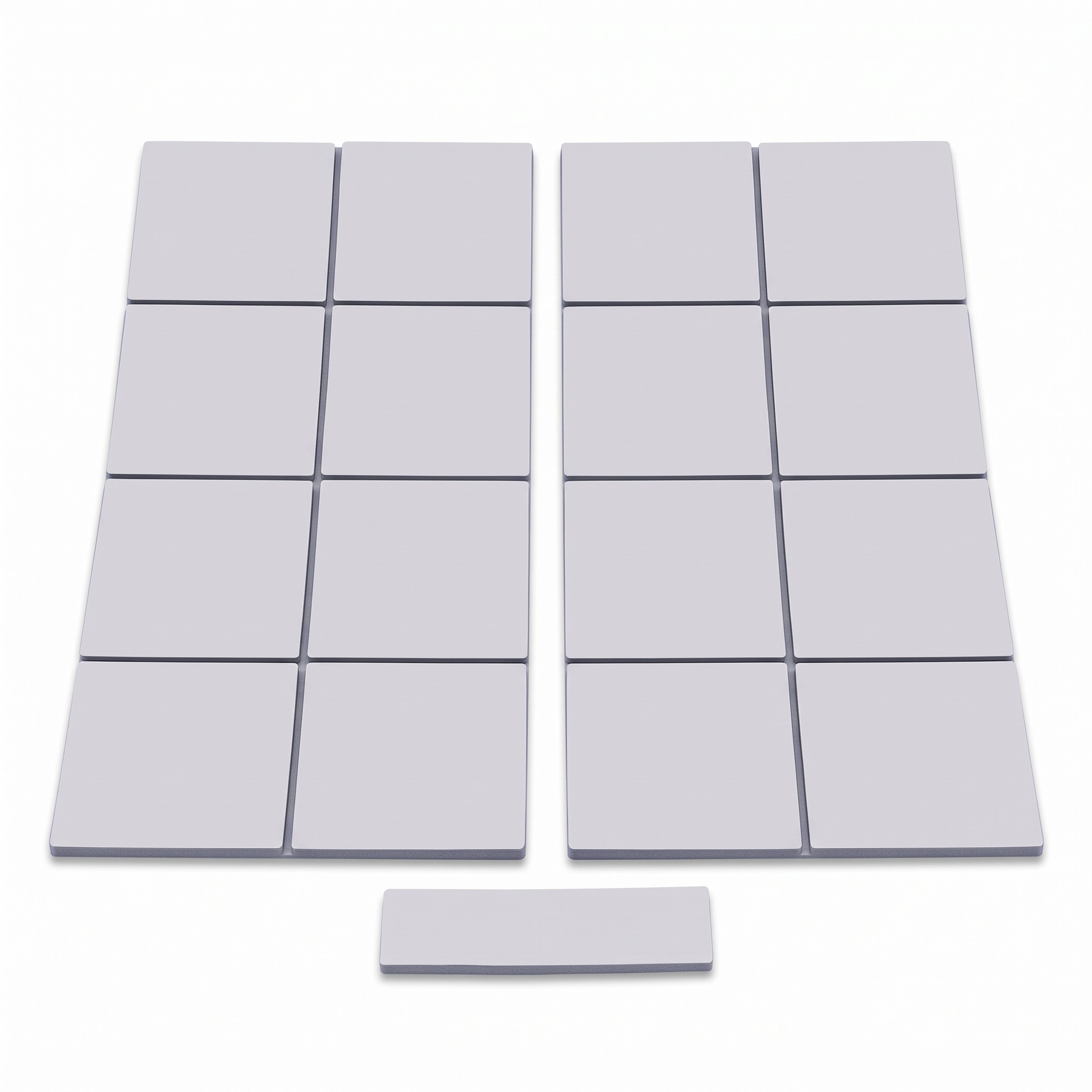

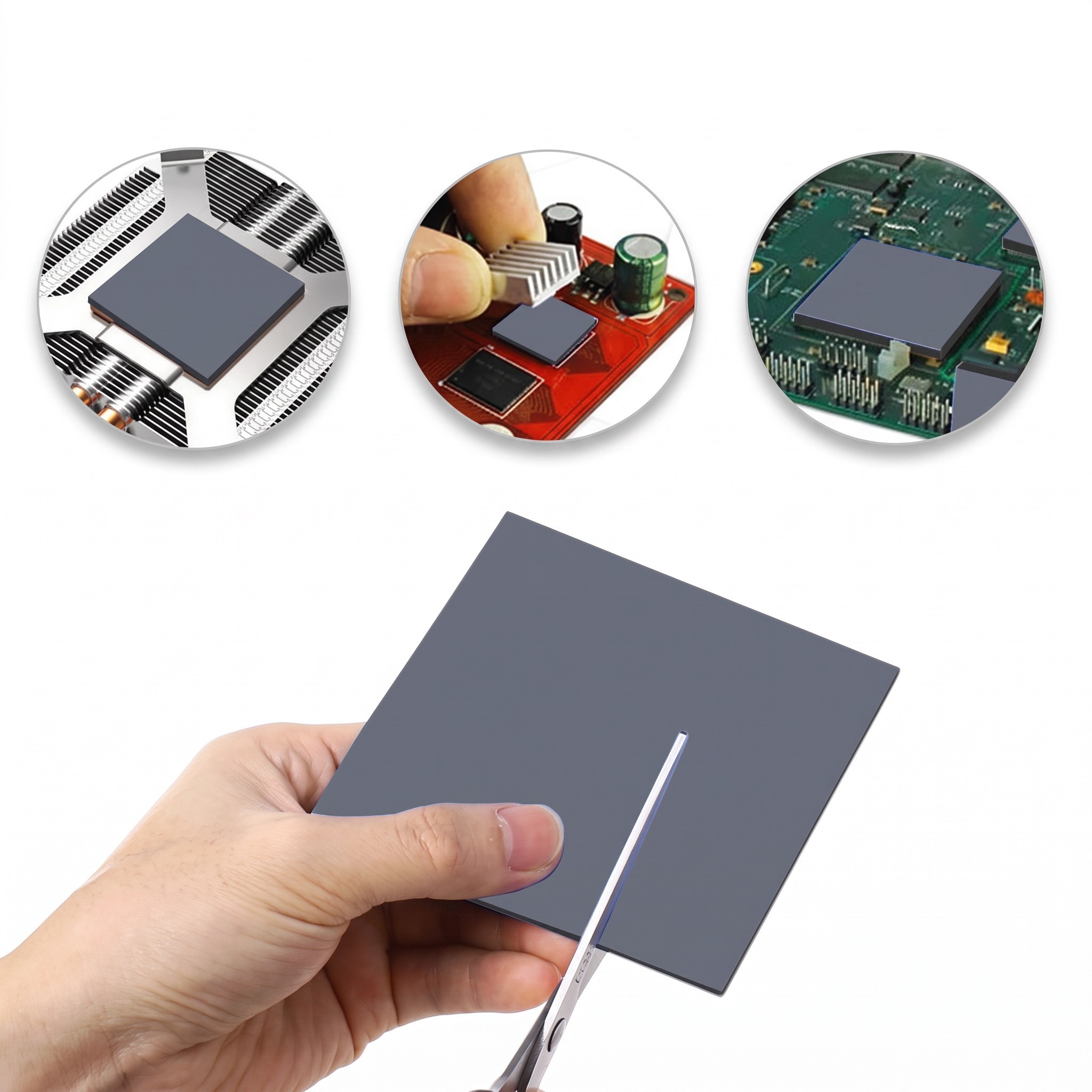

  • Custom Cutting – the strip 120 x 20 mm can be cut into rectangles according to the size of the chips using regular scissors. Pieces can be placed individually or in a row on a longer group of components. Remaining material can be stored for future repairs.
  • Protective Film – the blue film on both sides prevents dirt and facilitates handling during cutting. The bottom film is removed before placing it on the chip, and the top one just before attaching the cooler.
  • Areas of Use – graphics cards, laptops, gaming consoles, M.2 SSD drives, processors, and chipsets of motherboards. The thickness must always match the gap in the device.

Contents of the Package:

  • 1x heat transfer pad 120 x 20 mm

The pad 120 x 20 x 1.75 mm is designed for service and maintenance of cooling, where it is necessary to replace dried, torn, or deformed original pads. After removing the cooler, remnants of the old material are removed, and the surfaces of the chips are cleaned. The new pad is cut to the required parts, the film is removed, placed on the components, and the cooler is re-tightened. Thickness 1.75 mm corresponds to devices for which the manufacturer has accounted for this gap. The grey strip is sufficient for multiple components, for example, for memory and power of the graphics card or for chips in the laptop.
