Graphics Card Holder with Sliding Arm and Anti-Slip Pad for Fan Position Mounting to Prevent GPU Bending

Graphics Card Holder with Sliding Arm and Anti-Slip Pad for Fan Position Mounting to Prevent GPU Bending

Support for the graphics card, which is secured through fan holes. The sliding arm is fixed with a screw at the height required by the card. Full description
In stock
Delivery €1.59
30-day return policy
Colour:
€24.41
Safe shopping Safe shopping
Overview
Graphics Card Holder with Sliding Arm and Anti-Slip Pad for Fan Position Mounting to Prevent GPU Bending

The graphics card holder is designed for cases where a fan is located on the bottom panel under the card. Instead of standing freely on the bottom, its base is screwed through the mounting holes of the fan, ensuring the support stays in place even when handling the case. A vertical rod extends from the base with a height-adjustable arm, which is pushed against the bottom edge of the card and secured with a screw with a knurled head. The top surface of the arm is equipped with an anti-slip pad with grooves, on which the card rests. The supported card does not bend, and the PCIe slot is not burdened by its weight.

  • Fan Mounting – the elongated base has a series of holes arranged to align with the holes in the corner of the fan frame. Two long screws from the package pass through both the base and the fan to secure the assembly to the case. This fastening utilises the screw holes that the fan already has in the case.
  • Height Adjustment – the arm slides up and down along the rod according to how high the card is above the fan. Once adjusted, it is secured with a manually tightened screw, without the need for additional tools. When changing the card, the arm can simply be loosened and readjusted to the new height.
  • Anti-Slip Pad – the knurled surface on the top side of the arm prevents the card from slipping and protects its cover from scratches caused by the edge of the arm. Thus, the card rests stably on the arm even if its underside is smooth.

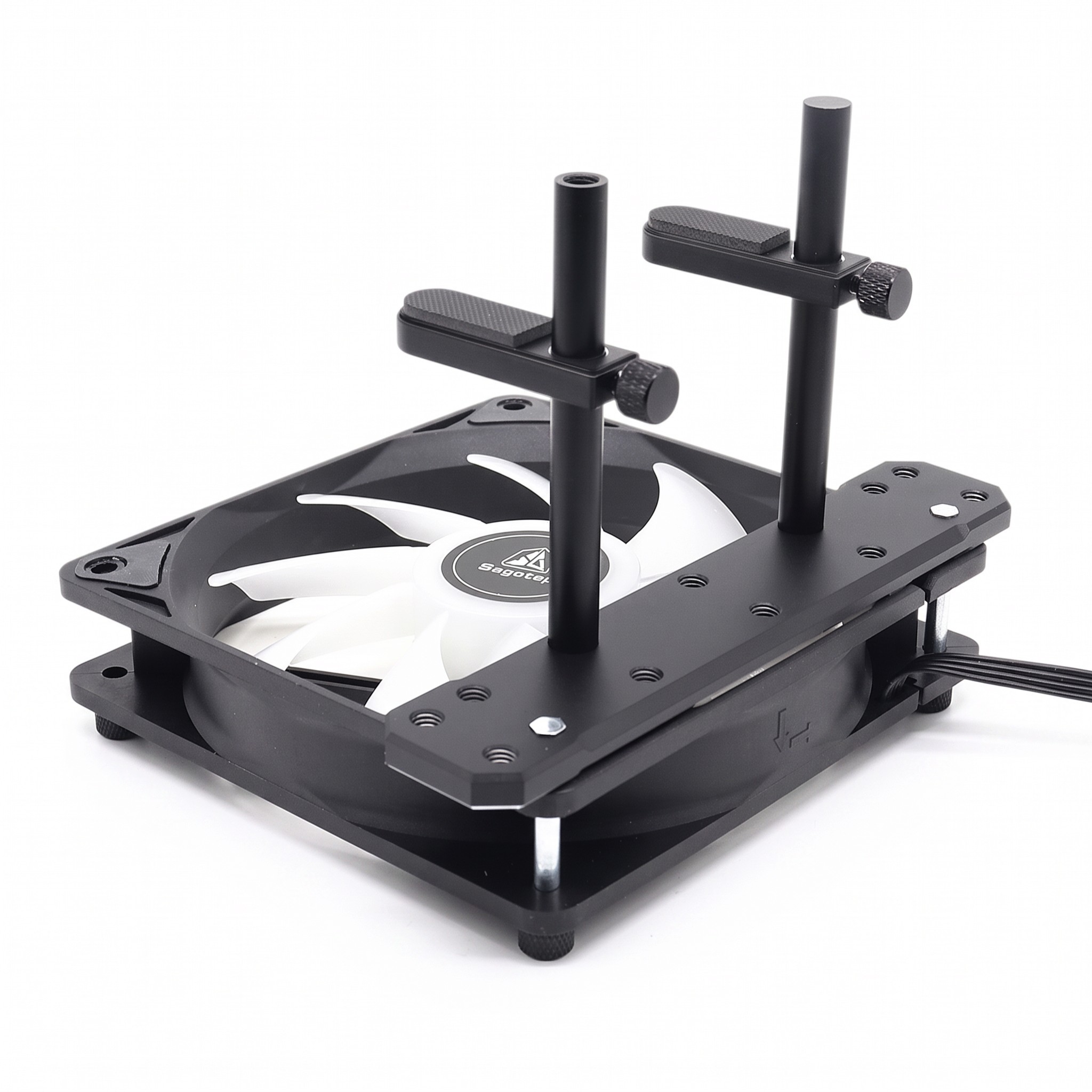

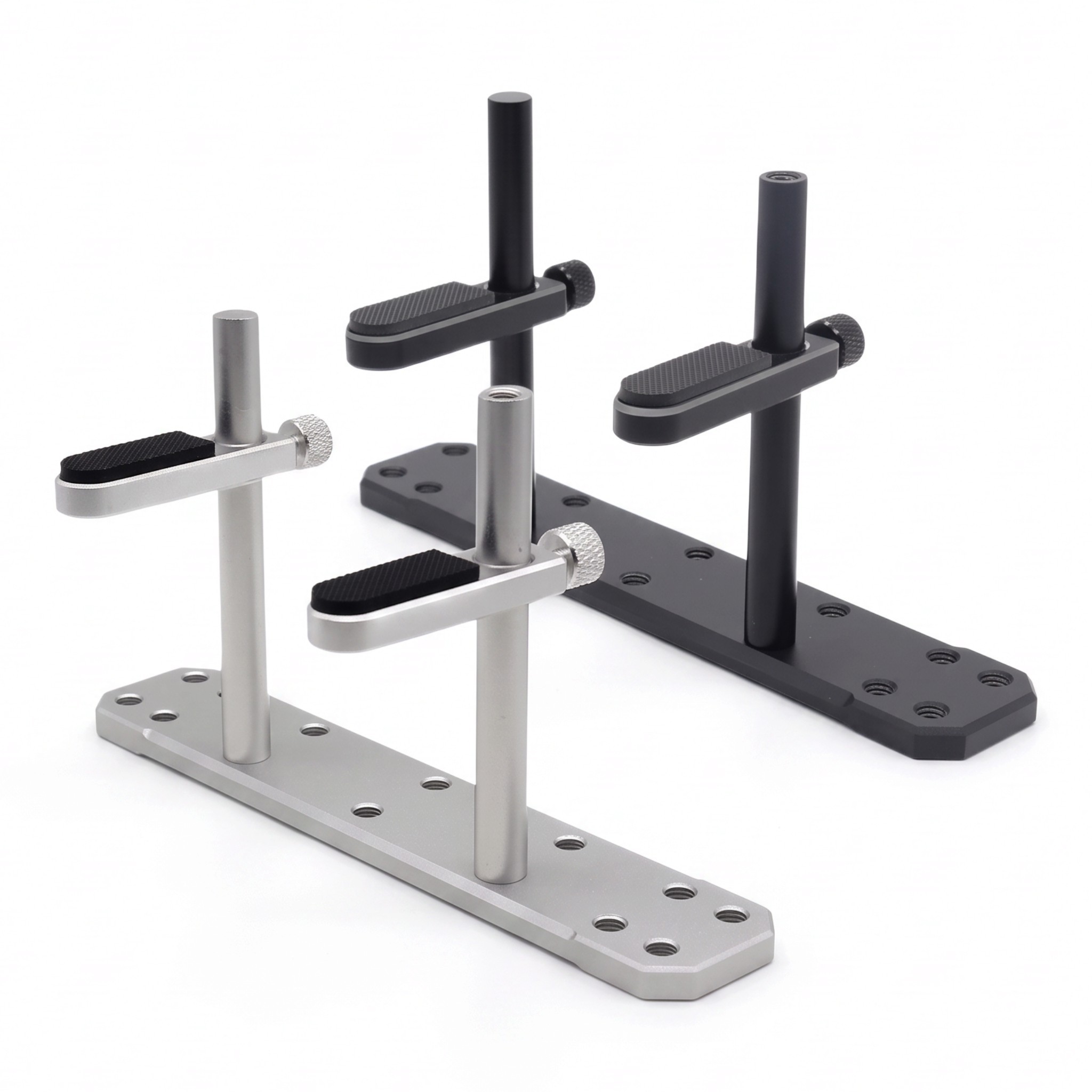

  • Multiple Supports Side by Side – according to the images, it is possible to attach two holders simultaneously to one fan, for example, for very long cards that should be supported in two places.
  • Airflow – the narrow base only covers the edge of the fan, allowing air to flow to the graphics card cooler practically without restriction. The slim rod and arm do not take up unnecessary space in the case.
  • Hex Key Included – the included hex key is used to tighten the long mounting screws, so there is no need to source your own tools for installation.

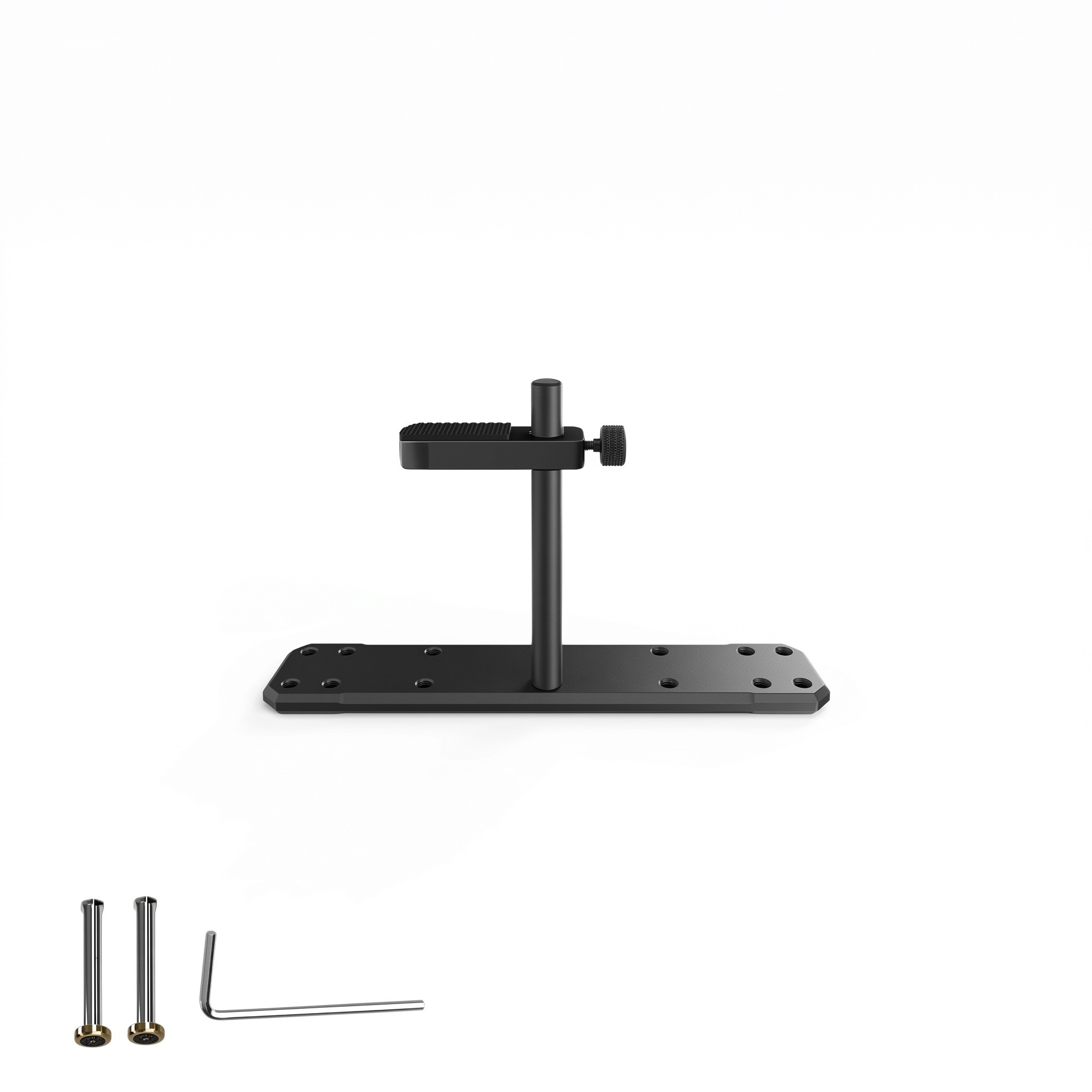

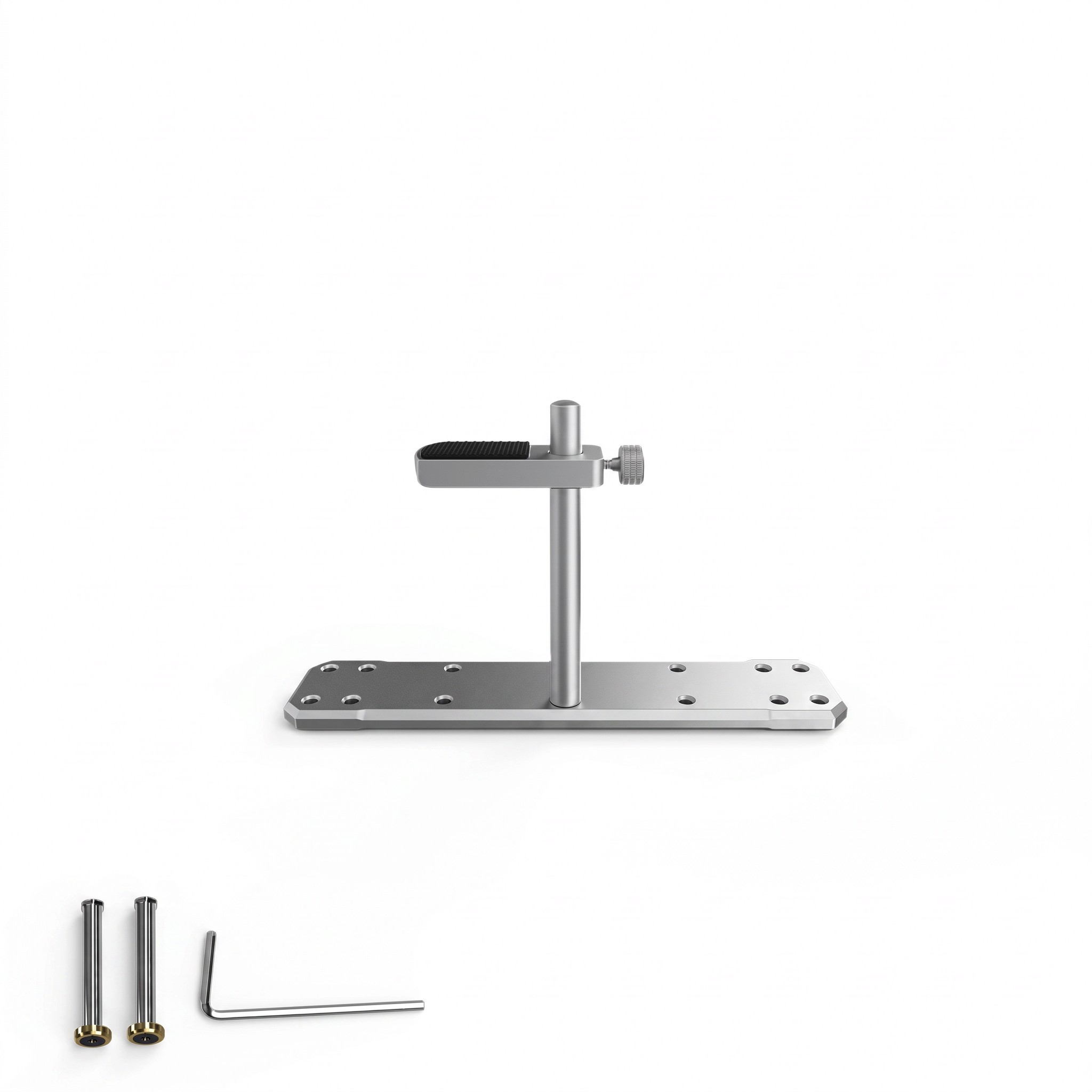

Package Contents:

  • 1x graphics card holder
  • 2x mounting screws
  • 1x hex key

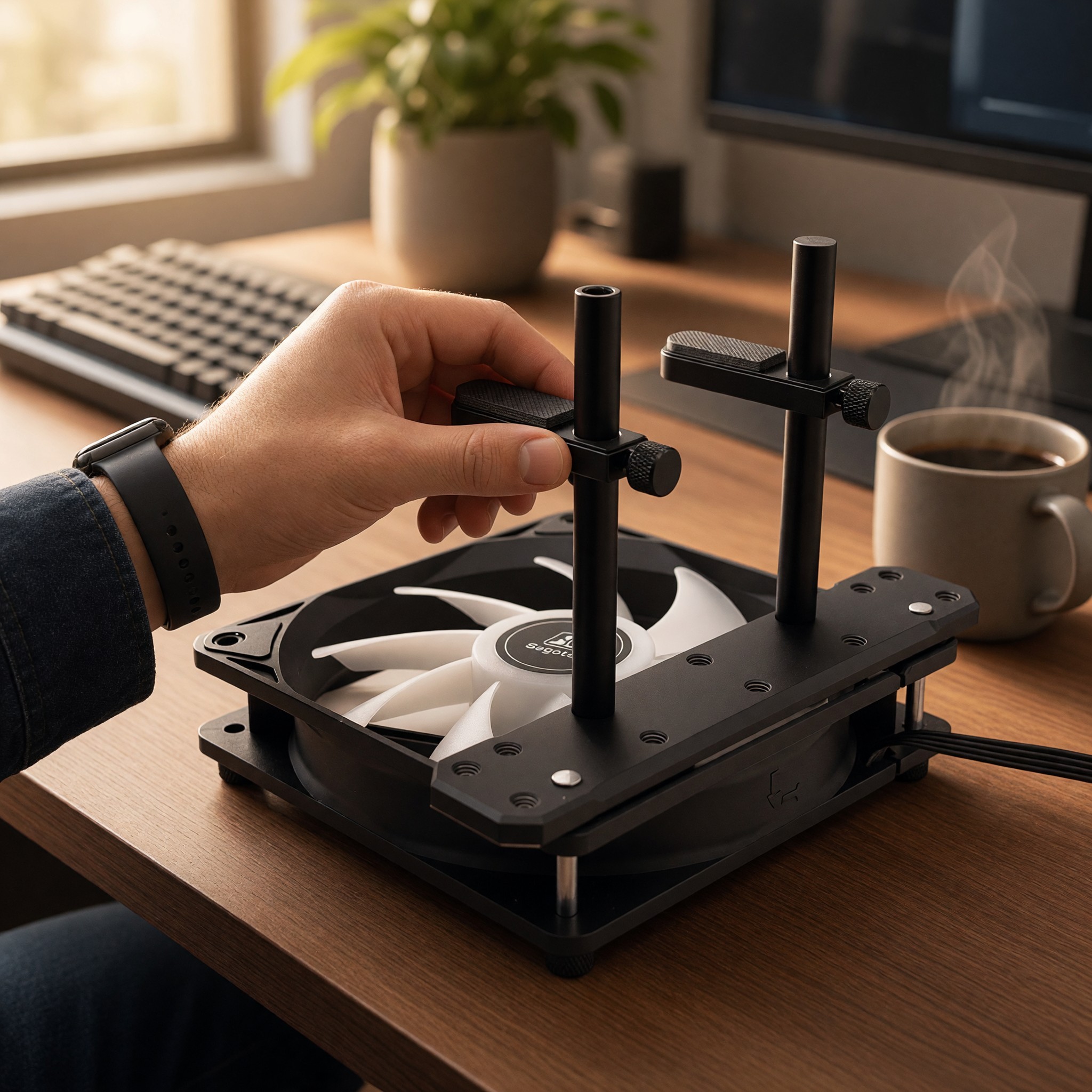

The graphics card holder for fan position is suitable for gaming and work setups with heavy cards, where the bottom of the case is occupied by a fan, and a traditional stand cannot be placed. Thanks to the fastening with two screws through the fan, the support holds firmly and does not slip even when transporting the computer. Installation involves loosening the fan screws, placing the base, tightening the long screws with the hex key, and adjusting the arm under the card. Before mounting, it is advisable to check that there is a fan with free mounting holes under the card. The arm with the anti-slip pad then keeps the card in a horizontal position without unnecessary strain on the slot.
