Fuel Level Sensor Rod 0–190 Ω 475 mm 19" Float Measuring Sensor IP67 for Monitoring Fuel and Liquid Levels in Vehicle Tanks

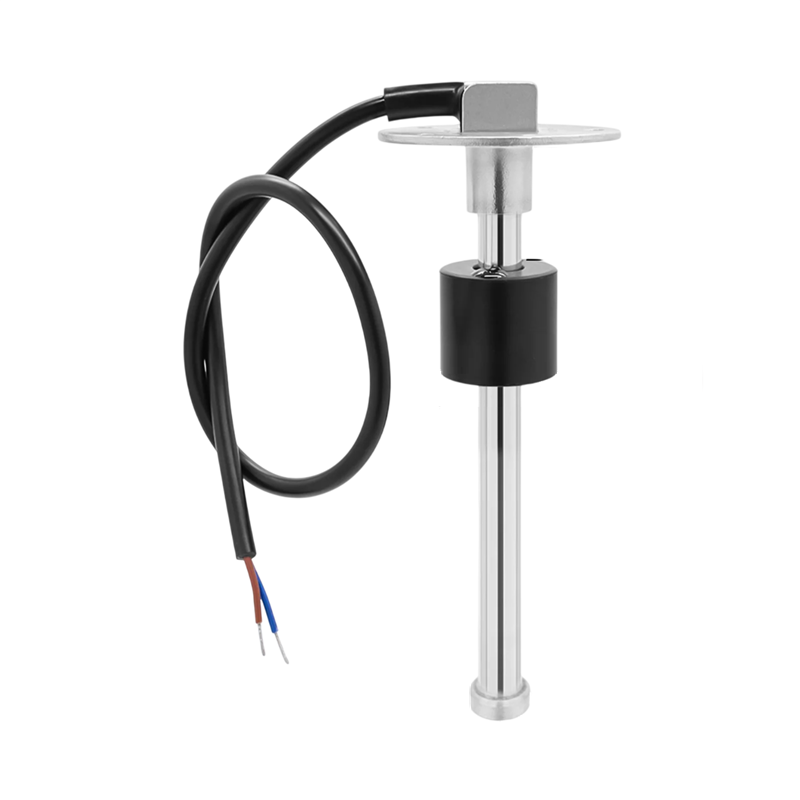

This fuel level sensor is designed for measuring the amount of liquid in a tank using a float mechanism. The sensor generates an electrical signal in a resistance range of 0–190 Ω, which is a common standard used by many fuel level indicators. This makes the device compatible with a range of measuring instruments and indicators used in both transport and technical systems.

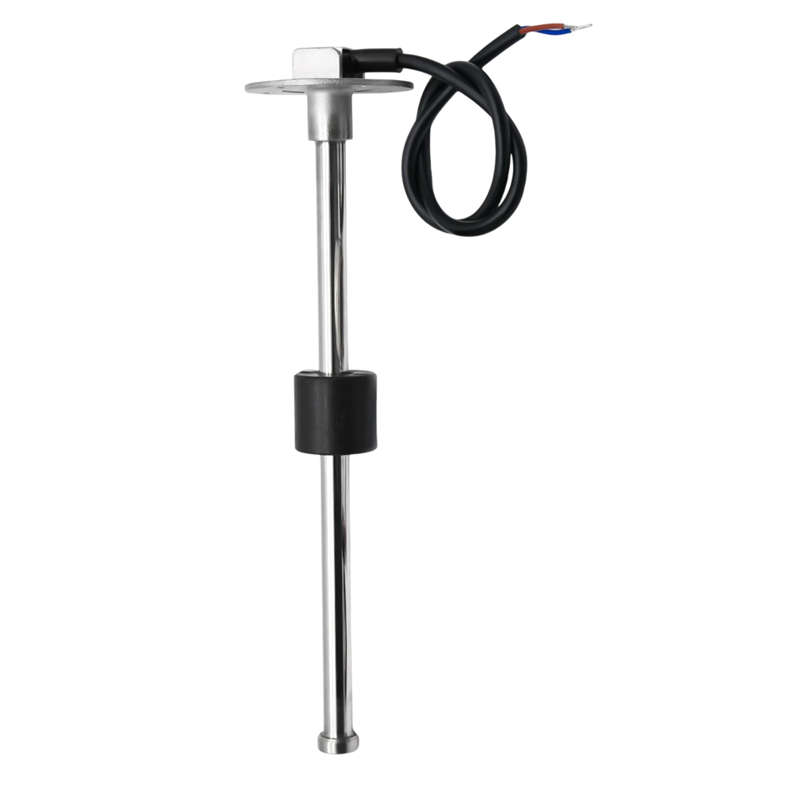

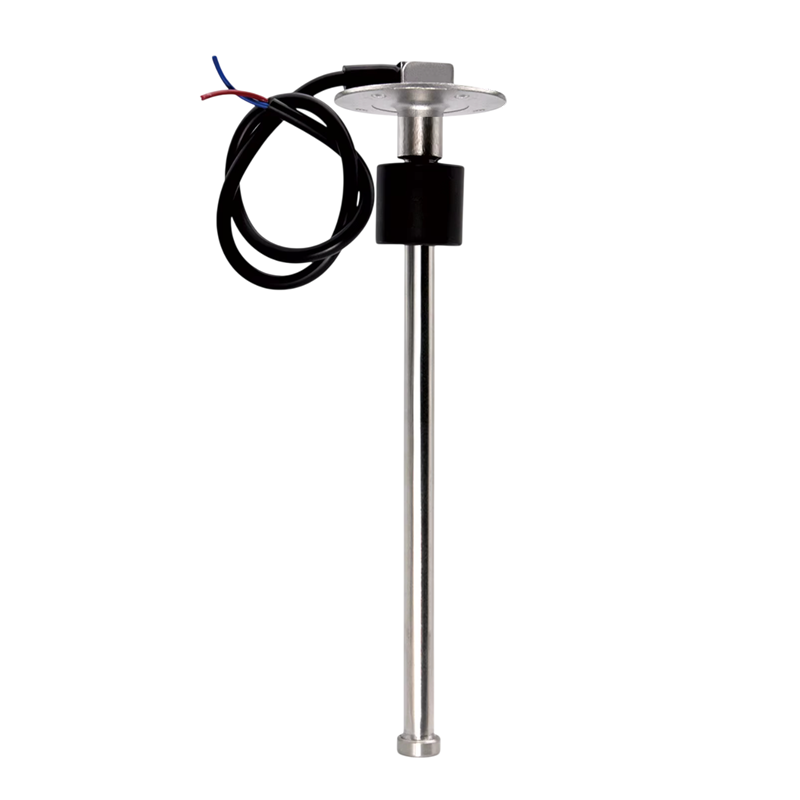

The measuring rod of the sensor has a length of 475 mm (19"), which corresponds to the recommended tank height of approximately 485 to 500 mm. This length makes the sensor suitable for deeper tanks where monitoring the amount of fuel, oil, or other liquids is necessary.
The device is designed to operate with a power supply of 9–32 V DC, allowing it to be connected to standard electrical systems used in, for example, trucks, boats, or technical equipment. The maximum operating current reaches ≤60 mA, which is suitable for integration into various measuring systems.

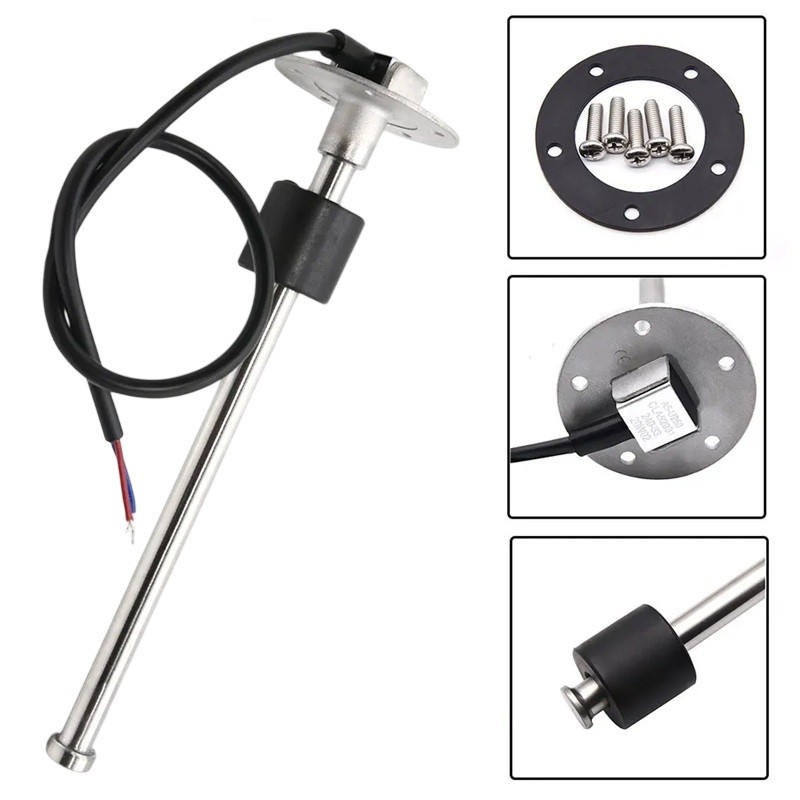

The installation of the sensor is carried out using a mounting flange with five holes. Fixing is done with the included M5 screws and a gasket with a thickness of 2 mm. The gasket helps ensure a proper seal between the tank and the sensor, reducing the possibility of liquid leakage.
The sensor is protected with an ingress protection rating of IP67, which provides protection against dust and allows for short-term immersion in water. This makes the device suitable for use in environments with higher humidity or in applications where contact with water may occur. The measurement resolution of 21 mm allows for monitoring changes in liquid levels within the tank.
Main Features
- Sensor resistance range: 0–190 Ω
- Measuring rod length: 475 mm (19")
- Operating voltage: 9–32 V DC
- Ingress protection rating: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 485–500 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- Gasket thickness: 2 mm
- Suitable for fuel, oil, and liquid tanks
- Used in boats, trucks, or technical systems

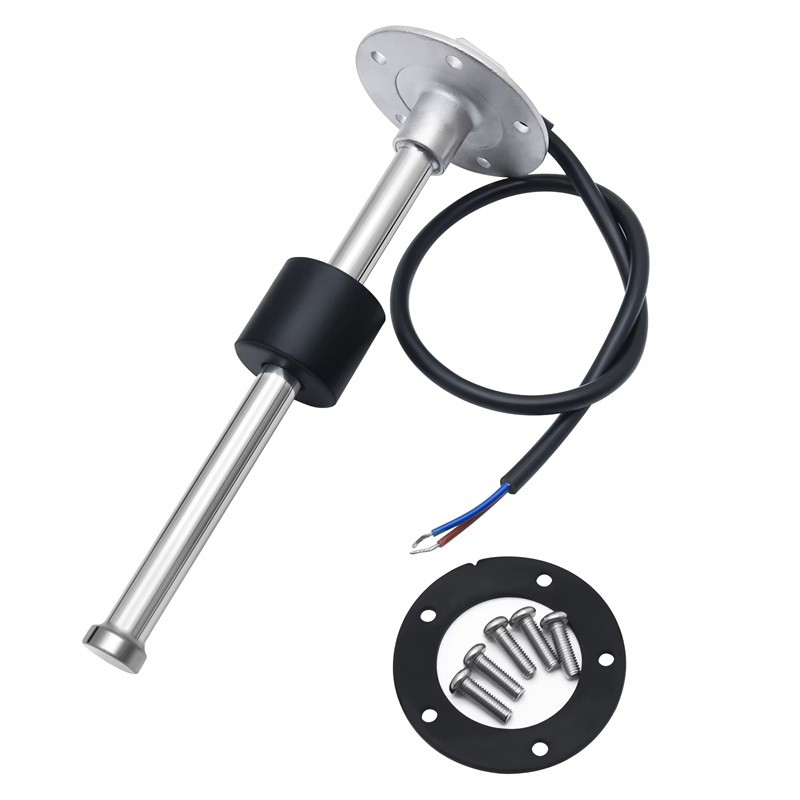

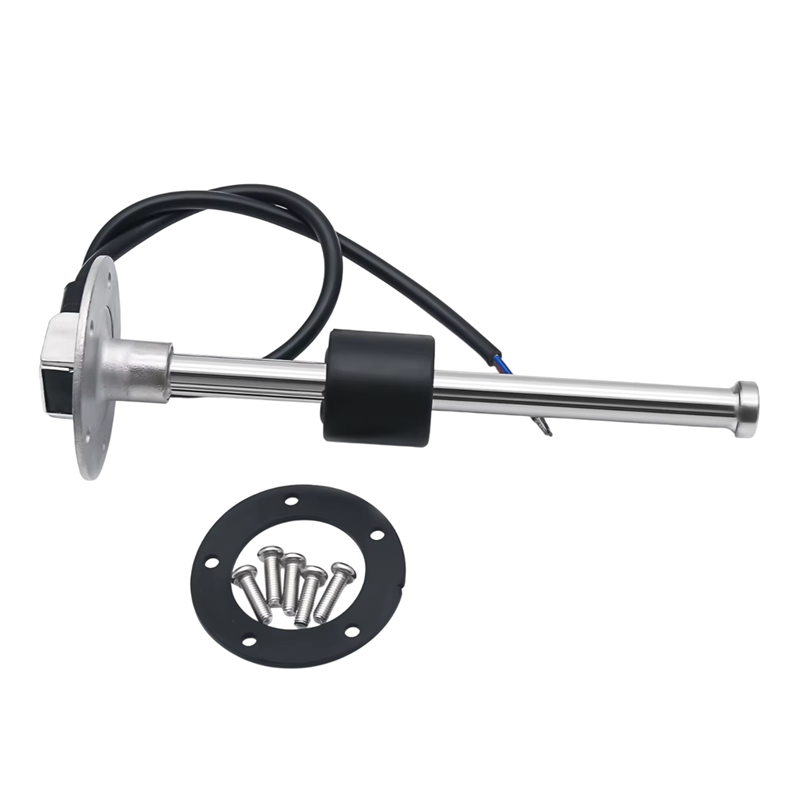

Package Contents
- Fuel level sensor
- Gasket
- 5× mounting screws
The sensor allows for monitoring the amount of liquid in the tank using a resistance signal compatible with common level indicators. With a length of 475 mm, it is suitable for tanks with greater structural height. The mounting flange allows for secure attachment of the sensor using five screws. The package includes mounting screws and a gasket for installation. The IP67 rated design allows for the use of the device even in more demanding operating conditions.
