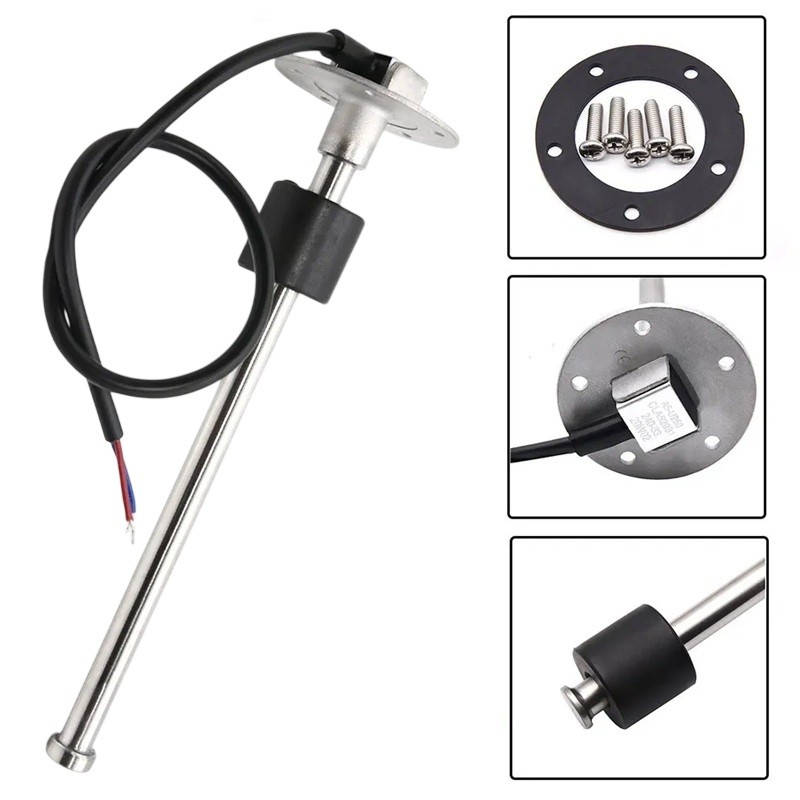

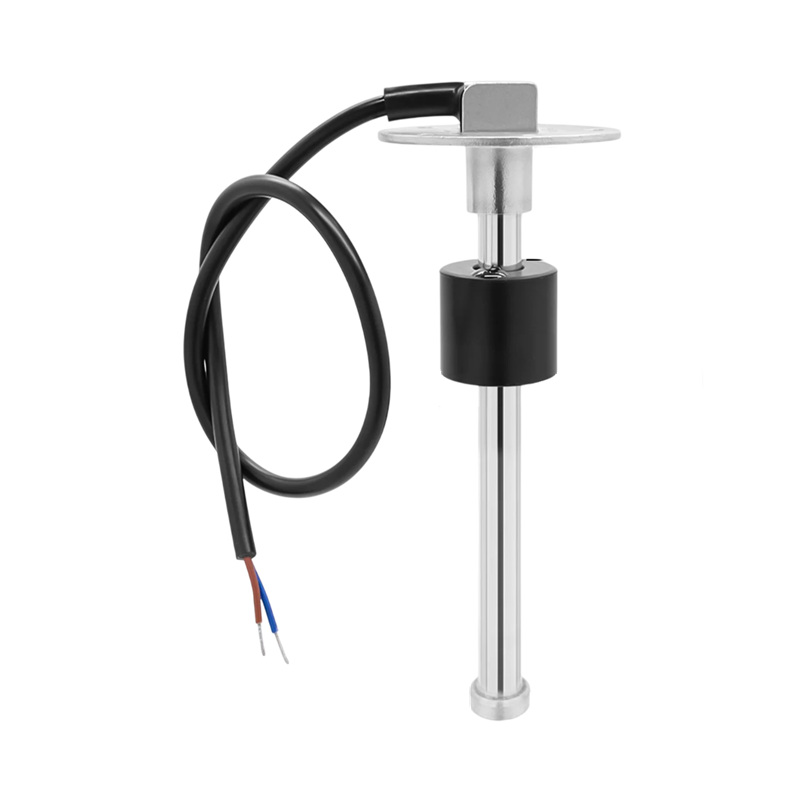

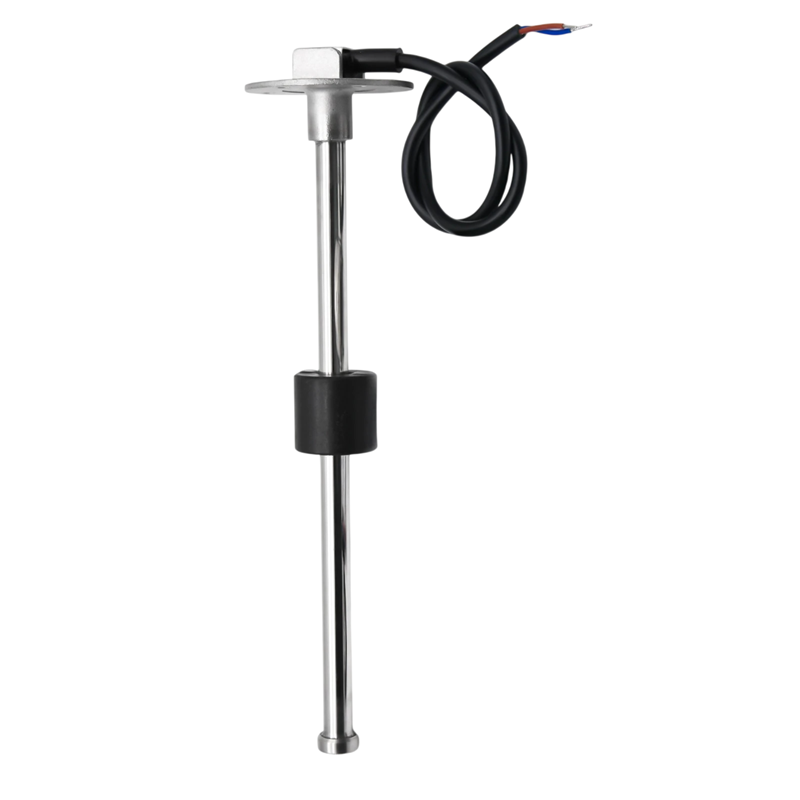

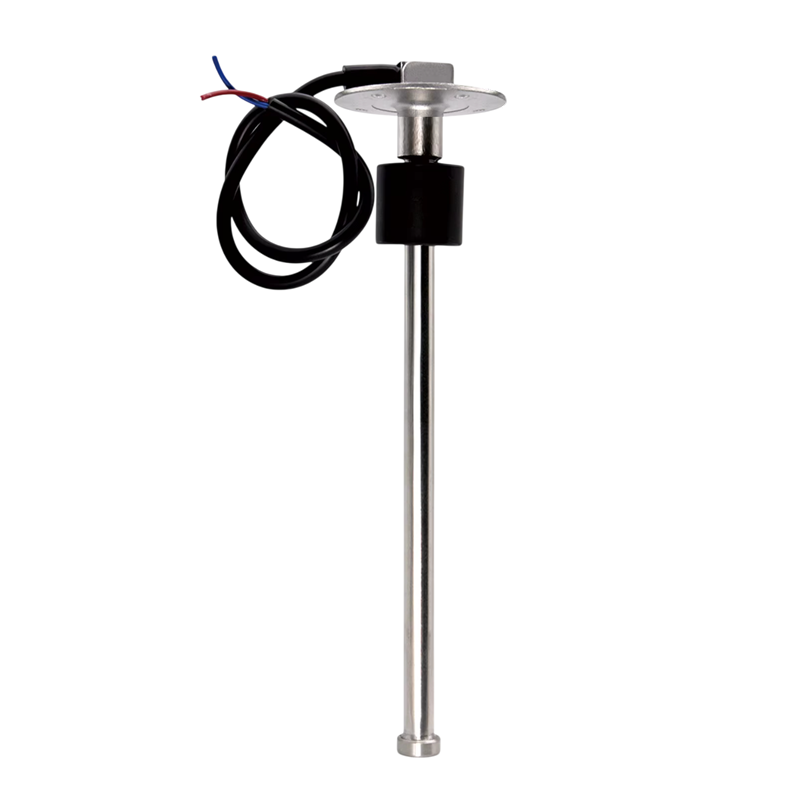

Fuel Level Sensor 0–190 Ω 375 mm 15" Measuring Sensor IP67 for Monitoring Fuel, Oil and Liquids in Tanks of Boats and Trucks
The fuel level sensor is used for continuous monitoring of the liquid quantity in the tank. This type of sensor utilises a resistance output of 0–190 Ω, which is commonly used with many fuel level indicators. This allows the device to be connected to various measuring systems used in transport or technical applications.
The measuring rod of the sensor has a length of 375 mm (15"), which corresponds to the recommended tank size of approximately 385 to 400 mm. Due to this length, the sensor is suitable for taller tanks where precise monitoring of fuel, oil or other liquid levels is required.
The device is designed for operation in electrical systems with a power supply of 9–32 V DC. The maximum operating current reaches ≤60 mA, allowing connection to common measuring devices used in boats, trucks or technical equipment.
The sensor's design is adapted for installation using a mounting flange with five holes. The sensor is secured using the included M5 screws and a 2 mm thick gasket, which helps ensure sealing between the tank and the sensor.
The device is protected with an IP67 rating, which means it is dustproof and resistant to temporary immersion in water. This allows the sensor to be used in environments with higher humidity or in applications where contact with water may occur. The measurement resolution of 21 mm enables monitoring of changes in liquid levels in the tank.
Main Features
- Sensor resistance range: 0–190 Ω
- Measuring rod length: 375 mm (15")
- Operating voltage: 9–32 V DC
- IP rating: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 385–400 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- 2 mm thick gasket
- Suitable for fuel, oil and liquid tanks
- Used in boats, trucks and technical systems

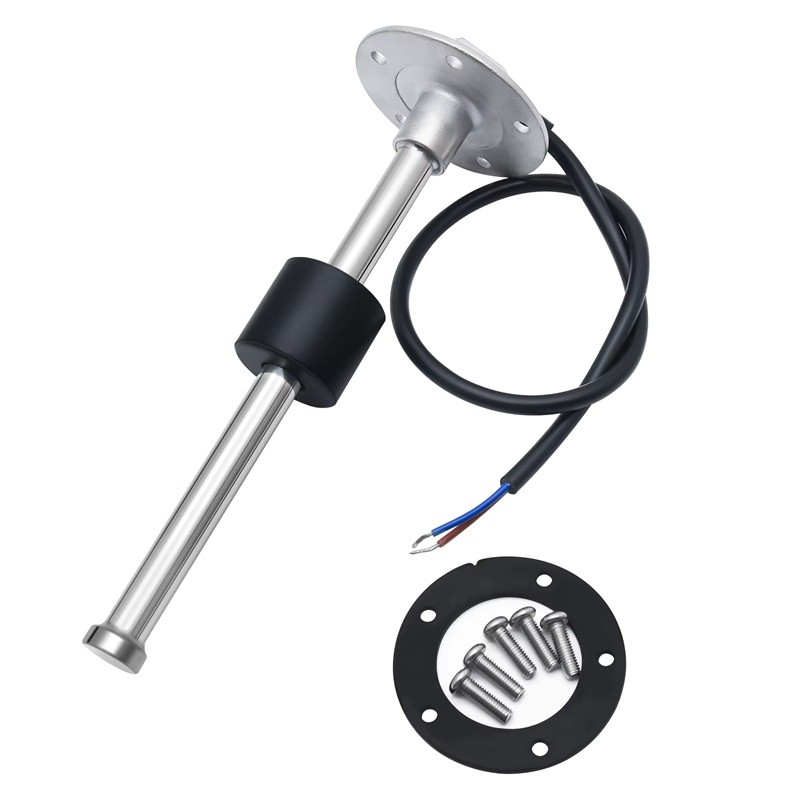

Package Contents
- Fuel level sensor
- Gasket
- 5× mounting screws
The sensor allows monitoring of the liquid quantity in the tank using a resistance signal compatible with common level indicators. With a length of 375 mm, it is suitable for deeper tanks used in transport or technical systems. Installation using five screws allows for secure attachment of the sensor to the tank. The package also includes screws and a gasket for installation. The design with an IP67 rating allows the device to be used in more demanding environments.
