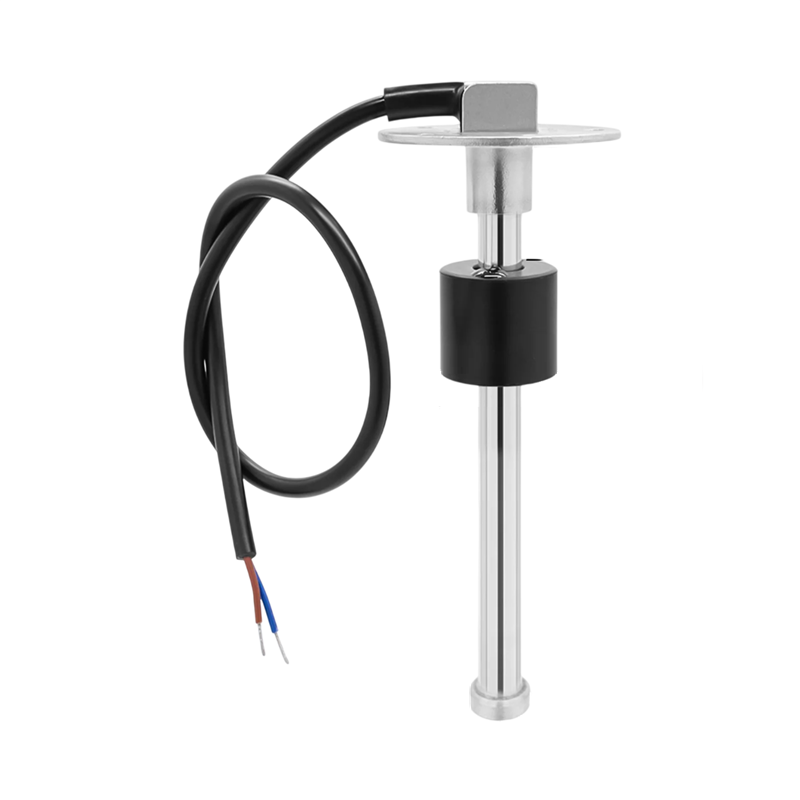

Fuel Level Sensor 0–190 Ω 350 mm 14" Electric Sensor IP67 for Measuring Fuel and Liquid Levels in Boat and Truck Tanks
The fuel level sensor is designed for measuring the amount of liquid inside a tank. This type of sensor uses a resistive output 0–190 Ω, which is a commonly used standard for fuel level indicators. This allows the sensor to be connected to various measuring instruments used in transport or technical systems.

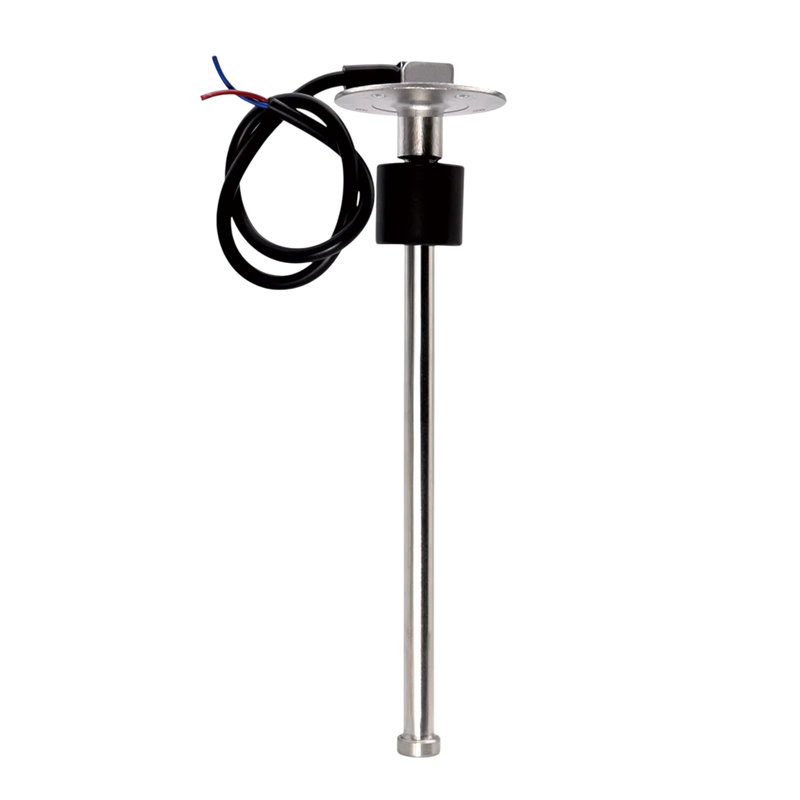

The measuring rod has a length of 350 mm (14"), which corresponds to the recommended tank height of approximately 360 to 375 mm. Due to this length, the sensor is suitable for tanks with a greater structural height, where it is necessary to monitor the amount of fuel, oil, or other liquids.
The device operates within a voltage range of 9–32 V DC and its maximum operating current does not exceed ≤60 mA. This allows the sensor to be connected to standard electrical systems used in transport or industrial equipment.

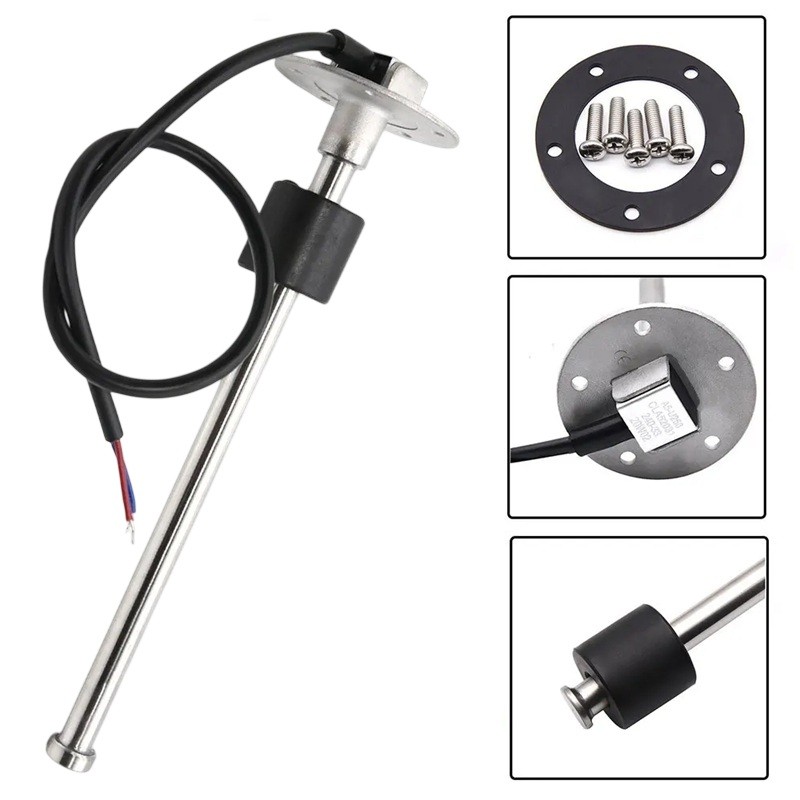

The design of the sensor is intended for mounting using a flange with five holes. Installation is carried out using the included M5 screws and a gasket with a thickness of 2 mm. The gasket helps ensure a proper seal between the sensor and the tank, minimising the possibility of liquid leakage.
The sensor is protected by an IP67 rating, which provides protection against dust and temporary immersion in water. This means the device can be used in environments with higher humidity or when in contact with water. The measurement resolution of 21 mm allows for monitoring changes in the liquid level within the tank.
Main Features
- Sensor resistive range: 0–190 Ω
- Measuring rod length: 350 mm (14")
- Operating voltage: 9–32 V DC
- IP rating: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 360–375 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- 2 mm thick gasket
- Suitable for fuel, oil, and liquid tanks
- Used in marine, boating, or freight systems

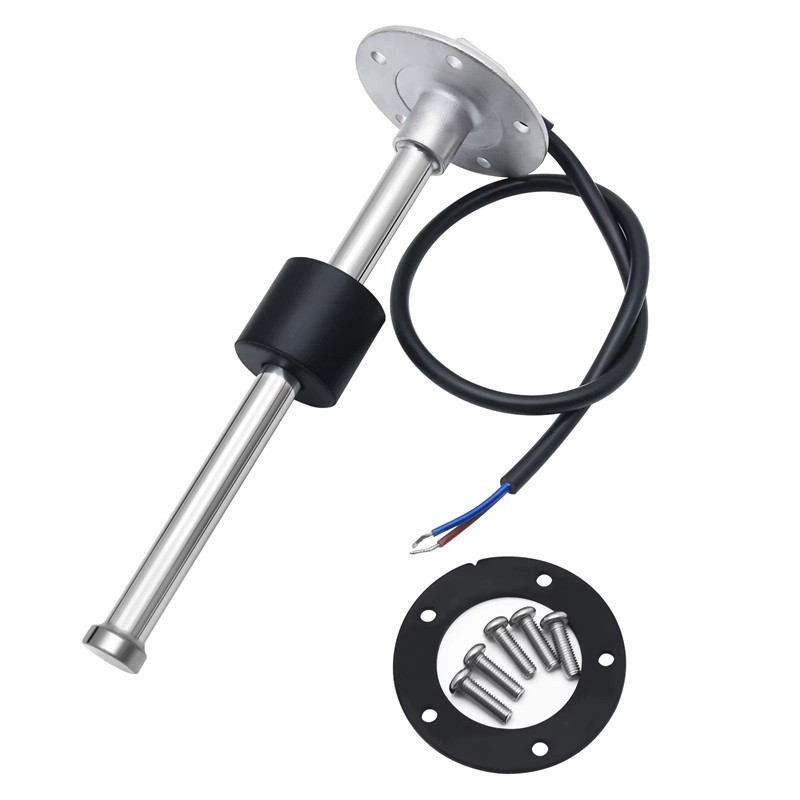

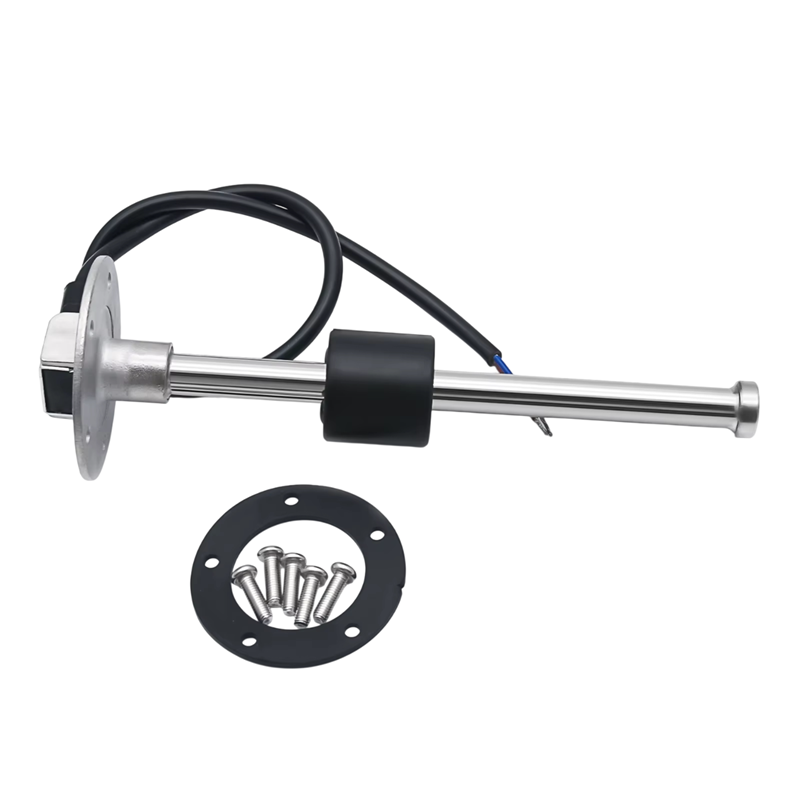

Package Contents
- Fuel level sensor
- Gasket
- 5× mounting screws
The sensor allows monitoring of the amount of liquid in the tank using a resistive signal compatible with standard level indicators. With a length of 350 mm, it is suitable for tanks with a higher structural height. The mounting flange allows for secure attachment of the sensor using five screws. The package also includes mounting screws and a gasket to seal the connection between the sensor and the tank. The IP67 rating allows for the use of the device in environments with higher humidity or when in contact with water.
