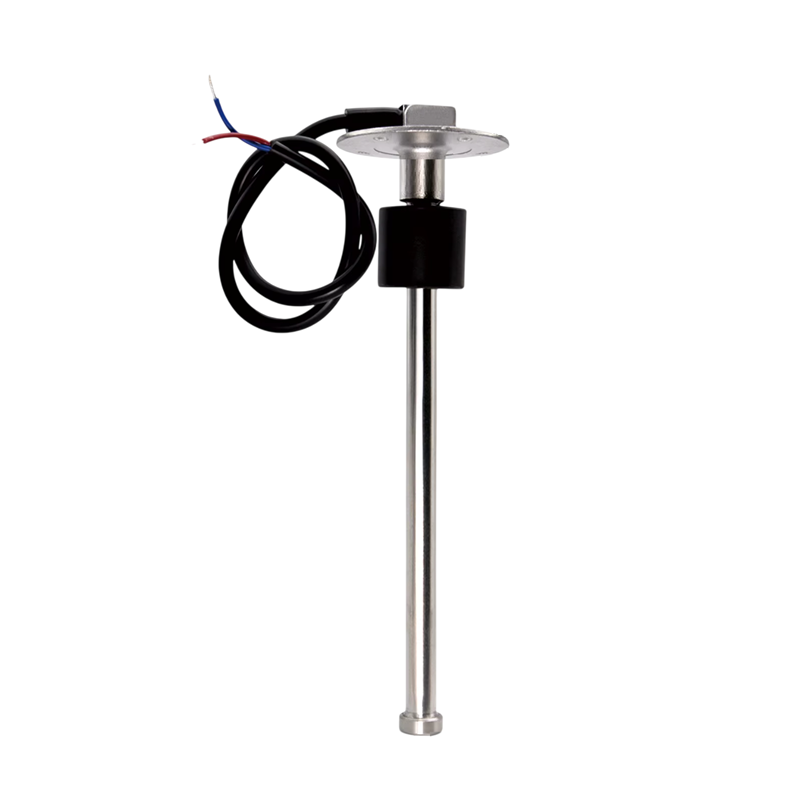

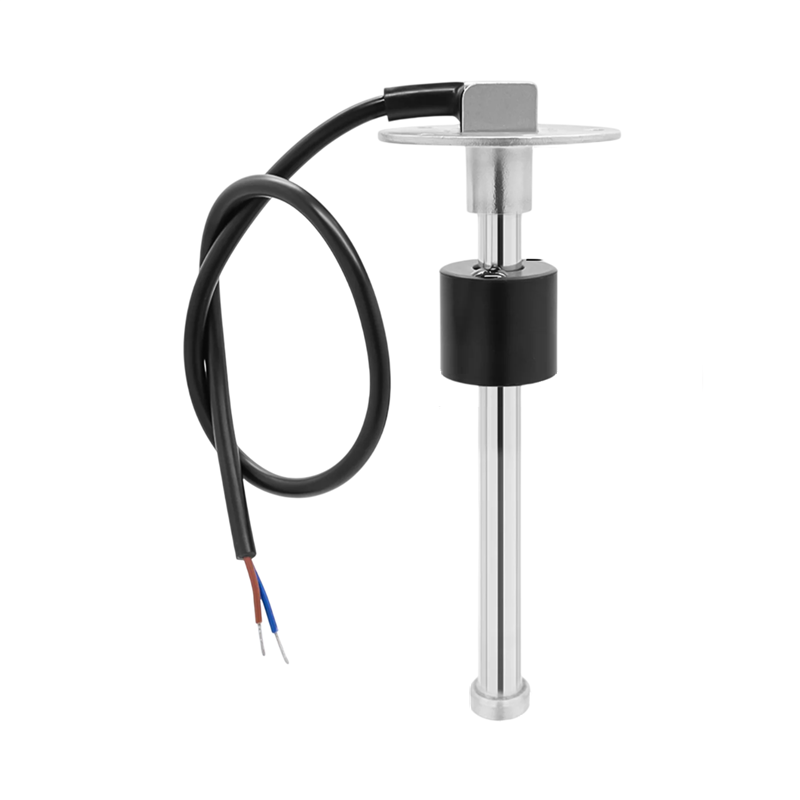

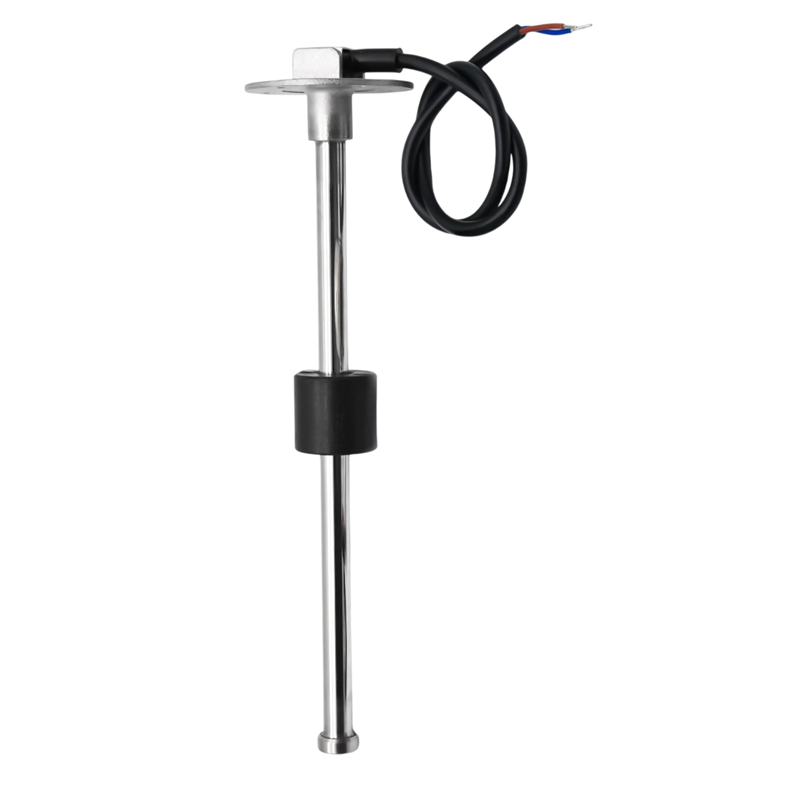

Fuel Level Sensor 0–190 Ω 225 mm 9" Electric Level Sensor IP67 for Measuring Fuel and Liquids in Tanks of Boats, Vehicles and Machines
The fuel level sensor is designed for monitoring the amount of liquid in tanks used in transport or technical systems. This type of sensor operates with a resistance signal 0–190 Ω, which is commonly used in fuel level indicators. This allows it to be connected to various measuring instruments used in vehicles, boats or technical devices.
The measuring rod of the sensor has a length of 225 mm (9"), which corresponds to the recommended tank size of approximately 235 to 250 mm. Due to this length, the sensor is suitable for tanks with a higher construction height, where it is necessary to monitor the amount of fuel, oil or other liquid.
The device operates within a voltage range of 9–32 V DC and its maximum operating current does not exceed ≤60 mA. This makes it compatible with common electrical systems used in transport and industrial technology.
The sensor's design is intended for mounting using a flange with five holes. Installation is carried out using the included M5 screws and a 2 mm thick gasket. The gasket helps ensure the sealing of the joint between the sensor and the tank and minimises the risk of liquid leakage.
The device is protected by a degree of protection IP67, which protects the sensor from dust and temporary immersion in water. The sensor is designed for operation in various conditions and works within a wide temperature range. The measurement resolution of 21 mm allows for monitoring changes in liquid levels within the tank.
Main Features
- Sensor resistance range: 0–190 Ω
- Sensor length: 225 mm (9")
- Operating voltage: 9–32 V DC
- Degree of protection: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 235–250 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- 2 mm thick gasket
- Suitable for fuel, oil and liquid tanks
- Used in marine, boating or freight systems, for example

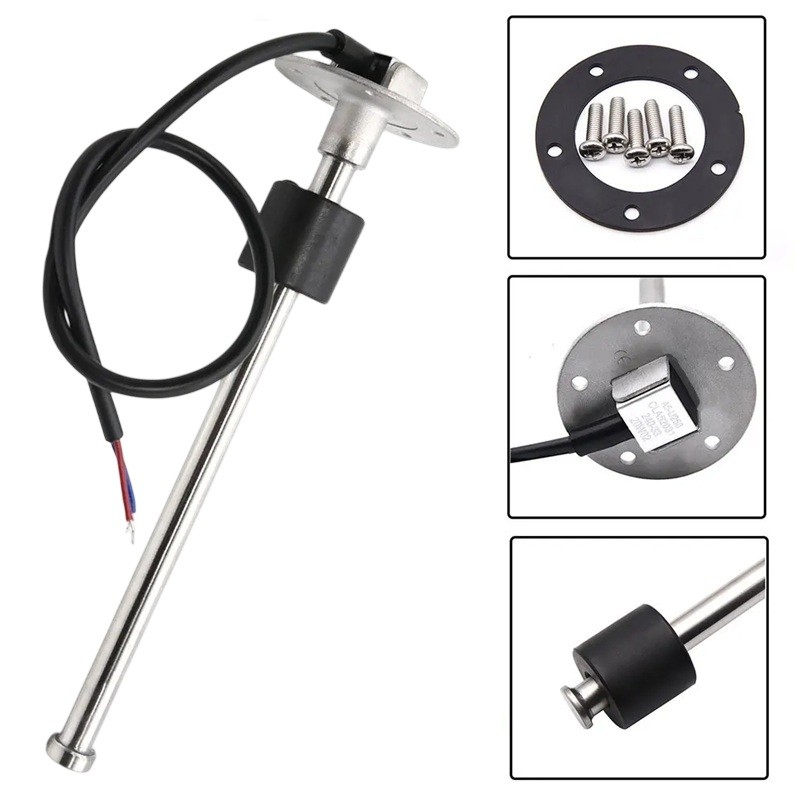

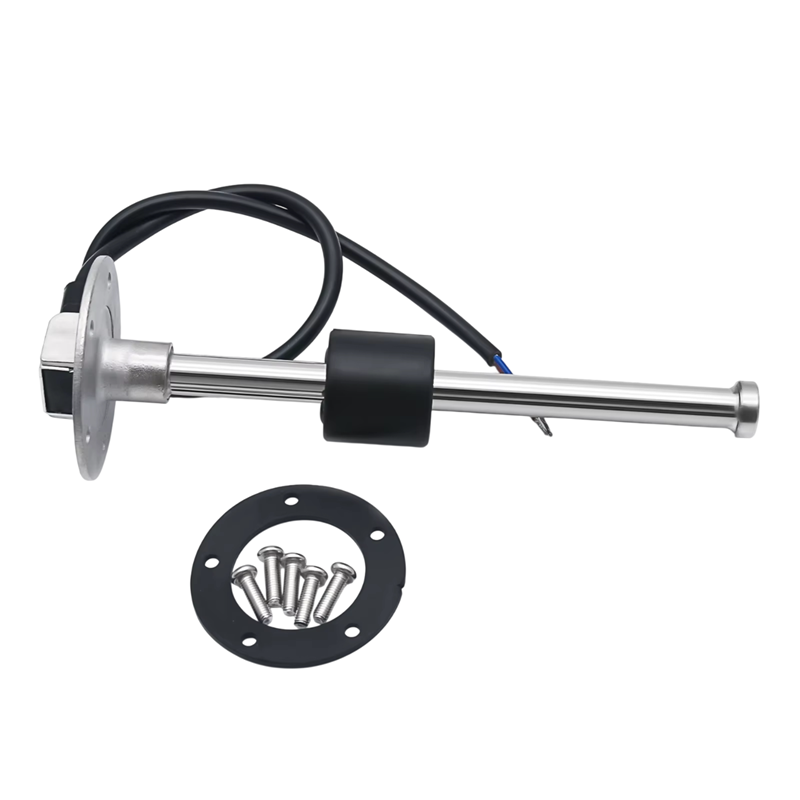

Package Contents
- Fuel level sensor
- Gasket
- 5× mounting screws
The sensor allows for monitoring the liquid level in the tank using a resistance output compatible with common level indicators. With a length of 225 mm, it is suitable for taller tanks. The flange mounting with five holes allows for secure attachment of the sensor. The package includes mounting screws and a gasket to seal the joint between the sensor and the tank. The IP67 rating allows for the use of the device even in environments with higher humidity or when in contact with water.
