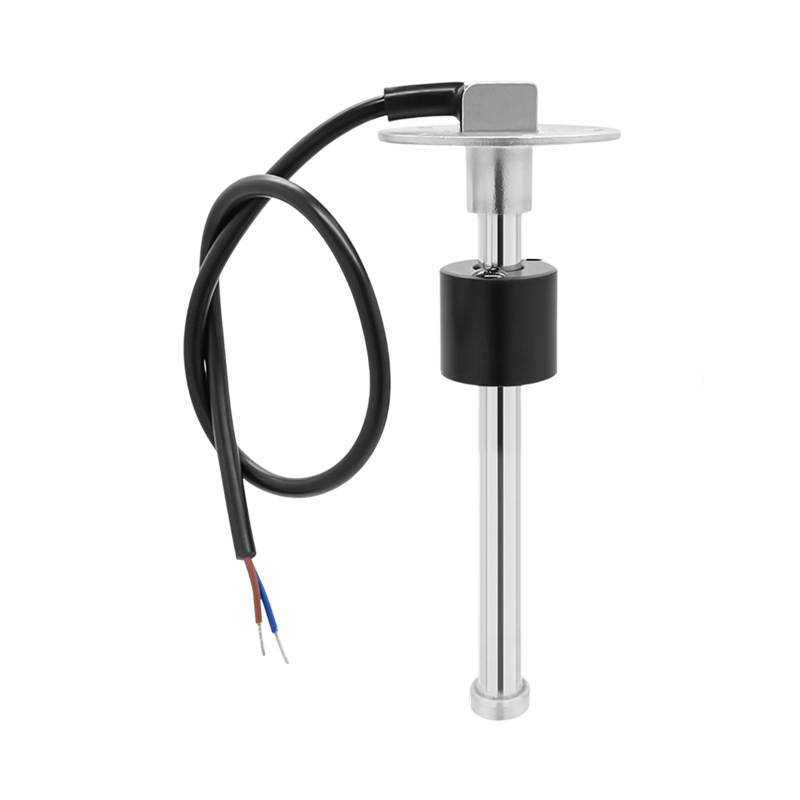

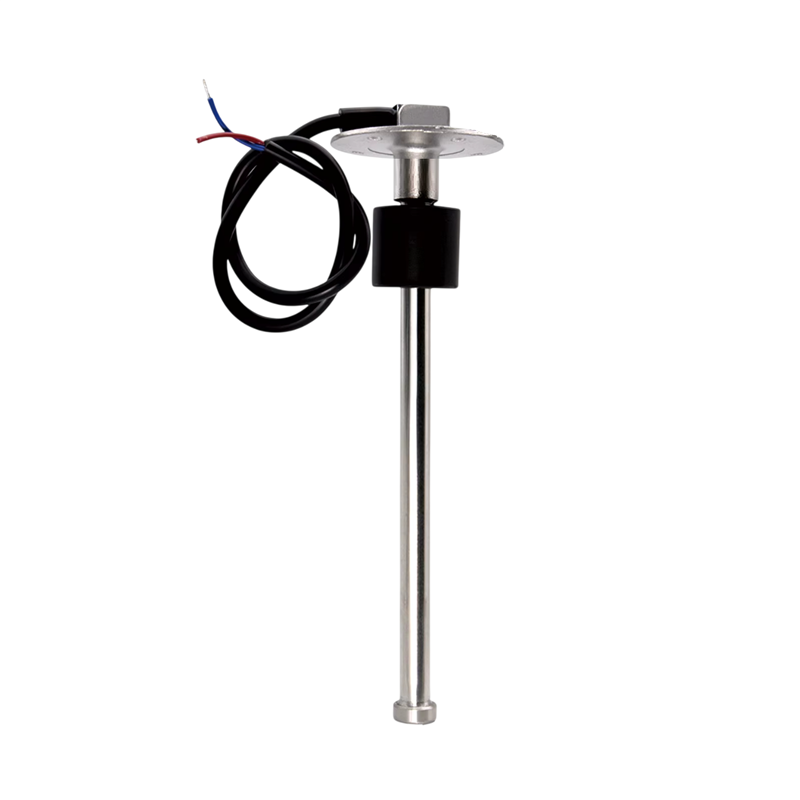

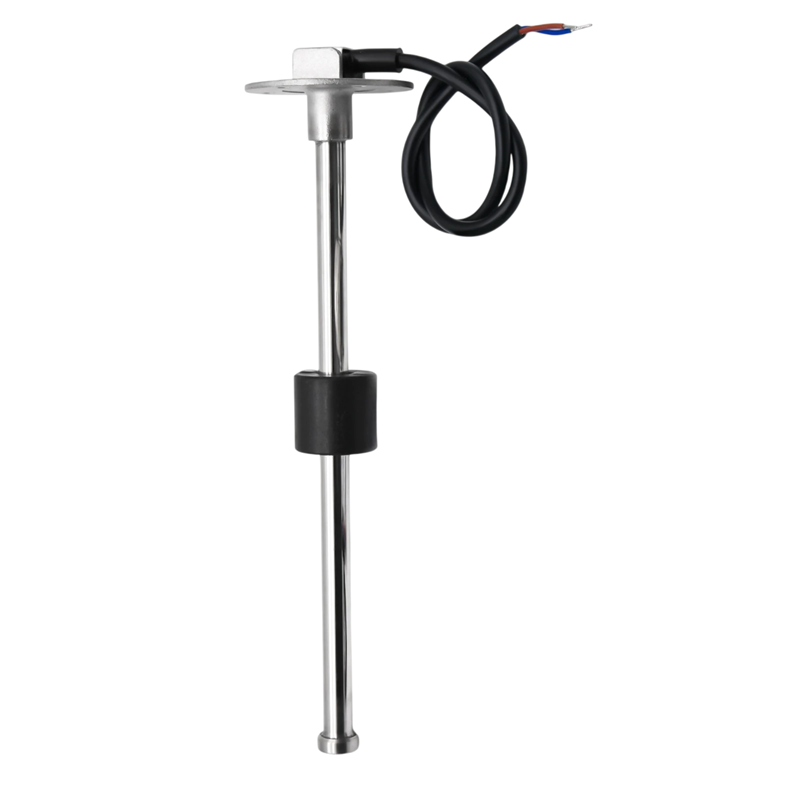

Fuel Level Sensor 0–190 Ω 200 mm 8" Electric Sensor IP67 for Measuring Fuel and Liquid Levels in Tanks of Boats, Vehicles and Equipment
The fuel level sensor is used for continuous monitoring of the liquid quantity inside the tank. This type of sensor utilises a standard resistance output 0–190 Ω, which is commonly used in fuel level indicators in transport and technical equipment. This allows the sensor to be used in various systems designed for monitoring the state of fuel or other liquids.
The measuring rod has a length of 200 mm (8"), which corresponds to the recommended tank height of approximately 210 to 225 mm. This dimension is suitable for tanks used, for example, in boats, lorries or technical devices where it is necessary to monitor the level of fuel, oil or other liquid.
The device operates within an electrical range of 9–32 V DC and its maximum operating current reaches ≤60 mA. This allows the sensor to be connected to standard electrical systems used in vehicles, boats or other mechanical devices.

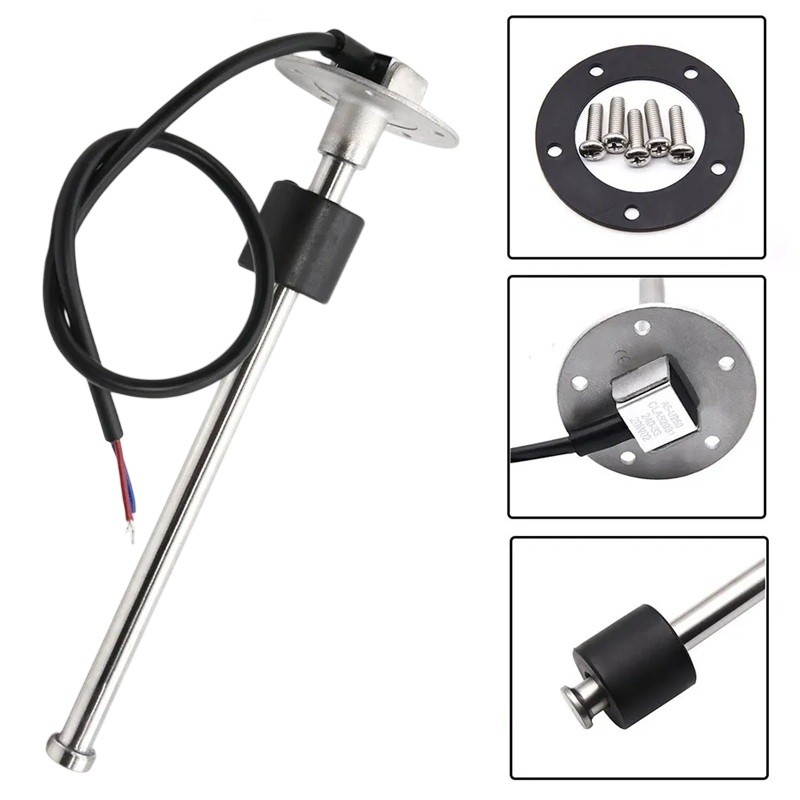

The sensor is designed for mounting using a flange with five holes. Installation screws M5 and a 2 mm thick gasket, which helps ensure a proper seal between the sensor and the tank, are included in the package. This design allows the sensor to be securely fixed while minimising the risk of liquid leakage.
The device is protected by a degree of protection IP67, which safeguards the sensor against dust and short-term immersion in water. The construction is adapted for operation in various conditions. The measurement resolution of 21 mm allows monitoring of changes in the liquid level in the tank.
Main Features
- Sensor resistance range: 0–190 Ω
- Length of measuring rod: 200 mm (8")
- Operating voltage: 9–32 V DC
- Degree of protection: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 210–225 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- 2 mm thick gasket
- Suitable for fuel, oil and liquid tanks
- Used in marine, boating or freight systems, for example

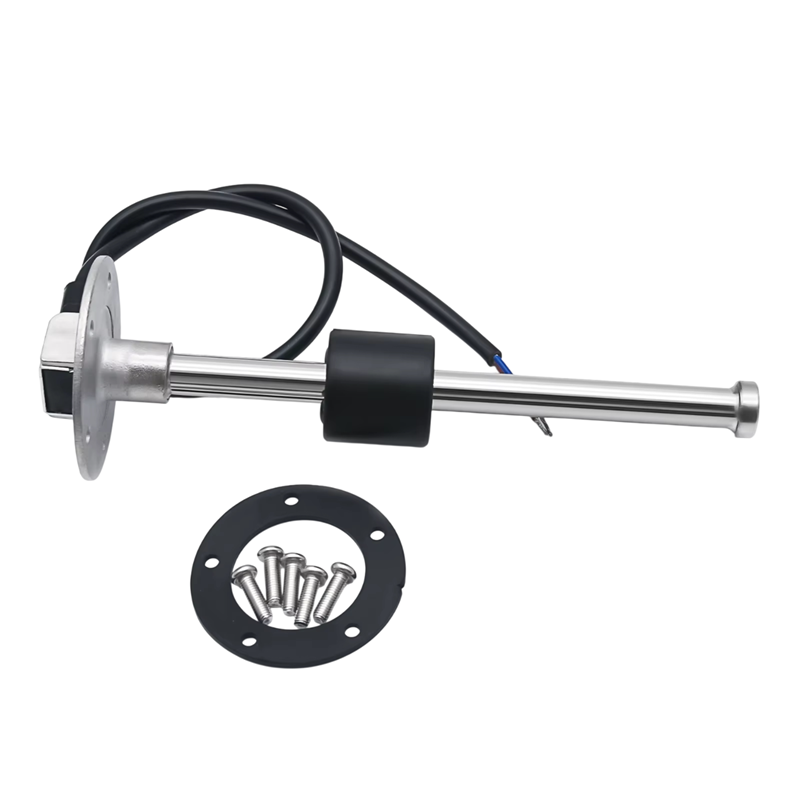

Package Contents
- Fuel level sensor
- Gasket
- 5× mounting screws
The sensor allows monitoring of the liquid state in the tank using a resistance output compatible with standard level indicators. With a length of 200 mm, it is suitable for tanks with a greater structural height. The mounting flange allows for secure attachment of the sensor using five screws. The package also includes a gasket that helps ensure proper sealing during installation. The IP67 rating allows the sensor to be used even in environments with humidity or when in contact with water.
