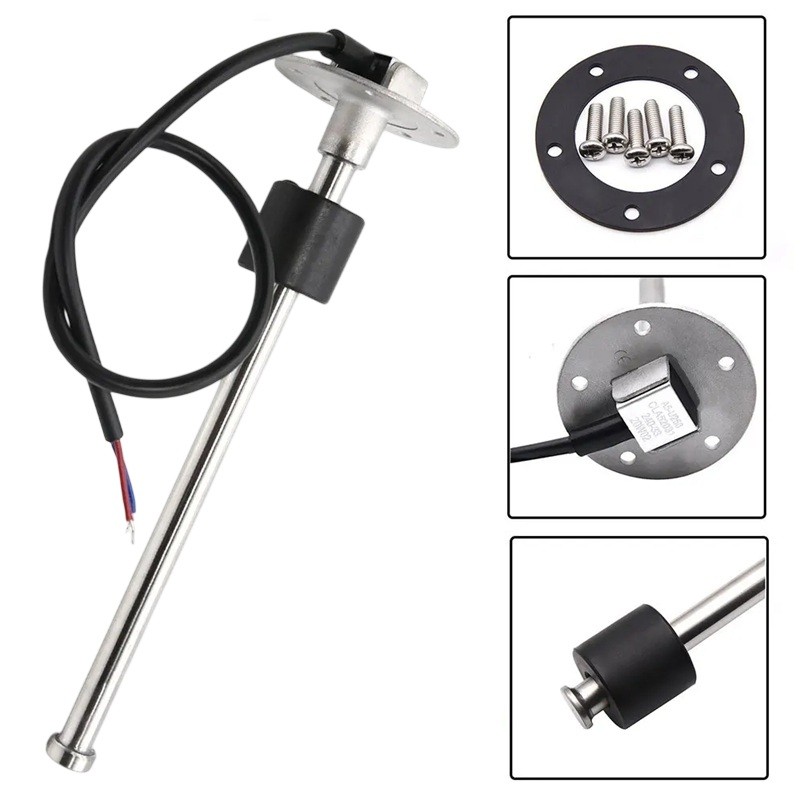

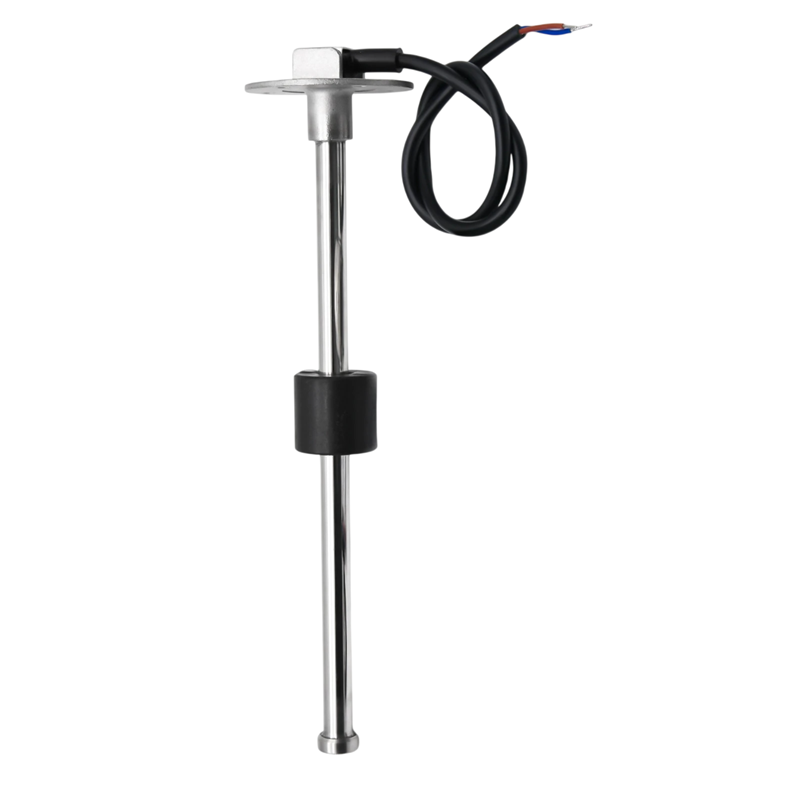

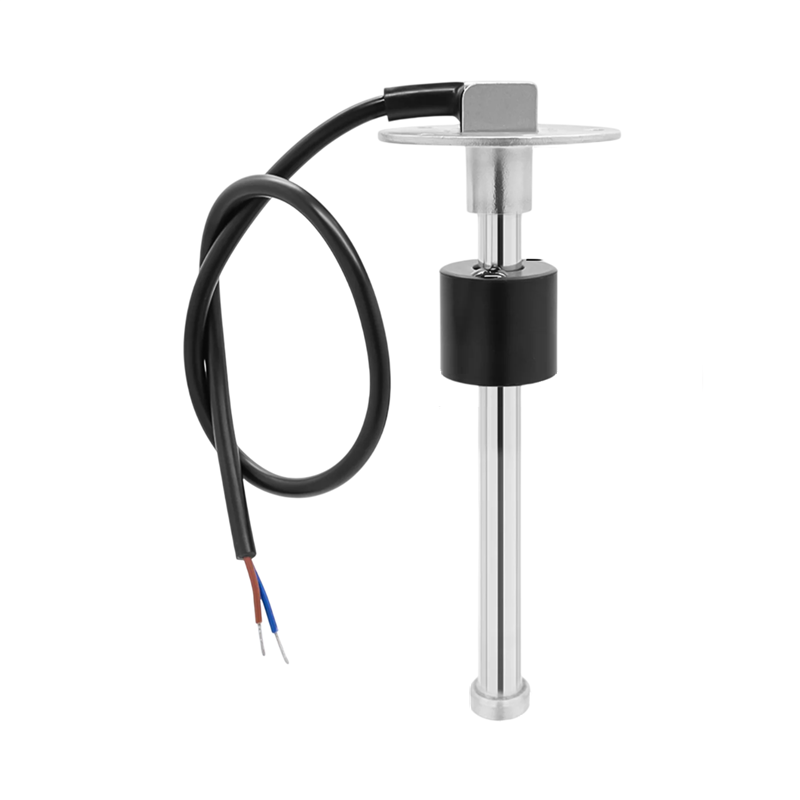

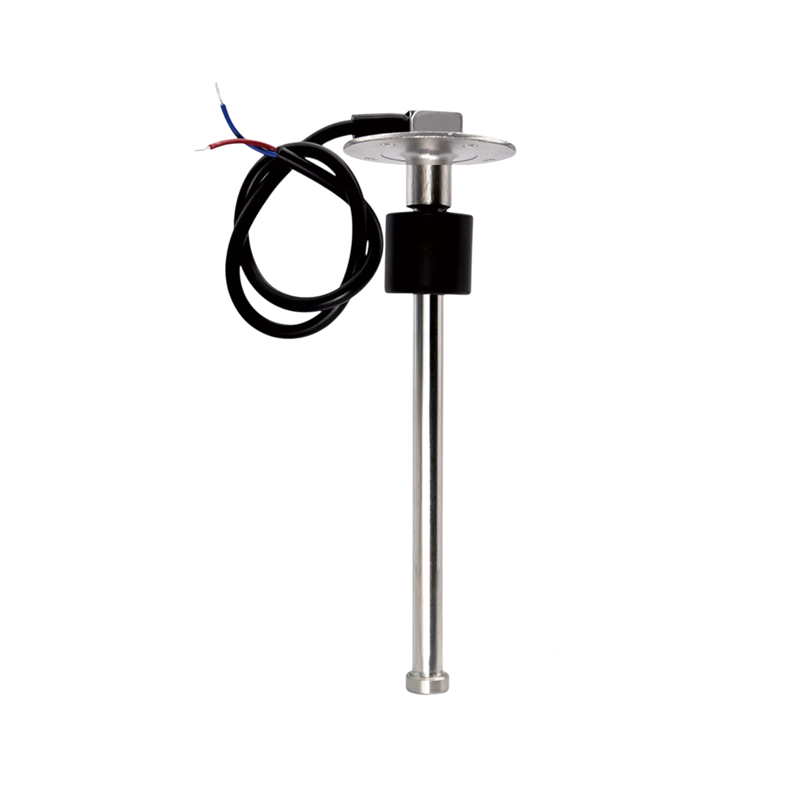

Fuel Level Sensor 0–190 Ω 150 mm 6" Electric Sensor IP67 for Measuring Fuel and Liquid Levels in Tanks of Boats, Trucks and Machinery
This fuel level sensor is designed for monitoring the amount of liquid in various types of tanks. It uses a standard resistance signal 0–190 Ω, which is commonly utilised in fuel level indicators in transport and technical systems. This makes it possible to connect the sensor to many devices used in marine, freight or industrial technology.
The measuring rod has a length of 150 mm (6"), which corresponds to the recommended tank size of approximately 160 to 175 mm. This dimension allows for use in smaller and medium-sized tanks intended for fuel, oil or other liquids.
The electric sensor operates within a voltage range of 9–32 V DC and its operating current reaches a maximum of ≤60 mA. This makes it compatible with standard onboard electrical systems used in vehicles, boats or other technical devices.
The sensor's design is adapted for mounting using a flange with five holes. Installation screws M5 and a gasket with a thickness of 2 mm are included in the package, which helps ensure a proper seal between the sensor and the tank. The IP67 rating provides protection against dust and temporary immersion in water, allowing for use even in more demanding operational conditions.
The measurement resolution is 21 mm, which allows for monitoring changes in liquid levels in the tank at regular intervals. Due to its design, the sensor is suitable for various types of liquid tanks used in transport or technical systems.
Main Features
- Resistance Range: 0–190 Ω
- Sensor Length: 150 mm (6")
- Operating Voltage: 9–32 V DC
- Protection Rating: IP67
- Measurement Resolution: 21 mm
- Recommended Tank Size: 160–175 mm
- Operating Current: ≤60 mA
- Operating Temperature: -30 to +75 °C
- Storage Temperature: -40 to +85 °C
- Mounting Flange: 5 holes
- Mounting Screws: 5× M5
- Gasket with a thickness of 2 mm
- Suitable for fuel, oil and other liquid tanks
- Used in marine, boating or freight systems, for example

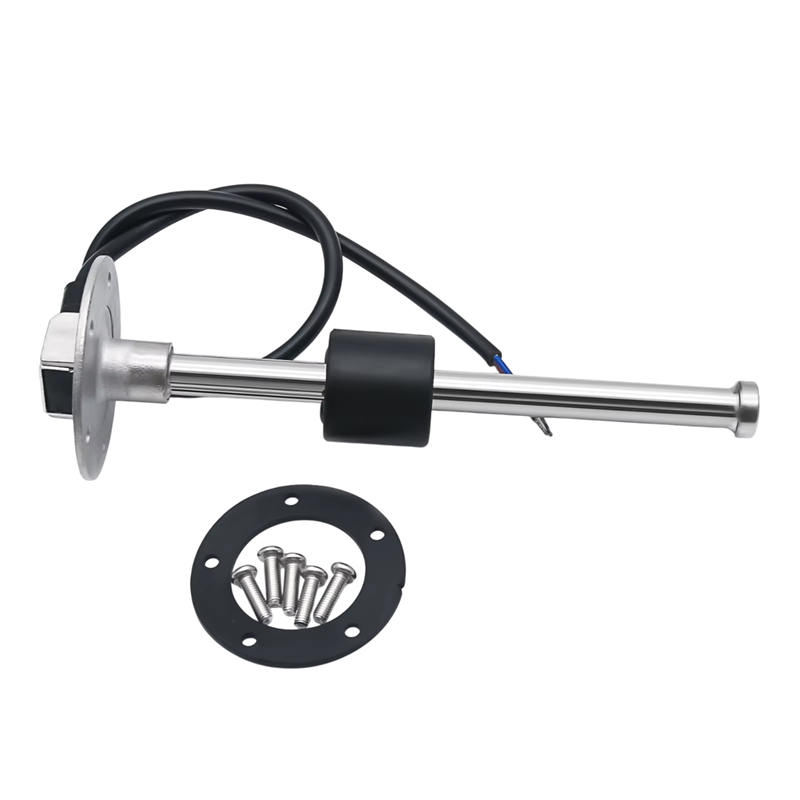

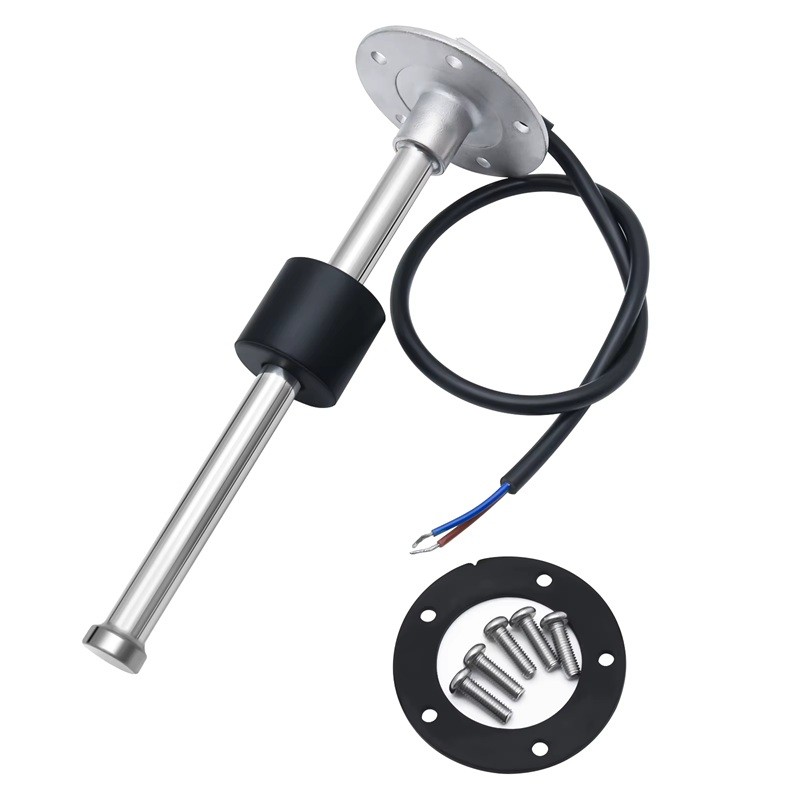

Package Contents
- Fuel Level Sensor
- Gasket
- 5× Mounting Screw
The sensor allows for monitoring the amount of liquid in the tank using a resistance output compatible with standard level indicators. With a length of 150 mm, it is suitable for medium-sized tanks. The flange-mounted design facilitates installation and secure attachment. The package includes necessary mounting elements including a gasket for sealing the joint. The IP67 rating allows for use in environments where contact with moisture or water may occur.
