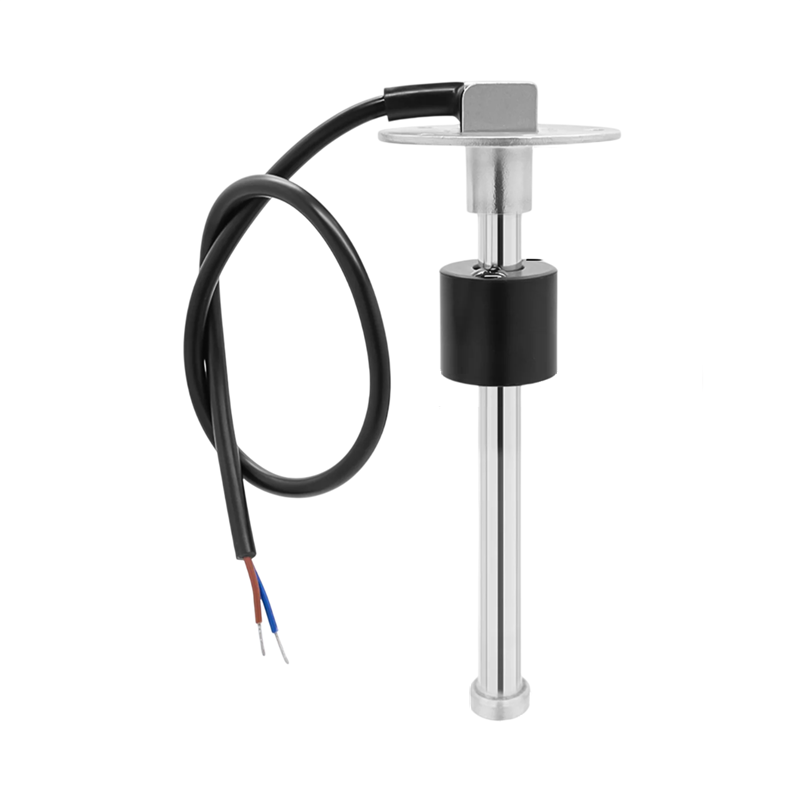

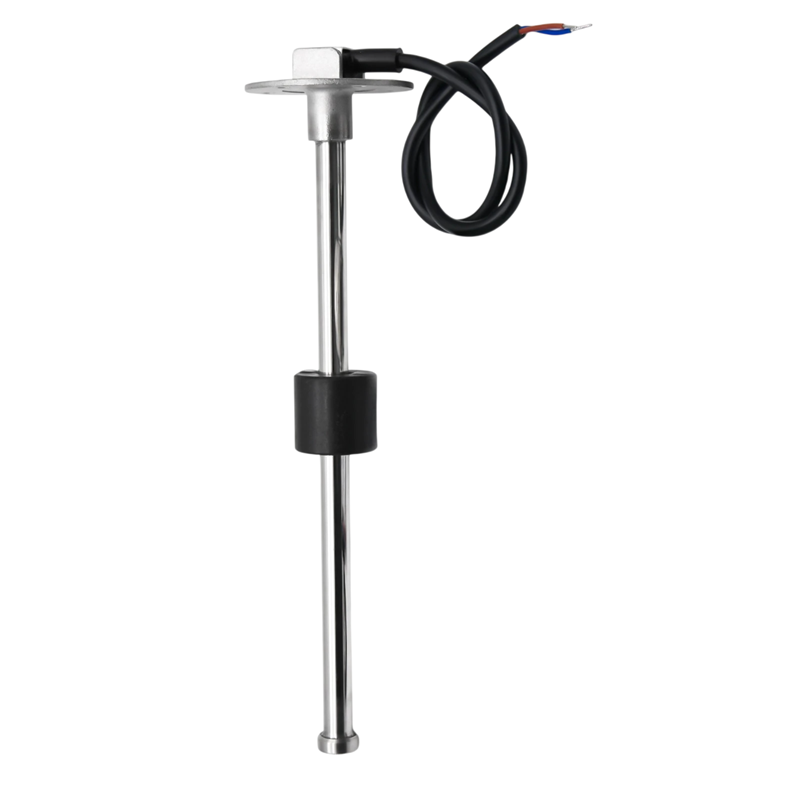

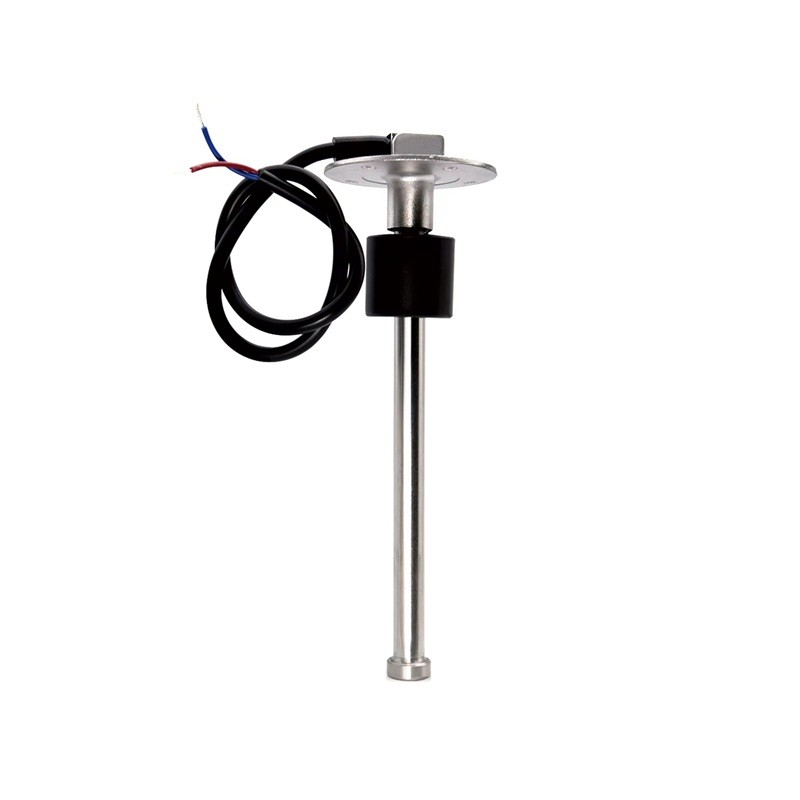

Fuel Level Sensor 0–190 Ω 125 mm 5" Resistive Sensor IP67 for Measuring Fuel and Liquids in Tanks of Boats, Trucks and Equipment
This fuel level sensor is designed to monitor the amount of liquid in the tanks of various transport and technical equipment. With a resistance range of 0–190 Ω, it can be used with many common fuel level indicators. The sensor's design is adapted for direct installation into the tank using a flange with five holes.
The measuring rod has a length of 125 mm (5"), which corresponds to the recommended tank height of approximately 135–150 mm. This dimension allows for use in tanks of boats, trucks, or other equipment where it is necessary to monitor the level of fuel, oil, or other liquids.
The device operates within a voltage range of 9–32 V DC and its operating current does not exceed ≤60 mA. This allows it to be connected to various electrical systems used in transport technology. The sensor's design is intended to be resistant to common operating conditions.
Protection against dust and water is ensured by the IP67 rating, which allows for use in environments with higher humidity. The sensor operates in a wide temperature range and is suitable for installation in tanks used in transport or technical systems.
Installation is carried out using five M5 screws. The package also includes a sealing gasket with a thickness of 2 mm, which helps seal the connection between the sensor and the tank. A measurement resolution of 10 mm allows for monitoring changes in the liquid level in the tank.
Main Features
- Sensor Resistance Range: 0–190 Ω
- Sensor Length: 125 mm (5")
- Operating Voltage: 9–32 V DC
- IP Rating: IP67
- Measurement Resolution: 10 mm
- Recommended Tank Size: 135–150 mm
- Operating Current: ≤60 mA
- Operating Temperature: -30 to +75 °C
- Storage Temperature: -40 to +85 °C
- Mounting Flange: 5 holes
- Mounting Screws: 5× M5
- Sealing: thickness 2 mm
- Suitable for Fuel, Oil and Liquid Tanks
- Used in Marine, Boat or Truck Tanks

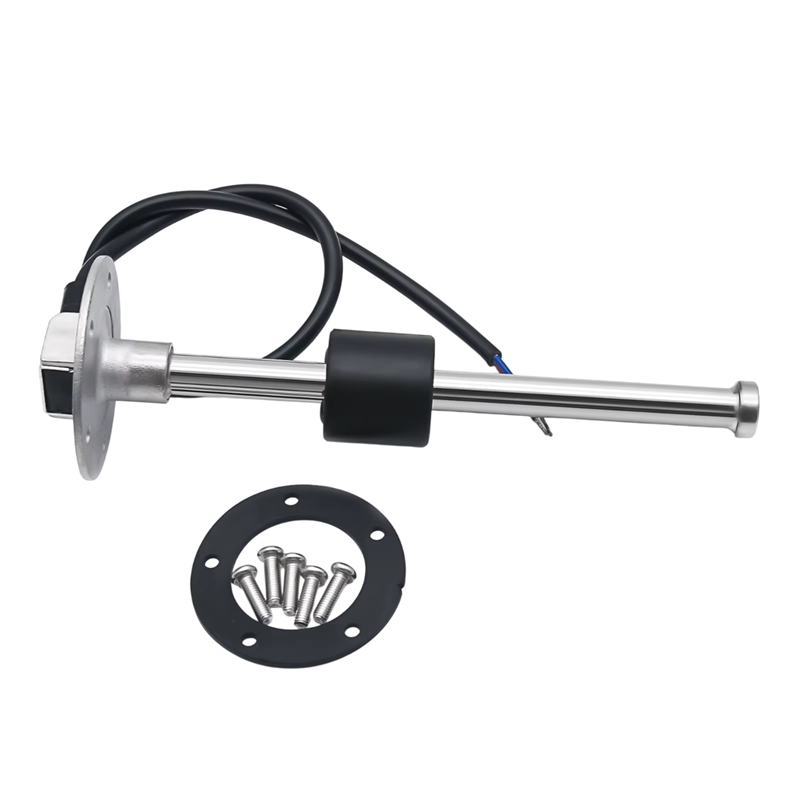

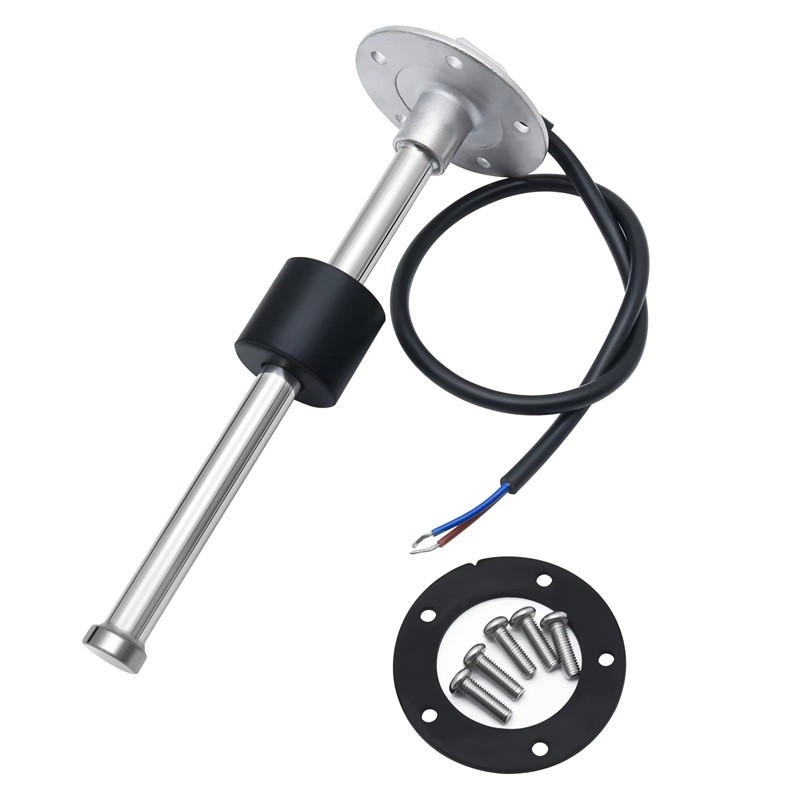

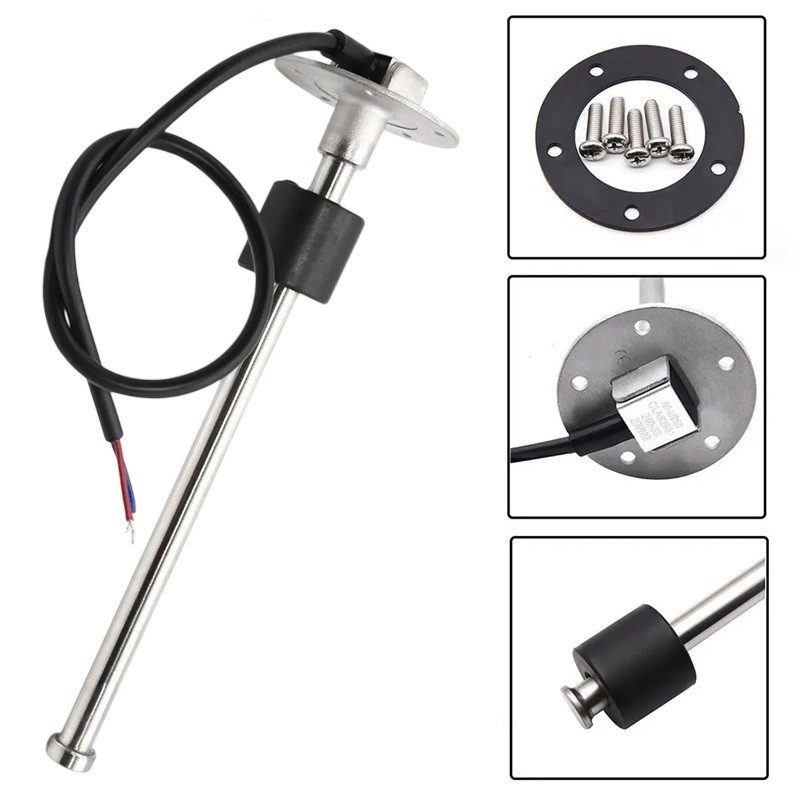

Package Contents
- Fuel Level Sensor
- Sealing Gasket
- 5× M5 Screw
The sensor allows for monitoring the amount of liquid in the tank using a resistance signal compatible with common level indicators. With a dimension of 125 mm, it is suitable for medium-sized tanks. Installation using a flange with five screws facilitates secure mounting of the sensor. The package includes a sealing gasket that helps ensure proper sealing during installation. The design with an IP67 rating allows for use in environments where contact with water or humidity may occur.
