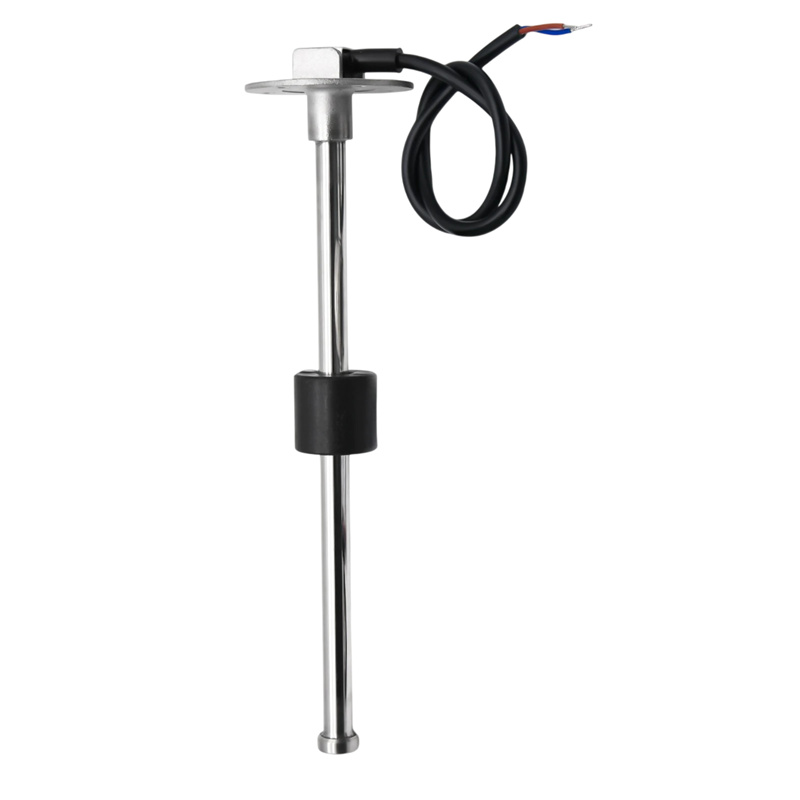

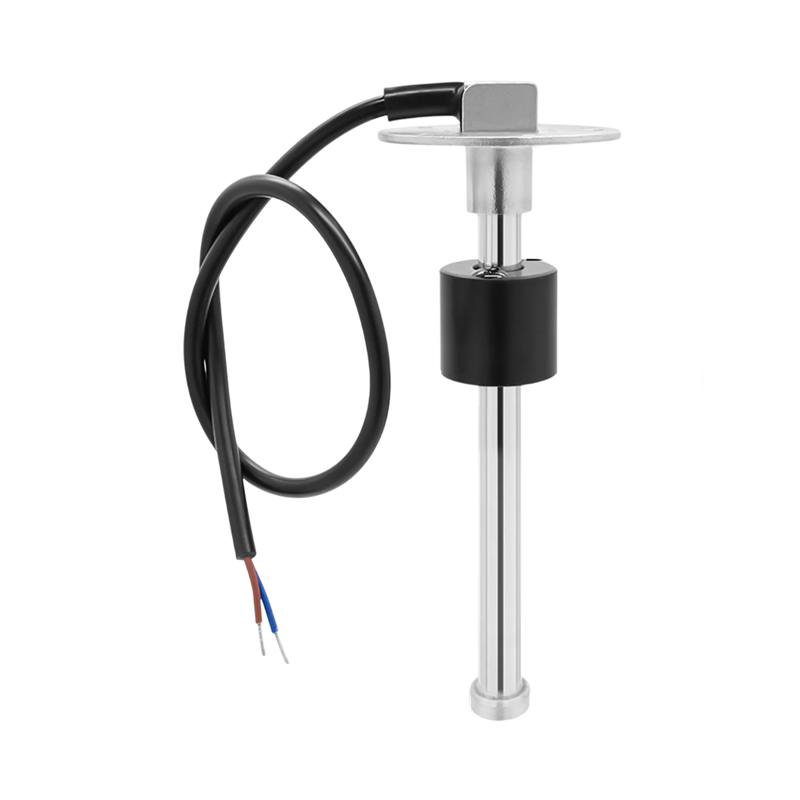

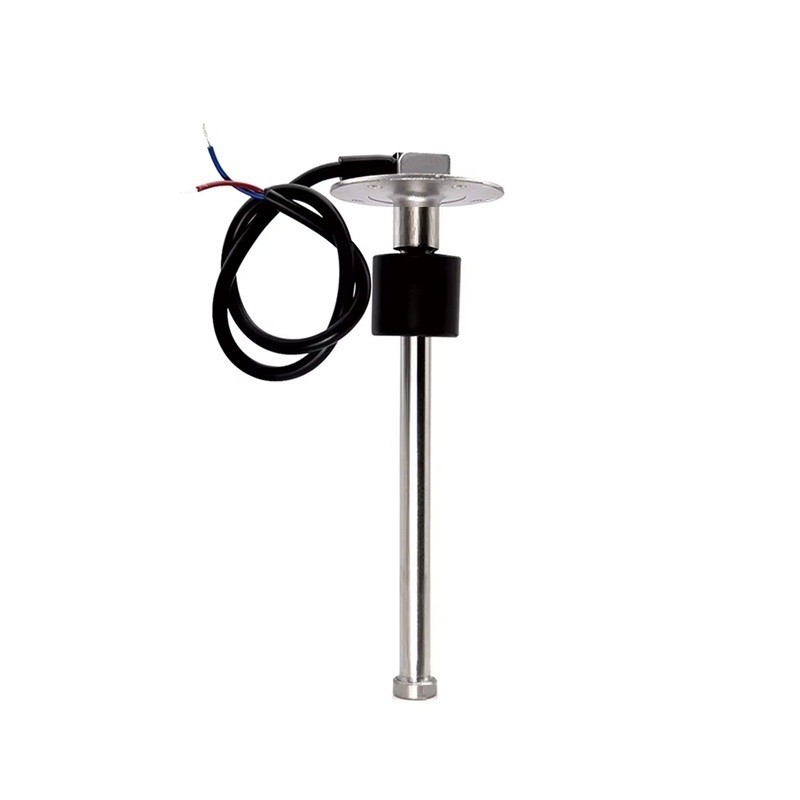

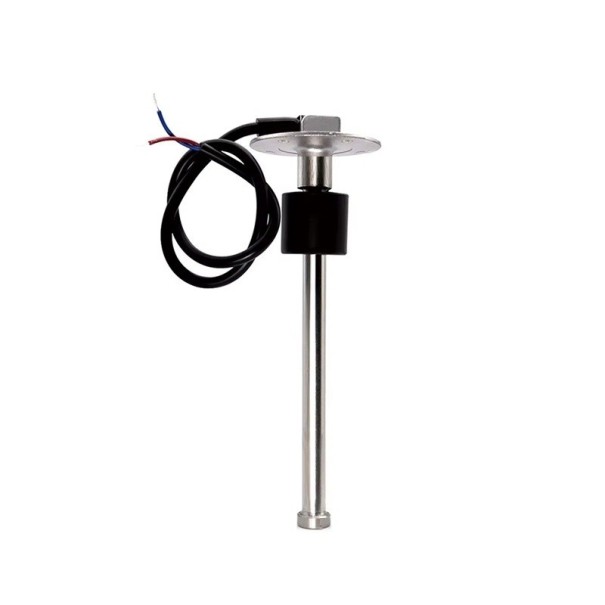

Fuel Level Sensor 0–190 Ω 100 mm 4" Stainless Steel Level Sensor IP67 for Fuel and Liquid Tanks of Boats, Trucks and Machinery
The fuel level sensor is used to monitor the amount of fuel or other liquid in the tank. With a standard resistance range of 0–190 Ω, it is compatible with many common level indicators used in transport and marine technology. The design of the sensor is adapted for installation in various types of tanks where reliable monitoring of liquid levels is required.

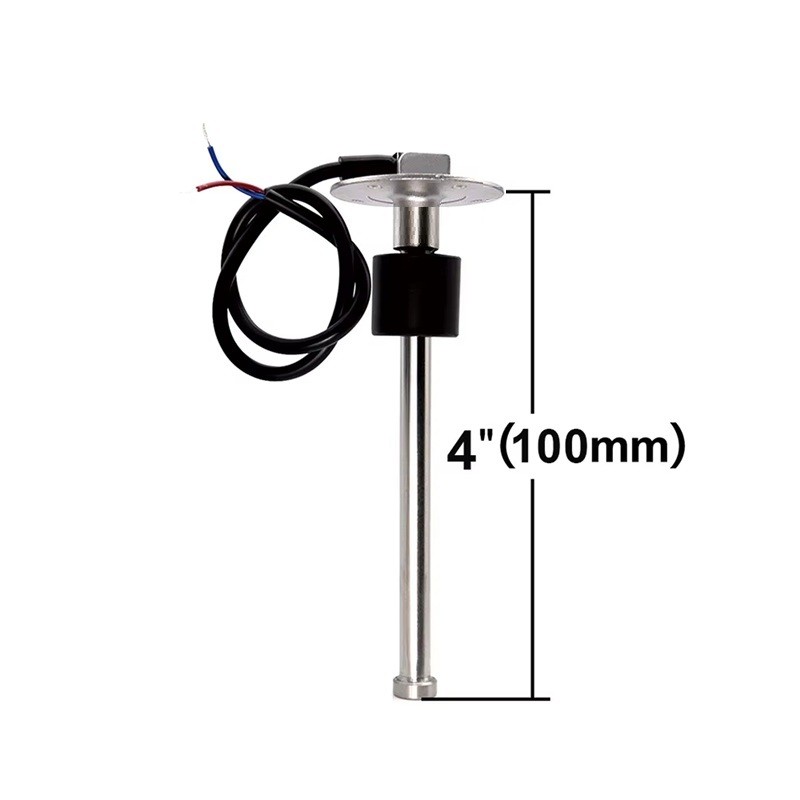

The sensor has a measuring rod length of 100 mm (4"), which corresponds to the recommended tank height of approximately 110–125 mm. Due to this dimension, it is suitable for smaller fuel or liquid tanks used, for example, in boats, trucks, or technical equipment. Connection is made via a two-wire cable.
The device operates within a voltage range of 9–32 V DC and its operating current does not exceed ≤60 mA. The design is intended for operation in more demanding conditions, with an IP67 rating protecting the sensor against dust and temporary immersion in water.

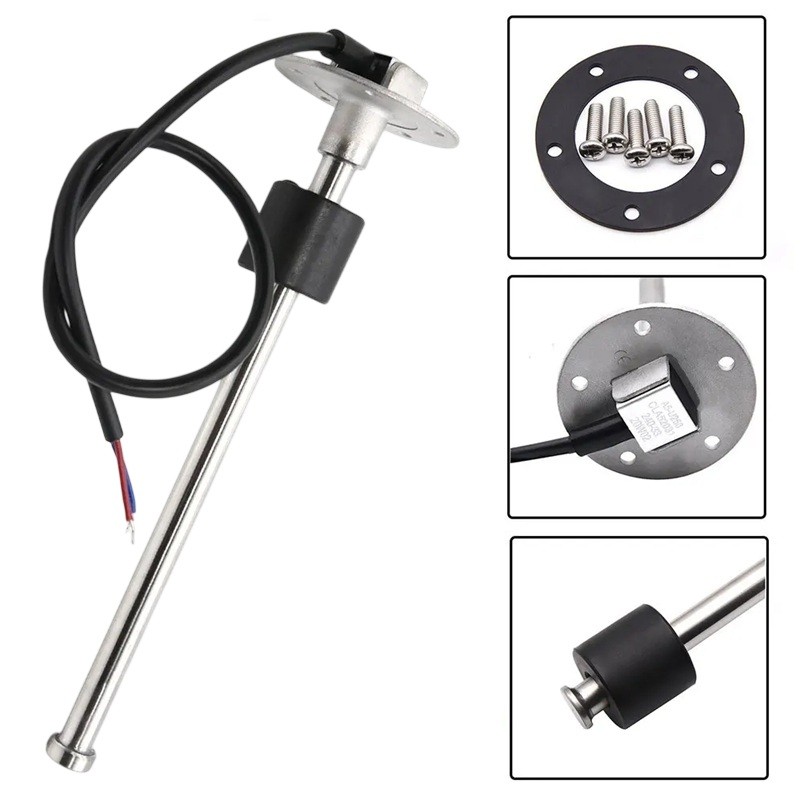

Installation is carried out using a flange with five holes. The package also includes a gasket and mounting screws that allow the sensor to be installed directly into the tank. With a measurement resolution of 10 mm, changes in liquid levels can be monitored with sufficient accuracy.
Main Features
- Sensor resistance range: 0–190 Ω
- Sensor length: 100 mm (4")
- Operating voltage: 9–32 V DC
- Protection rating: IP67
- Measurement resolution: 10 mm
- Recommended tank size: 110–125 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting components: 5× M5 screws
- Gasket thickness: 2 mm
- Suitable for fuel, oil or other liquid tanks
- Used for example in boats, trucks or technical tanks

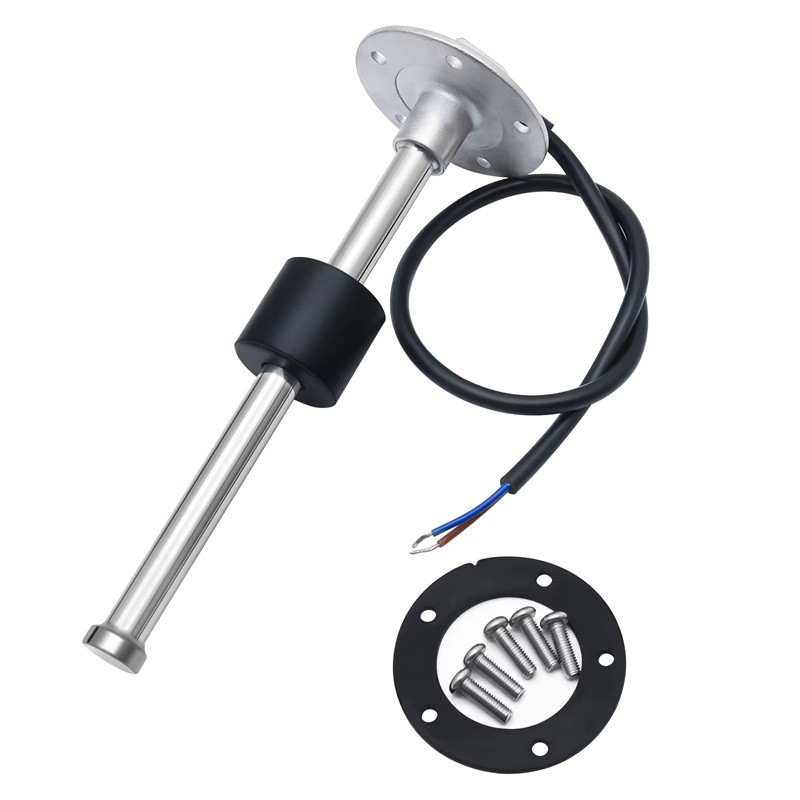

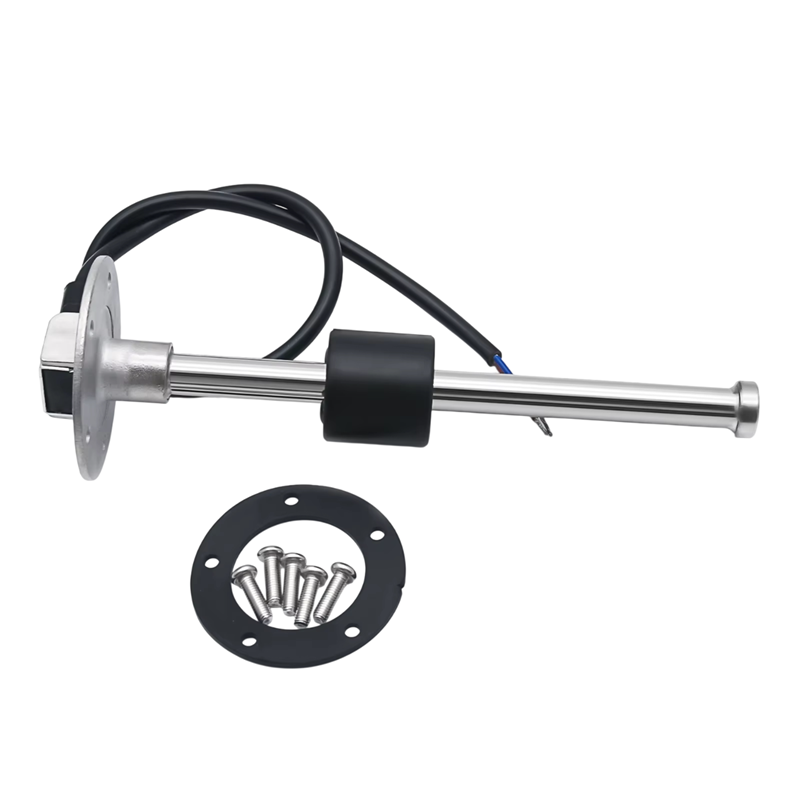

Package Contents
- Fuel level sensor
- Gasket
- 5× mounting screws
The sensor is designed for monitoring liquid levels in various types of tanks. With a standard resistance output, it can be connected to common level indicators. The compact size of 100 mm allows installation even in smaller tanks. The design with a mounting flange facilitates securing the sensor, and the gasket helps ensure a sealed connection. The IP67 rating allows for use in environments where moisture or contact with water may occur.
