Fuel Level Measuring Probe 0–190 Ω 500 mm 20" Float Sensor IP67 for Monitoring Fuel, Oil and Liquids in Vehicle Tanks

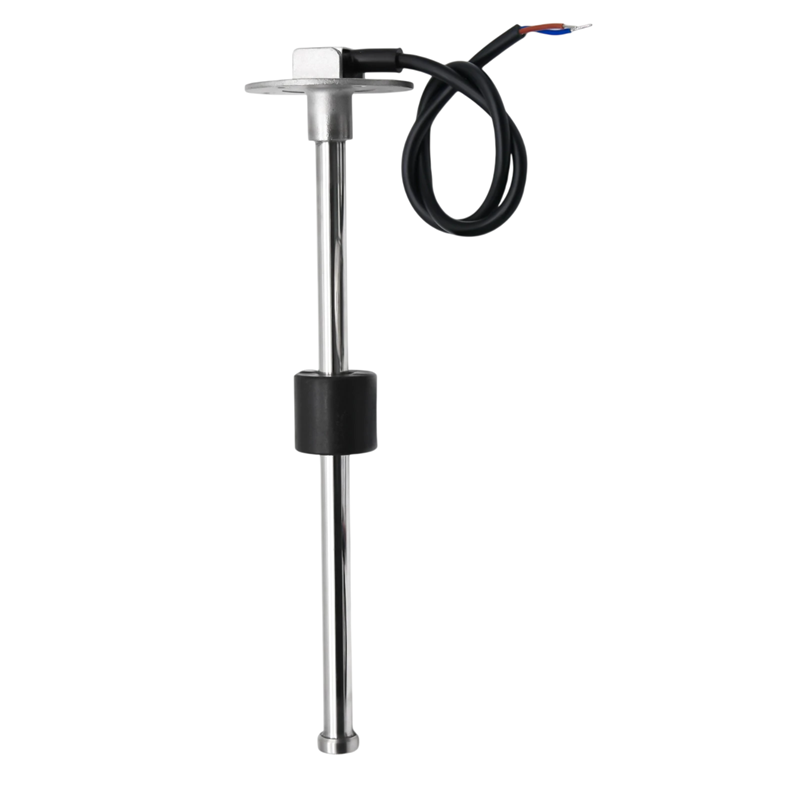

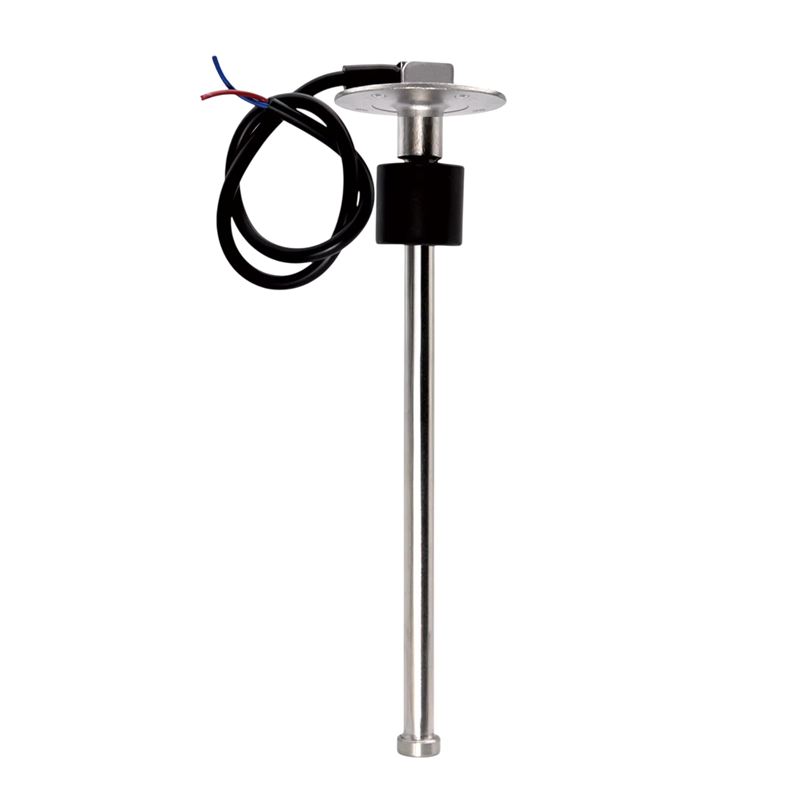

This fuel level measuring probe is designed for monitoring the amount of liquid inside the tank. The sensor uses a float mechanism that converts the movement of the liquid level into an electrical resistance signal 0–190 Ω. This range is commonly used in many fuel level indicators and allows compatibility with various measuring devices.
The measuring rod has a length of 500 mm (20"), which corresponds to the recommended tank height of approximately 510 to 525 mm. Due to this length, the sensor is suitable for deeper tanks used in applications such as marine systems, commercial vehicles, or other technical equipment.
The device is designed to operate with a power supply of 9–32 V DC and its maximum operating current reaches ≤60 mA. These parameters allow integration into standard electrical systems used in transportation technology or industrial applications.

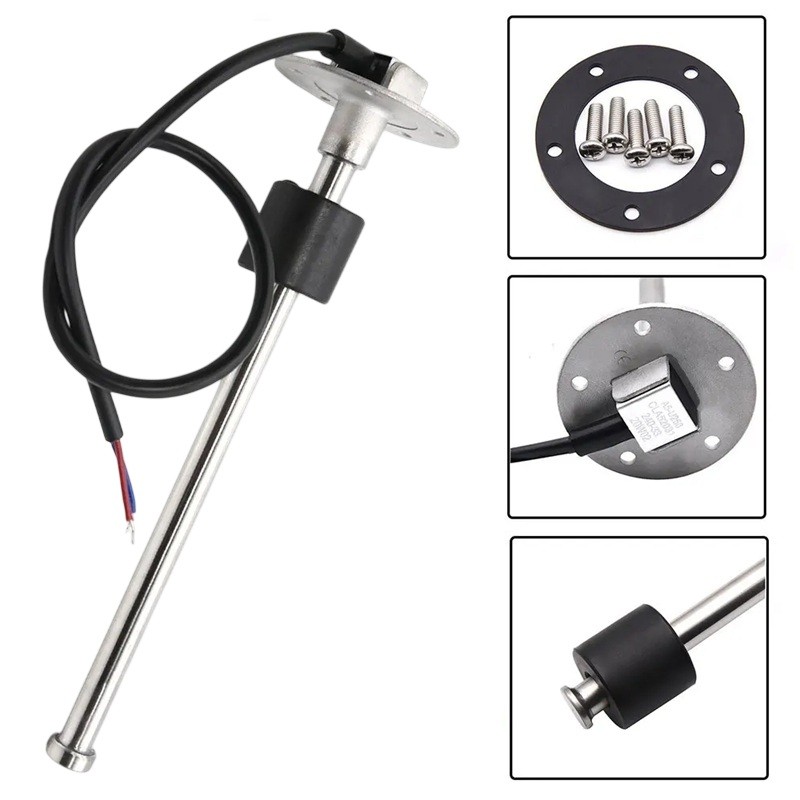

The sensor is mounted using a flange with five mounting holes. Installation is carried out using the included M5 screws and a 2 mm thick gasket. The gasket helps ensure a proper seal between the tank and the sensor, minimising the possibility of liquid leakage.
The sensor is equipped with an IP67 protection rating, which ensures protection against dust and also resistance to temporary immersion in water. This allows the device to be used in environments with higher humidity or in applications where contact with water may occur. The measurement resolution of 21 mm enables monitoring of changes in the liquid level within the tank.
Main Features
- Sensor resistance range: 0–190 Ω
- Measuring rod length: 500 mm (20")
- Operating voltage: 9–32 V DC
- Protection rating: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 510–525 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- 2 mm thick gasket
- Suitable for fuel, oil and liquid tanks
- Used in applications such as boats, commercial vehicles and technical systems

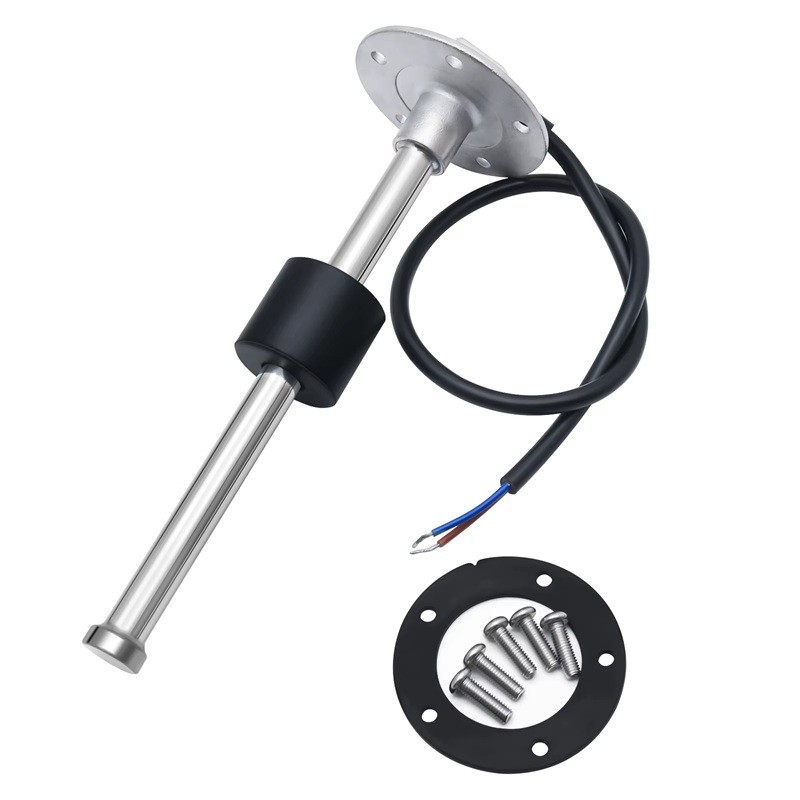

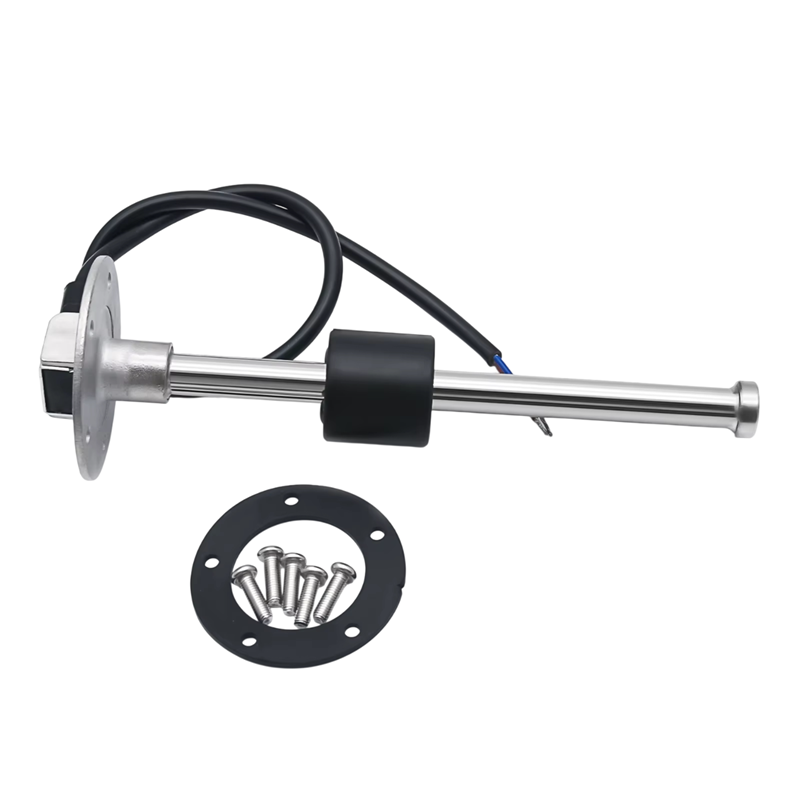

Package Contents
- Fuel level sensor
- Gasket
- 5× mounting screw
The sensor allows monitoring of the liquid amount in the tank using a resistance signal compatible with standard level indicators. With a length of 500 mm, it is suitable for tanks with a greater structural height. The mounting flange allows secure attachment of the sensor using five screws. The package includes mounting screws and a gasket for installation. The design with IP67 protection allows the device to be used even in more demanding operating conditions.
