Frequency converter for motor control, 2.2 kW, 380 V, 0.1-400 Hz, 20 x 13 x 10 cm, dark grey, for industrial drives, fans and machines

Frequency converter for motor control, 2.2 kW, 380 V, 0.1-400 Hz, 20 x 13 x 10 cm, dark grey, for industrial drives, fans and machines

Robust inverter for controlling motors of 2.2 kW connected to a three-phase network of 380V. Precise frequency and ramp settings via the integrated control panel. Full description
In stock
Delivery €1.59
30-day return policy
€132.71
Safe shopping Safe shopping
Overview
Frequency converter for motor control, 2.2 kW, 380 V, 0.1-400 Hz, 20 x 13 x 10 cm, dark grey, for industrial drives, fans and machines

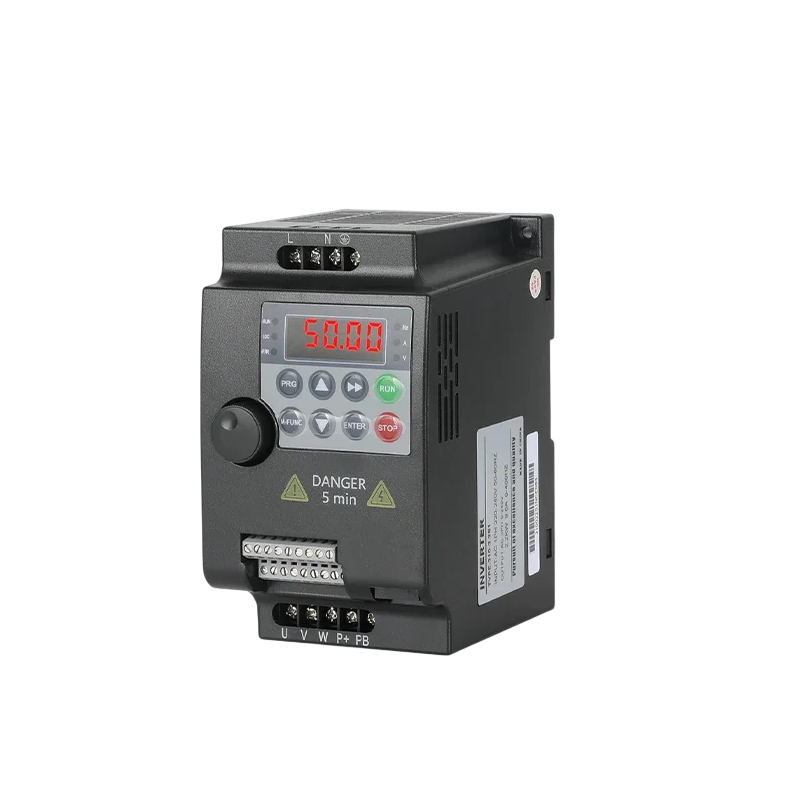

This frequency converter with a power of 2.2 kW combines higher output capacity with power from the industrial network of 380 V, which is the standard choice for medium-sized drives in production and maintenance workshops. The input terminals at the top accept three-phase voltage, while the output terminals U, V, and W supply controlled voltage directly to the motor. Optional terminals P+ and PB allow for the connection of a braking resistor for quick stopping of mechanisms with higher inertia. The operating frequency range from 0.1 to 400 Hz allows for precise tuning of the motor operation according to the requirements of the technological process. The housing measuring 20 x 13 x 10 cm is designed for installation in a control cabinet or directly on the machine's supporting structure.

Features:

  • Power 2.2 kW for motors in more demanding technological processes
  • Supply 380 V corresponding to industrial electrical distribution
  • Continuous regulation 0.1–400 Hz allowing a wide range of speeds
  • Programmable parameters for ramps, protections and drive behaviour
  • Button panel with LED display for clear settings and control
  • Rotary knob for manual real-time frequency adjustment
  • Left-mounted terminal block for control signals and external switches
  • Buttons PRG, M-FUNC, ENTER, RUN, STOP, arrows and quick transition
  • Indicator lights for visual monitoring of operating mode
  • Safety symbol DANGER 5 min for residual voltage in the intermediate circuit

Contents of the package:

  • 1x frequency converter 2.2 kW
  • 1x user manual

The 2.2 kW converter for 380 V is a suitable solution for establishments with a standard industrial network requiring a more powerful drive than lower models in the series. Continuous regulation extends the lifespan of motor bearings, limits current surges, and reduces wear on mechanical parts of the machine. Programmable functions allow for the automation of starting, stopping, and overload response according to specific loads. LED indicators and a digital display ensure quick orientation in operational states without the need for additional measuring equipment. Suitable applications include industrial ventilation, pumps, conveyors, mixers, circular saws, and drives for smaller forming machines.
