FPV Drone Angel25 BNF with ELRS 915 MHz Receiver Antenna in Holder 1404 Motors Lollipop RHCP Video Antenna PC Parts Black-Orange

FPV Drone Angel25 BNF with ELRS 915 MHz Receiver Antenna in Holder 1404 Motors Lollipop RHCP Video Antenna PC Parts Black-Orange

BNF version with built-in ELRS 915 MHz receiver and antenna in the rear holder. Pair with your own transmitter. 1404 motors and Lollipop RHCP video antenna. Full description
In stock
Delivery €1.59
30-day return policy
€358.03
Safe shopping Safe shopping
Overview
FPV Drone Angel25 BNF with ELRS 915 MHz Receiver Antenna in Holder 1404 Motors Lollipop RHCP Video Antenna PC Parts Black-Orange

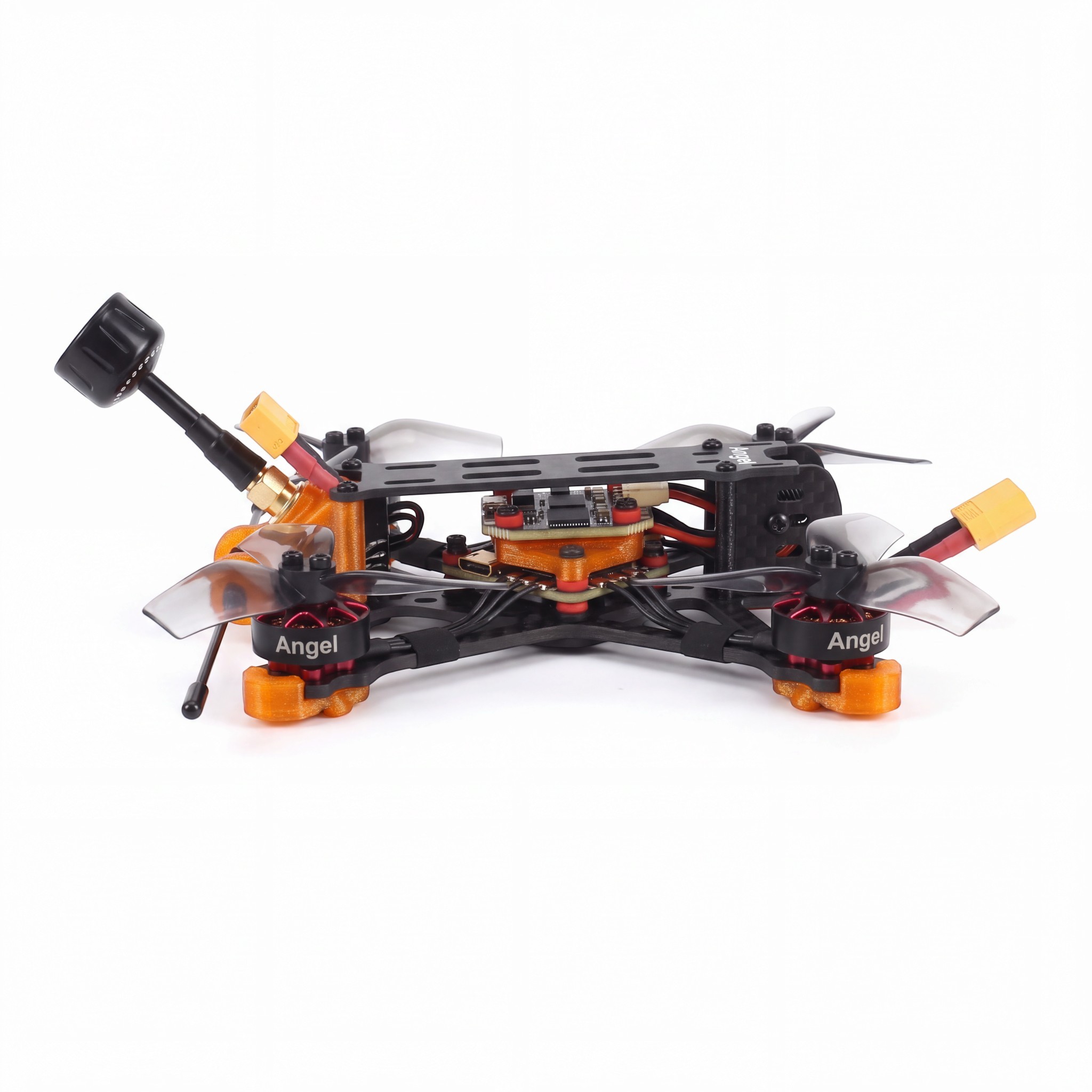

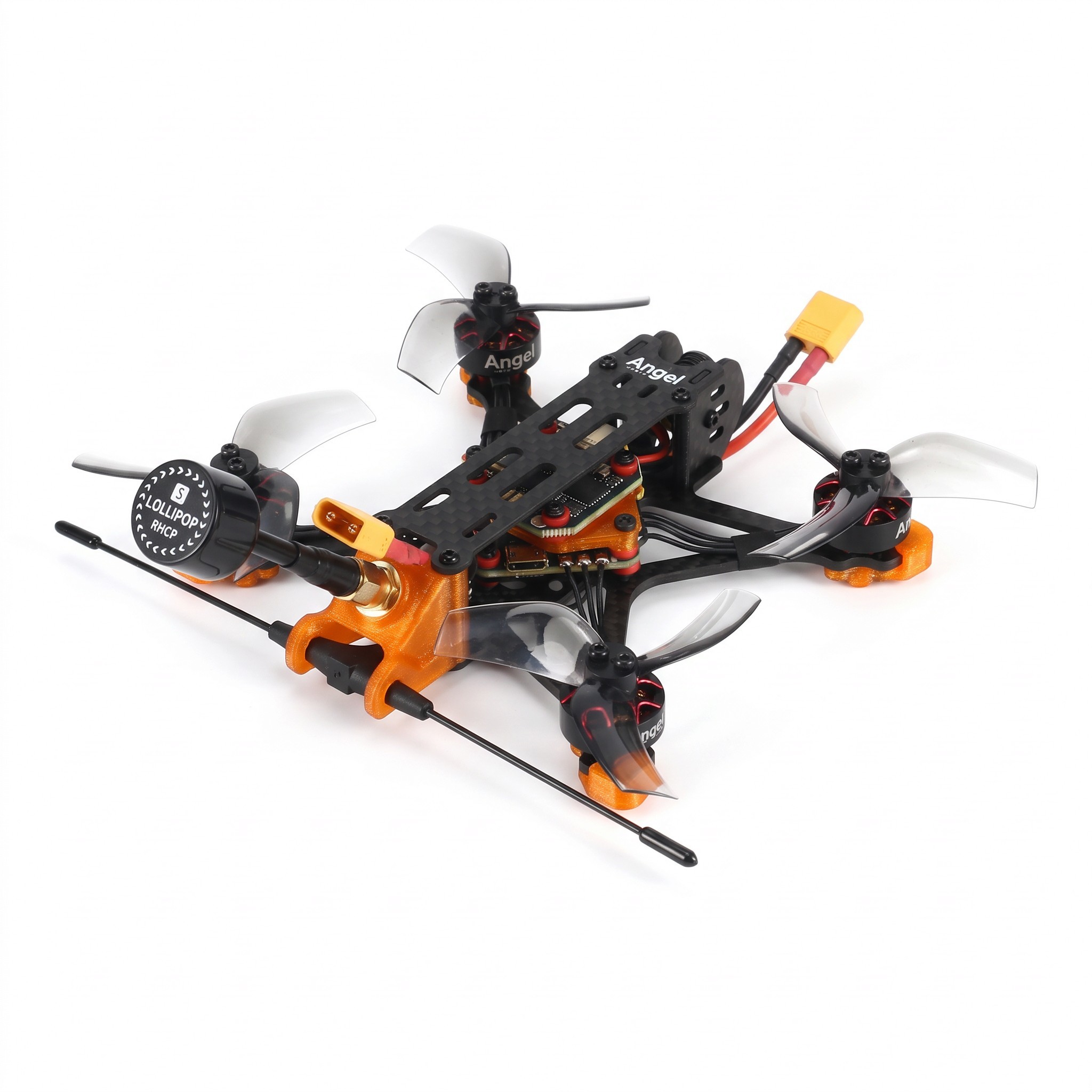

The FPV Drone Angel25 in BNF version is equipped with a built-in ELRS 915 MHz receiver that operates in the sub-1 GHz band. The receiver antenna is secured in an orange holder at the rear of the drone, next to the Lollipop video antenna with RHCP polarisation. The drone is paired with your own transmitter that supports ExpressLRS in the same frequency band. It is powered by four 1404 brushless motors with transparent propellers. The frame features protective parts made of polycarbonate (PC) in orange.

Main Features:

  • ELRS 915 MHz Receiver – the drone is equipped with an ExpressLRS receiver for the 915 MHz band. A transmitter or ELRS module operating in the same band as the receiver is required for control.
  • Receiver Antenna – the rod antenna of the receiver is mounted in an orange holder at the rear of the drone, extending across behind the frame.
  • BNF Version – the drone is delivered ready to bind (Bind-N-Fly). Transmitter, FPV goggles, and battery are not included. This version is suitable for pilots who already have their own FPV equipment supporting the 915 MHz band.
  • 1404 Motors – four 1404 brushless motors are screwed onto the ends of the arms and drive the transparent propellers. The motors have visible copper windings and are protected underneath by orange covers.
  • Lollipop RHCP Video Antenna – the antenna for image transmission has right-hand circular polarisation. For proper image reception, use FPV goggles with an antenna of the same RHCP polarisation.
  • Polycarbonate Parts – the orange PC parts form the antenna holders, covers under the motors, and other protective elements of the frame.

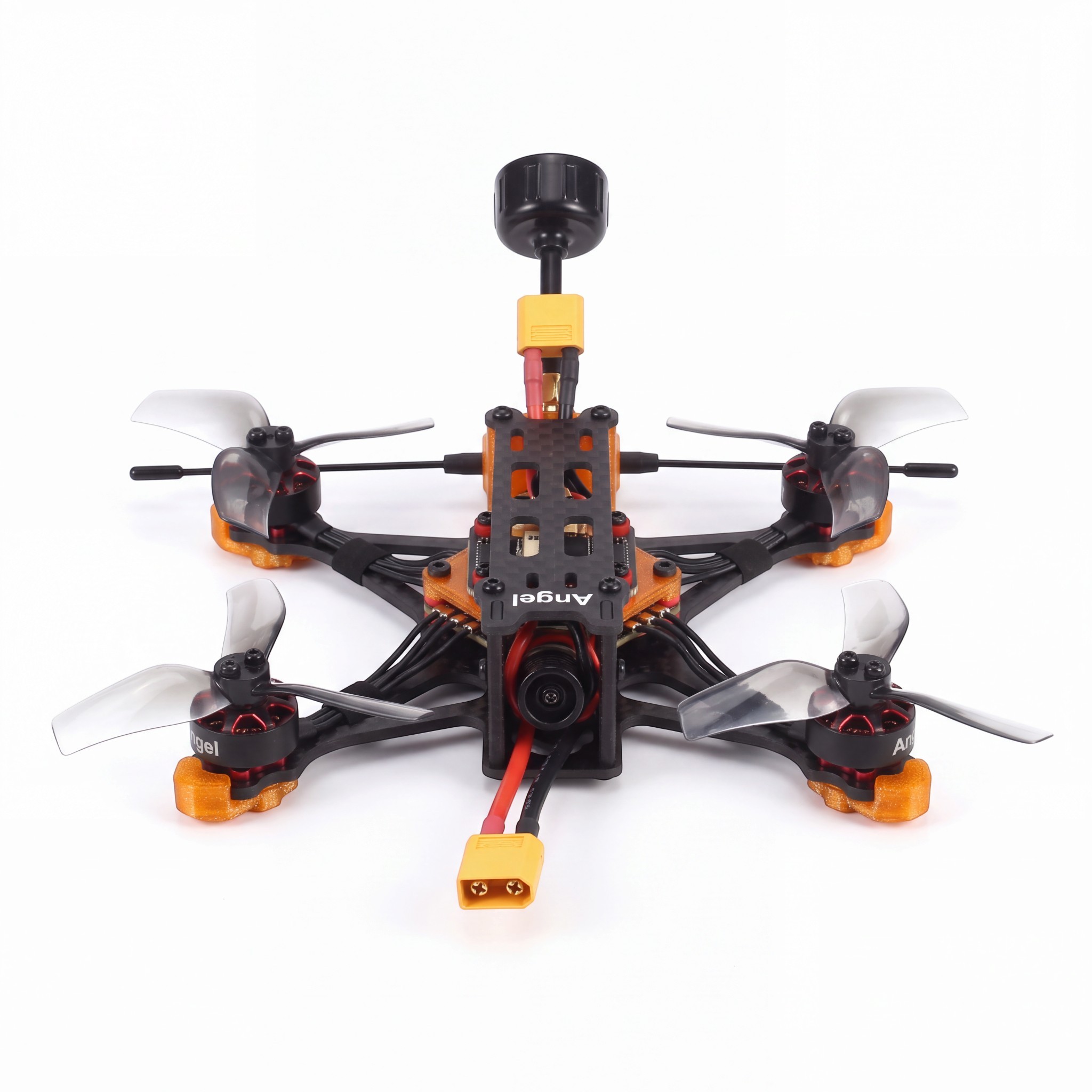

  • X-Shaped Frame – the arms are arranged in an X shape, with the control electronics housed in the centre between the black plates, and the top plate features printing with the model name Angel.
  • Power Connector – the battery connects with a yellow XT type connector at the rear of the drone. When selecting a battery, it is necessary to choose one with the same connector.

Package Contents:

  • 1x FPV Drone Angel25 BNF ELRS 915 MHz

The FPV Drone Angel25 BNF is designed for pilots who use a transmitter supporting ELRS 915 MHz. The receiver antenna is firmly secured in the rear holder next to the Lollipop RHCP video antenna. The 1404 motors and polycarbonate parts complement the compact X-shaped frame in black and orange. Before the first flight, the drone needs to be paired with the transmitter, and FPV goggles and XT connector battery should be prepared. The drone is suitable for recreational outdoor FPV flying for pilots who already have their own equipment.
