FM2-M Welding Magnet Hexagonal 6 Angles from 30 to 105 Degrees Load Capacity 50 kg Dimensions 12.9 x 11.1 x 2.1 cm Blue
FM2-M Welding Magnet Hexagonal 6 Angles from 30 to 105 Degrees Load Capacity 50 kg Dimensions 12.9 x 11.1 x 2.1 cm Blue 1
FM2-M Welding Magnet Hexagonal 6 Angles from 30 to 105 Degrees Load Capacity 50 kg Dimensions 12.9 x 11.1 x 2.1 cm Blue 1
FM2-M Welding Magnet Hexagonal 6 Angles from 30 to 105 Degrees Load Capacity 50 kg Dimensions 12.9 x 11.1 x 2.1 cm Blue 2
FM2-M Welding Magnet Hexagonal 6 Angles from 30 to 105 Degrees Load Capacity 50 kg Dimensions 12.9 x 11.1 x 2.1 cm Blue 3
FM2-M Welding Magnet Hexagonal 6 Angles from 30 to 105 Degrees Load Capacity 50 kg Dimensions 12.9 x 11.1 x 2.1 cm Blue 4
FM2-M Welding Magnet Hexagonal 6 Angles from 30 to 105 Degrees Load Capacity 50 kg Dimensions 12.9 x 11.1 x 2.1 cm Blue 5

FM2-M Welding Magnet Hexagonal 6 Angles from 30 to 105 Degrees Load Capacity 50 kg Dimensions 12.9 x 11.1 x 2.1 cm Blue

The hexagonal shape offers six positions from 30 to 105 degrees. The load capacity of 50 kg can hold even hollow sections, allowing you to weld a frame without assistance at the welding table. Full description
In stock
€53.67
Safe shopping Safe shopping
Overview
FM2-M Welding Magnet Hexagonal 6 Angles from 30 to 105 Degrees Load Capacity 50 kg Dimensions 12.9 x 11.1 x 2.1 cm Blue

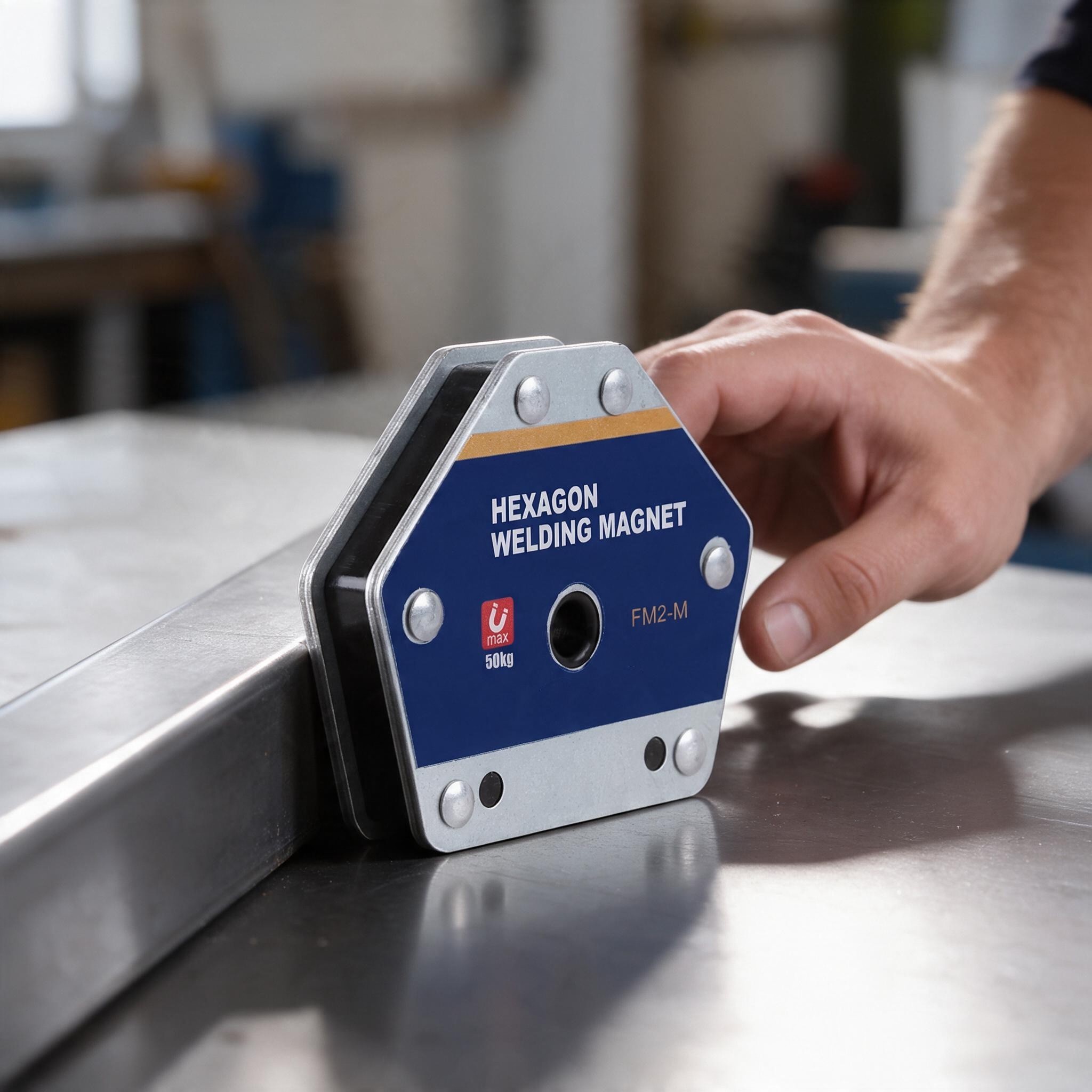

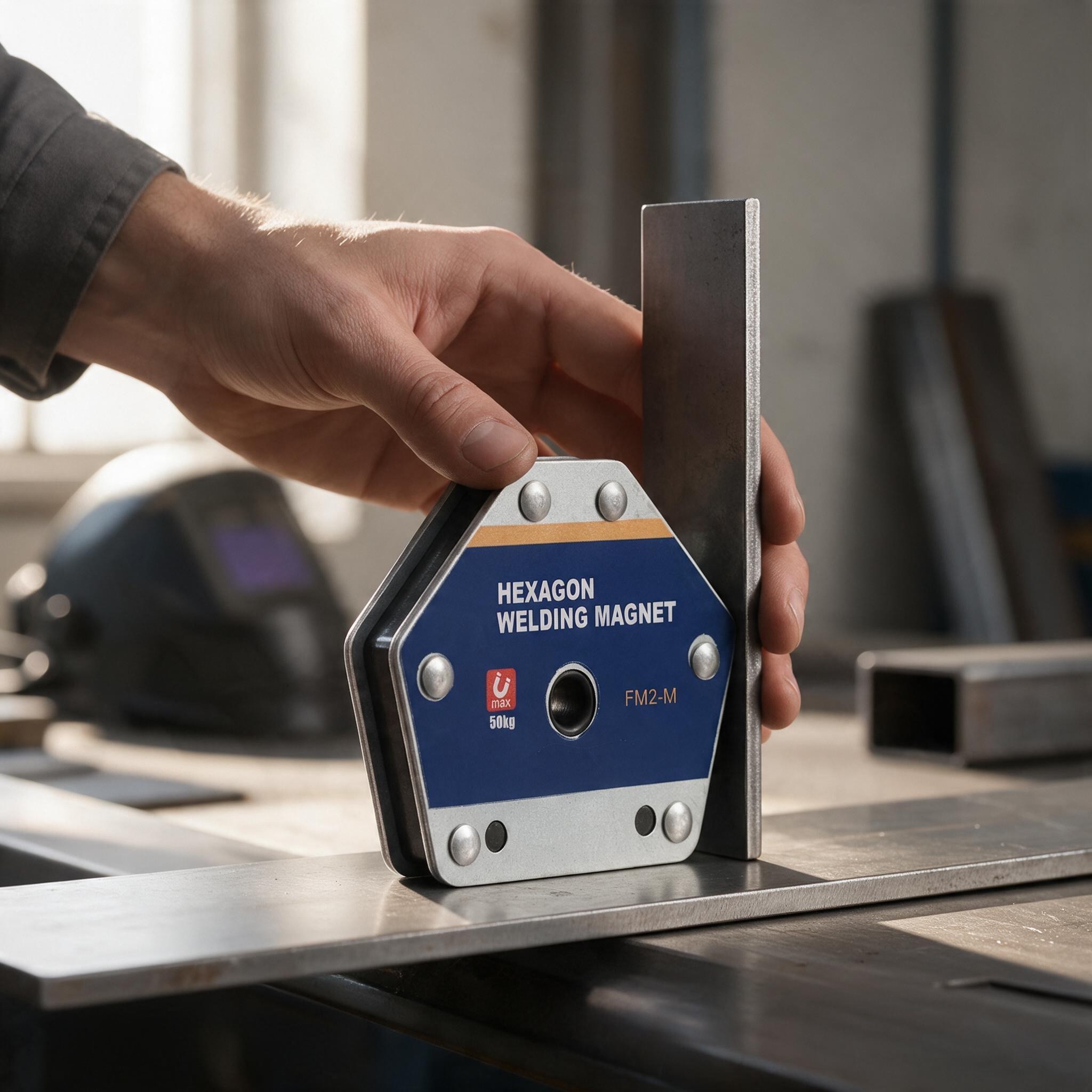

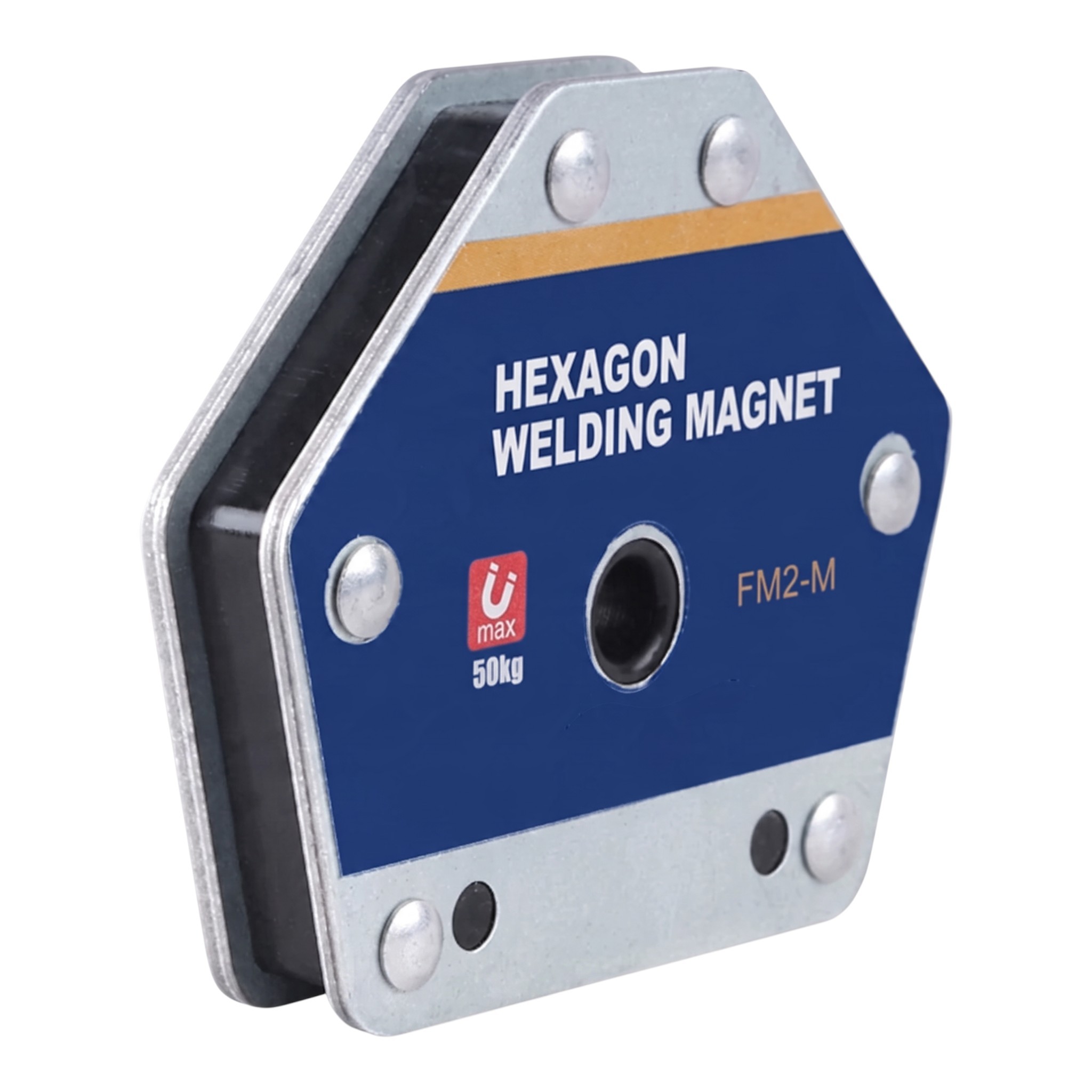

The hexagonal welding magnet in a medium size holds two parts at one of six preset angles even when assembling larger frames. The magnet offers angles of 30, 45, 60, 75, 90, and 105 degrees, covering braces, bevelled corners, and sloping struts. The maximum holding force is 50 kg, which is sufficient for hollow sections, angles, and thicker metal parts. The blue body with a galvanised frame has a flat seating surface on each edge corresponding to one angle. The central hole facilitates gripping the magnet even while wearing gloves.

  • Dimensions — the magnet measures 12.9 x 11.1 x 2.1 cm, with longer edges guiding the profile better and reducing the risk of rotation.
  • Six positions in one piece — a single magnet replaces several angle jigs, as it can simply be placed on another edge.
  • Ferrite magnet — the magnetic core is made of ferrite, which withstands normal temperatures around the weld better than neodymium magnets.
  • Seating surfaces — flat surfaces around the perimeter ensure full-side contact, so the part does not shift during tack welding.
  • Work without clamps — the magnet frees both hands for the torch and filler material even with larger assemblies.
  • Durable body — the galvanised steel frame protects the core from impacts and splattered metal.

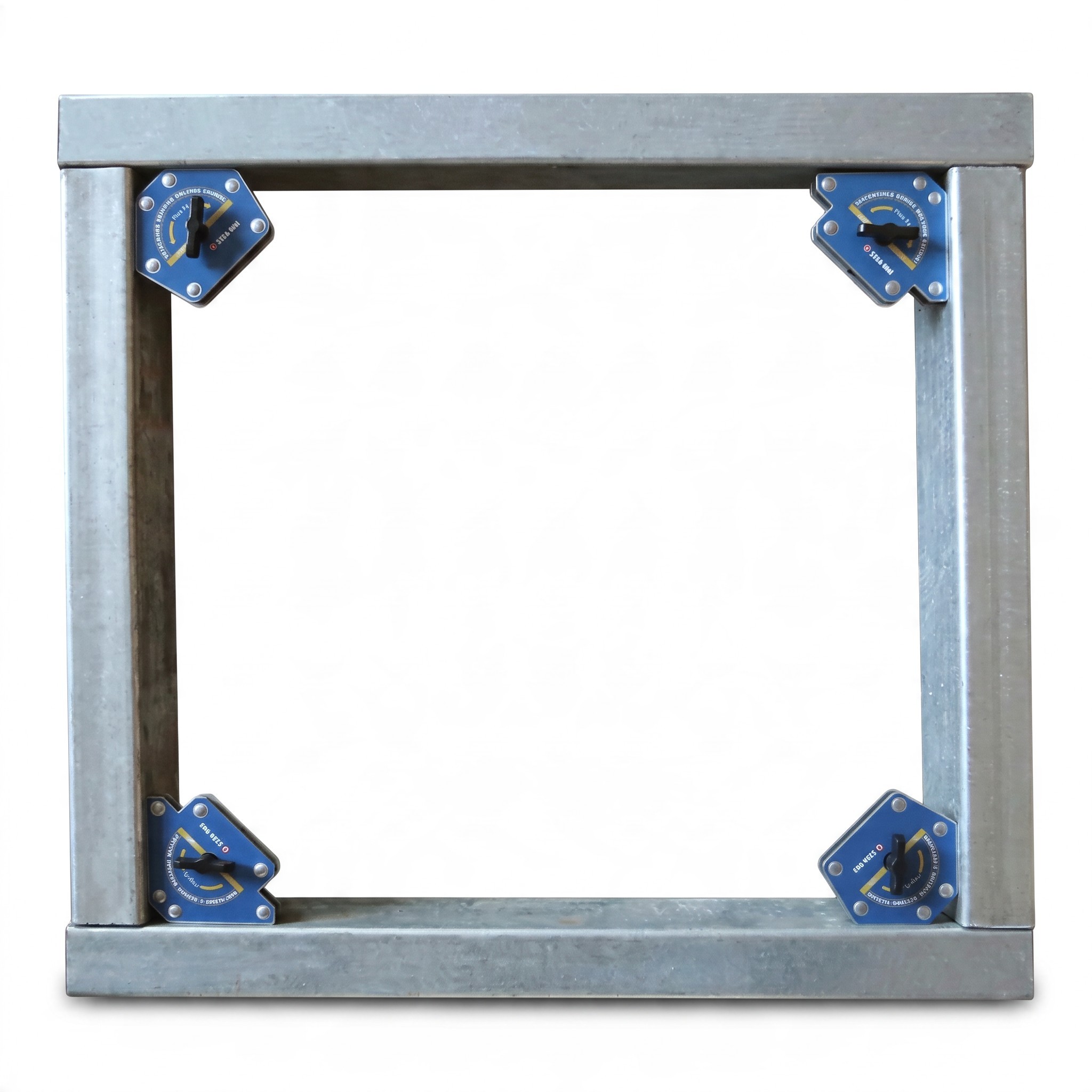

  • Combination of pieces — a pair of magnets holds a longer profile in one plane along the entire length of the joint.
  • Contents of the package — 1x welding magnet

The magnet is useful for welders and locksmiths when producing frames, grids, railings, and structures with sloping braces. The hole in the body facilitates gripping and hanging, so you can hang the magnet next to the welding table. The holding force of 50 kg applies to a clean and flat surface; it will be lower on rusted or painted metal. After work, it is advisable to clean the magnet of slag and metal shavings, which can impair seating. For vertical assemblies, we recommend securing the part with a clamp for added safety.

Price incl. VAT €53.67
