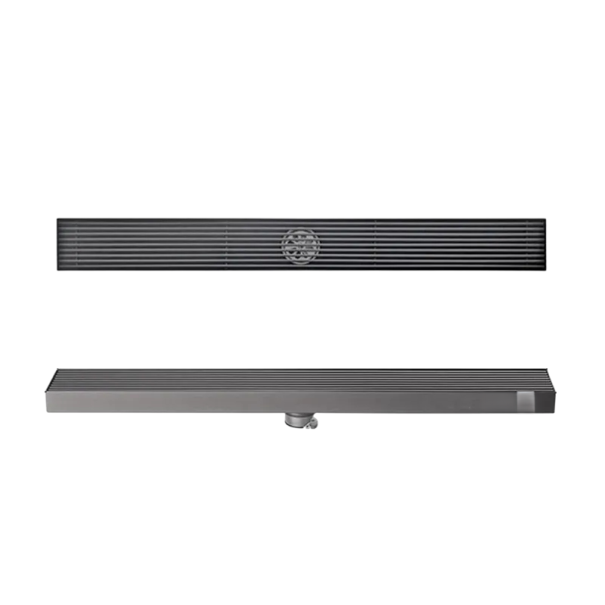

Floor Shower Drain with Removable Grate and Central Outlet 40 x 6.8 x 5.6 cm with Outlet Collar 4.5 cm and Hair Filter
| Colour:
|
You already have the maximum available quantity in your cart.
The longer version of the linear drain channels water from the shower area in a strip of 40 cm in length, covering a larger area of the floor than short drains. The body of the drain and the grate are made of stainless steel, which is suitable for spaces that are permanently damp, frequently rinsed, and come into contact with soap. The outlet collar is positioned in the centre of the drain, allowing the floor to slope towards the drain from two sides, and the waste pipe connects at the midpoint of its length. The grate consists of longitudinal slats and, when lifted, the interior of the drain remains easily accessible, allowing for cleaning of the filter above the outlet. The drain is installed beneath the tiles so that the top edge is flush with the floor, enabling water to flow towards it from the entire corner without leaving any residual puddles.
- Length 40 cm – the longer strip can handle more water than a short drain and is suitable under the shower head as well as along the wall of a wider shower area without a tray.
- Drain Profile – width 6.8 cm and height 5.6 cm determine how much space is needed in the floor structure beneath the tiles and at what height the waste needs to be routed.
- Central Outlet – collar with a diameter of 4.5 cm is located in the centre of the drain, allowing the waste pipe to lead to a single point and the slope to be divided on both sides.
- Removable Grate – the grate can be removed without tools, rinsed separately under running water, and returned without screws or further adjustments.
- Hair Filter – the circular insert above the collar traps hair and small debris, preventing their passage into the waste, where they would gradually accumulate.
- Stainless Steel Surface – the material withstands moisture and soap residues and can be cleaned with a cloth or sponge without abrasive agents or steel wool.
Contents of the package:
- 1x shower drain with outlet collar
- 1x removable grate
The longer drain is ideal for shower areas without a tray, where water spreads over a larger area of tiles and the outlet must cope with a stronger flow. It occupies only a narrow strip in the floor, allowing the tile pattern to remain intact, and the drain does not act as a disruptive element in the corner, even with large formats. The grate is regularly removed and rinsed, preventing deposits and hair clogs that gradually slow down the drainage of water. Before ordering, it is advisable to compare the length of 40 cm with the width of the corner and verify that the drain with a 4.5 cm collar fits into the floor structure, including the connection. Installation is considered during the sloping of the floor, as the grate must be level with the tiles, and the joints around it are sealed during tiling.
