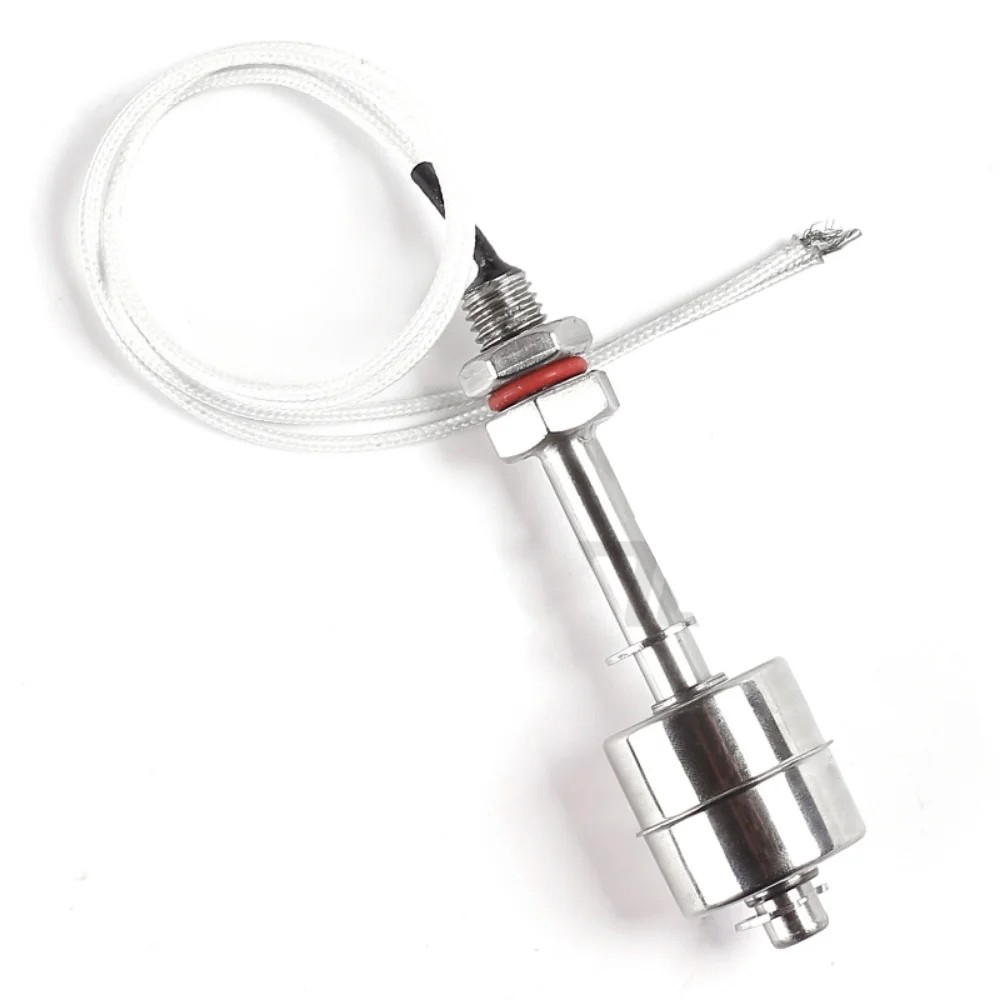

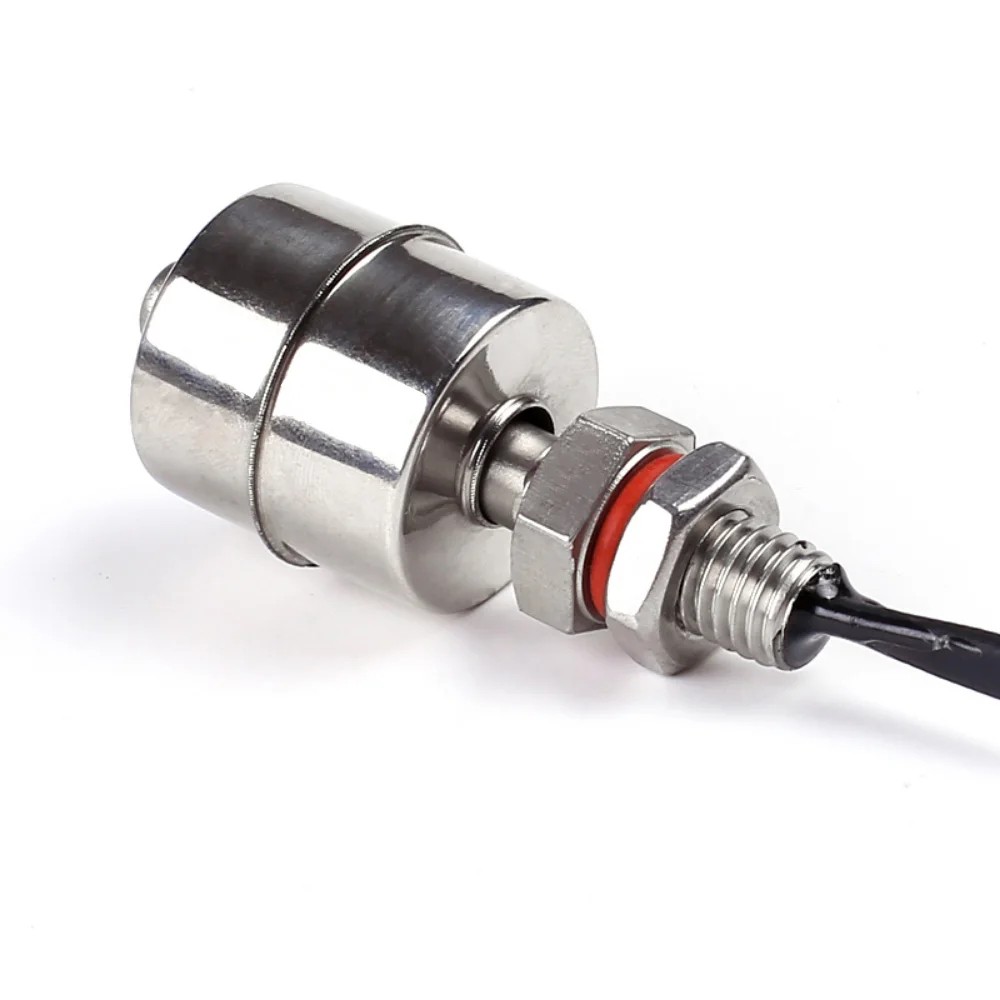

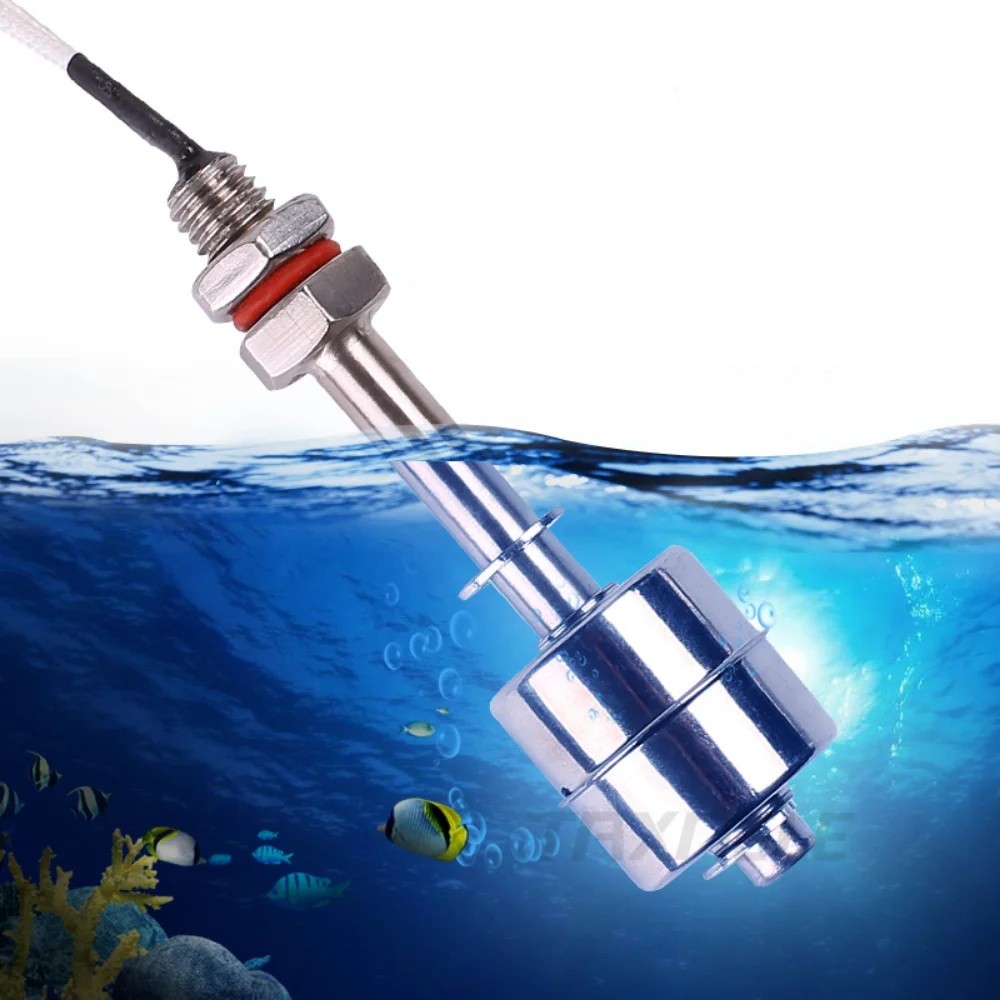

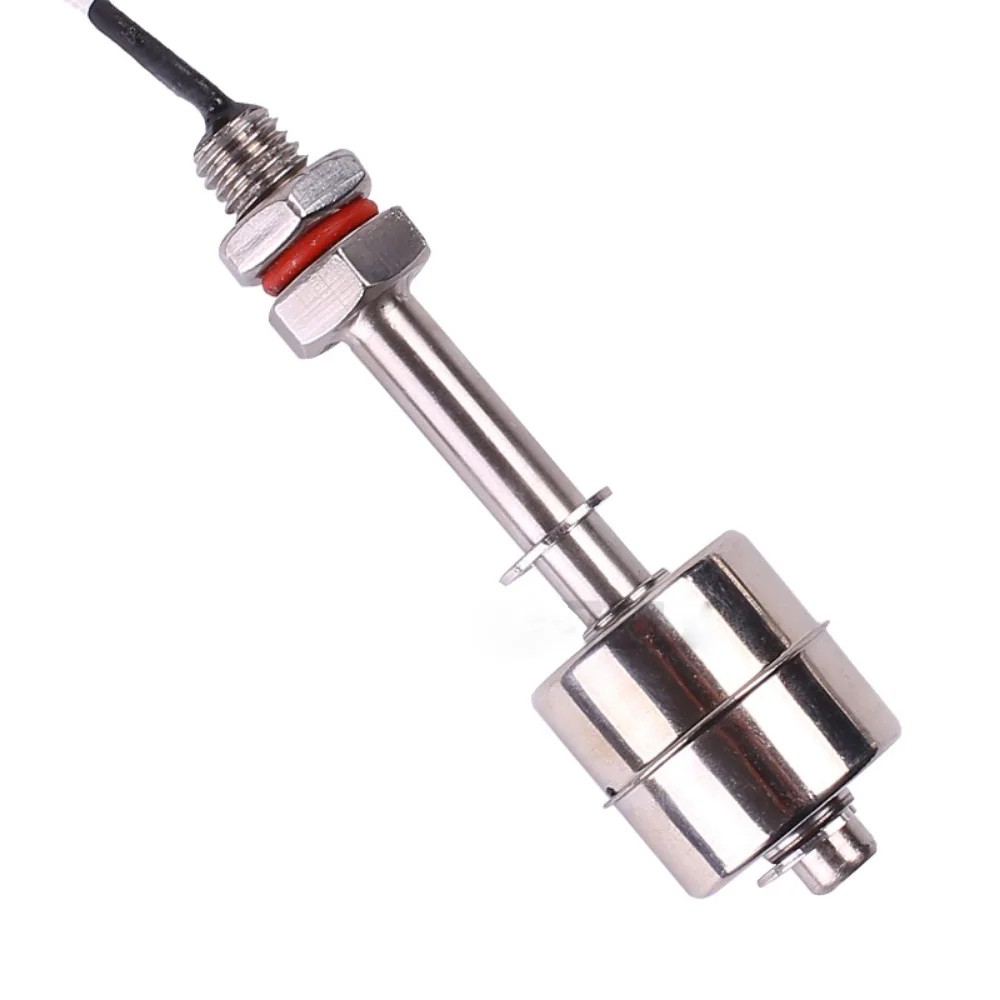

Float Switch Water Level Stainless Steel Length 75 mm Thread M10, AC/DC 220V, 1.2A, Cable 350 mm, for Tanks and Pumps, Silver
You already have the maximum available quantity in your cart.
Reliable stainless steel float switch for detecting water levels and other liquids in smaller tanks. It operates on a simple magnetic principle - the float rises and falls according to the level and activates a reed contact inside the rod, which controls the external circuit. The all-metal design ensures a long lifespan even in environments with high humidity, steam or elevated temperatures. The construction is simple, without electronics, so it does not require power for the sensor itself or calibration.
- Corrosion-resistant stainless steel material that withstands high temperatures

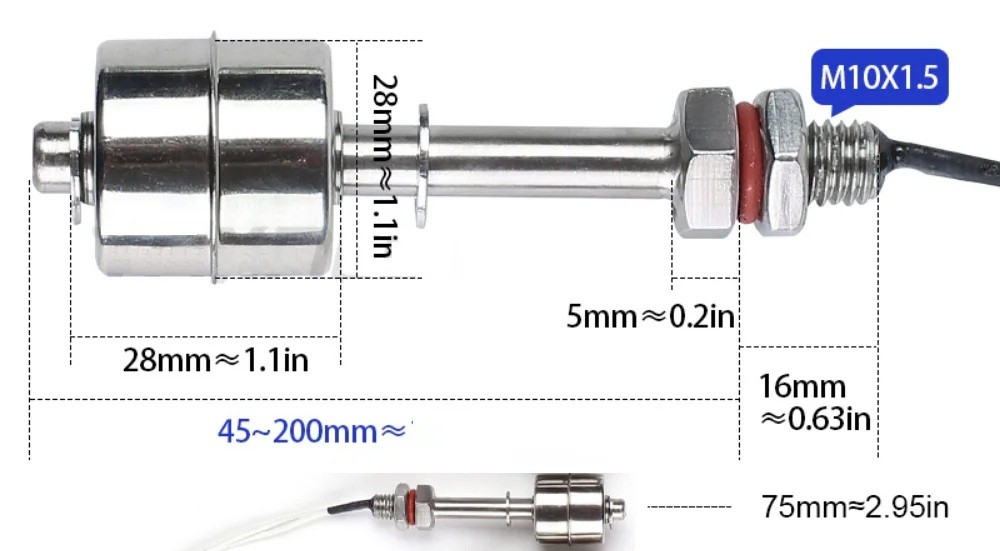

- Total length 75 mm, float diameter 28 x height 28 mm
- Mounting thread M10 x 1.5, easy installation into the tank opening
- Operating voltage up to 220V AC/DC, switching current up to 1.2 A
- 350 mm wire, can be installed facing up or down
- Maximum switching power 20 W
- Operating temperature range -20 to +120 °C
- Does not contain mercury or other hazardous substances
- Silver polished surface finish
- Passive sensor, does not require its own power supply
- Contents of the package: 1x float switch
The 75 mm float is suitable for smaller tanks, rainwater barrels, washing devices, coffee machines, cooling units or aquarium technology. It activates the pump when the level drops or conversely, switches off the supply when the upper level is reached, thus preventing overflow. It can also serve as a trigger for alarms, indicators or automatic valves in technical rooms. High temperature resistance allows use in hot water, steam systems or certain technological baths. The sensor connects directly to low-voltage and mains circuits, and due to its passive design, it does not require its own power source.
