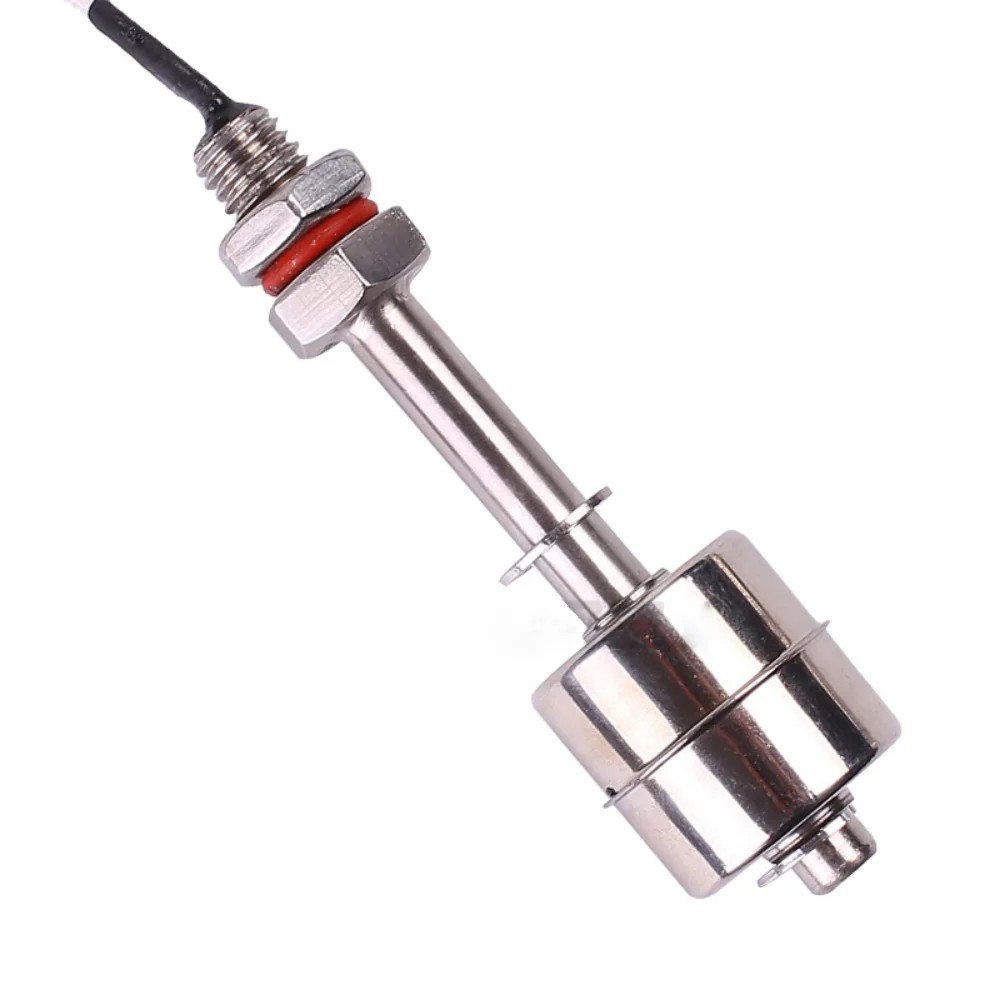

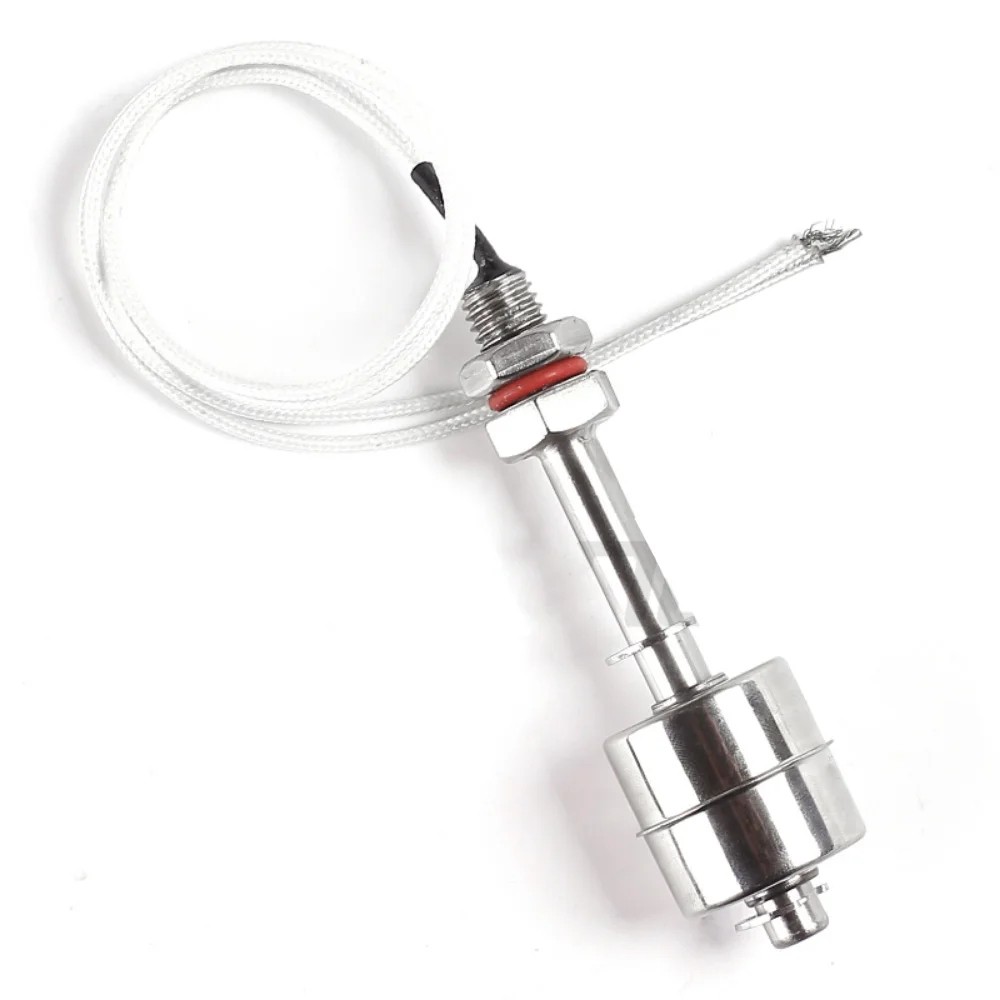

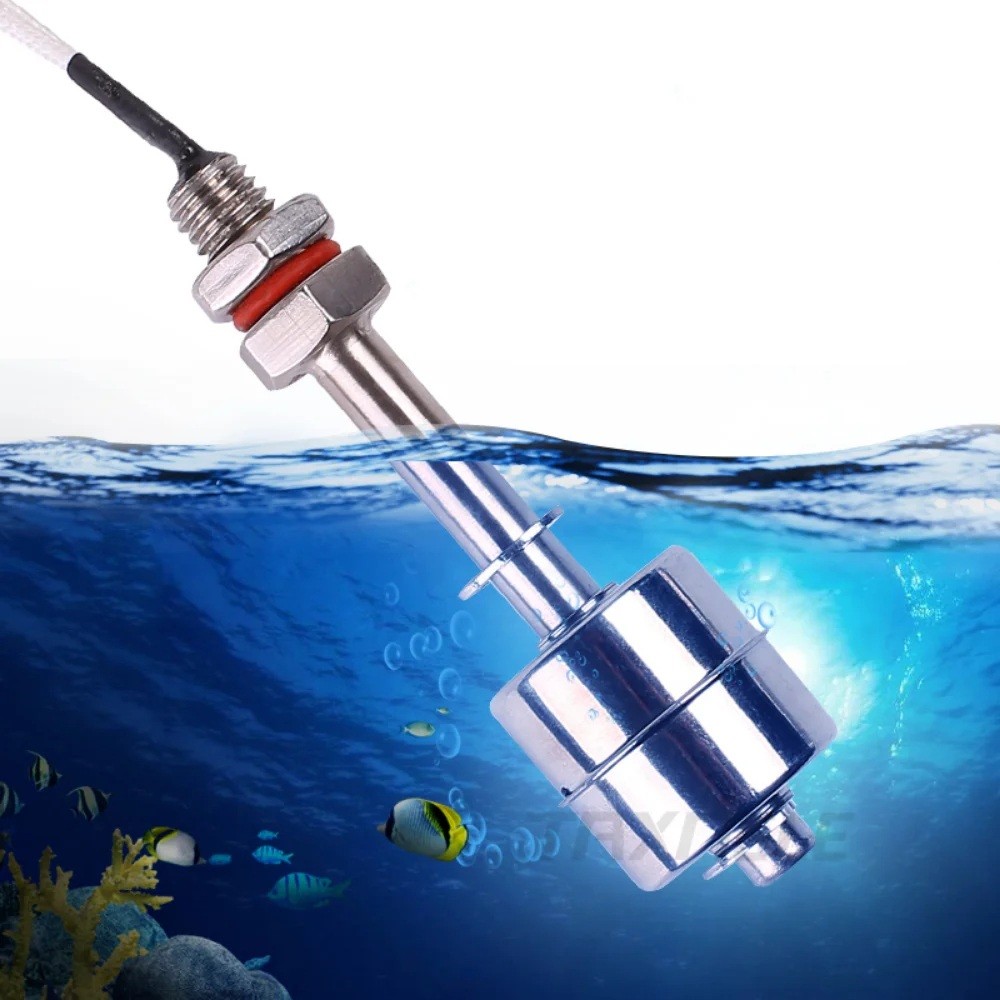

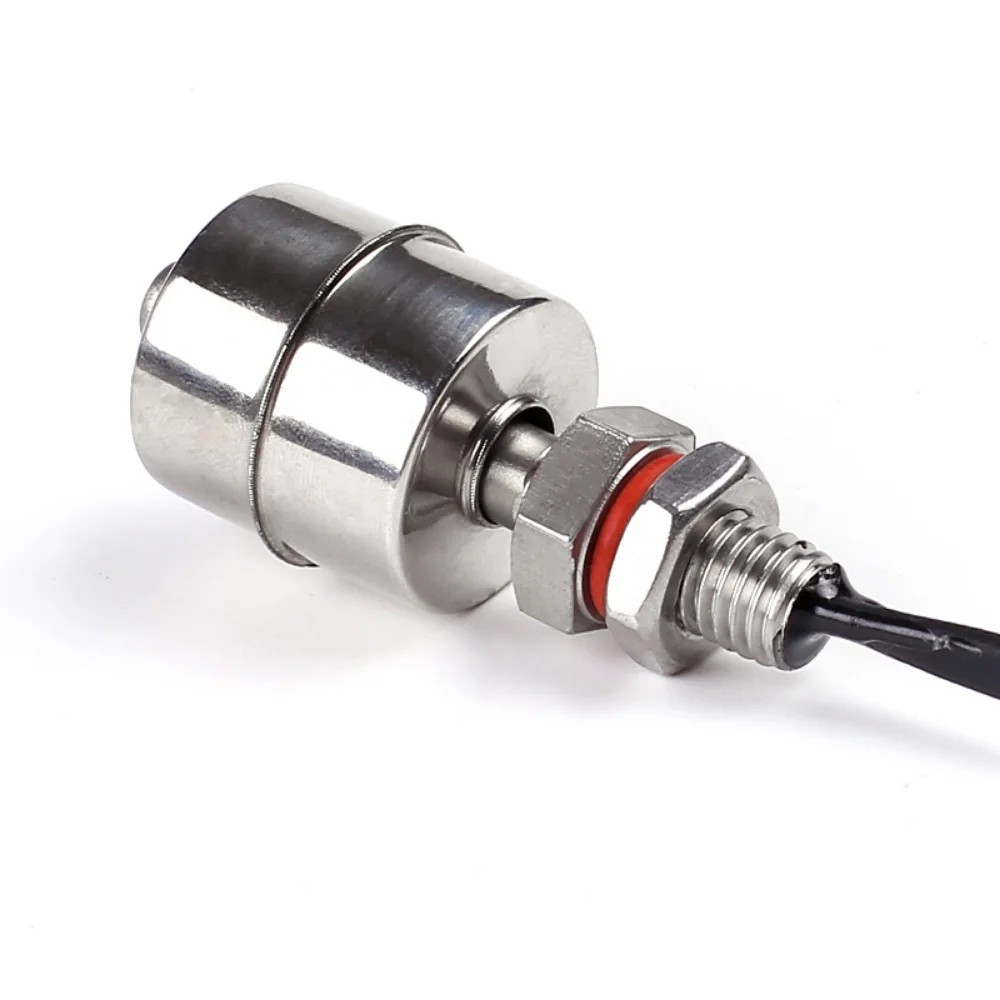

Float Switch Water Level Stainless Steel Length 500 mm Thread M10, AC/DC 220V, 1.2A, Cable 350 mm, for Tanks and Pumps, Silver
You already have the maximum available quantity in your cart.
The 50 cm float switch is the longest version in this range and is suitable for very deep tanks and reservoirs. The float glides along a one-metre long stainless steel rod and, at the moment it passes the set point, it magnetically activates the contact within the rod. The greater height range allows the sensor to be used in tanks where the switching point needs to be placed deep below the tank's neck. The all-metal stainless steel construction ensures a long lifespan in drinking water, in hot baths, and in partially chemical environments.
- Stainless steel for maximum durability and long lifespan
- Total length 500 mm, float diameter 28 x height 28 mm
- Thread M10 x 1.5 with two nuts and a sealing ring
- Operates on 110V / 220V DC and AC, switching current up to 1.2 A
- Lead wire 350 mm, top or bottom mounting on the tank
- Maximum switching power 20 W
- Operating temperature from -20 to +120 °C
- Mercury-free
- Silver glossy stainless steel finish
- Passive sensor with no self-powering
- Contents: 1x float switch
The half-metre float covers deep underground reservoirs, large rainwater cisterns, accumulation tanks for heating systems, sewage pits, and industrial retention tanks. It can be used to control large pumps, automatic water supply, flood warning signals, or protection against dry running of the pump. High temperature resistance opens up applications in heating circuits, water heaters, steam systems, and in some technological baths in food processing. The design with a magnetic reed contact requires no maintenance or calibration and reliably operates for decades in practice. After securing the thread into the tank opening, it is sufficient to connect both wires to the control circuit of the switched device, and the sensor is ready for operation.
