Float Switch Water Level Stainless Steel Length 45 mm Thread M10, AC/DC 220V, 1.2A, Cable 350 mm, for Tanks and Pumps, Silver
You already have the maximum available quantity in your cart.

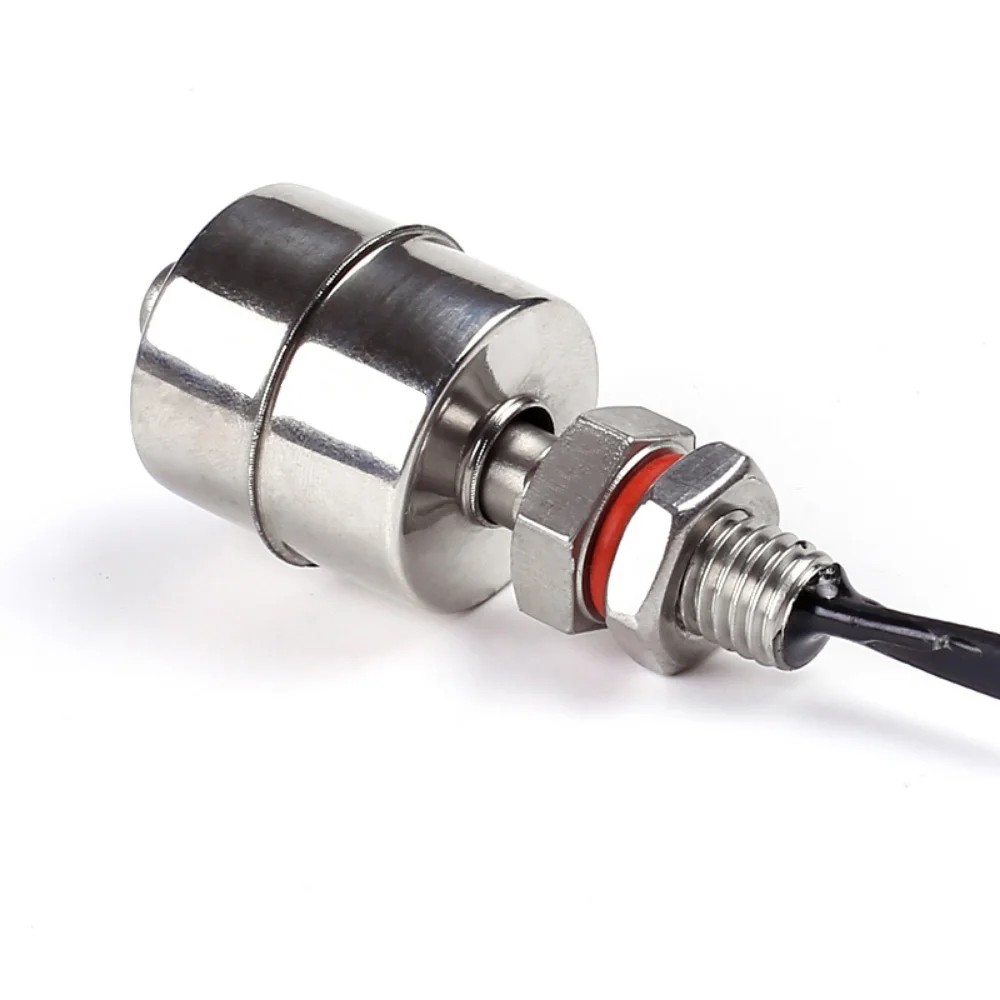

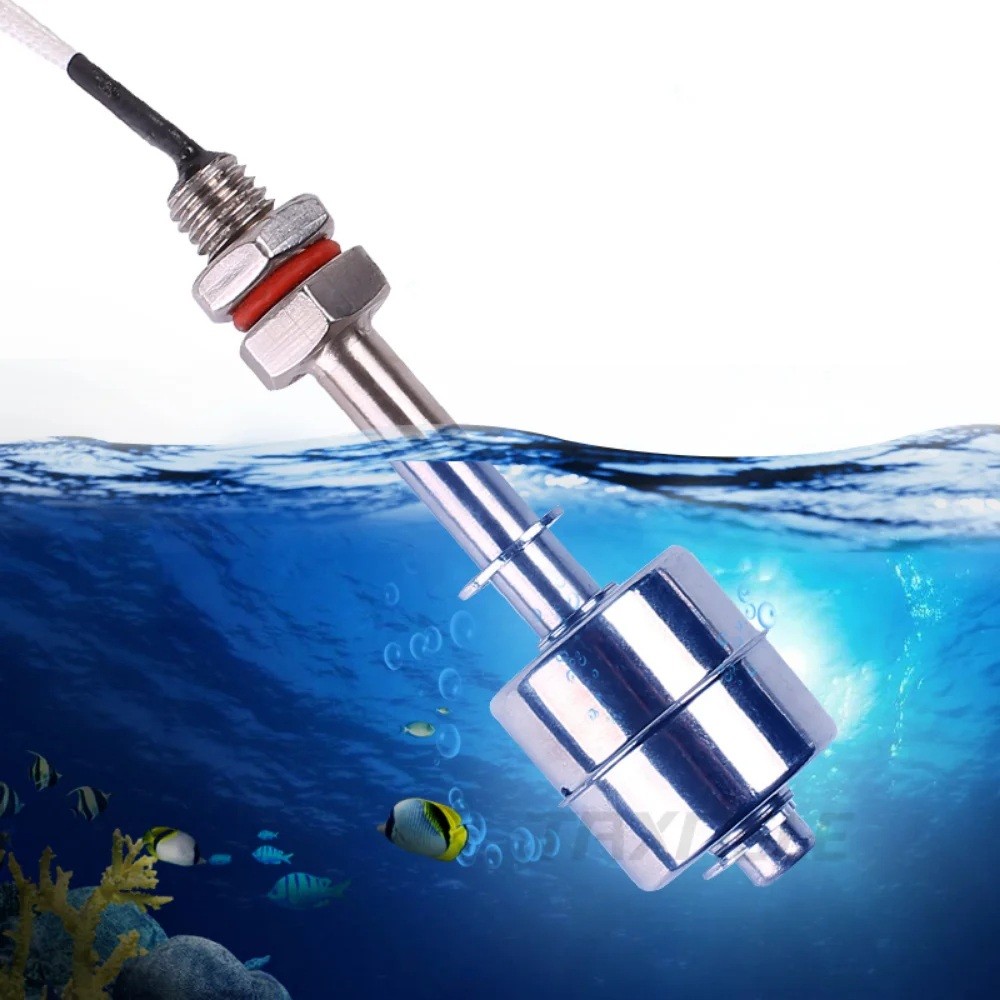

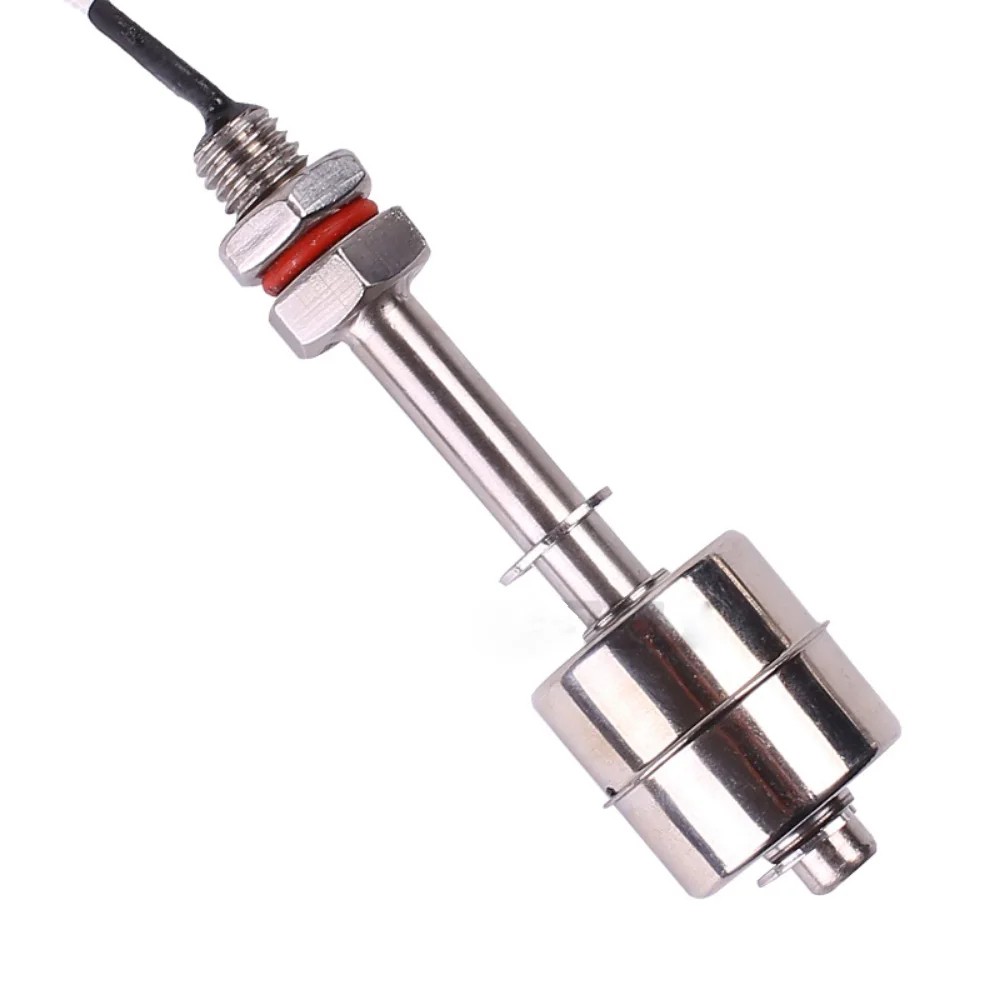

Compact float switch made of stainless steel ensures automatic monitoring of the water level or other liquids in smaller containers. When the set level is reached, it opens or closes the electrical circuit and activates a pump, alarm, valve or other device. The float glides along the stainless steel rod and the magnetic contact inside reliably detects the transition across the switching point. The robust all-metal construction withstands high temperatures and environments where plastic sensors fail.
- Stainless steel with resistance to corrosion, moisture and high temperatures

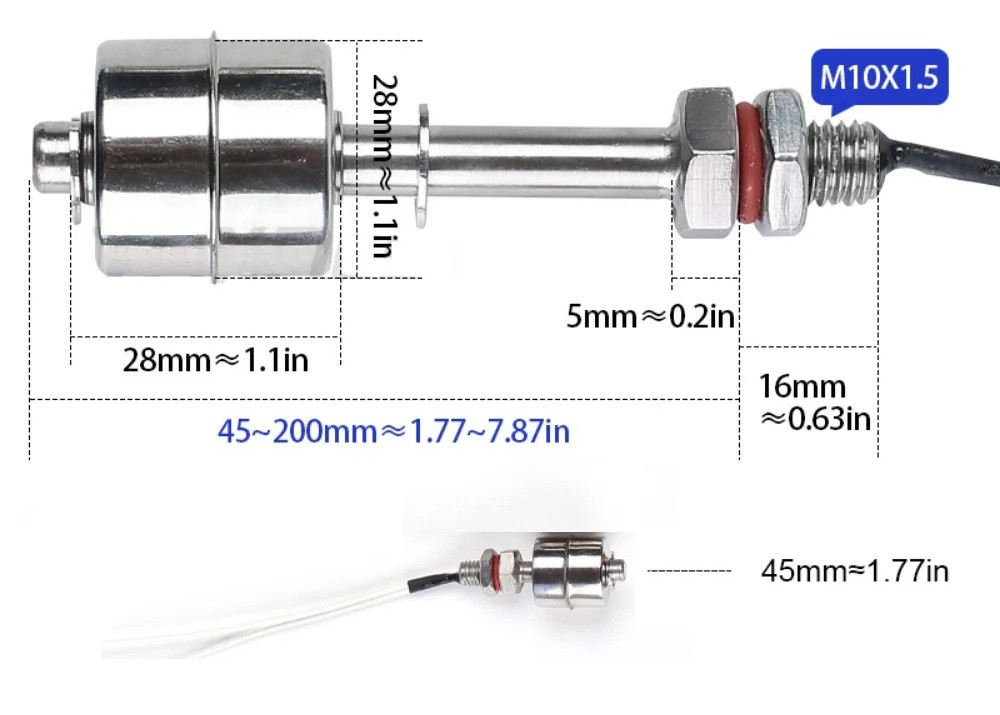

- Total length 45 mm, float diameter 28 x height 28 mm
- Thread M10 x 1.5 for easy mounting into the tank opening
- Operating voltage 110V / 220V DC and AC, switching current up to 1.2 A

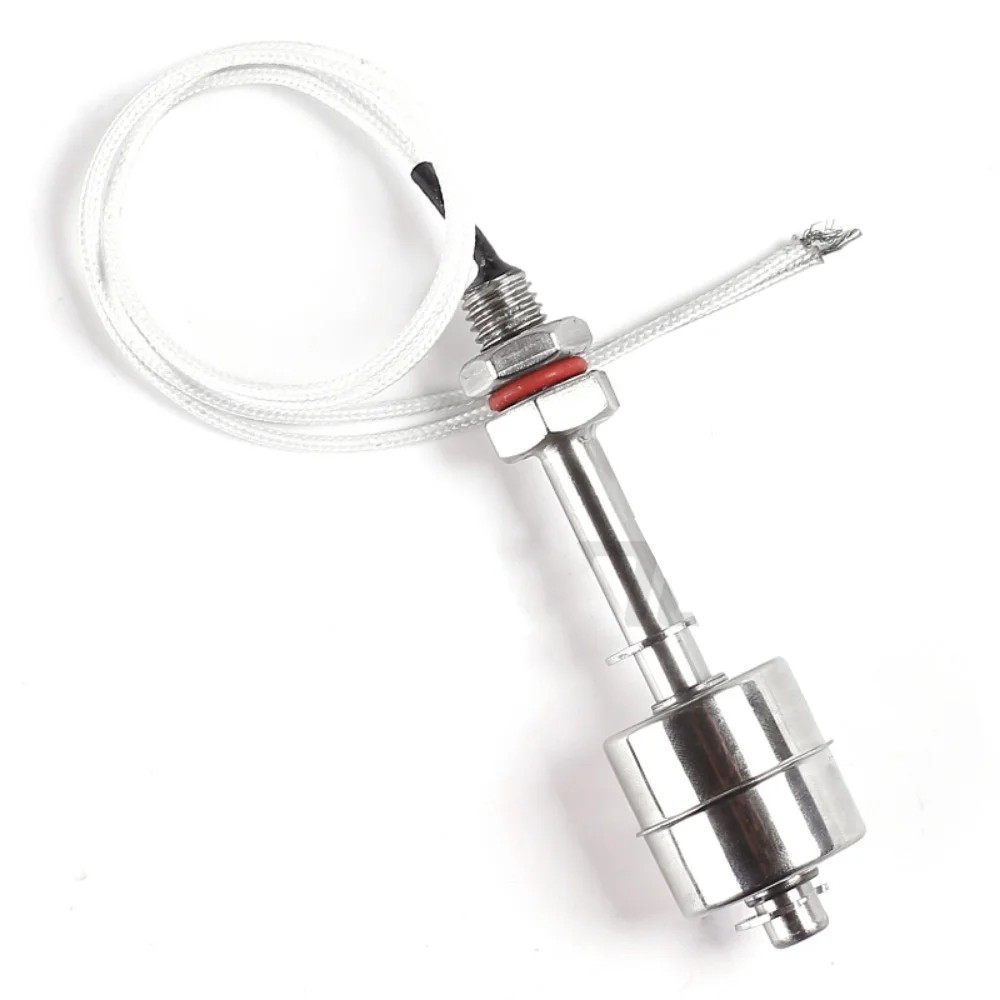

- Wire length approximately 350 mm, installation from above or below
- Maximum switching power 20 W
- Operating temperature -20 to +120 °C
- Mercury-free
- Shiny silver finish
- No complex electronic circuit, no calibration required
- Package contents: 1x float switch
The mini float is suitable for smaller drinking water reservoirs, aquariums, terrariums, cooling circuits of coffee machines, small pumping pits or laboratory applications. The principle is simple: the float rises and falls according to the level, and the magnet inside switches or unhooks the reed contact in the rod. The sensor can be installed in two orientations - from above for detecting the upper level or from below for monitoring the bottom and replenishing water. Thanks to its stainless construction and high-temperature resistance, it can operate in hot water, mildly chemically active liquids and under long-term load. It connects directly to the control circuit of the pump, magnetic valve, signalling or automation.
