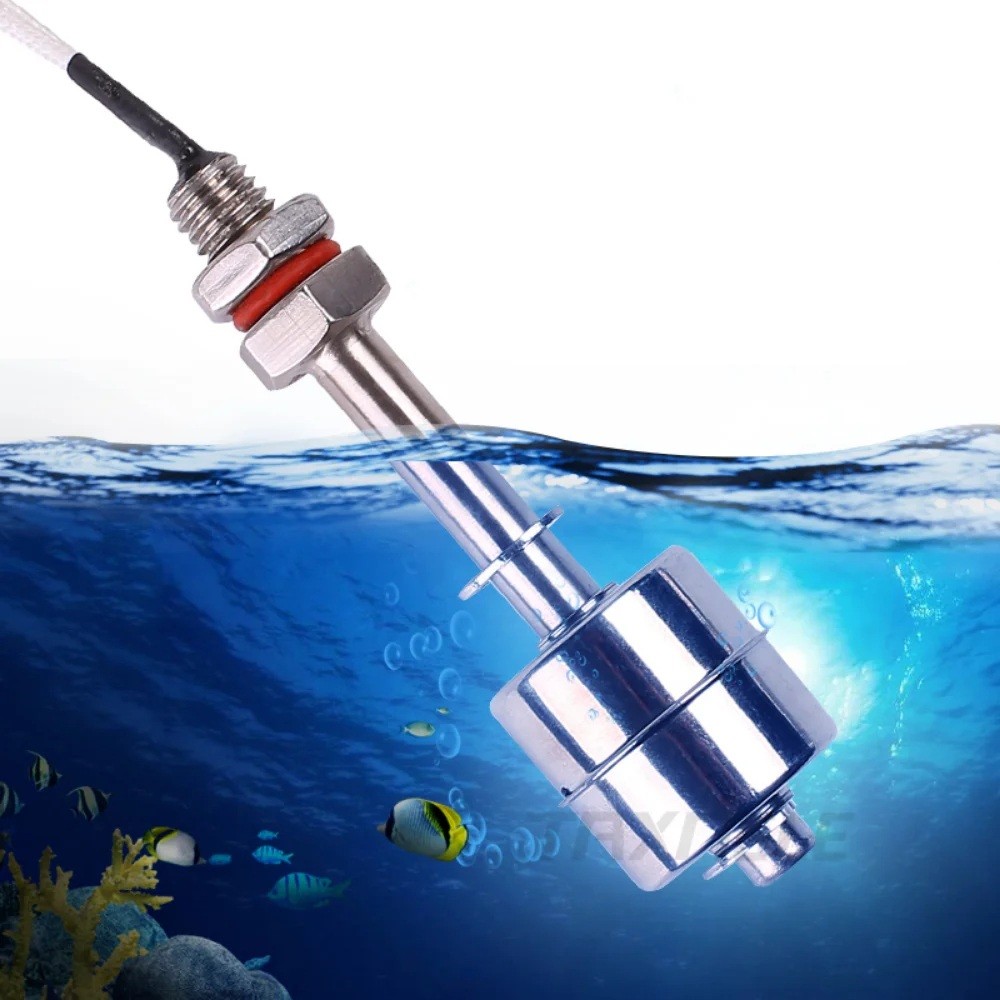

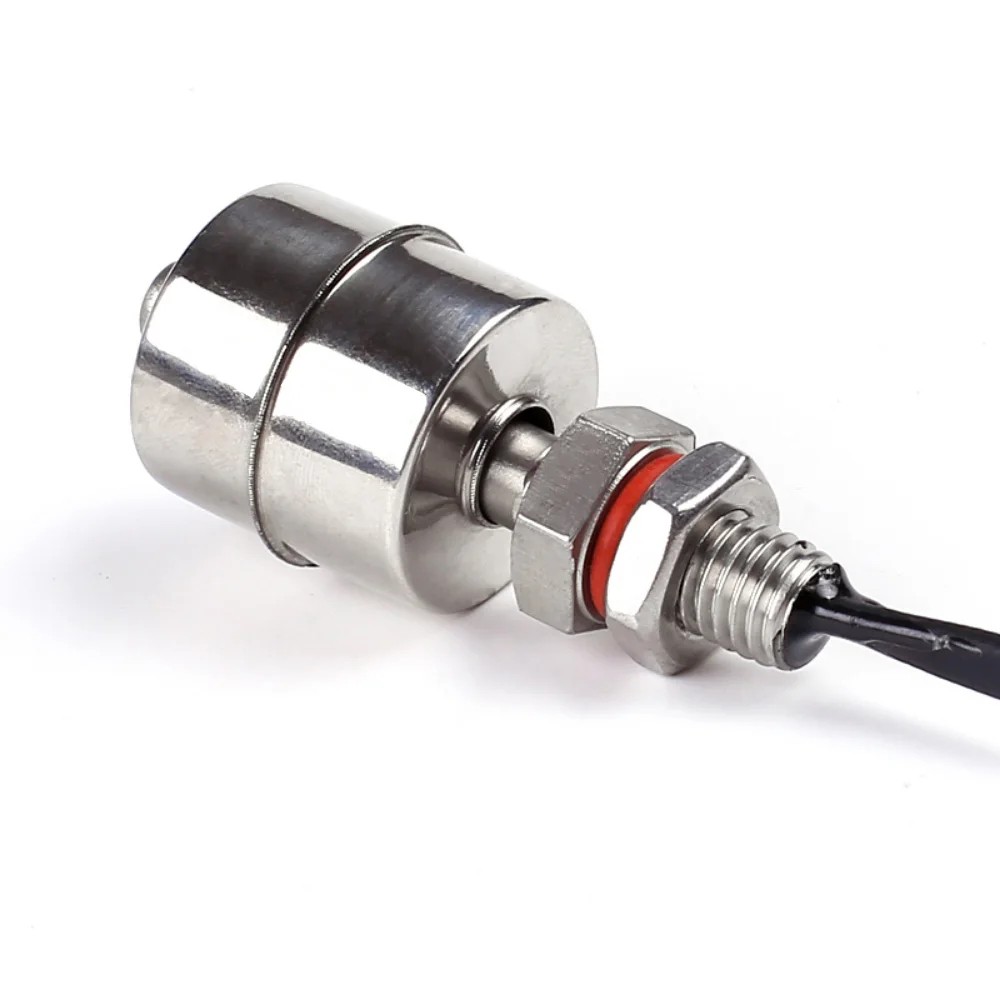

Float Switch Water Level Stainless Steel Length 400 mm Thread M10, AC/DC 220V, 1.2A, Cable 350 mm, for Tanks and Pumps, Silver
You already have the maximum available quantity in your cart.
The forty-centimetre float switch is one of the longer designs for large tanks, cisterns, and industrial reservoirs. The float moves freely along the stainless steel rod over a range of several decimetres, allowing precise determination of when to switch - for example, to start a larger pump, open the inlet valve, or activate an alarm. The sensor operates without its own power supply; the reed contact principle with a magnet ensures reliable switching without wear for many years. The all-metal stainless steel design withstands moisture, high temperatures, and mildly chemically active liquids.
- High resistance of stainless steel to corrosion and moisture
- Total length 400 mm, float diameter 28 x height 28 mm
- Thread M10 x 1.5 with nuts and sealing O-ring
- Switching up to 220V AC/DC, current up to 1.2 A, power up to 20 W
- Connecting wire approximately 350 mm long
- Operating temperature -20 to +120 °C
- Mercury-free
- Shiny silver finish
- Passive principle without its own power supply
- Installation from above or below as needed
- Package contents: 1x float switch
The 40 cm float is suitable for large rainwater cisterns, underground storage tanks, sewage pits, larger wells, or in industrial technologies. It reliably controls the switching of the pump according to the current level, opens or closes the supply via a solenoid valve, and can also control a two-position indication of the tank status. High temperature resistance allows use in water heaters, steam generators, cooling systems, and in technological basins. The reed contact principle requires no calibration and lasts for millions of switchings. The sensor simply needs to be secured with the thread into the tank opening, and both wires connected directly to the power or signal circuit.
