Float Switch Water Level Stainless Steel Length 200 mm Thread M10, AC/DC 220V, 1.2A, Cable 350 mm, for Tanks and Pumps, Silver
You already have the maximum available quantity in your cart.
This twenty-centimetre float switch made of stainless steel is designed for deeper tanks where a greater range of float movement along the rod is required. When the set level is reached, the magnet inside the float activates the reed contact in the rod, turning on the connected device - pump, alarm, valve, or indicator light. The robust stainless steel construction withstands moisture, high temperatures, and mildly aggressive liquids, making the float a versatile solution for both domestic and technical applications. The sensor operates passively, without its own power supply and without complicated electronics.
- Durable stainless steel even in corrosive environments

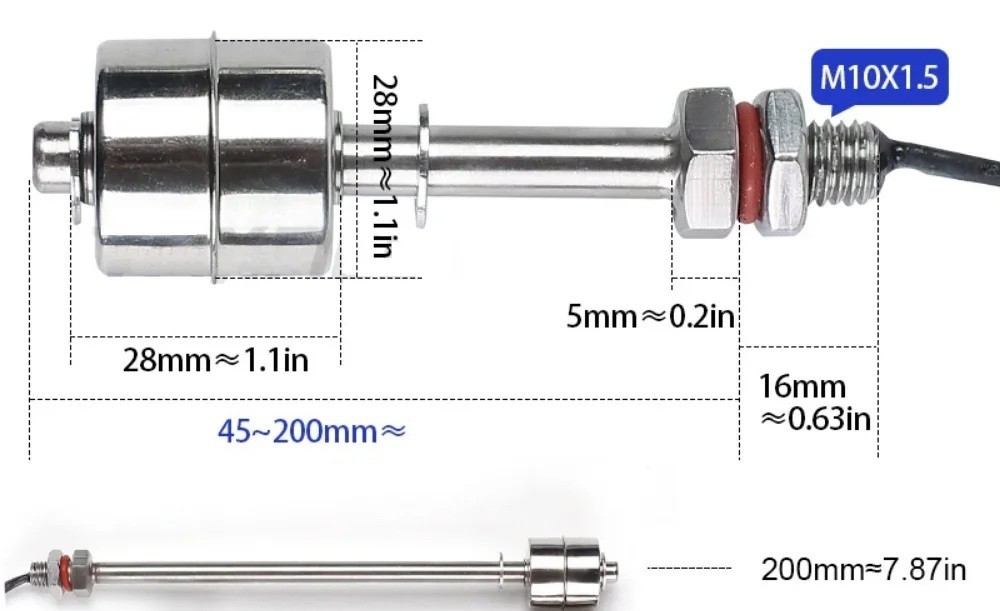

- Total length 200 mm, float diameter 28 x height 28 mm
- Thread M10 x 1.5 with double nut fastening and sealing
- Switching circuits up to 220V AC/DC, current up to 1.2 A, power up to 20 W
- Supply cable 350 mm, installation from above or below
- Operating temperature -20 to +120 °C
- Mercury-free and free from hazardous substances
- Silver glossy finish
- Passive principle - does not require its own power supply
- Simple connection with two wires
- Contents: 1x float switch
This twenty-centimetre float is suitable for larger tanks with drinking or utility water, larger rain barrels, water supplies for the entire house, ponds, aquariums, or cooling circuits. The float glides freely along the rod, providing a clear switching signal to the circuit, allowing for the control of liquid top-up, protection of the pump from running dry, and overflow protection. Due to its high-temperature resistance, it can also be used in heating circuits, water heaters, steam systems, and small industrial technologies. The principle of the reed contact is extremely reliable and can withstand millions of activations without noticeable wear. Simply secure it with the thread into the opening and connect the wires to the control circuit.
