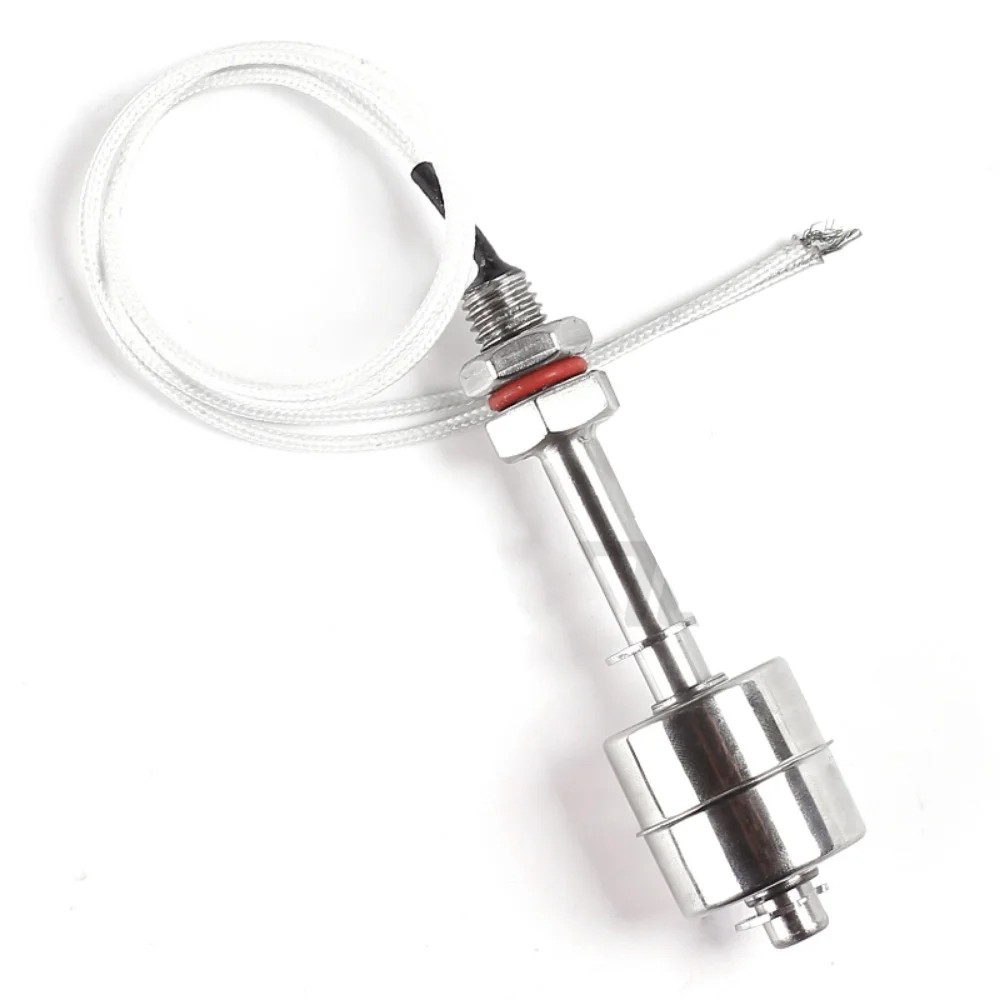

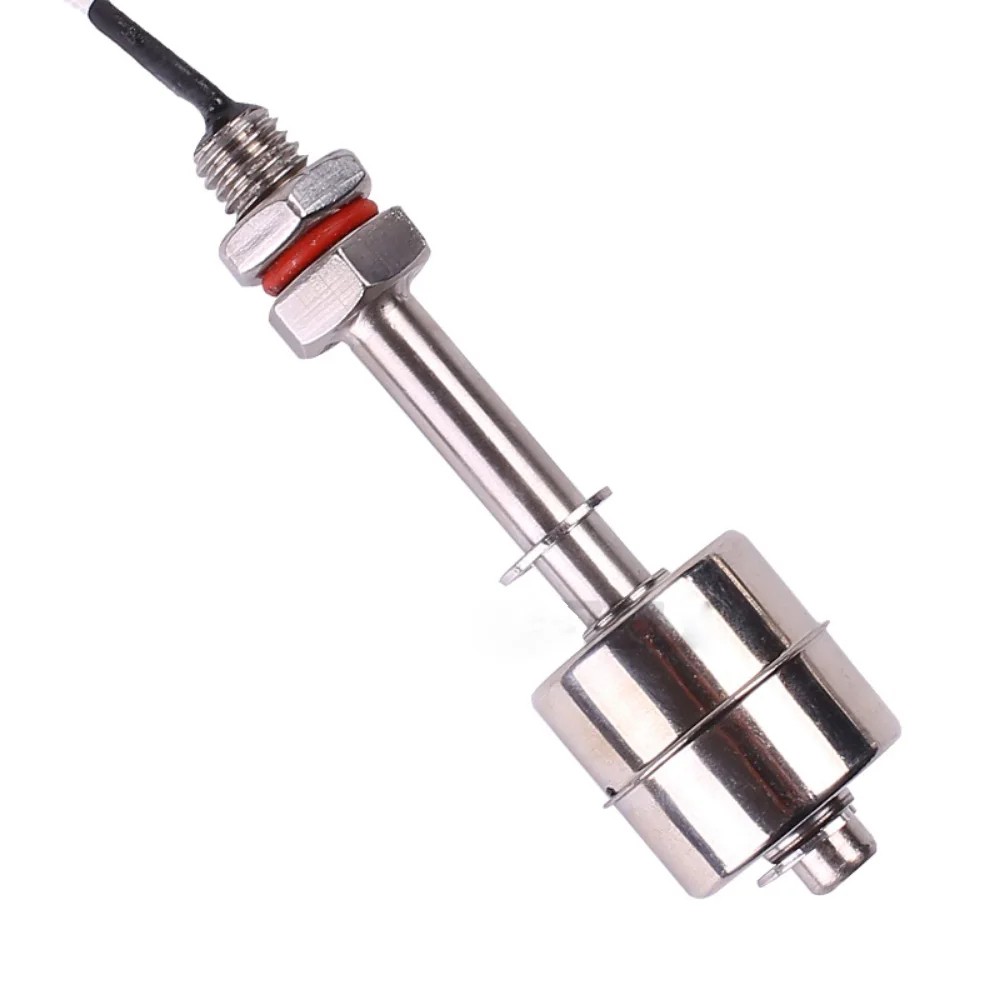

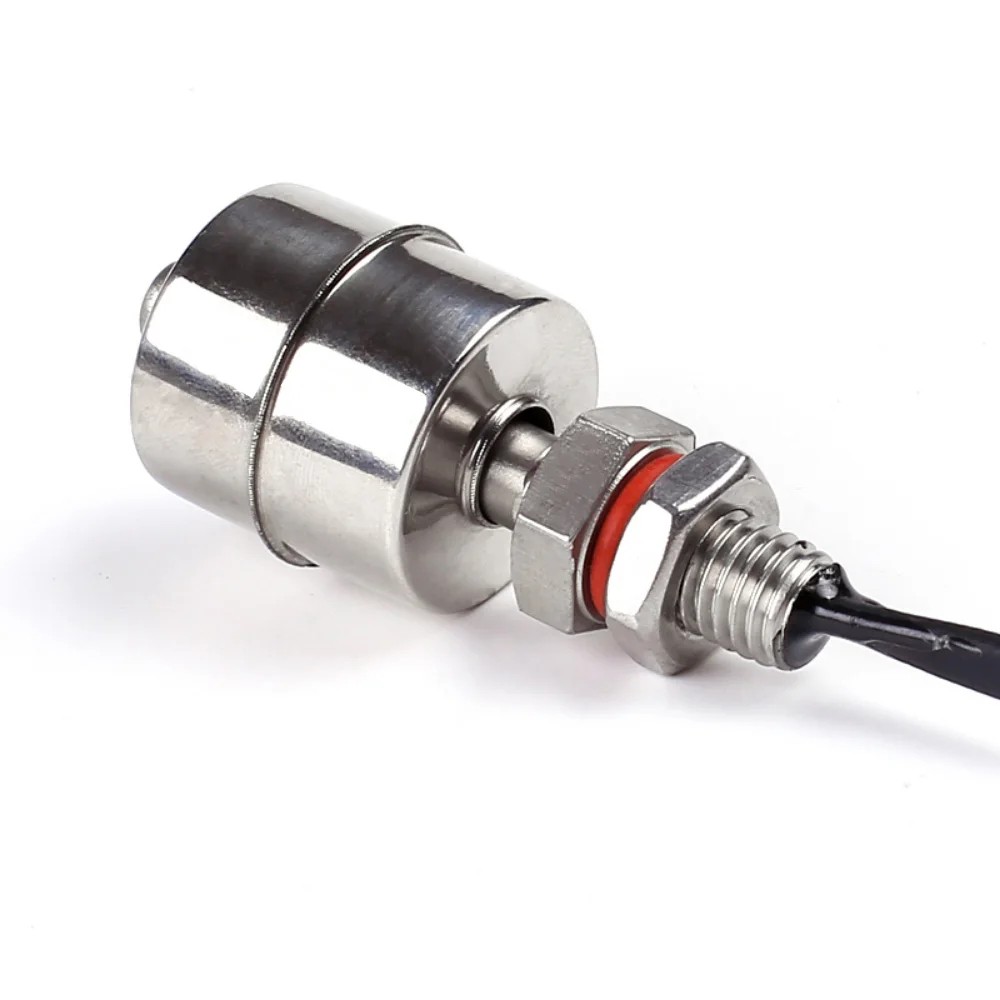

Float Switch for Water Level Stainless Steel Length 100 mm Thread M10, AC/DC 220V, 1.2A, Cable 350 mm, for Tanks and Pumps, Silver
You already have the maximum available quantity in your cart.
The 10 cm float switch is among the most commonly used sizes for typical domestic and technical level control applications. The stainless steel float moves along the rod and a magnet inside activates the reed contact at a precisely determined point - thereby switching on or off the electrical circuit of the pump, valve or signal. The sensor operates without electronics, so it does not require its own power supply and has a long lifespan. The silver sheen and metal construction withstand continuous contact with water, steam, and mildly chemical liquids.
- Robust stainless steel for long life in corrosive environments

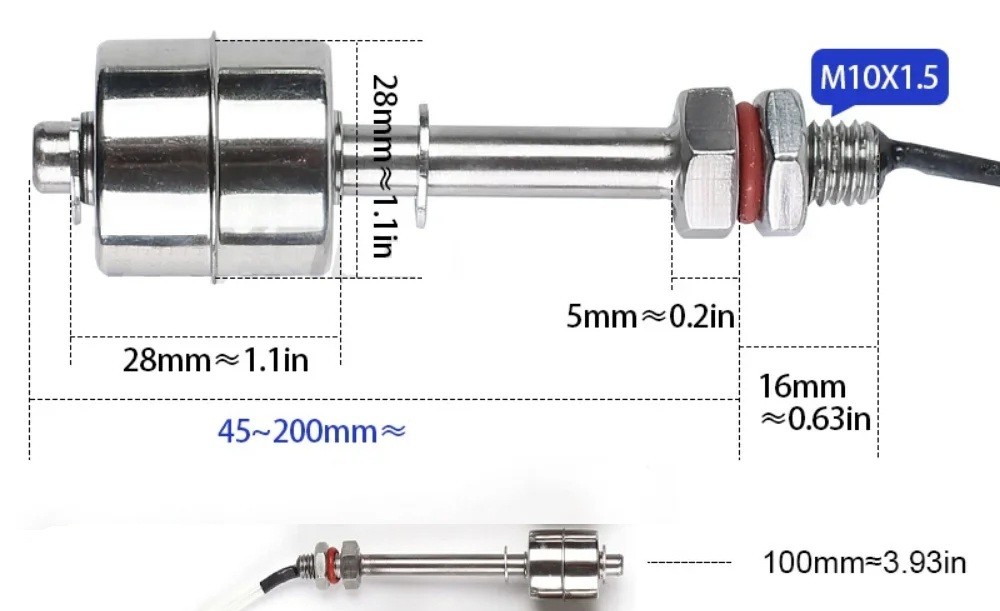

- Total length 100 mm, float diameter 28 x height 28 mm
- Mounting thread M10 x 1.5 with a pair of nuts and sealing O-ring
- Switching voltage 110V / 220V DC and AC, current up to 1.2 A
- Power lead approximately 350 mm long
- Switching power maximum 20 W
- Operating temperature from -20 to +120 °C
- Mercury-free, safe for drinking water
- Silver stainless steel finish
- Installation possible from the top or bottom of the tank
- Package contents: 1x float switch
The length of 10 cm adequately covers typical tanks from smaller drinking water reservoirs to domestic waterworks, septic tanks, rainwater tanks, or technological circuits. It activates the pump, automatic valve, or electronic alarm as soon as the float exceeds the set level. In an automatic domestic system, it controls the refilling of water into the tank or conversely protects the pump from running dry. High temperature resistance allows use in heating circuits, water heaters, boilers, or cooling systems. The passive principle operates reliably for many years without calibration or maintenance, and the sensor only needs to be mounted and connected to the switched circuit.
