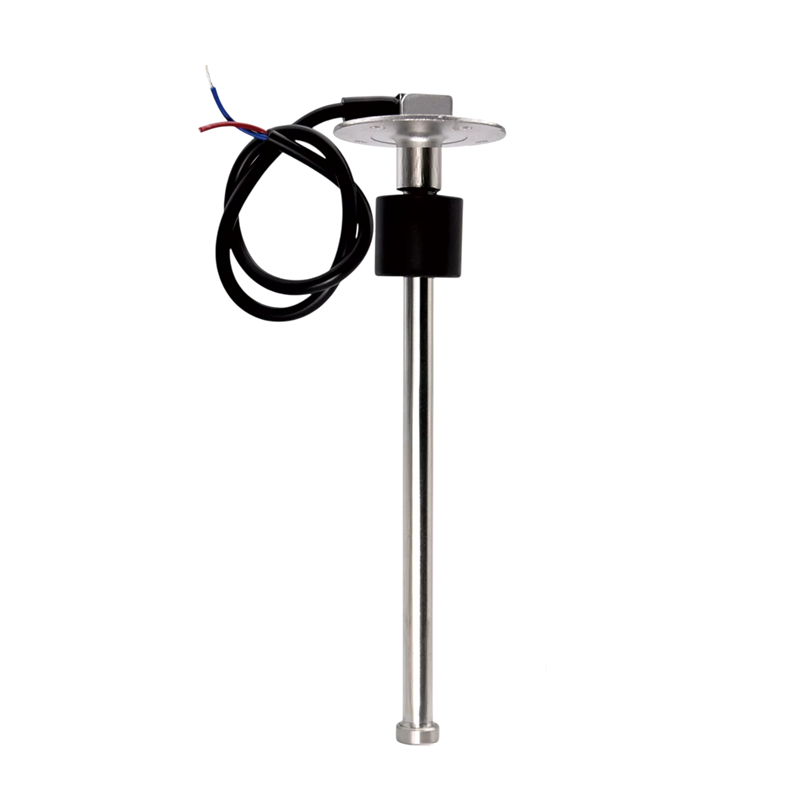

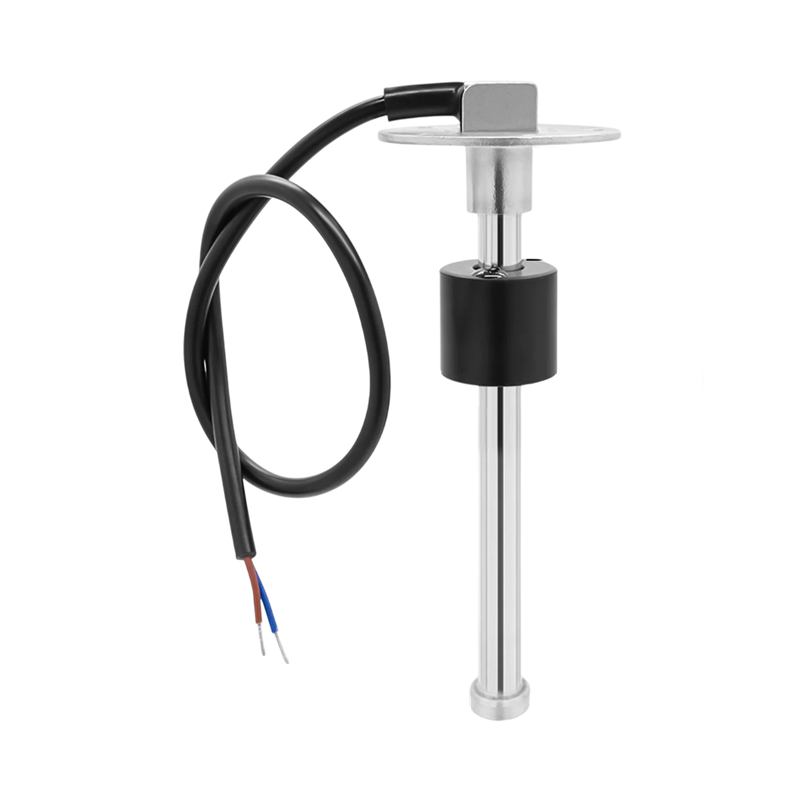

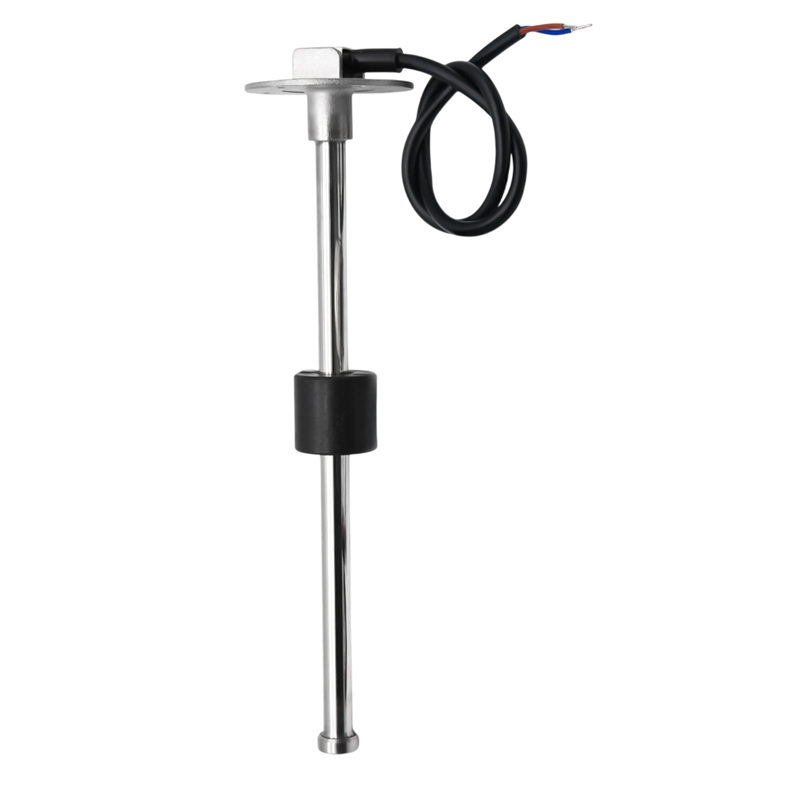

Float Level Sensor 0–190 Ω 250 mm 10" Electric Sensor IP67 for Monitoring Fuel and Liquid Levels in Tanks of Boats and Vehicles
The fuel level sensor is used for continuous monitoring of the liquid quantity in tanks used in transport or technical systems. This model features a standard resistance output of 0–190 Ω, which is commonly used with fuel level indicators. This allows the sensor to be connected to various measuring instruments used in boats, trucks, or other technical devices.
The measuring rod has a length of 250 mm (10"), which corresponds to the recommended tank height of approximately 260 to 275 mm. This dimension is suitable for tanks with a greater structural height, where it is necessary to monitor the quantity of fuel, oil, or other liquids.
The sensor operates in a voltage range of 9–32 V DC and its maximum operating current does not exceed ≤60 mA. This allows it to be connected to standard electrical systems used in transport or industrial equipment.

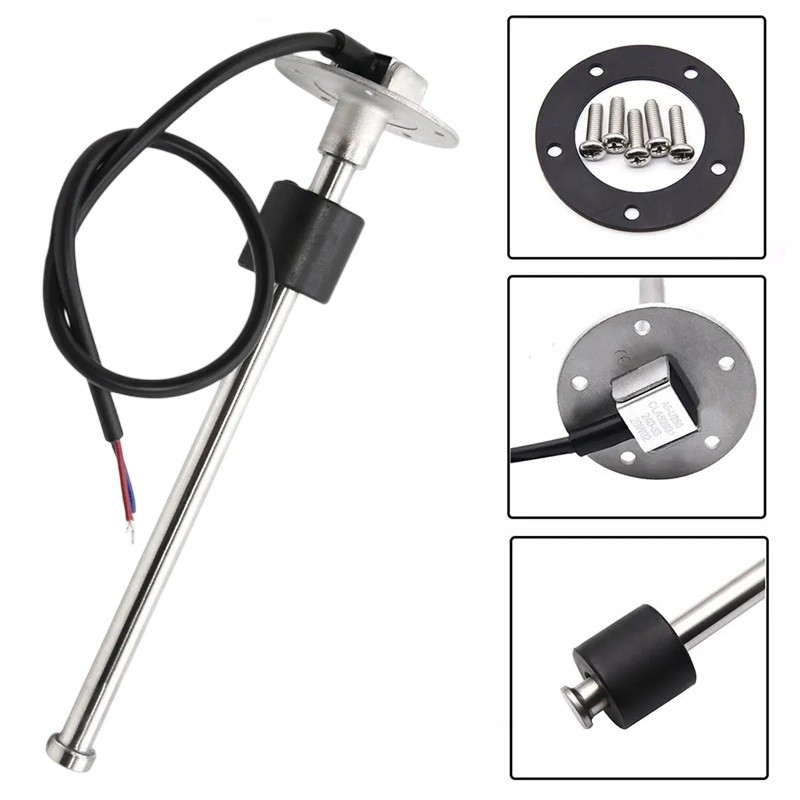

The sensor's design is adapted for installation using a flange with five holes. Installation is carried out using the included M5 screws and a gasket with a thickness of 2 mm. The gasket helps seal the connection between the sensor and the tank, minimising the risk of liquid leakage.
The device is protected with an IP67 rating, which provides protection against dust and temporary immersion in water. The sensor is designed for use in various operating conditions and operates over a wide temperature range. The measurement resolution of 21 mm allows monitoring of changes in the liquid level within the tank.
Main Features
- Sensor resistance range: 0–190 Ω
- Measuring rod length: 250 mm (10")
- Operating voltage: 9–32 V DC
- Protection rating: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 260–275 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- Gasket thickness of 2 mm
- Suitable for fuel, oil, and liquid tanks
- Used in marine, boating, or freight systems

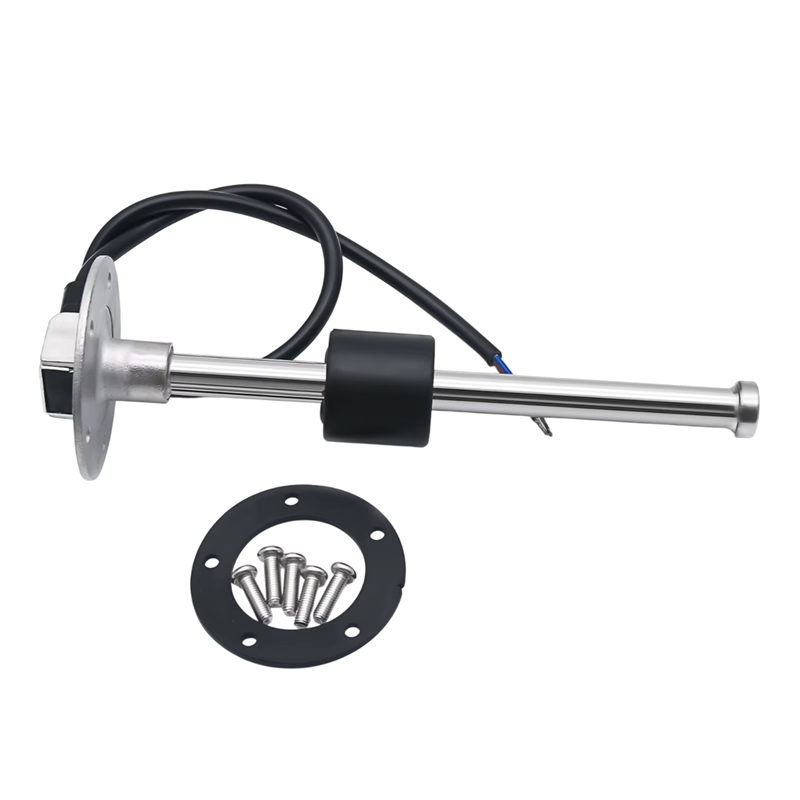

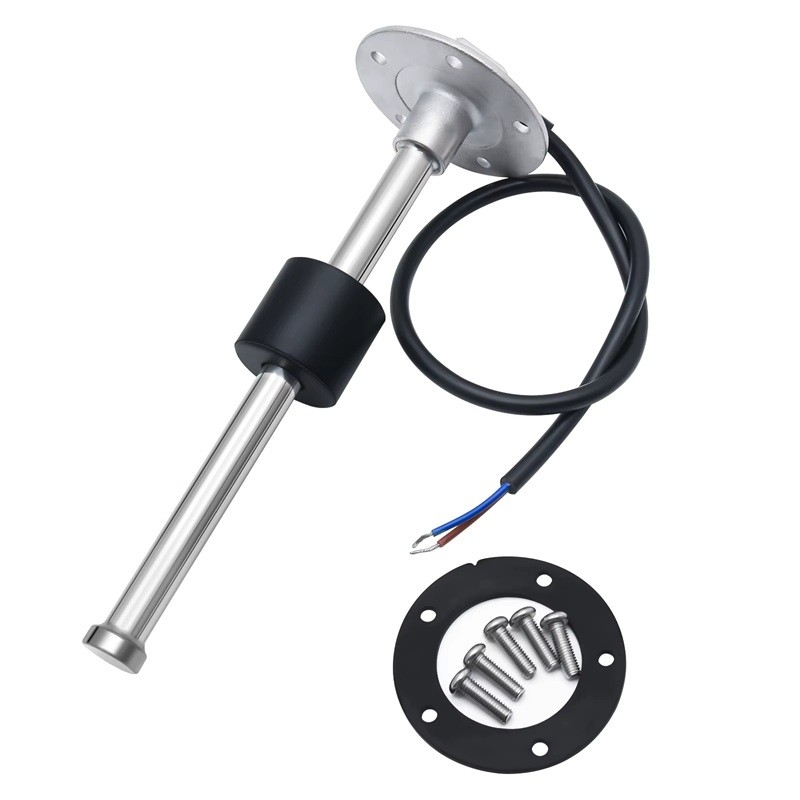

Package Contents
- Fuel level sensor
- Gasket
- 5× mounting screws
The sensor allows monitoring of the liquid level in the tank using a resistance signal compatible with standard level indicators. With a length of 250 mm, it is suitable for tanks with a greater structural height. The mounting flange allows secure attachment of the sensor using five screws. The package also includes mounting elements including a gasket to seal the connection between the sensor and the tank. The IP67 rating enables the use of the device even in environments with higher humidity or when in contact with water.
