Fingerprint and RFID Card Reader HF5-EM M70 Tuya App and Wi-Fi Support 115 x 70 mm Zinc Alloy 125 kHz IP66 Black For Door Control
You already have the maximum available quantity in your cart.

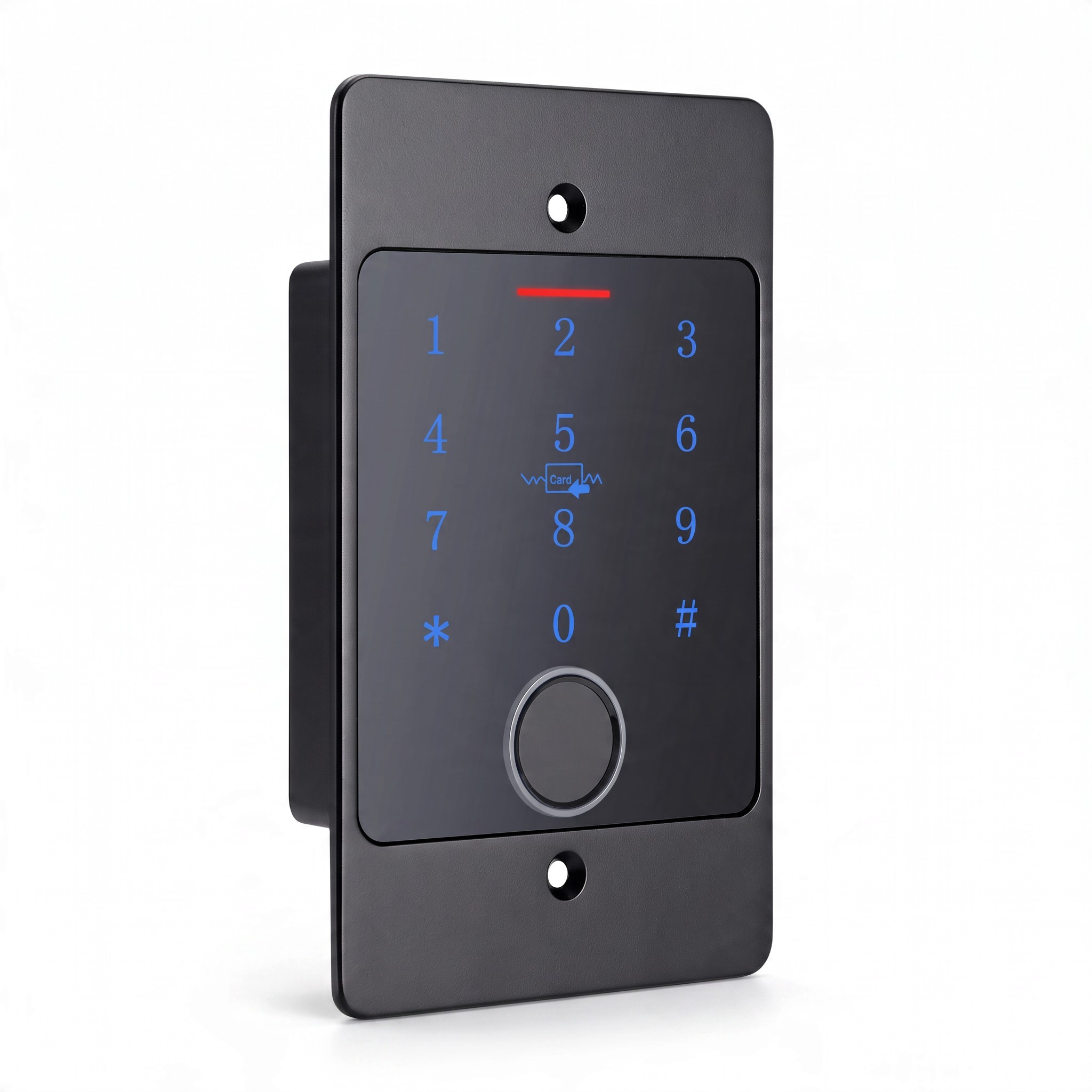

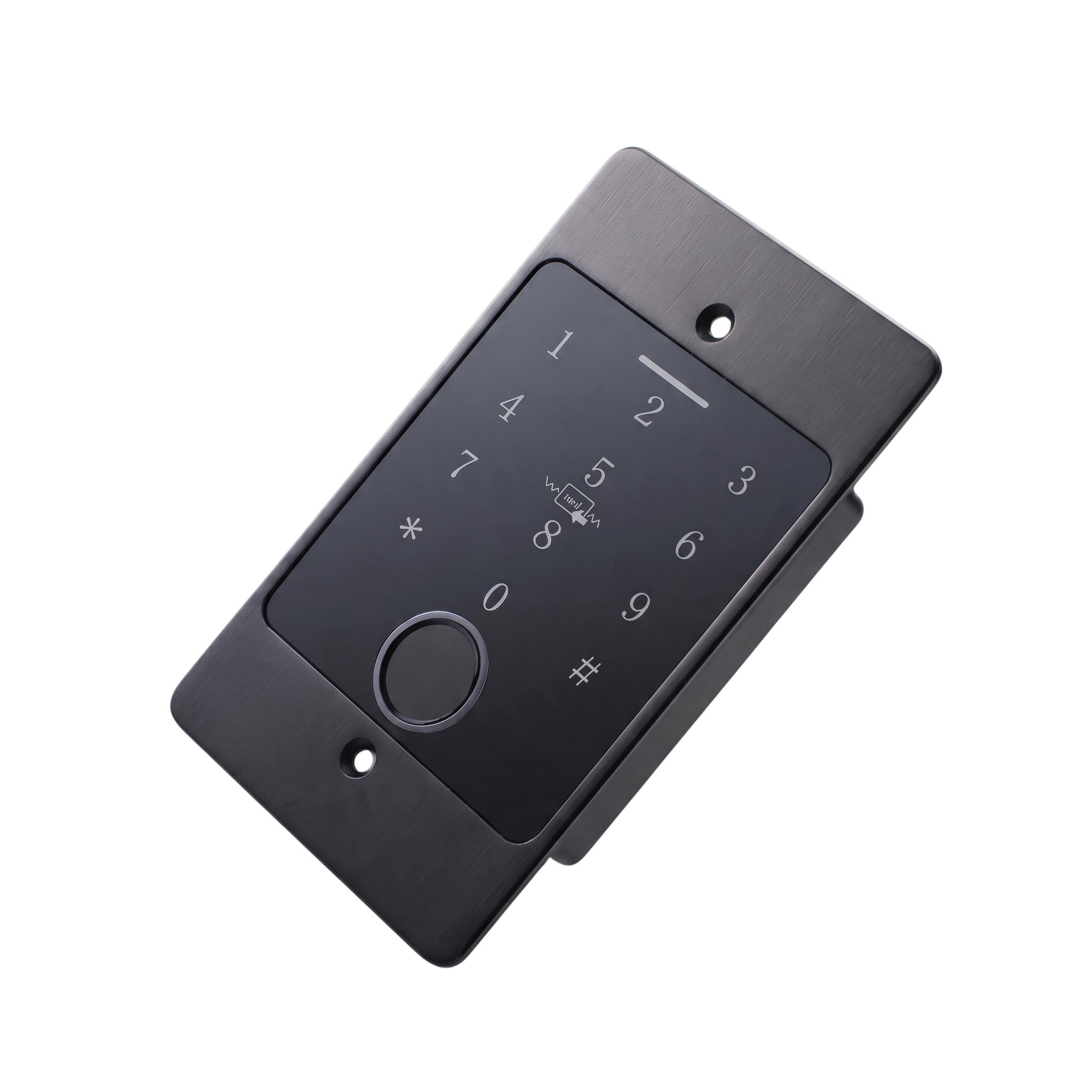

The Fingerprint and RFID Card Reader HF5-EM M70 is an access control system designed for door management in offices, homes, businesses, or at entrances to buildings. It allows unlocking with a fingerprint, a code entered on the touch keypad, an RFID card with a frequency of 125 kHz, or a combination of card and code. With support for the Tuya app and connection via Wi-Fi 2.4 GHz, doors can also be opened remotely from a mobile phone and temporary passwords can be created. The reader has a black zinc alloy casing measuring 115 x 70 mm and is intended for flush mounting. The backlit keypad and indicator light facilitate operation even in low visibility conditions.
Main Features:
- Multiple Unlocking Methods – fingerprint, code, RFID card, Tuya app, temporary password, or a combination of card and code.
- Tuya App – remote door opening from a phone with one touch and user management directly in the app.
- Wi-Fi 2.4 GHz – connection to a home or business network for controlling the reader via the app.
- Temporary Passwords – a temporary code can be created in the app, for example, for visitors or service personnel.
- 125 kHz Card Reader – supports EM type cards with a reading range of up to 30 mm.
- Fingerprint Sensor – the circular area for fingerprint placement is located at the bottom of the panel.
- Touch Keypad – backlit numeric keypad with buttons 0–9, * and #.
- Indicator Light – the light indicator above the keypad signals the status of the device.
- Water Resistance – the device with IP66 rating is suitable for outdoor installation exposed to rain.
- Zinc Alloy Casing – sturdy body resistant to impacts and wear.
- Operating Conditions – operating temperature from -20 °C to +60 °C and humidity 10–99 %.
- Power Supply – DC 12 V ± 25 %, standby consumption up to 45 mA and operating consumption up to 150 mA.

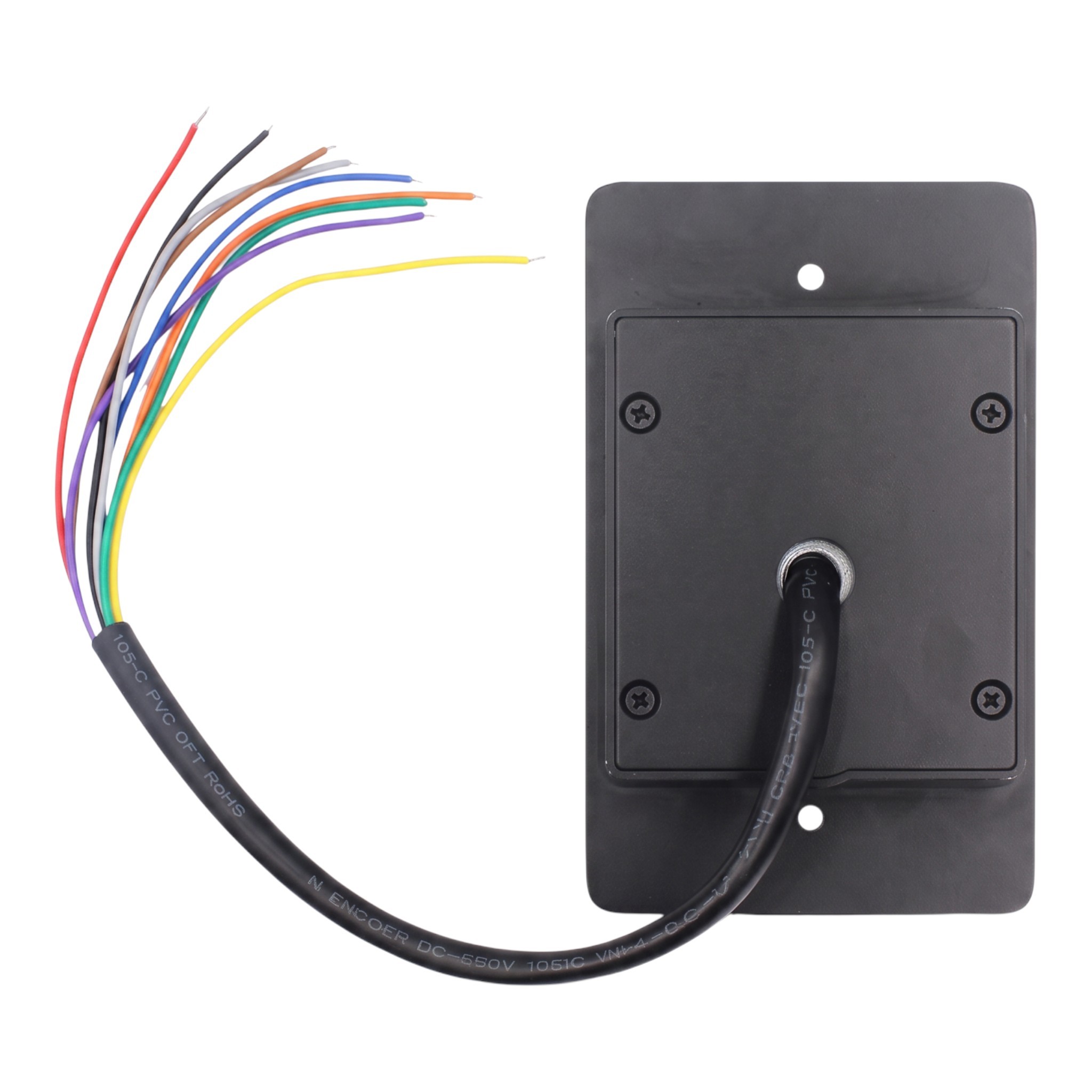

- Wiring – 10 colour-coded wires for power supply, NO, COM and NC outputs, OPEN input for exit button, D_IN input, alarm, and data wires D0 and D1.

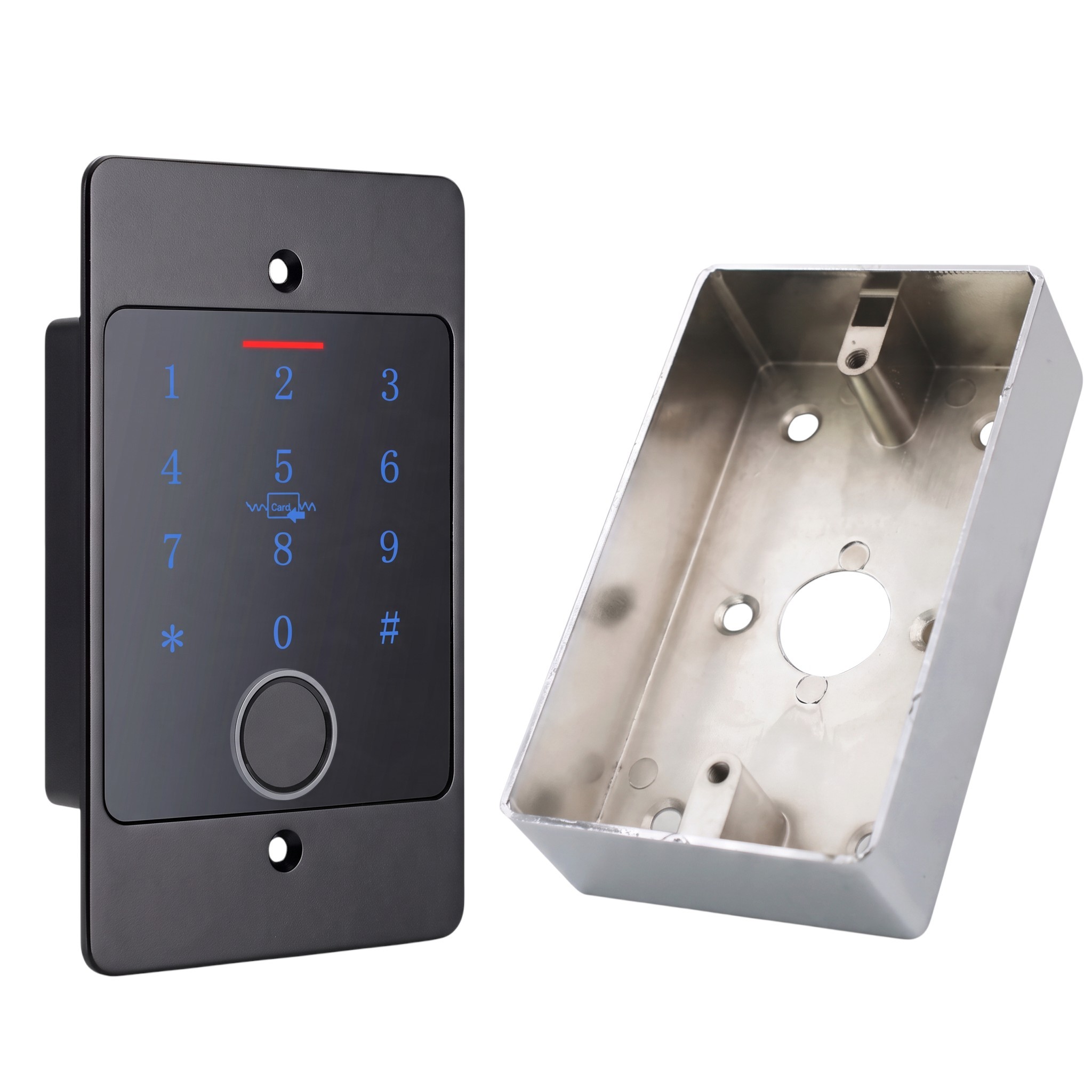

- Dimensions – 115 x 70 mm, installation using two holes in the front panel.
- Additional Accessories – electric lock, power supply, and RFID cards are not included in the package.

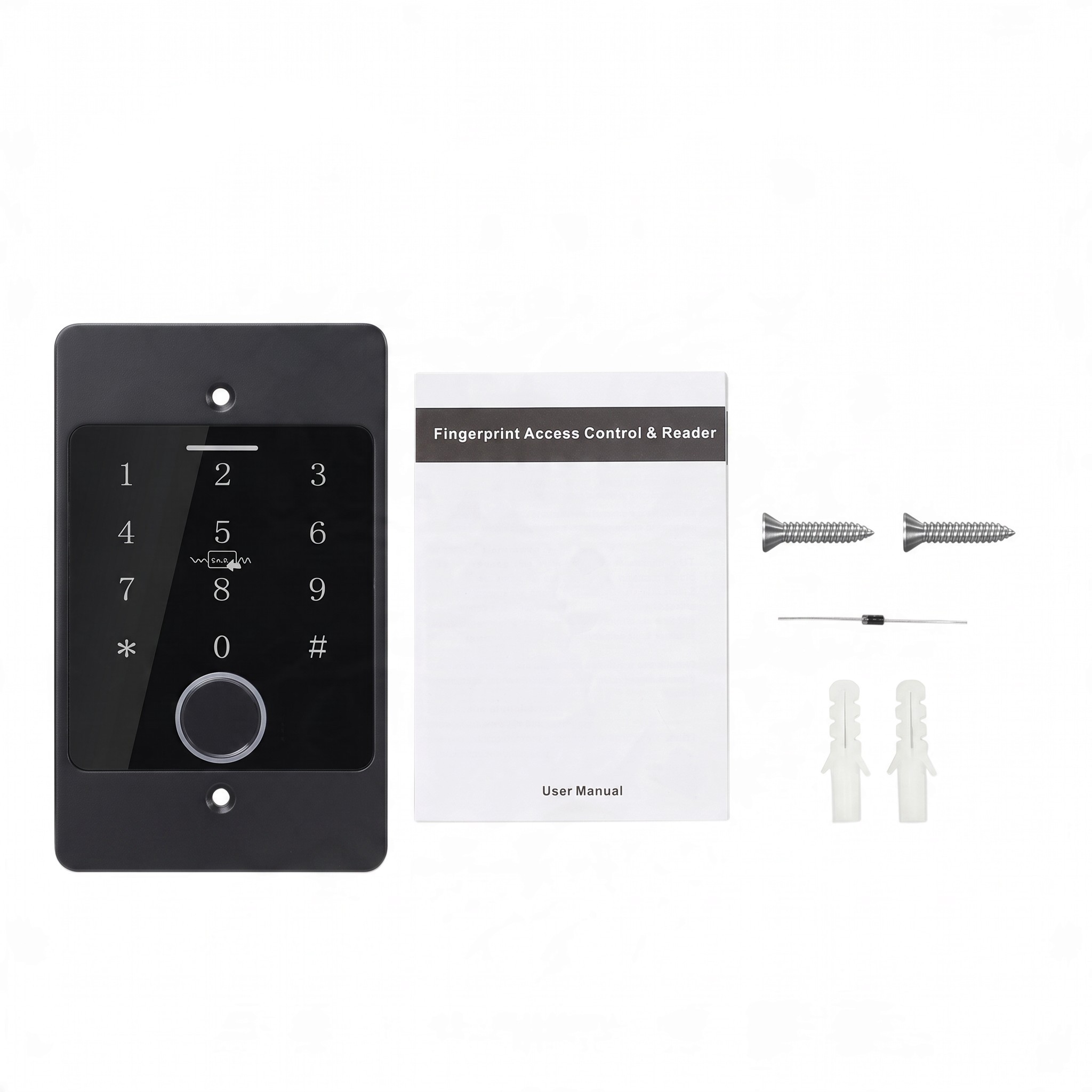

Package Contents:
- 1x Fingerprint and RFID Card Reader HF5-EM M70
- 1x User Manual
- 1x Diode
- 1x Mounting Material
The Fingerprint and RFID Card Reader HF5-EM M70 offers several ways to unlock doors, including remote control via the Tuya app. The zinc alloy casing and IP66 rating allow for installation both inside buildings and in outdoor environments. The device works with 125 kHz cards and temporary passwords that can be created in the app. A DC 12 V power supply is required for operation, along with connection to an electric lock using colour-coded wires. The dimensions of 115 x 70 mm and the black finish are suitable for entrance doors of offices, homes, and businesses.
