Digital meter with external transformer for accurate monitoring of voltage 40–300 V, current 100 A, power, power factor, frequency, and energy consumption. Full description
In stock
€24.41
Overview

Energy Meter for DIN Rail 8 x 6.4 x 5.4 cm AC 40–300 V 100 A External Transformer Volt Amp Frequency kWh Meter

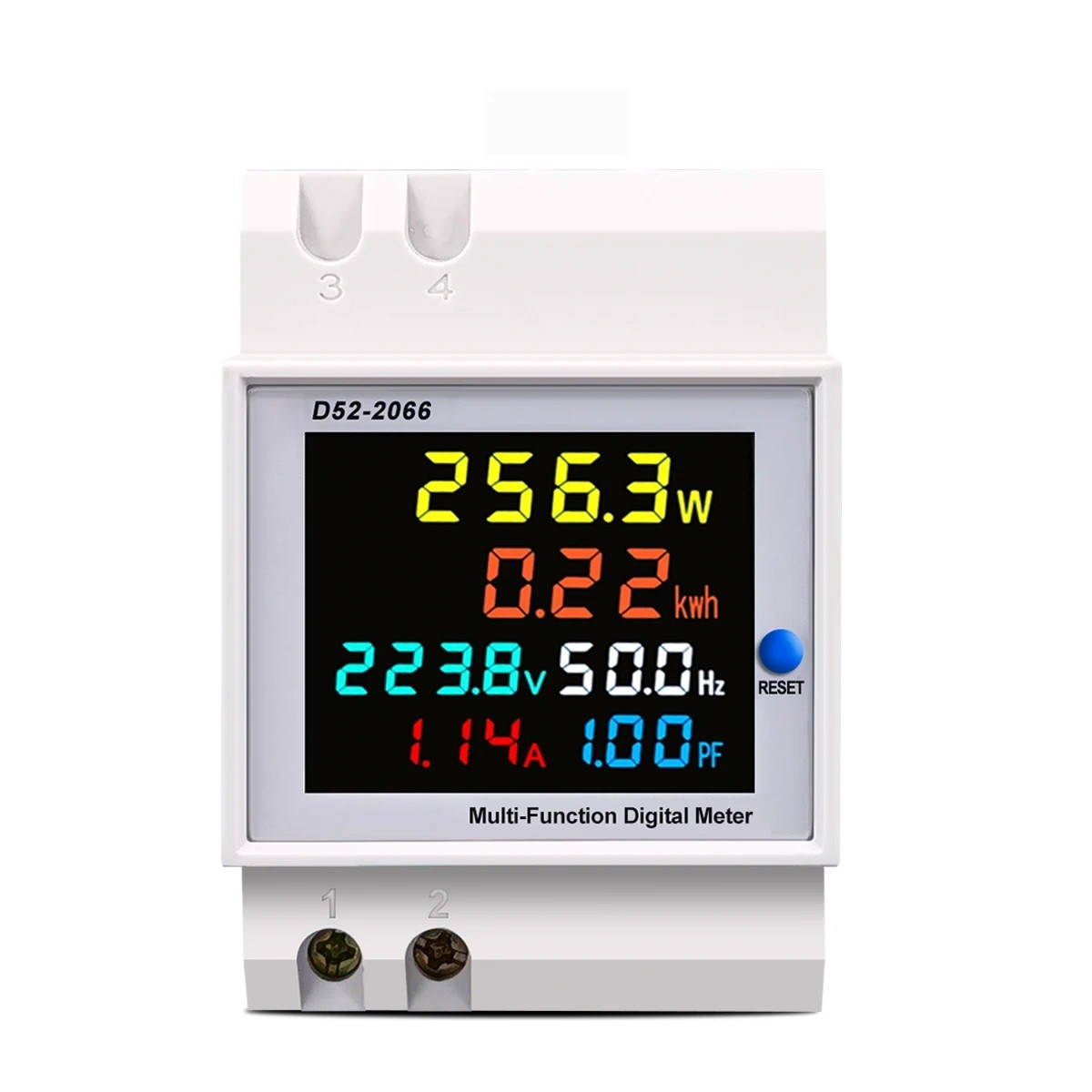

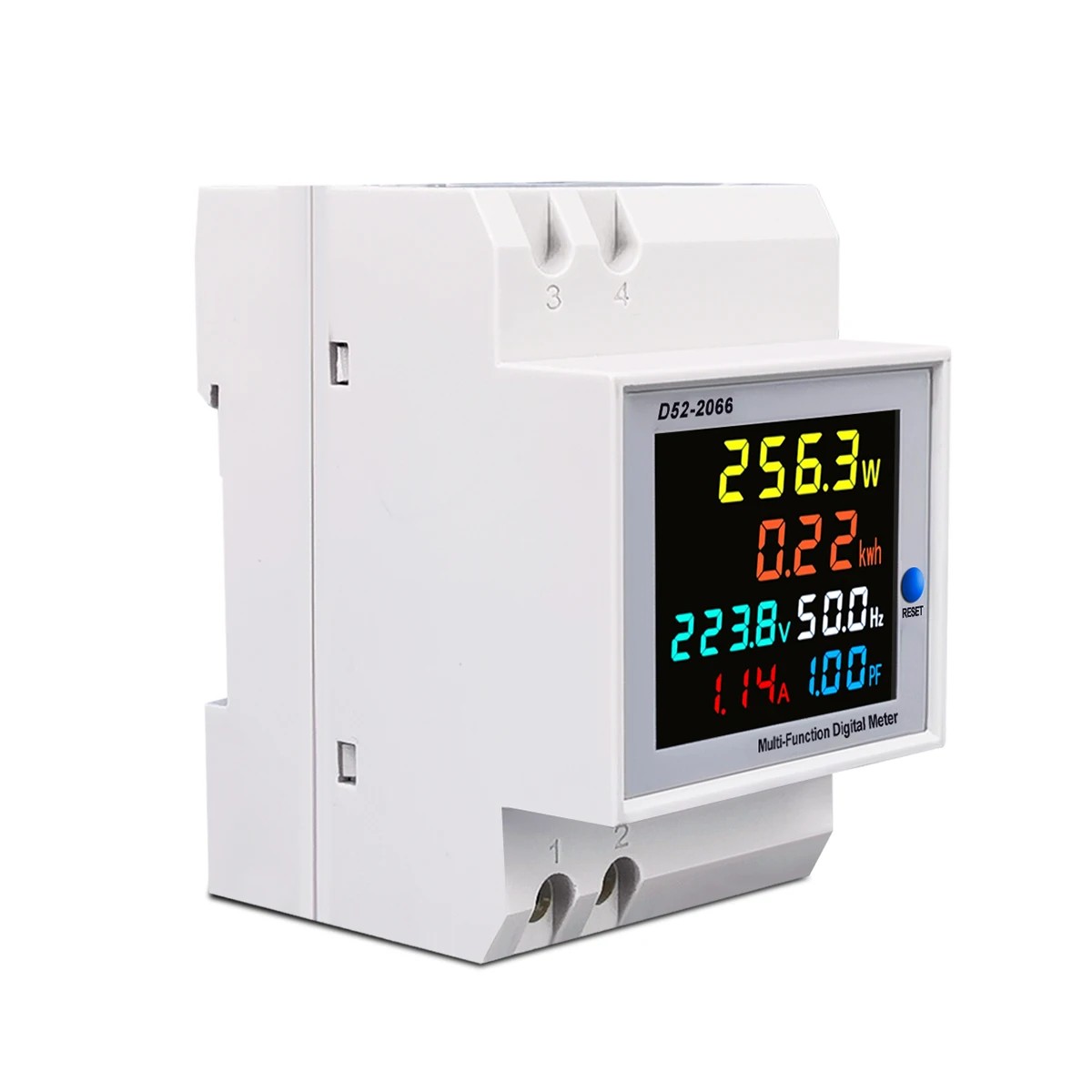

This professional digital energy meter is designed for precise monitoring of electrical networks AC 40–300 V, ideal for common domestic, workshop, and industrial applications. With an external current transformer, it can measure currents up to 100 A, displaying instantaneous power, voltage, power factor, frequency, and energy consumption with an accuracy of 1 % ± 2 digits. The colour display clearly separates individual parameters for quick orientation. The external CT transformer allows for easier installation in cabinets with limited space.

  • Designed for networks AC 40–300 V, suitable for 110 V and 220–240 V systems.
  • Current measurement 0–100 A, resolution 0.01 A, with external CT for easy mounting.
  • Power measurement up to 30,000 W with automatic resolution adjustment.
  • Energy consumption 0–99,999 kWh with multi-level resolution (0.01/0.1/1 kWh).
  • Frequency 45–65 Hz and display of power factor 0.00–1.00 PF.
  • Colour display with clearly separated values of voltage, current, power, PF, and kWh.
  • Value updates 2× per second for accurate monitoring of consumption.
  • Reset energy consumption with a long press of the button (SAM CK / RESET).
  • Memory of the last state even after a power failure.

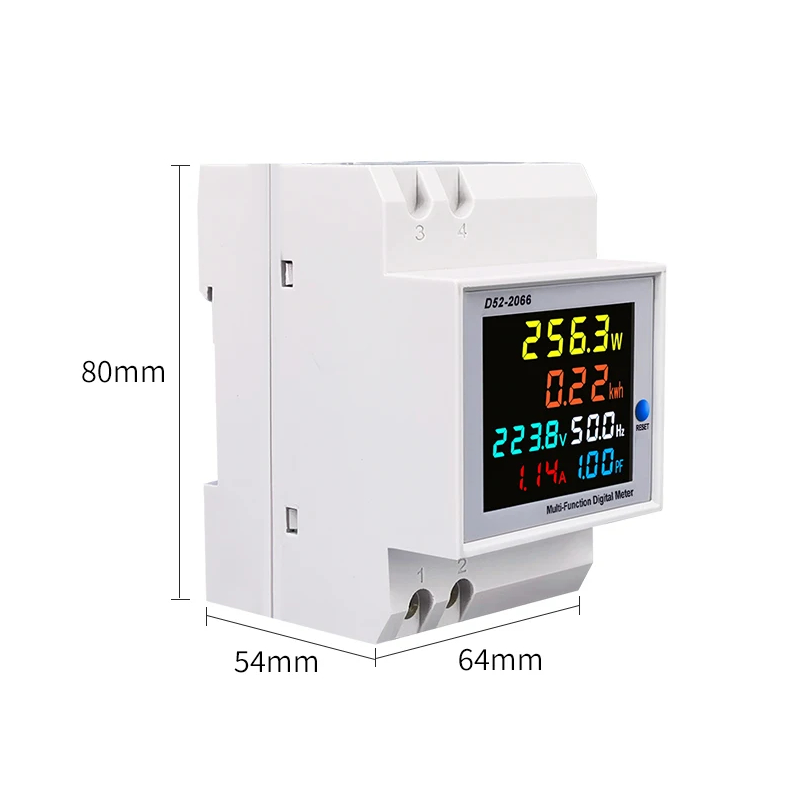

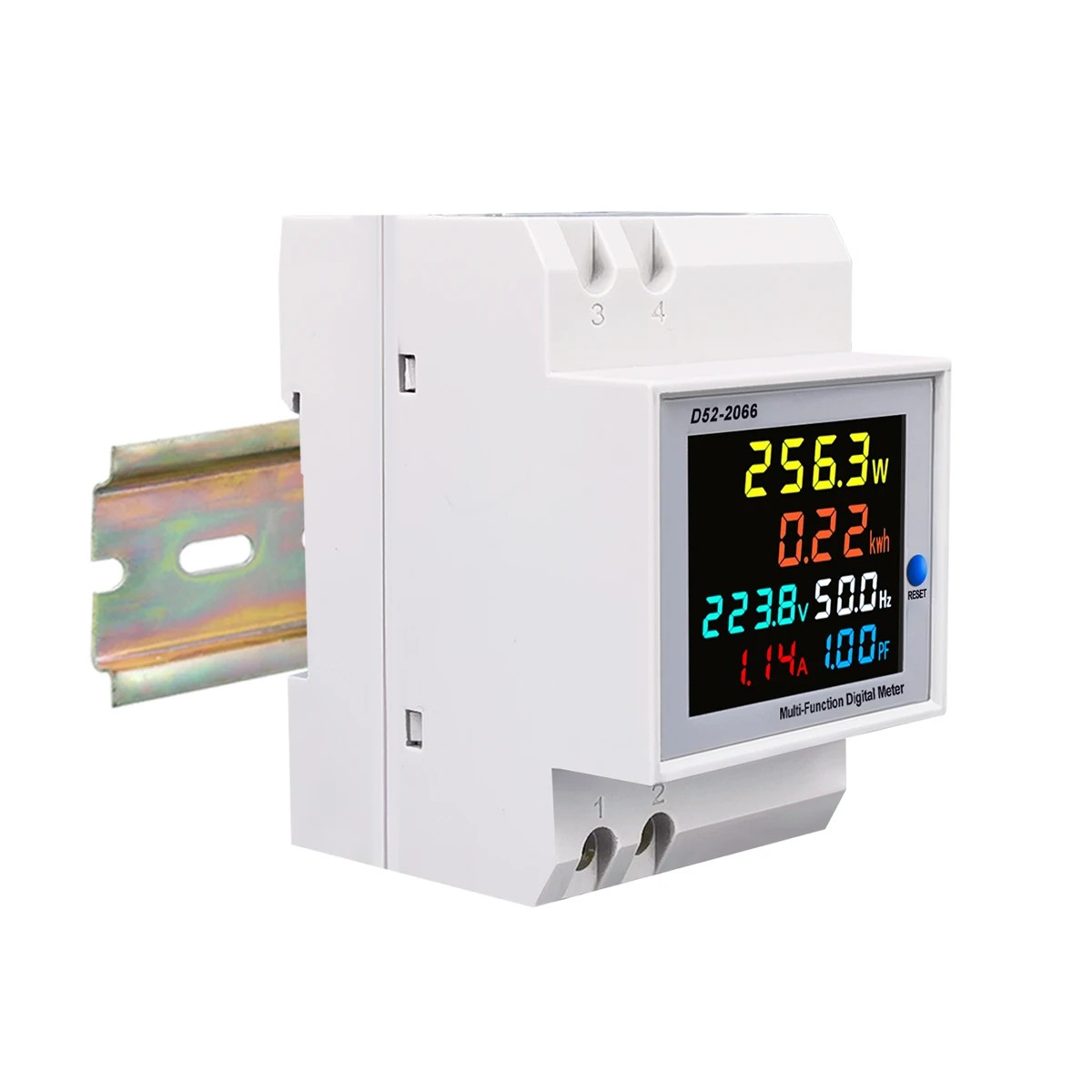

  • Mounting on 35 mm DIN rail, compact dimensions 8 x 6.4 x 5.4 cm.

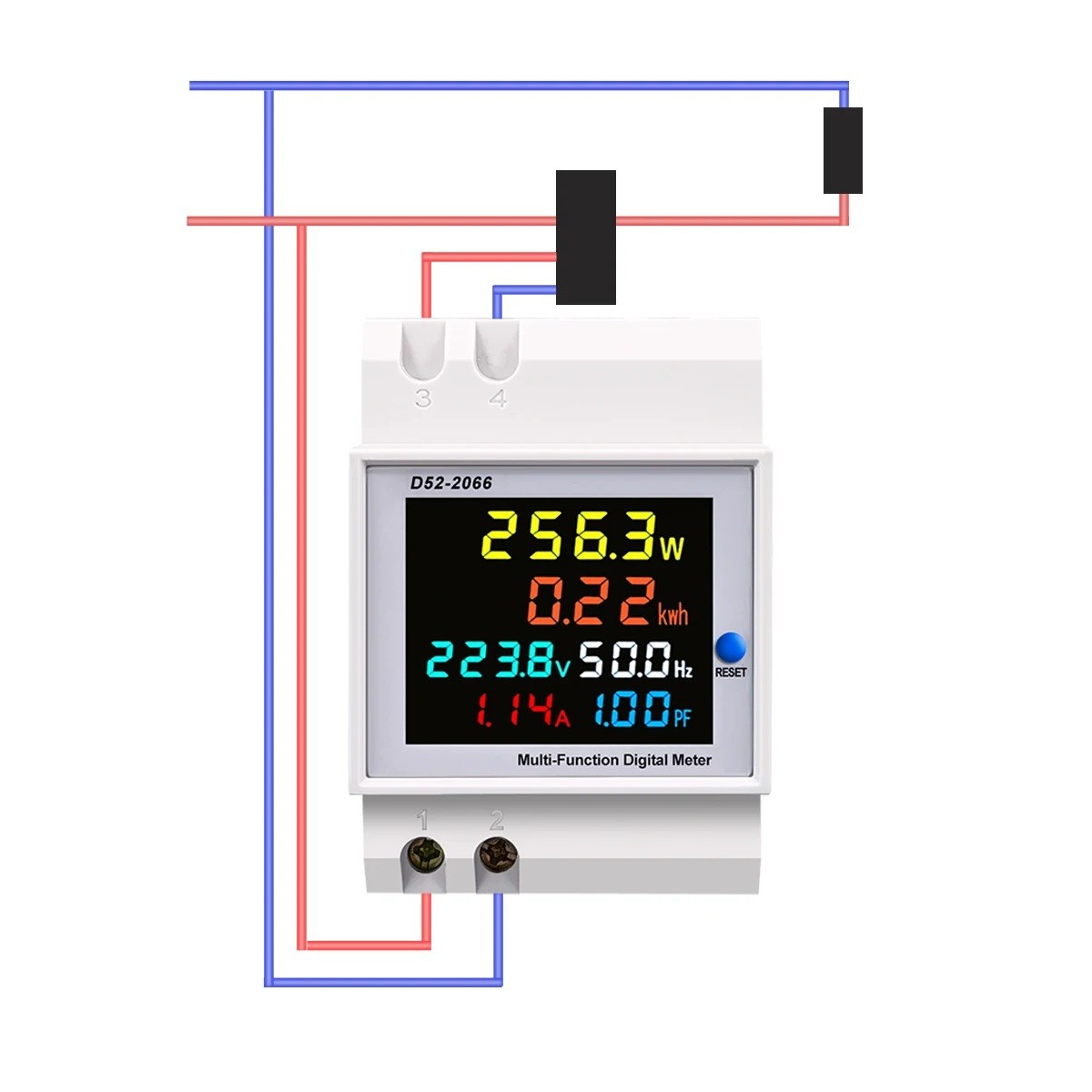

  • Connection: voltage to terminals 1–2, secondary external CT to terminals 3–4.
  • Contents: 1× energy meter, 1× external CT transformer

The device provides a comprehensive overview of electricity consumption in real-time and enables detailed control of load, network quality, and long-term consumption. The external current transformer significantly facilitates installation in cabinets where it is not possible to interrupt the conductor or space is lacking. Thanks to the clear display, voltage, current, power, and consumption can be monitored instantly, making it an indispensable tool for home technicians and professionals alike.
