Energy Meter for DIN Rail 8 x 6.4 x 5.4 cm AC 250–450 V 100 A External Transformer Volt Amp Frequency kWh Digital Meter
You already have the maximum available quantity in your cart.
Energy Meter for DIN Rail 8 x 6.4 x 5.4 cm AC 250–450 V 100 A External Transformer Volt Amp Frequency kWh Digital Meter

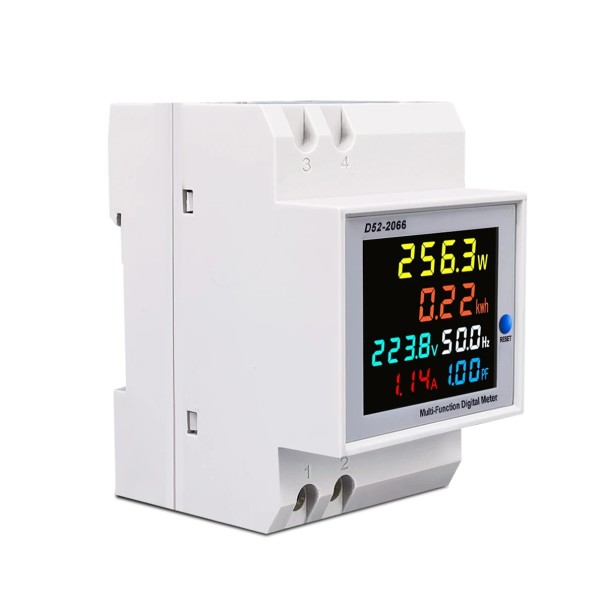

This multifunctional digital energy meter is specially designed for three-phase and high-voltage applications AC 250–450 V, such as industrial switchgear, 380 V installations, or technical projects. The external current transformer allows for measuring current up to 100 A without the need to interrupt the conductor, significantly simplifying installation. The clear colour display shows voltage, current, power, frequency, energy consumption, and power factor with an accuracy of 1 % ± 2 digits.
- For high-voltage installations AC 250–450 V, ideal for 380 V circuits.
- External CT for measuring 0–100 A, resolution 0.01 A.
- Power up to 45,000 W, automatic resolution according to load.
- Energy consumption 0–99,999 kWh with fine resolution.
- Frequency 45–65 Hz and power factor 0.00–1.00 PF.

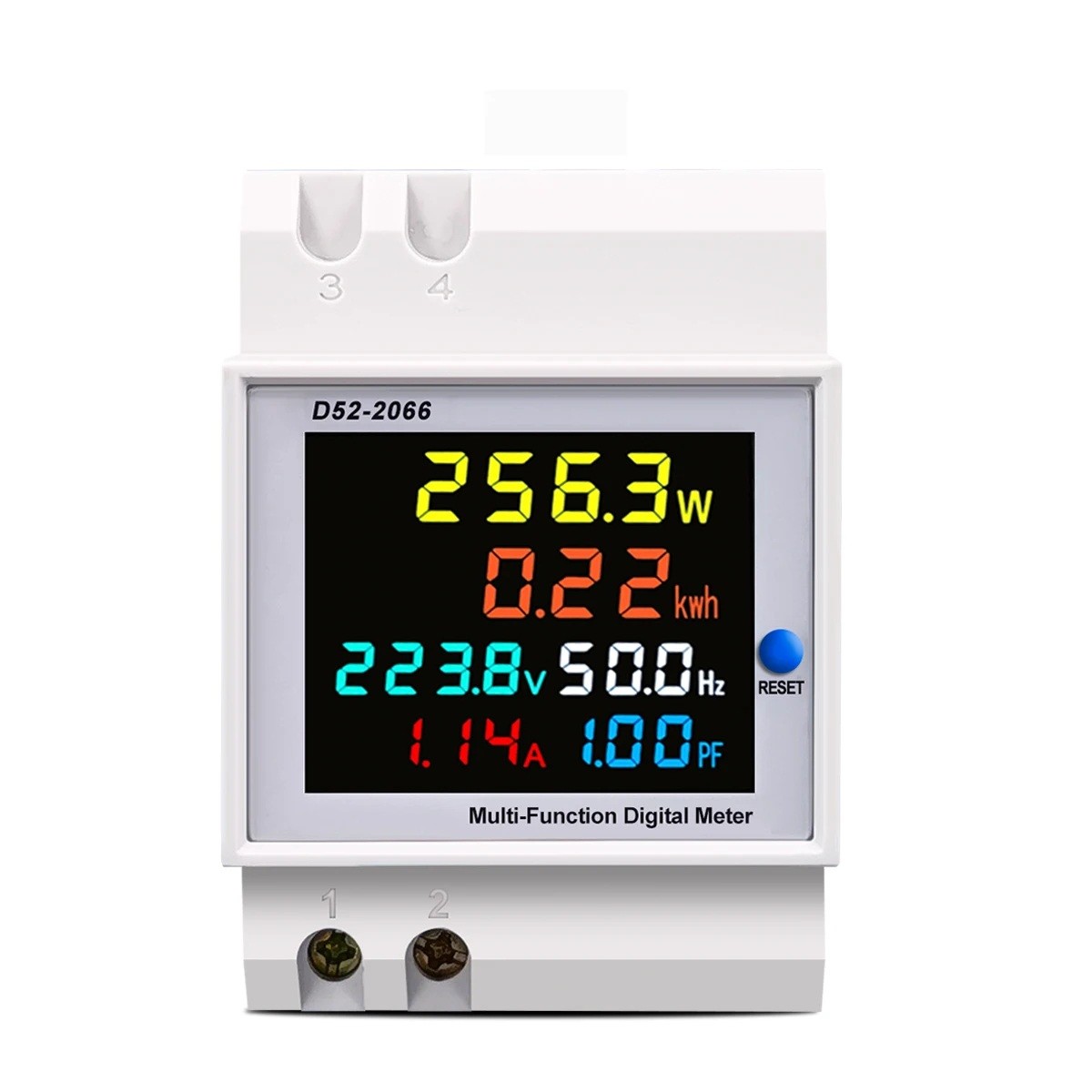

- Colour display with clear separation of all values.
- Measurement data update 2× per second.
- Reset of consumption values and memory of the last state.

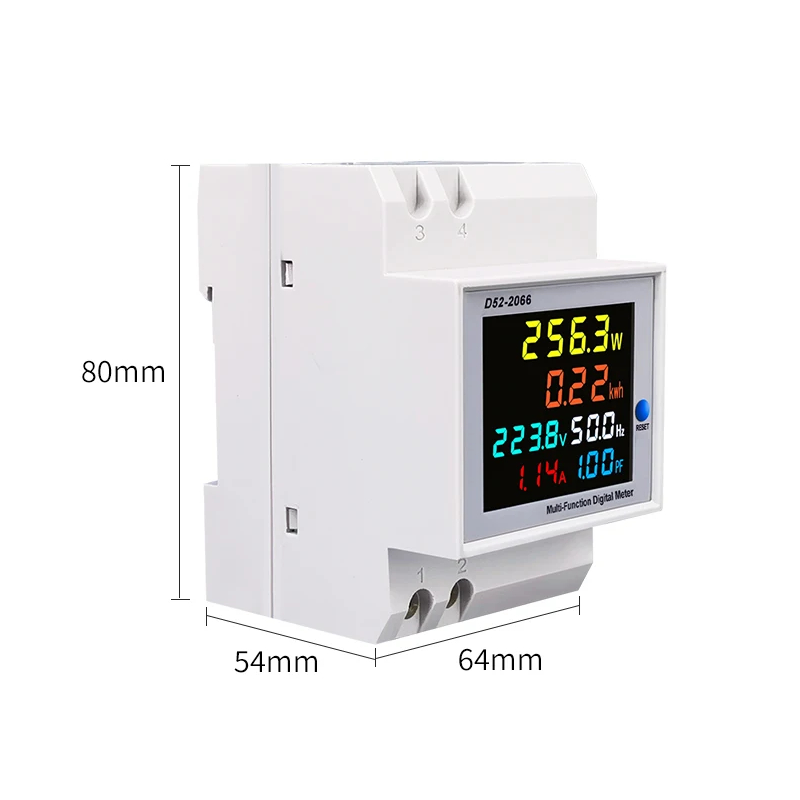

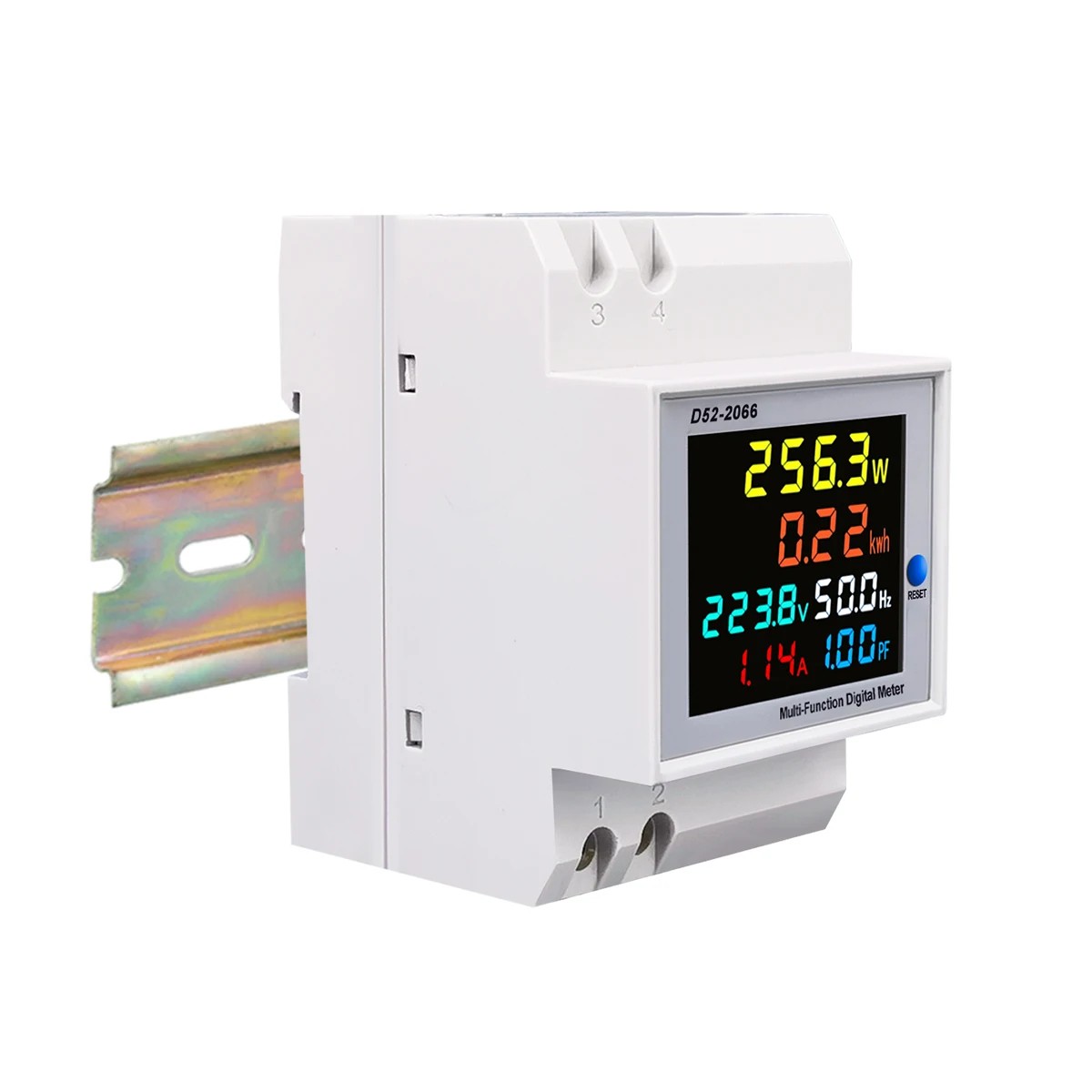

- Installation on 35 mm DIN rail, dimensions 8 x 6.4 x 5.4 cm.

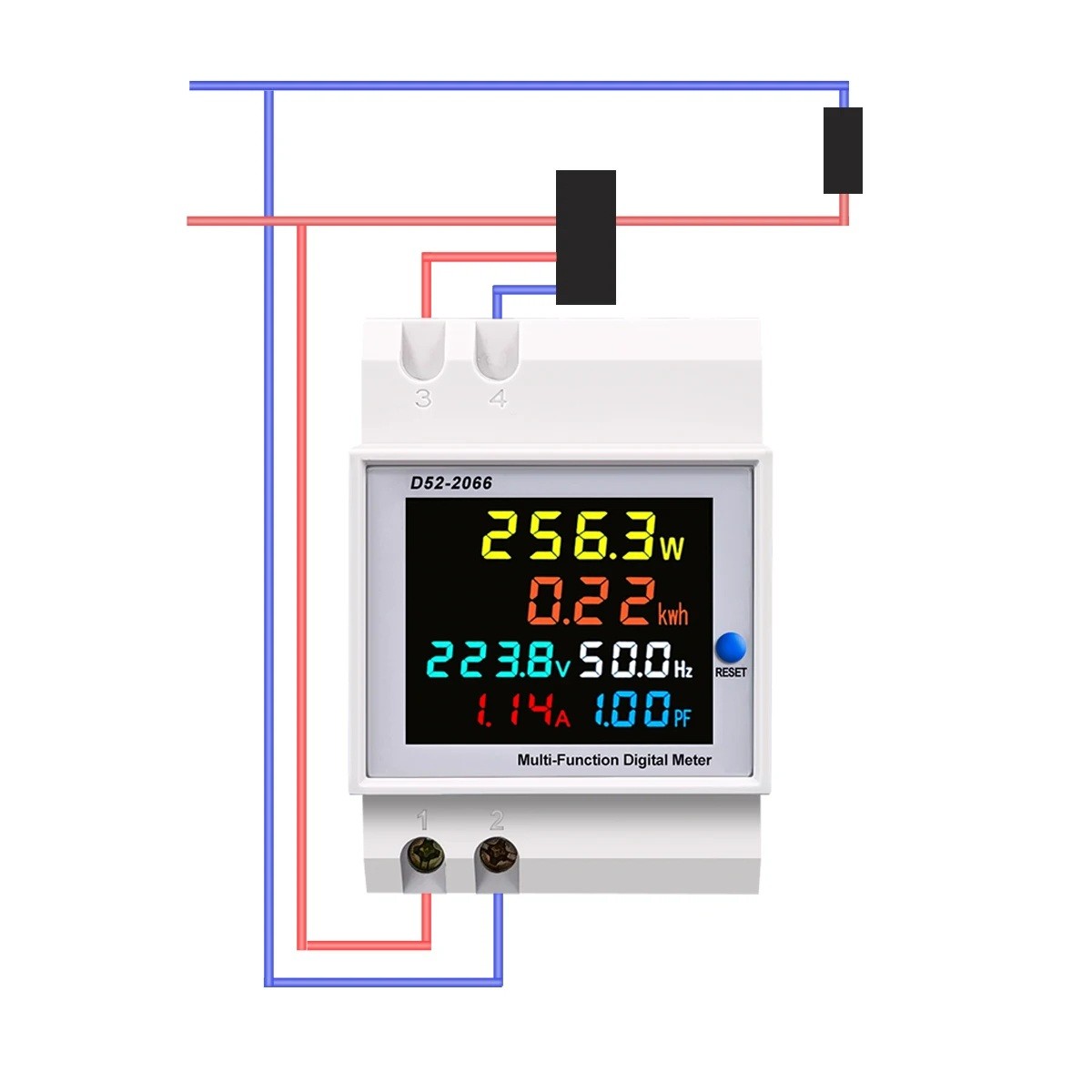

- Connection: voltage 1–2, external CT to 3–4, load wire to be passed through the CT sensor.
- Package contents: 1× meter, 1× external CT transformer
The device offers comprehensive monitoring of electrical parameters in a higher voltage range and is ideal for professional and industrial use. The external current transformer greatly facilitates installation and ensures safe measurement even in complex switchgear. With its clear display, the status of the network, consumption, and load can be quickly evaluated, making the meter a reliable tool for everyday operation.
