Professional digital meter for DIN rail with built-in transformer for accurate monitoring of voltage 380 - 450 V, current, power and consumption. Full description
In stock
€24.85
Overview

Energy Meter for DIN Rail 8 x 6.4 x 5.4 cm AC 250 - 450 V 100 A Built-in Transformer Digital Volt Amp kWh Meter

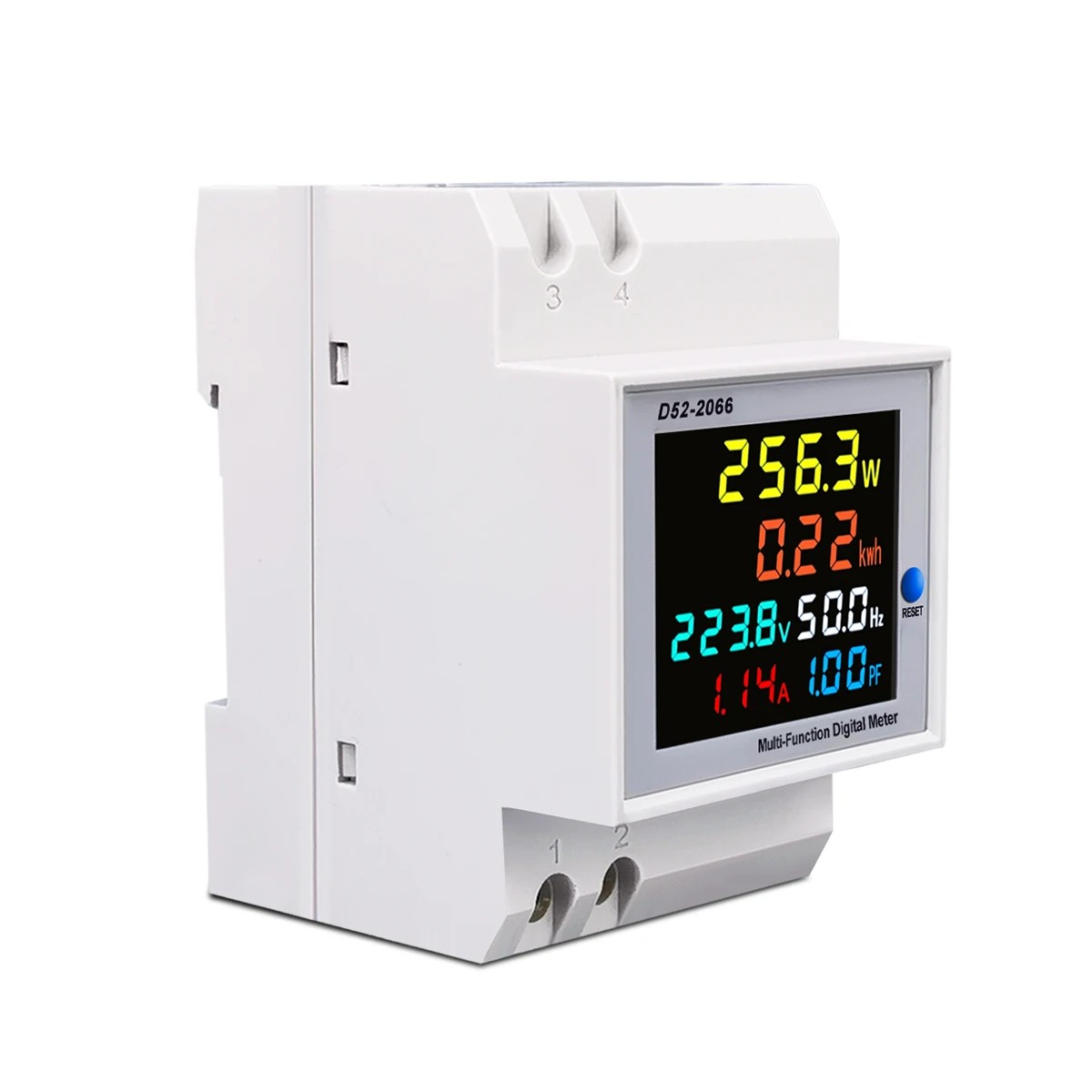

This single-phase digital meter is specifically designed for monitoring networks AC 250–450 V, typically used in three-phase distributions of 380 V (measuring one phase). It allows for measuring current up to 100 A, instantaneous power, power factor, frequency, and energy consumption with high accuracy 1 % ± 2 digits. The clear colour multifunction display shows all values simultaneously, making it ideal for professional electrical installations, workshop distribution boards, or monitoring the load of individual circuits. The built-in current transformer allows measurement by passing the conductor through an opening in the body of the device – without an external sensor.

  • Designed for AC 250–450 V, ideal for monitoring phase from 380 V systems.
  • Current measurement 0–100 A, resolution 0.01 A, suitable for precise monitoring of consumption.
  • Power measurement up to 45,000 W with automatically adjusted resolution.
  • Energy consumption 0–99,999 kWh with resolution 0.01 / 0.1 / 1 kWh depending on value.
  • Display of power factor (0.00–1.00 PF) and frequency 45–65 Hz for network quality control.

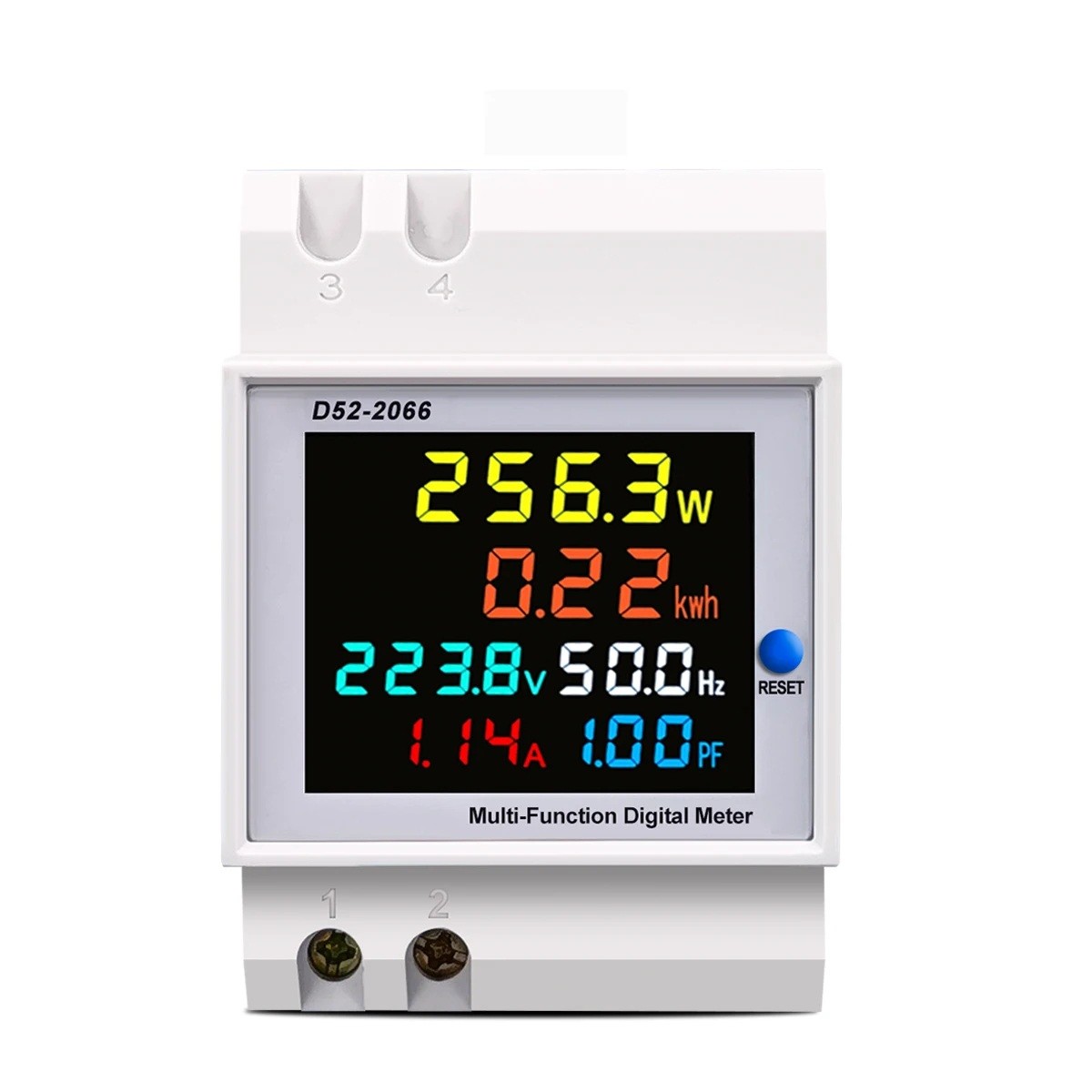

  • Colour display with separate colours for voltage, current, power, energy, and PF.
  • Built-in CT transformer – measurement by passing the phase conductor through the opening.
  • Fast value update 2× per second for immediate response to load changes.
  • Energy consumption reset function using button (RESET / SAM CK).
  • Energy data memory – retains values even after power failure.

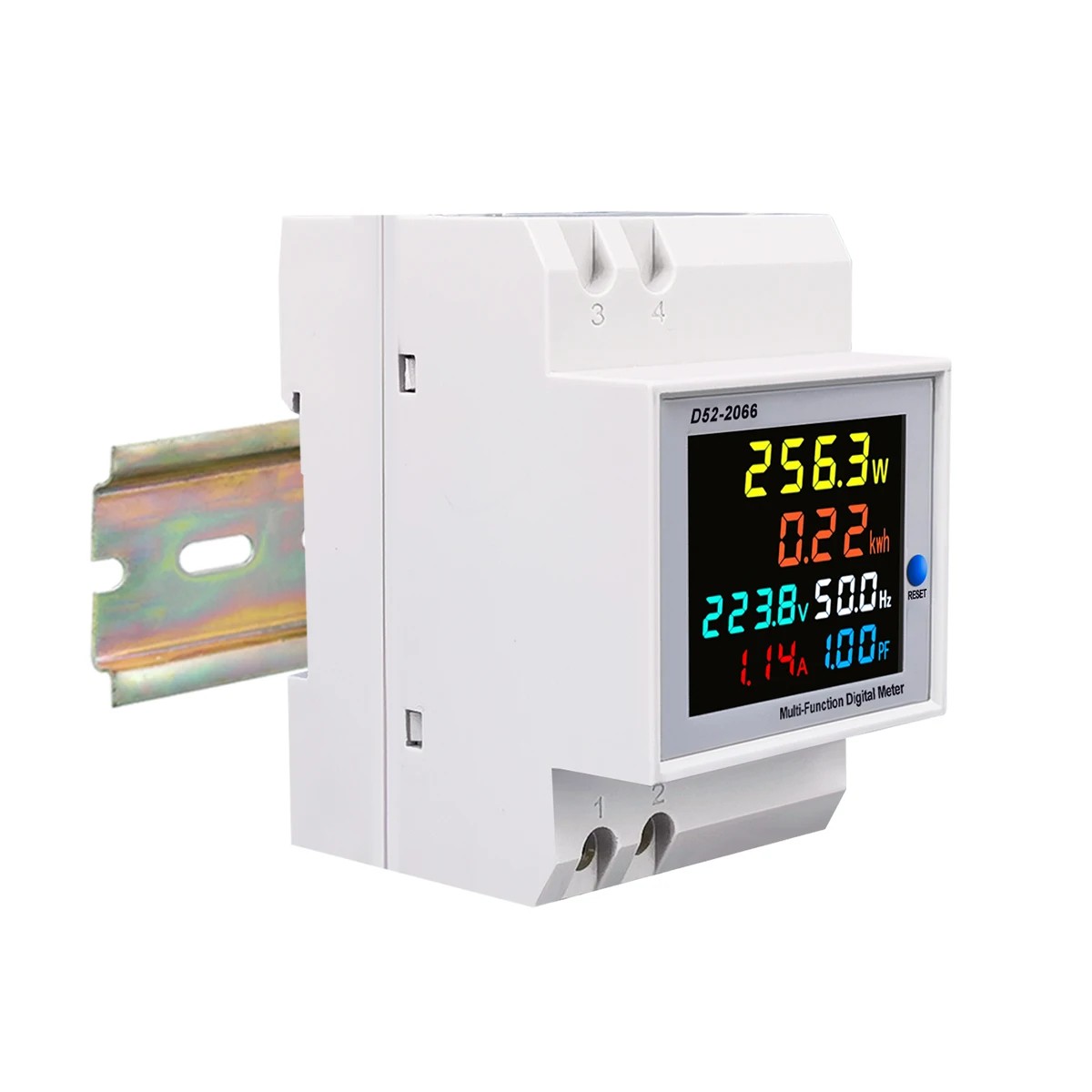

  • Compact dimensions 8 x 6.4 x 5.4 cm, mounting on DIN rail 35 mm.
  • Suitable for industrial and domestic applications, sub-distribution boards, workshops, and machines.
  • Package contents: 1× energy meter

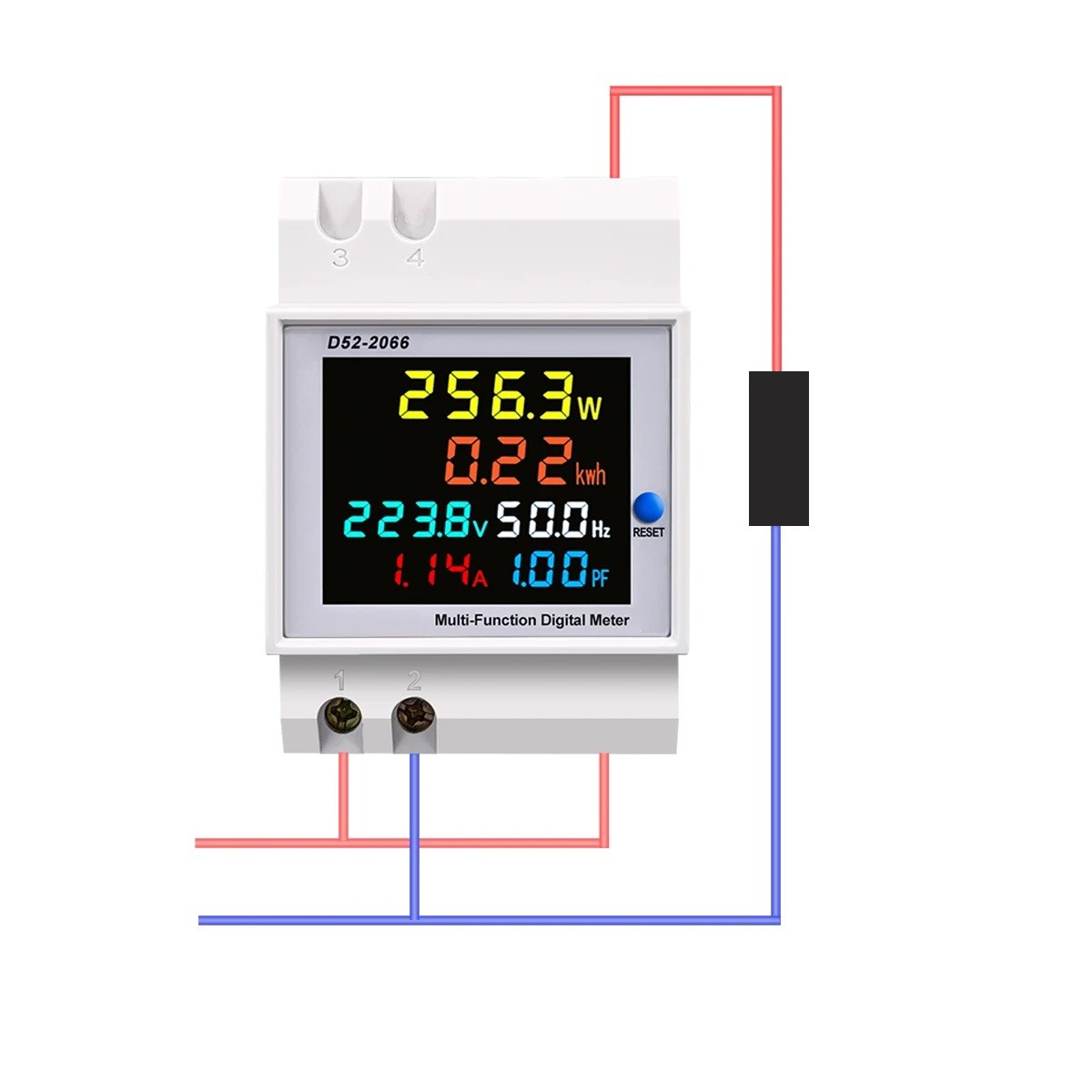

The device easily clips onto the DIN rail and connects to terminals 1–2 for the measured voltage. The phase conductor is then passed through the built-in opening for current measurement. Upon powering on, voltage, current, power, energy, frequency, and power factor are immediately displayed. The meter is ideal for monitoring machine loads, long-term consumption of circuits, and checking the proper functioning of electrical systems. Stored consumption data remains intact even after a power failure, allowing for long-term measurement without interruption. Accurate values and robust construction make this meter a reliable tool for professionals and home technicians alike.
