Electronic Fuel Level Sensor 0–190 Ω 425 mm 17" Float Sensor IP67 for Measuring Fuel, Oil and Liquids in Tanks of Boats and Commercial Vehicles
This fuel level sensor is used to monitor the amount of liquid inside the tank using a float measuring system. The sensor generates a resistance output 0–190 Ω, which is commonly used in fuel level indicators. Thanks to this standard, it is possible to connect the device to various measuring instruments used in transport or technical applications.
The measuring rod has a length of 425 mm (17"), which corresponds to the recommended tank height of approximately 435 to 450 mm. Due to this length, the sensor is suitable for deeper tanks used, for example, in marine systems, commercial vehicles or technical equipment.
The sensor is designed for operation in electrical systems with a power supply of 9–32 V DC. The maximum operating current reaches ≤60 mA, allowing integration into standard electrical installations of vehicles or technical devices.
The sensor's design is adapted for installation using a mounting flange with five holes. Fixing is done using the included M5 screws and a sealing gasket with a thickness of 2 mm. The gasket helps ensure a proper seal between the tank and the sensor, reducing the risk of liquid leakage.
The device is protected with an IP67 rating, which provides protection against dust and also resistance to short-term immersion in water. This makes it possible to use the sensor in environments with higher humidity or in applications where contact with water may occur. The measurement resolution of 21 mm allows monitoring changes in the liquid level in the tank.
Main Features
- Sensor resistance range: 0–190 Ω
- Measuring rod length: 425 mm (17")
- Operating voltage: 9–32 V DC
- IP rating: IP67
- Measurement resolution: 21 mm
- Recommended tank size: 435–450 mm
- Operating current: ≤60 mA
- Operating temperature: -30 to +75 °C
- Storage temperature: -40 to +85 °C
- Mounting flange: 5 holes
- Mounting screws: 5× M5
- Sealing gasket thickness: 2 mm
- Suitable for fuel, oil and liquid tanks
- Used in boats, commercial vehicles and technical systems

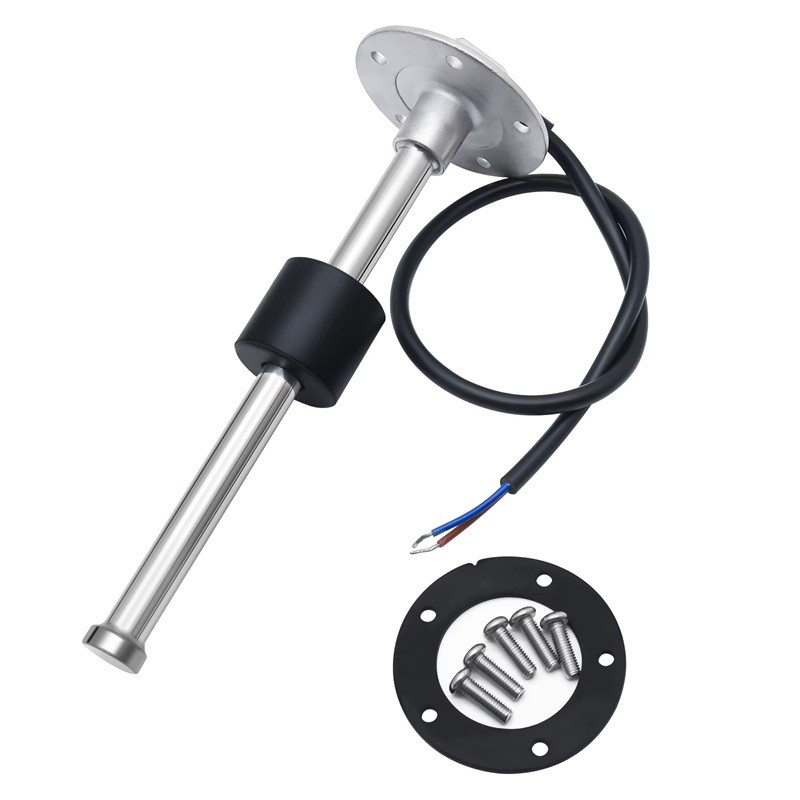

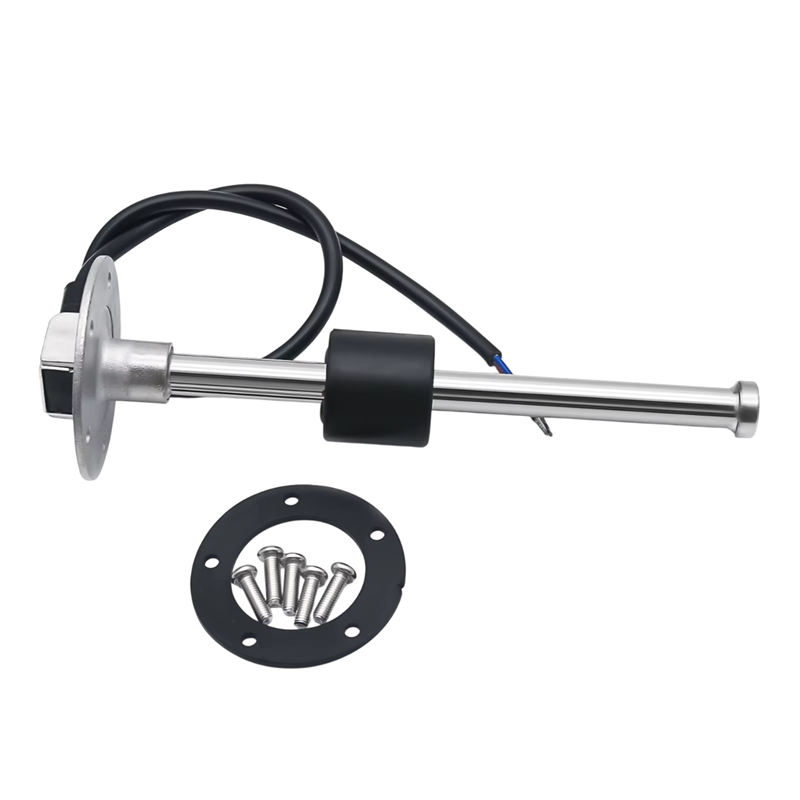

Package Contents
- Fuel level sensor
- Sealing gasket
- 5× mounting screws
The sensor allows monitoring the amount of liquid in the tank using a resistance signal compatible with standard level indicators. With a length of 425 mm, it is suitable for tanks with a greater structural height used in transport or technical systems. The installation using five screws allows for secure attachment of the sensor to the tank. The package also includes screws and a gasket for installation. The design with an IP67 rating allows the device to be used even in more demanding operating conditions.
